Recursive regularity and the finest regular coarsening of a polyhedral subdivision Rafel Jaume joint work with G unter Rote Overview Basic definition and tools Recursive regularity and finest regular coarsening Properties of recursively

slide-1
SLIDE 1

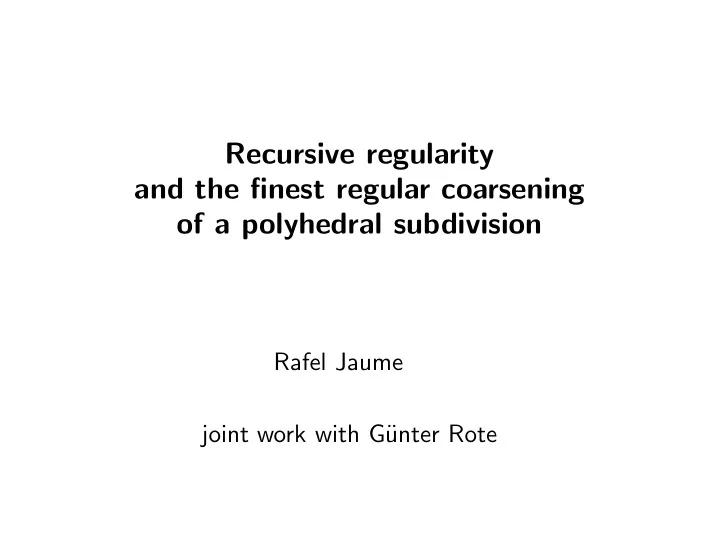

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision

joint work with G¨ unter Rote Rafel Jaume

slide-2
SLIDE 2

Basic definition and tools Recursive regularity and finest regular coarsening Applications Properties of recursively regular subdivisions Overview

slide-3
SLIDE 3

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision
slide-4
SLIDE 4

Let A = {p1, ...pn} be a set of points in Rd

slide-5
SLIDE 5

Let A = {p1, ...pn} be a set of points in Rd A polyhedral subdivision S of A is

slide-6
SLIDE 6

Let A = {p1, ...pn} be a set of points in Rd A polyhedral subdivision S of A is a polytopal complex

slide-7
SLIDE 7

Let A = {p1, ...pn} be a set of points in Rd A polyhedral subdivision S of A is a polytopal complex covering conv(A)

slide-8
SLIDE 8

Let A = {p1, ...pn} be a set of points in Rd A polyhedral subdivision S of A is a polytopal complex covering conv(A) whose set of vertices is contained in A

slide-9
SLIDE 9

Let A = {p1, ...pn} be a set of points in Rd A polyhedral subdivision S of A is Full-dimensional polytopes of the complex are called cells a polytopal complex covering conv(A) whose set of vertices is contained in A

slide-10
SLIDE 10

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision
slide-11
SLIDE 11

S

slide-12
SLIDE 12

A coarsening of a subdivision S is a polyhedral subdivision S′ such that every face f ∈ S is contained in some face κ(f) ∈ S′ S

slide-13
SLIDE 13

A coarsening of a subdivision S is a polyhedral subdivision S′ such that every face f ∈ S is contained in some face κ(f) ∈ S′ S

′

slide-14
SLIDE 14

A coarsening of a subdivision S is a polyhedral subdivision S′ such that every face f ∈ S is contained in some face κ(f) ∈ S′ S

′

Reciprocally, we say that S is a refinement of S′

  • r that S is finer than S′
slide-15
SLIDE 15

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision
slide-16
SLIDE 16

S is regular if it is the orthogonal projection of a (d + 1)-dimensional polytope P Rd

slide-17
SLIDE 17

Rd+1

slide-18
SLIDE 18

Rd+1 pi ωi pi

ωi

slide-19
SLIDE 19

Rd+1 P = conv( pi

ωi

  • )
slide-20
SLIDE 20

Rd+1

slide-21
SLIDE 21

A non-regular subdivision

slide-22
SLIDE 22

A non-regular subdivision

slide-23
SLIDE 23

A regular coarsening

slide-24
SLIDE 24

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision
slide-25
SLIDE 25

Whether S is regular can be checked by a LP

slide-26
SLIDE 26

wall C D

slide-27
SLIDE 27

pb1 pb2 pb3 q affine basis of C point in D \ C C D

slide-28
SLIDE 28

pb1 pb2 pb3 q C D pb1

ωb1

  • pb3

ωb3

  • pb2

ωb2

  • q

ωq

slide-29
SLIDE 29

pb1 pb2 pb3 q C D

slide-30
SLIDE 30
  • 1

... 1 pb1 ... pbd+1

  • 1

... 1 1 pb1 ... pbd+1 q wb1 ... wbd+1 wq

  • > 0

pb1 pb2 pb3 q C D Local folding condition

slide-31
SLIDE 31

pc1 pc2 pcd+1 C

slide-32
SLIDE 32

pc1 pc2 pcd+1 q1 C

slide-33
SLIDE 33

pc1 pc2 pcd+1 q1 C

slide-34
SLIDE 34

pc1 pc2 pcd+1 C q2

slide-35
SLIDE 35

pc1 pc2 pcd+1 Coplanarity conditions

  • 1

... 1 1 pc1 ... pcd+1 qi wc1 ... wcd+1 wi

  • = 0

C q2

slide-36
SLIDE 36
  • 1

... 1 pb1 ... pbd+1

  • 1

... 1 1 pb1 ... pbd+1 q wb1 ... wbd+1 wq

  • > 0

Coplanarity conditions Local folding conditions

  • 1

... 1 1 pc1 ... pcd+1 qi wc1 ... wcd+1 wi

  • = 0
slide-37
SLIDE 37
  • 1

... 1 pb1 ... pbd+1

  • 1

... 1 1 pb1 ... pbd+1 q wb1 ... wbd+1 wq

  • > 0

Coplanarity conditions Local folding conditions s1 · ω > 0 sm · ω > 0 e1 · ω = 0 el · ω = 0 . . . . . . ω =    ω1 . . . ωn   

S

  • 1

... 1 1 pc1 ... pcd+1 qi wc1 ... wcd+1 wi

  • = 0
slide-38
SLIDE 38
  • 1

... 1 pb1 ... pbd+1

  • 1

... 1 1 pb1 ... pbd+1 q wb1 ... wbd+1 wq

  • > 0

Coplanarity conditions Local folding conditions s1 · ω > 0 sm · ω > 0 e1 · ω = 0 el · ω = 0 . . . . . . ω =    ω1 . . . ωn    Lemma (De Loera, Rambau, Santos) S is regular ⇐ ⇒ S is compatible

S

  • 1

... 1 1 pc1 ... pcd+1 qi wc1 ... wcd+1 wi

  • = 0
slide-39
SLIDE 39

The finest regular coarsening is well defined Theorem

slide-40
SLIDE 40

C D

Local folding condition >

Proof The finest regular coarsening is well defined Theorem

slide-41
SLIDE 41

C D

Local folding condition Coplanarity condition > =

Proof The finest regular coarsening is well defined Theorem

slide-42
SLIDE 42

Proof The finest regular coarsening is well defined Theorem s1 · ω > 0 sm · ω > 0 e1 · ω = 0 el · ω = 0

S

. . . . . .

slide-43
SLIDE 43

Proof The finest regular coarsening is well defined Theorem s1 · ω > 0 sm · ω > 0 e1 · ω = 0 el · ω = 0

S

s1 · ω ≥ 0 sm · ω ≥ 0 e1 · ω = 0 el · ω = 0

S′

. . . . . . . . . . . .

slide-44
SLIDE 44

Proof The finest regular coarsening is well defined Theorem s1 · ω > 0 sm · ω > 0 e1 · ω = 0 el · ω = 0

S

s1 · ω ≥ 0 sm · ω ≥ 0 e1 · ω = 0 el · ω = 0

S′

. . . . . . . . . . . . Is a closed cone. A point in its relatives interior satisfies in an strict way the maximum number of inequalities.

slide-45
SLIDE 45

Recursive regularity and the finest regular coarsening

  • f a polyhedral subdivision
slide-46
SLIDE 46

A polyhedral subdivision S is recursively regular if: S is regular or There exists a regular coarsening S′ of S with coarsening function κ such that κ−1(C) is recursively regular, for each cell C ∈ S′

slide-47
SLIDE 47

A polyhedral subdivision S is recursively regular if: S is regular or There exists a regular coarsening S′ of S with coarsening function κ such that κ−1(C) is recursively regular, for each cell C ∈ S′

slide-48
SLIDE 48

A polyhedral subdivision S is recursively regular if: S is regular or There exists a regular coarsening S′ of S with coarsening function κ such that κ−1(C) is recursively regular, for each cell C ∈ S′

slide-49
SLIDE 49

A polyhedral subdivision S is recursively regular if: S is regular or There exists a regular coarsening S′ of S with coarsening function κ such that κ−1(C) is recursively regular, for each cell C ∈ S′ Has it applications? How different from regularity is? Is flip-connected? How can we identify a recursively regular subdivision ?

slide-50
SLIDE 50

Regularity tree

slide-51
SLIDE 51

Regularity tree

slide-52
SLIDE 52

Regularity tree

slide-53
SLIDE 53

Regularity tree FRC

slide-54
SLIDE 54

Regularity tree FRC

slide-55
SLIDE 55

Regularity tree FRC

slide-56
SLIDE 56

Regularity tree FRC FRC

slide-57
SLIDE 57

Regularity tree FRC FRC

slide-58
SLIDE 58

Regularity tree FRC FRC

slide-59
SLIDE 59

S is recursively regular

  • its regularity tree has regular leaves

Proposition

slide-60
SLIDE 60

S is recursively regular

  • its regularity tree has regular leaves

Proposition Corollary It can be efficiently decided if a subdivision is recursively regular

slide-61
SLIDE 61

S is recursively regular

  • its regularity tree has regular leaves

Proposition Proof Regularity tree with regular leaves ⇒ recursively regular (def)

slide-62
SLIDE 62

S is recursively regular

  • its regularity tree has regular leaves

Proposition Proof Regularity tree with regular leaves ⇒ recursively regular (def) Recursively regular ⇒ regular leaves:

slide-63
SLIDE 63

S is recursively regular

  • its regularity tree has regular leaves

Proposition Proof Regularity tree with regular leaves ⇒ recursively regular (def) Recursively regular ⇒ regular leaves: There exists a “regularity tree” certifying that S is recursively

  • regular. The first coarsening must be coarser than the FRC.

Then, each cell of the FRC is recursively regular, since regularity is preserved by intersection with convex sets.

slide-64
SLIDE 64

Regular Cyclic Regular subdivisions are acyclic Acyclicity theorem (Edelsbrunner) Subdivisions

1 2 3 4

Cyclic

slide-65
SLIDE 65

Regular Cyclic

  • Rec. regular

Regular subdivisions are acyclic Acyclicity theorem (Edelsbrunner) Subdivisions Recursively regular subdivisions are a superset of the regular subdivisions and a subset of the acyclic ones Proposition

1 2 3 4

Cyclic

slide-66
SLIDE 66

Recursively regular subdivisions are a superset of the regular subdivisions and a subset of the acyclic ones Proposition Proof Assume that it exists a cycle in a recursively regular subdivision.

slide-67
SLIDE 67

Recursively regular subdivisions are a superset of the regular subdivisions and a subset of the acyclic ones Proposition Proof We can assume that the cycle belongs to more than one cell of the FRC and apply recursion otherwise. Assume that it exists a cycle in a recursively regular subdivision.

slide-68
SLIDE 68

Recursively regular subdivisions are a superset of the regular subdivisions and a subset of the acyclic ones Proposition Proof We can assume that the cycle belongs to more than one cell of the FRC and apply recursion otherwise. Then, the FRC cannot be regular, since a cycle cannot be destroyed by means of merging cells. Assume that it exists a cycle in a recursively regular subdivision.

slide-69
SLIDE 69

There is a 5-dimensional point set with at least 12 recursively regular triangulations pairwise disconnected and disconnected from any regular triangulation in the graph of flips Proposition

slide-70
SLIDE 70

Applications Floodlights Homothecies Graph embeddings Spider webs

slide-71
SLIDE 71

Floodlights polyhedral fan with n cells

slide-72
SLIDE 72

Floodlights polyhedral fan with n cells n points

slide-73
SLIDE 73

Floodlights polyhedral fan with n cells n points

  • ne to one
slide-74
SLIDE 74

Floodlights polyhedral fan with n cells n points

  • ne to one

covering assignment

slide-75
SLIDE 75

Covering fans A polyhedral fan is universally covering if for any point set there exists a covering assignment

slide-76
SLIDE 76

Covering fans A polyhedral fan is universally covering if for any point set there exists a covering assignment Regular fans are universally covering Theorem (Galperin & Galperin, 1981)

slide-77
SLIDE 77

Covering fans A polyhedral fan is universally covering if for any point set there exists a covering assignment Regular fans are universally covering Theorem (Galperin & Galperin, 1981) Recursively regular fans are universally covering Cyclic fans are not universally covering Theorem

slide-78
SLIDE 78

Regular Cyclic

  • Rec. regular

Fans

slide-79
SLIDE 79

Regular Cyclic

  • Rec. regular

Universally covering Fans

slide-80
SLIDE 80

Regular Cyclic

  • Rec. regular

Universally covering Fans

slide-81
SLIDE 81

Regular Cyclic

  • Rec. regular

Universally covering Fans

slide-82
SLIDE 82

Regular Cyclic

  • Rec. regular

Universally covering Fans

slide-83
SLIDE 83

Overlapping condition

slide-84
SLIDE 84

Overlapping condition

slide-85
SLIDE 85

Overlapping condition

slide-86
SLIDE 86

V = {1, ..., n} Directional graph embeddings − → E ⊂ V × V

slide-87
SLIDE 87

V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Directional graph embeddings − → E ⊂ V × V

slide-88
SLIDE 88

N : − → E − → Rd V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Directional graph embeddings − → E ⊂ V × V

slide-89
SLIDE 89

N : − → E − → Rd V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Is there a σ : V ↔ P N(i, j) · pi ≥ N(i, j) · pj ∀(i, j) ∈ − → E ? proper embedding Directional graph embeddings − → E ⊂ V × V

slide-90
SLIDE 90

N : − → E − → Rd V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Is there a σ : V ↔ P N(i, j) · pi ≥ N(i, j) · pj ∀(i, j) ∈ − → E ? A path is always embeddable proper embedding Directional graph embeddings − → E ⊂ V × V

slide-91
SLIDE 91

N : − → E − → Rd V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Is there a σ : V ↔ P N(i, j) · pi ≥ N(i, j) · pj ∀(i, j) ∈ − → E ? A path is always embeddable A cycle is not always embeddable proper embedding Directional graph embeddings − → E ⊂ V × V

slide-92
SLIDE 92

N : − → E − → Rd V = {1, ..., n} P = {p1, ...pn} ⊂ Rd Is there a σ : V ↔ P N(i, j) · pi ≥ N(i, j) · pj ∀(i, j) ∈ − → E ? A path is always embeddable A cycle is not always embeddable A tree? proper embedding Directional graph embeddings − → E ⊂ V × V

slide-93
SLIDE 93

Proposition If the graph is the normal graph (or a projection of a subgraph) of a fan and there is a covering assignment forP, there is a proper graph embedding for P. If there is no assignment satisfying OC for... , there is no proper embedding

slide-94
SLIDE 94

Proposition If the graph is the normal graph (or a projection of a subgraph) of a fan and there is a covering assignment forP, there is a proper graph embedding for P. If there is no assignment satisfying OC for... , there is no proper embedding Corollary The graph of a polytope is always embeddable.

slide-95
SLIDE 95

Homothecies 1,3 1,5 0,9 1,1 0,6 1,2

slide-96
SLIDE 96

Homothecies 1,3 1,5 0,9 1,1 0,6 1,2

slide-97
SLIDE 97

Homothecies

slide-98
SLIDE 98

Homothecies

slide-99
SLIDE 99

Homothecies

slide-100
SLIDE 100

Homothecies

slide-101
SLIDE 101

Homothecies

slide-102
SLIDE 102

Homothecies Proposition If there is a covering assignment for the fan and the points corresponding to the transformations, there is a transformation assignment If there is no assignment satisfying OC for a fan and a pointset, there is a set of transformations for which there is no transformation assignment

slide-103
SLIDE 103

Spiderwebs

slide-104
SLIDE 104

Spiderwebs (Positive) equilibrium stress ↔ (convex) lifting (for non-crossing planar frameworks) Maxwell-Cremona correspondence Theorem (Connelly) If a tensegrity framework is infinitesimally rigid, then it has an equilibrium stress that is nonzero

  • n all struts and cables

Theorem (Crapo, Whiteley) If a spider web has a positive equilibriuem stress, then it is rigid

slide-105
SLIDE 105

Spiderwebs

slide-106
SLIDE 106

Spiderwebs

slide-107
SLIDE 107

Spiderwebs

slide-108
SLIDE 108

Spiderwebs

slide-109
SLIDE 109

Spiderwebs

slide-110
SLIDE 110

Spiderwebs A recursively regular spider web is rigid. A recursively regular non-regular spider web is infinitesimally flexible. Theorem

slide-111
SLIDE 111

Conclusions The finest regular coarsening is well defined

slide-112
SLIDE 112

Conclusions The finest regular coarsening is well defined Recursively regular subdivisions are Superset of regular subdivisions, subset of acyclic Easy to identify Not connected by flips

slide-113
SLIDE 113

Conclusions The finest regular coarsening is well defined Recursively regular subdivisions are Superset of regular subdivisions, subset of acyclic Easy to identify Not connected by flips They are related to the problems Covering by floodlights Covering by homothecies Directional graph embedding Spider webs

slide-114
SLIDE 114

Conclusions The finest regular coarsening is well defined Recursively regular subdivisions are Superset of regular subdivisions, subset of acyclic Easy to identify Not connected by flips They are related to the problems Covering by floodlights Covering by homothecies Directional graph embedding Universality, counterexamples Spider webs

slide-115
SLIDE 115

Conclusions The finest regular coarsening is well defined Recursively regular subdivisions are Superset of regular subdivisions, subset of acyclic Easy to identify Not connected by flips They are related to the problems Covering by floodlights Covering by homothecies Directional graph embedding Universality, counterexamples Spider webs Open: Decision problem, universality limits

slide-116
SLIDE 116

Conclusions The finest regular coarsening is well defined Recursively regular subdivisions are Superset of regular subdivisions, subset of acyclic Easy to identify Not connected by flips They are related to the problems Covering by floodlights Covering by homothecies Directional graph embedding Universality, counterexamples Thank you! Spider webs Open: Decision problem, universality limits
