[PPT] - Records with Rank Polymorphism Justin Slepak Olin Shivers PowerPoint Presentation

SLIDE 1

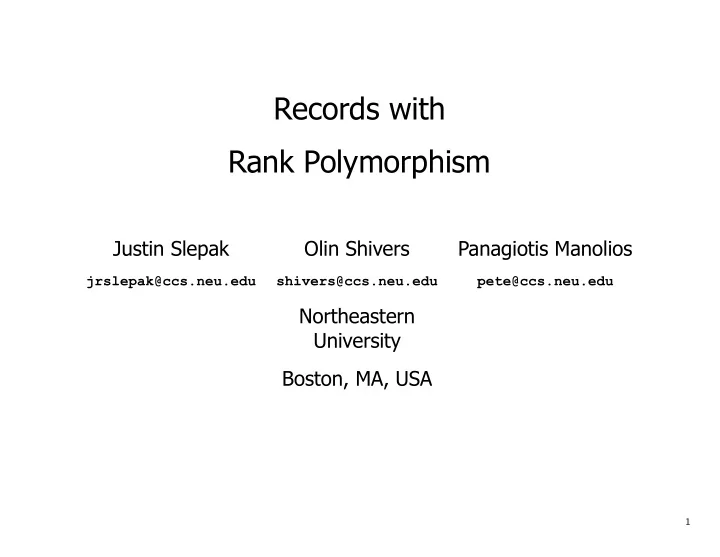

Records with Rank Polymorphism

Justin Slepak Olin Shivers Panagiotis Manolios

jrslepak@ccs.neu.edu shivers@ccs.neu.edu pete@ccs.neu.edu

Northeastern University Boston, MA, USA

1

SLIDE 2

The Remora Project

Remora: Higher-order rank-polymorphic language

2

SLIDE 3

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data

3

SLIDE 4

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data (f )

4

SLIDE 5

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data (f ) (f )

5

SLIDE 6

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data (f ) (f )

6

SLIDE 7

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data (f ) (f )

for (i = 0; i < 2; i++) { for (j = 0; j < 3; j++) { for (k = 0; k < 4; k++) { ... } } }

7

SLIDE 8

The Remora Project

Remora: Higher-order rank-polymorphic language Functions work on arbitrarily high-dimensional data (f ) (f )

for (i = 0; i < 2; i++) { for (j = 0; j < 3; j++) { for (k = 0; k < 4; k++) { ... } } }

Can we statically determine implicit control structure?

8

SLIDE 9

How This Happened

Visited TensorFlow team at Google

9

SLIDE 10

How This Happened

Visited TensorFlow team at Google "Can you make something like Pandas data frames?"

1

SLIDE 11

How This Happened

Visited TensorFlow team at Google "Can you make something like Pandas data frames?" Remora: homogeneous data

11

SLIDE 12

How This Happened

Visited TensorFlow team at Google "Can you make something like Pandas data frames?" Remora: homogeneous data Data frame: columnar table

12

SLIDE 13

Two Kinds of Aggregate Data

13

SLIDE 14

Two Kinds of Aggregate Data

Arrays

14

SLIDE 15

Two Kinds of Aggregate Data

Arrays

Homogeneous data

15

SLIDE 16

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly

16

SLIDE 17

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

17

SLIDE 18

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

18

SLIDE 19

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data

19

SLIDE 20

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data Consume individually

2

SLIDE 21

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data Consume individually Field projection

21

SLIDE 22

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data Consume individually Field projection Data Frames ≌ Arrays + Records

22

SLIDE 23

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data Consume individually Field projection Data Frames ≌ Arrays + Records

How to design records?

23

SLIDE 24

Two Kinds of Aggregate Data

Arrays

Homogeneous data Consume uniformly Rank polymorphism

Records

Heterogeneous data Consume individually Field projection Data Frames ≌ Arrays + Records

How to design records?

(to work with rank polymorphism)

24

SLIDE 25

Records with Rank Polymorphism

Small collection of mutually composable constructs

25

SLIDE 26

Records with Rank Polymorphism

Small collection of mutually composable constructs

1. Rank polymorphism in Remora
2. Data frames in Pandas
3. Synthesis design
4. Conclusion

26

SLIDE 27

Rank Polymorphism

27

SLIDE 28

Data Model

28

SLIDE 29

Data Model

Atoms

29

SLIDE 30

Data Model

Atoms Arrays

3

SLIDE 31

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays

31

SLIDE 32

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

32

SLIDE 33

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

#t #f #f #t

4

33

SLIDE 34

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

#t #f #f #t

4

100

34

SLIDE 35

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

#t #f #f #t

4

100

Shape

Sequence of sizes in each dimension

35

SLIDE 36

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

#t #f #f #t

4

100

Shape

Sequence of sizes in each dimension Rank Number of dimensions an array has

36

SLIDE 37

Data Model

Atoms 0 1 9.25 -4+i 's' #t #f Arrays 1 2 3 4 5 6

3,2

#t #f #f #t

4

100

Shape

Sequence of sizes in each dimension Rank Number of dimensions an array has Expressions only stand for arrays, not atoms

37

SLIDE 38

Decomposing an Array

38

SLIDE 39

Decomposing an Array

Cells Individual sub-arrays a function will consume

39

SLIDE 40

Decomposing an Array

Cells Individual sub-arrays a function will consume Frame Aggregate structure around cells

4

SLIDE 41

Decomposing an Array

Cells Individual sub-arrays a function will consume Frame Aggregate structure around cells Rank n array can split n+1 ways

41

SLIDE 42

Decomposing an Array

Cells Individual sub-arrays a function will consume Frame Aggregate structure around cells Rank n array can split n+1 ways 0 1 2 3 1 2 3 4 2 3 4 5

3,4

3×4 matrix frame, twelve scalar cells

42

SLIDE 43

Decomposing an Array

Cells Individual sub-arrays a function will consume Frame Aggregate structure around cells Rank n array can split n+1 ways 0 1 2 3 1 2 3 4 2 3 4 5

3,4

3×4 matrix frame, twelve scalar cells 0 1 2 3 1 2 3 4 2 3 4 5

3,4

3-vector frame, three 4-vector cells

43

SLIDE 44

Decomposing an Array

Cells Individual sub-arrays a function will consume Frame Aggregate structure around cells Rank n array can split n+1 ways 0 1 2 3 1 2 3 4 2 3 4 5

3,4

3×4 matrix frame, twelve scalar cells 0 1 2 3 1 2 3 4 2 3 4 5

3,4

3-vector frame, three 4-vector cells 0 1 2 3 1 2 3 4 2 3 4 5

3,4

scalar frame,

ne 3×4 matrix cell

44

SLIDE 45

Arrays

45

SLIDE 46

Arrays

Abstract value 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

46

SLIDE 47

Arrays

Abstract value 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

0 1 2 3 4 5 6 7

2,2,2

47

SLIDE 48

Arrays

Abstract value 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

0 1 2 3 4 5 6 7

2,2,2

48

SLIDE 49

Arrays

Abstract value Remora syntax 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

[[1 0 0 1 1 0 1] [0 1 0 1 0 1 1] [0 0 1 0 1 1 1]] 0 1 2 3 4 5 6 7

2,2,2

49

SLIDE 50

Arrays

Abstract value Remora syntax 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

[[1 0 0 1 1 0 1] [0 1 0 1 0 1 1] [0 0 1 0 1 1 1]] 0 1 2 3 4 5 6 7

2,2,2

[[[0 1] [2 3]] [[4 5] [6 7]]]

5

SLIDE 51

Arrays

Abstract value Remora syntax 1 0 0 1 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1

3,7

[[1 0 0 1 1 0 1] [0 1 0 1 0 1 1] [0 0 1 0 1 1 1]] 0 1 2 3 4 5 6 7

2,2,2

[[[0 1] [2 3]] [[4 5] [6 7]]]

51

SLIDE 52

Function Application

(+ [10 20] [[1 2] [3 4]])

52

SLIDE 53

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4

53

SLIDE 54

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2]

54

SLIDE 55

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2] Lifted: [[10 10] [20 20]] [[1 2] [3 4]]

55

SLIDE 56

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2] Lifted: [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]])

56

SLIDE 57

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2] Lifted: [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: [10 20] [1 2], [3 4]

57

SLIDE 58

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2] Lifted: [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: [10 20] [1 2], [3 4] Frame: [] [2]

58

SLIDE 59

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: 10, 20 1, 2, 3, 4 Frame: [2] [2 2] Lifted: [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: [10 20] [1 2], [3 4] Frame: [] [2] Lifted: [[10 20] [10 20]] [[1 2] [3 4]]

59

SLIDE 60

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: + 10, 20 1, 2, 3, 4 Frame: [] [2] [2 2] Lifted: [[+ +] [+ +]] [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: [10 20] [1 2], [3 4] Frame: [] [2] Lifted: [[10 20] [10 20]] [[1 2] [3 4]]

6

SLIDE 61

Function Application

(+ [10 20] [[1 2] [3 4]]) Cells: + 10, 20 1, 2, 3, 4 Frame: [] [2] [2 2] Lifted: [[+ +] [+ +]] [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: v+ [10 20] [1 2], [3 4] Frame: [] [] [2] Lifted: [v+ v+] [[10 20] [10 20]] [[1 2] [3 4]]

61

SLIDE 62

Function Application

(+ [10 20] [[1 2] [3 4]]) ↦ [[11 12] [23 24]] Cells: + 10, 20 1, 2, 3, 4 Frame: [] [2] [2 2] Lifted: [[+ +] [+ +]] [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) Cells: v+ [10 20] [1 2], [3 4] Frame: [] [] [2] Lifted: [v+ v+] [[10 20] [10 20]] [[1 2] [3 4]]

62

SLIDE 63

Function Application

(+ [10 20] [[1 2] [3 4]]) ↦ [[11 12] [23 24]] Cells: + 10, 20 1, 2, 3, 4 Frame: [] [2] [2 2] Lifted: [[+ +] [+ +]] [[10 10] [20 20]] [[1 2] [3 4]] (v+ [10 20] [[1 2] [3 4]]) ↦ [[11 22] [13 24]] Cells: v+ [10 20] [1 2], [3 4] Frame: [] [] [2] Lifted: [v+ v+] [[10 20] [10 20]] [[1 2] [3 4]]

63

SLIDE 64

Expected Argument Rank

Frame/cell split determined by function

64

SLIDE 65

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0

65

SLIDE 66

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0 (define (lerp (lo 0) (hi 0) (α 0)) (+ (* α hi) (* (- 1 α) lo)))

66

SLIDE 67

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0 (define (lerp (lo 0) (hi 0) (α 0)) (+ (* α hi) (* (- 1 α) lo))) Change argument rank by η-expansion

67

SLIDE 68

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0 (define (lerp (lo 0) (hi 0) (α 0)) (+ (* α hi) (* (- 1 α) lo))) Change argument rank by η-expansion v+

68

SLIDE 69

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0 (define (lerp (lo 0) (hi 0) (α 0)) (+ (* α hi) (* (- 1 α) lo))) Change argument rank by η-expansion v+ = (λ ((a 1) (b 1)) (+ a b))

69

SLIDE 70

Expected Argument Rank

Frame/cell split determined by function + 0, 0 dot-prod 1, 1 minv 2 lerp 0, 0, 0 poly-eval 1, 0 (define (lerp (lo 0) (hi 0) (α 0)) (+ (* α hi) (* (- 1 α) lo))) Change argument rank by η-expansion v+ = (λ ((a 1) (b 1)) (+ a b)) = ~(1 1)+

7

SLIDE 71

Ragged Data

iota input filter reshape

71

SLIDE 72

Ragged Data

iota input filter reshape Output shape depends on input atoms

72

SLIDE 73

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3])

73

SLIDE 74

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3]) [0 1 2]

74

SLIDE 75

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3]) > (iota [[3] [2] [4]]) [0 1 2]

75

SLIDE 76

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3]) > (iota [[3] [2] [4]]) [0 1 2] [[0 1 2] [0 1] [0 1 2 3]]

76

SLIDE 77

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3]) > (iota [[3] [2] [4]]) [0 1 2] [[0 1 2] [0 1] [0 1 2 3]] 0 1 2 0 1 0 1 2 3

3,?

77

SLIDE 78

Ragged Data

iota input filter reshape Output shape depends on input atoms > (iota [3]) > (iota [[3] [2] [4]]) [0 1 2] [[0 1 2] [0 1] [0 1 2 3]] 0 1 2 0 1 0 1 2 3

3,?

78

SLIDE 79

Ragged Data

New type of atom: boxed array 0 1 2 3

2,2

79

SLIDE 80

Ragged Data

New type of atom: boxed array 0 1 2 3

2,2

0 1 2

3

0 1

2

0 1 2 3

4 3

8

SLIDE 81

Ragged Data

New type of atom: boxed array 0 1 2 3

2,2

0 1 2

3

0 1

2

0 1 2 3

4 3

Lift-safe variant iota*

81

SLIDE 82

Ragged Data

New type of atom: boxed array 0 1 2 3

2,2

0 1 2

3

0 1

2

0 1 2 3

4 3

Lift-safe variant iota* > (iota* [[3] [2] [4]])

82

SLIDE 83

Ragged Data

New type of atom: boxed array 0 1 2 3

2,2

0 1 2

3

0 1

2

0 1 2 3

4 3

Lift-safe variant iota* > (iota* [[3] [2] [4]]) [(box [0 1 2]) (box [0 1]) (box [0 1 2 3])]

83

SLIDE 84

Pandas DataFrame

84

SLIDE 85

Python Dictionary

>>> dallas_temp = {'loc': 'Dallas', 'day': 28, ... 'month': 3, 'year': 2019, ... 'hi': 74, 'lo': 57}

85

SLIDE 86

Python Dictionary

>>> dallas_temp = {'loc': 'Dallas', 'day': 28, ... 'month': 3, 'year': 2019, ... 'hi': 74, 'lo': 57} >>> temp_list = [dallas_temp, ... {'loc': 'Dublin', 'day': 1, ... 'month': 4, 'year': 2019, ... 'hi': 74, 'lo': 57} ... {'loc': 'Nome', 'day': 31, ... 'month': 3, 'year': 2019, ... 'hi': 31, 'lo': 26} ... {'loc': 'Tunis', 'day': 31, ... 'month': 3, 'year': 2019, ... 'hi': 21, 'lo': 12}]

86

SLIDE 87

Pandas DataFrame

More sophisticated tool

87

SLIDE 88

Pandas DataFrame

More sophisticated tool >>> by_rows = pd.DataFrame(temp_list)

88

SLIDE 89

Pandas DataFrame

More sophisticated tool >>> by_rows = pd.DataFrame(temp_list) >>> by_cols = ... pd.DataFrame({'loc': ['Dallas', 'Dublin', ... 'Nome', 'Tunis'], ... 'day': [28, 1, 31, 31], ... 'month': [3, 4, 3, 3], ... 'year': 2019, ... 'hi': [74, 11, 31, 21], ... 'lo': [57, 5, 26, 12]})

89

SLIDE 90

Column Subset

Dictionary of Series objects

9

SLIDE 91

Column Subset

Dictionary of Series objects >>> by_cols['loc']

91

SLIDE 92

Column Subset

Dictionary of Series objects >>> by_cols['loc'] 0 Dallas 1 Dublin 2 Nome 3 Tunis

92

SLIDE 93

Column Subset

Dictionary of Series objects >>> by_cols['loc'] 0 Dallas 1 Dublin 2 Nome 3 Tunis Ask for list of columns, get new DataFrame

93

SLIDE 94

Column Subset

Dictionary of Series objects >>> by_cols['loc'] 0 Dallas 1 Dublin 2 Nome 3 Tunis Ask for list of columns, get new DataFrame >>> by_cols[['loc', 'hi']]

94

SLIDE 95

Column Subset

Dictionary of Series objects >>> by_cols['loc'] 0 Dallas 1 Dublin 2 Nome 3 Tunis Ask for list of columns, get new DataFrame >>> by_cols[['loc', 'hi']] loc hi 0 Dallas 74 1 Dublin 11 2 Nome 31 3 Tunis 21

95

SLIDE 96

Column Update

>>> def normalize_temp(r): ... if in_usa(r['loc']): ... r['lo'] = f2c(r['lo']) ... r['hi'] = f2c(r['hi']) ... return r

96

SLIDE 97

Column Update

>>> def normalize_temp(r): ... if in_usa(r['loc']): ... r['lo'] = f2c(r['lo']) ... r['hi'] = f2c(r['hi']) ... return r >>> by_cols.apply(normalize_temp, axis=1)

97

SLIDE 98

Column Update

>>> def normalize_temp(r): ... if in_usa(r['loc']): ... r['lo'] = f2c(r['lo']) ... r['hi'] = f2c(r['hi']) ... return r >>> by_cols.apply(normalize_temp, axis=1) loc day month year hi lo 0 Dallas 28 3 2019 23.33 13.89 1 Dublin 1 4 2019 11.00 5.00 2 Nome 31 3 2019 -0.56 -3.33 3 Tunis 31 3 2019 21.00 12.00

98

SLIDE 99

Row Filter

>>> by_cols['loc'] == 'Dublin'

99

SLIDE 100

Row Filter

>>> by_cols['loc'] == 'Dublin' 0 False 1 True 2 False 3 False

1

SLIDE 101

Row Filter

>>> by_cols['loc'] == 'Dublin' 0 False 1 True 2 False 3 False >>> by_cols[by_cols['loc'] == 'Dublin']

11

SLIDE 102

Row Filter

>>> by_cols['loc'] == 'Dublin' 0 False 1 True 2 False 3 False >>> by_cols[by_cols['loc'] == 'Dublin'] loc day month year hi lo 1 Dublin 1 4 2019 11 5

12

SLIDE 103

Row Filter

Lifting user-defined functions?

13

SLIDE 104

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc'])

14

SLIDE 105

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc']) ValueError: The truth value

f a Series is ambiguous.

15

SLIDE 106

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc']) ValueError: The truth value

f a Series is ambiguous.

>>> [in_usa(l) for l in by_cols['loc']]

16

SLIDE 107

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc']) ValueError: The truth value

f a Series is ambiguous.

>>> [in_usa(l) for l in by_cols['loc']] [True, False, True, False]

17

SLIDE 108

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc']) ValueError: The truth value

f a Series is ambiguous.

>>> [in_usa(l) for l in by_cols['loc']] [True, False, True, False] >>> by_cols[[in_usa(l) for l in by_cols['loc']]]

18

SLIDE 109

Row Filter

Lifting user-defined functions? >>> in_usa(by_cols['loc']) ValueError: The truth value

f a Series is ambiguous.

>>> [in_usa(l) for l in by_cols['loc']] [True, False, True, False] >>> by_cols[[in_usa(l) for l in by_cols['loc']]] loc day month year hi lo 0 Dallas 28 3 2019 74 57 2 Nome 31 3 2019 31 26

19

SLIDE 110

Row Partition

No lifting over masks

11

SLIDE 111

Row Partition

No lifting over masks >>> us__non_us = ... by_cols.groupby([in_usa(l) for l in ... by_cols['loc']])

111

SLIDE 112

Row Partition

No lifting over masks >>> us__non_us = ... by_cols.groupby([in_usa(l) for l in ... by_cols['loc']]) >>> us__non_us.get_group(True) loc day month year hi lo 0 Dallas 28 3 2019 74 57 2 Nome 31 3 2019 31 26

112

SLIDE 113

Row Partition

No lifting over masks >>> us__non_us = ... by_cols.groupby([in_usa(l) for l in ... by_cols['loc']]) >>> us__non_us.get_group(True) loc day month year hi lo 0 Dallas 28 3 2019 74 57 2 Nome 31 3 2019 31 26 >>> us__non_us.get_group(False) loc day month year hi lo 1 Dublin 1 4 2019 11 5 3 Tunis 31 3 2019 21 12

113

SLIDE 114

Ergonomics

Wide range of functionality

114

SLIDE 115

Ergonomics

Wide range of functionality Support for row-wise and column-wise operations

115

SLIDE 116

Ergonomics

Wide range of functionality Support for row-wise and column-wise operations Many ad hoc structures and methods

116

SLIDE 117

Ergonomics

Wide range of functionality Support for row-wise and column-wise operations Many ad hoc structures and methods Lifting rules do not generalize

117

SLIDE 118

Ergonomics

Wide range of functionality Support for row-wise and column-wise operations Many ad hoc structures and methods Lifting rules do not generalize "It is better to have 100 functions

perate on one data structure than

10 functions on 10 data structures." — Alan Perlis

118

SLIDE 119

Synthesis Design

119

SLIDE 120

Synthesis Design Goals

Create/project/update with anonymous functions

12

SLIDE 121

Synthesis Design Goals

Create/project/update with anonymous functions Eventual possibility of static typing

121

SLIDE 122

Records

Constructor function (record fname1 ... fnamen)

122

SLIDE 123

Records

Constructor function (record fname1 ... fnamen) Can still support "literal" syntax {(fname1 arg1) ... (fnamen argn)}

123

SLIDE 124

Records

Constructor function (record fname1 ... fnamen) Can still support "literal" syntax {(fname1 arg1) ... (fnamen argn)} ((record fname1 ... fnamen) arg1 ... argn)

124

SLIDE 125

Lenses

Function for focusing on piece of data structure (lens fname)

125

SLIDE 126

Lenses

Function for focusing on piece of data structure (lens fname) Composition → focus on nested pieces (compose (lens fname1) ... (lens fnamen))

126

SLIDE 127

Lenses

Function for focusing on piece of data structure (lens fname) Composition → focus on nested pieces (compose (lens fname1) ... (lens fnamen)) Three operations on lenses view set

ver

127

SLIDE 128

Lens Operations

((view L) R) ↦ Field L from within R

128

SLIDE 129

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V

129

SLIDE 130

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V (((over L) F) R) ↦ R with F applied to field L

13

SLIDE 131

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V (((over L) F) R) ↦ R with F applied to field L Syntactic sugar

131

SLIDE 132

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V (((over L) F) R) ↦ R with F applied to field L Syntactic sugar #_(fname ...) (view (compose (lens fname) ...))

132

SLIDE 133

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V (((over L) F) R) ↦ R with F applied to field L Syntactic sugar #_(fname ...) (view (compose (lens fname) ...)) #=(fname ...) (set (compose (lens fname) ...))

133

SLIDE 134

Lens Operations

((view L) R) ↦ Field L from within R (((set L) V) R) ↦ R with field L changed to V (((over L) F) R) ↦ R with F applied to field L Syntactic sugar #_(fname ...) (view (compose (lens fname) ...)) #=(fname ...) (set (compose (lens fname) ...)) #^(fname ...) (over (compose (lens fname) ...))

134

SLIDE 135

Record Creation

> (define dallas-temp {(loc "Dallas") (day 28) (month 3) (year 2019) (hi 74) (lo 57)})

135

SLIDE 136

Record Creation

> (define dallas-temp {(loc "Dallas") (day 28) (month 3) (year 2019) (hi 74) (lo 57)}) > (#_(year) dallas-temp)

136

SLIDE 137

Record Creation

> (define dallas-temp {(loc "Dallas") (day 28) (month 3) (year 2019) (hi 74) (lo 57)}) > (#_(year) dallas-temp) 2019

137

SLIDE 138

Record Creation

> (define dallas-temp {(loc "Dallas") (day 28) (month 3) (year 2019) (hi 74) (lo 57)}) > (#_(year) dallas-temp) 2019 > ([#_(hi) #_(lo)] dallas-temp)

138

SLIDE 139

Record Creation

> (define dallas-temp {(loc "Dallas") (day 28) (month 3) (year 2019) (hi 74) (lo 57)}) > (#_(year) dallas-temp) 2019 > ([#_(hi) #_(lo)] dallas-temp) [74 57]

139

SLIDE 140

Table Creation—Two Different Ways

> (define temp-readings ; by rows [dallas-temp {(loc "Dublin") (day 1) (month 4) (year 2019) (hi 11) (lo 5)} {(loc "Nome") (day 31) (month 3) (year 2019) (hi 31) (lo 26)} {(loc "Tunis") (day 31) (month 3) (year 2019) (hi 21) (lo 12)}])

14

SLIDE 141

Table Creation—Two Different Ways

> (define temp-readings ; by rows [dallas-temp {(loc "Dublin") (day 1) (month 4) (year 2019) (hi 11) (lo 5)} {(loc "Nome") (day 31) (month 3) (year 2019) (hi 31) (lo 26)} {(loc "Tunis") (day 31) (month 3) (year 2019) (hi 21) (lo 12)}]) > (define temp-readings ; by columns {(loc ["Dallas" "Dublin" "Nome" "Tunis"]) (day [28 1 31 31]) (month [3 4 3 3]) (year 2019) (hi [74 11 31 21]) (lo [57 5 26 12])})

141

SLIDE 142

Table Creaction

{(loc ["Dallas" "Dublin" "Nome" "Tunis"]) (day [28 1 31 31]) (month [3 4 3 3]) (year 2019) (hi [74 11 31 21]) (lo [57 5 26 12])}

142

SLIDE 143

Table Creaction

{(loc ["Dallas" "Dublin" "Nome" "Tunis"]) (day [28 1 31 31]) (month [3 4 3 3]) (year 2019) (hi [74 11 31 21]) (lo [57 5 26 12])} ((record loc day month year hi lo) ["Dallas" "Dublin" "Nome" "Tunis"] [28 1 31 31] [3 4 3 3] 2019 [74 11 31 21] [57 5 26 12])

143

SLIDE 144

Column Extraction

> (#_(loc) temp-readings)

144

SLIDE 145

Column Extraction

> (#_(loc) temp-readings) ["Dallas" "Dublin" "Nome" "Tunis"]

145

SLIDE 146

Column Extraction

> (#_(loc) temp-readings) ["Dallas" "Dublin" "Nome" "Tunis"] > (define hi-only {(loc (#_(loc) temp-readings)) (day (#_(day) temp-readings)) (month (#_(month) temp-readings)) (hi (#_(hi) temp-readings))})

146

SLIDE 147

Column Extraction

> (#_(loc) temp-readings) ["Dallas" "Dublin" "Nome" "Tunis"] > (define hi-only {(loc (#_(loc) temp-readings)) (day (#_(day) temp-readings)) (month (#_(month) temp-readings)) (hi (#_(hi) temp-readings))}) > hi-only [{(loc "Dallas") (day 28) (month 3) (hi 74)} {(loc "Dublin") (day 1) (month 4) (hi 11)} {(loc "Nome") (day 31) (month 3) (hi 31)} {(loc "Tunis") (day 31) (month 3) (hi 21)}]

147

SLIDE 148

Column Update

> (define (normalize-temps (w 0)) (define fix-temp (select (in-usa? (#_(loc) w)) f->c id)) ((#^(lo) fix-temp) ((#^(hi) fix-temp) w)))

148

SLIDE 149

Column Update

> (define (normalize-temps (w 0)) (define fix-temp (select (in-usa? (#_(loc) w)) f->c id)) ((#^(lo) fix-temp) ((#^(hi) fix-temp) w))) > (normalize-temps temp-readings)

149

SLIDE 150

Column Update

> (define (normalize-temps (w 0)) (define fix-temp (select (in-usa? (#_(loc) w)) f->c id)) ((#^(lo) fix-temp) ((#^(hi) fix-temp) w))) > (normalize-temps temp-readings) [{(loc "Dallas") (day 28) (month 3) (year 2019) (hi 23.33) (lo 13.89)} {(loc "Dublin") (day 1) (month 4) (year 2019) (hi 11) (lo 5)} {(loc "Nome") (day 31) (month 3) (year 2019) (hi -0.56) (lo -3.33)} {(loc "Tunis") (day 31) (month 3) (year 2019) (hi 21) (lo 12)}]

15

SLIDE 151

Row Filter

> (define usa-mask ((compose in-usa? #_(loc)) hi-only))

151

SLIDE 152

Row Filter

> (define usa-mask ((compose in-usa? #_(loc)) hi-only)) > usa-mask [#t #f #t #f]

152

SLIDE 153

Row Filter

> (define usa-mask ((compose in-usa? #_(loc)) hi-only)) > usa-mask [#t #f #t #f] > (filter usa-mask hi-only)

153

SLIDE 154

Row Filter

> (define usa-mask ((compose in-usa? #_(loc)) hi-only)) > usa-mask [#t #f #t #f] > (filter usa-mask hi-only) [{(loc "Dallas") (day 28) (month 3) (hi 74)} {(loc "Nome") (day 31) (month 3) (hi 31)}]

154

SLIDE 155

Filter → Partition

[ ]

155

SLIDE 156

Filter → Partition

[ ] Row Filter

156

SLIDE 157

Filter → Partition

[ ] Row Filter filter with one mask

157

SLIDE 158

Filter → Partition

[ ] Row Filter filter with one mask [ ]

158

SLIDE 159

Filter → Partition

[ ] Row Filter filter with one mask [ ] Row Partition

159

SLIDE 160

Filter → Partition

[ ] Row Filter filter with one mask [ ] Row Partition filter with multiple masks

16

SLIDE 161

Filter → Partition

[ ] Row Filter filter with one mask [ ] Row Partition filter with multiple masks [[ ] [ ] [ ]]

161

SLIDE 162

Filter → Partition

[ ] Row Filter filter with one mask [ ] Row Partition filter with multiple masks [[ ] [ ] [ ]] Ragged data!

162

SLIDE 163

Filter → Partition

[ ] Row Filter filter* with one mask [ ] Row Partition filter with multiple masks [[ ] [ ] [ ]] Ragged data!

163

SLIDE 164

Filter → Partition

[ ] Row Filter filter* with one mask (box [ ]) Row Partition filter with multiple masks [[ ] [ ] [ ]] Ragged data!

164

SLIDE 165

Filter → Partition

[ ] Row Filter filter* with one mask (box [ ]) Row Partition filter* with multiple masks [[ ] [ ] [ ]] Ragged data!

165

SLIDE 166

Filter → Partition

[ ] Row Filter filter* with one mask (box [ ]) Row Partition filter* with multiple masks [(box [ ]) (box [ ]) (box [ ])] Ragged data!

166

SLIDE 167

Row Partition

> (filter* [usa-mask (not usa-mask)] hi-only)

167

SLIDE 168

Row Partition

> (filter* [usa-mask (not usa-mask)] hi-only) [(box [{(loc "Dallas") (day 28) (month 3) (hi 74)} {(loc "Nome") (day 31) (month 3) (hi 31)}]) (box [{(loc "Dublin") (day 1) (month 4) (hi 11)} {(loc "Tunis") (day 31) (month 3) (hi 21)}])]

168

SLIDE 169

How to design records?

169

SLIDE 170

How to design records?

(to work with rank polymorphism)

17
