11/20/2011 1

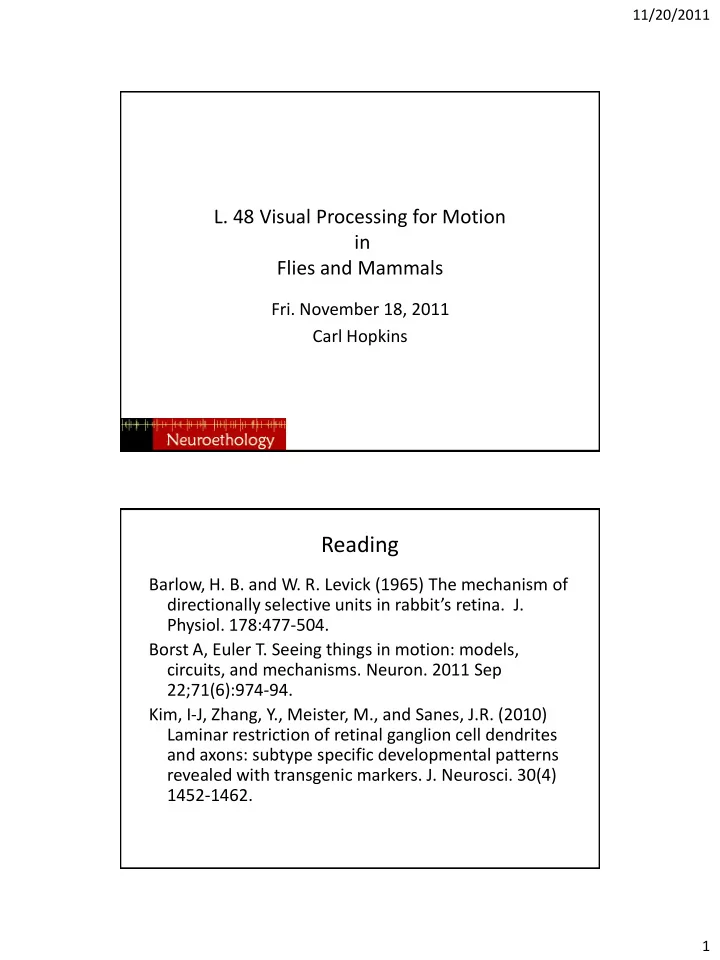

• L. 48 Visual Processing for Motion

in Flies and Mammals

• Fri. November 18, 2011

Carl Hopkins

Reading

Barlow, H. B. and W. R. Levick (1965) The mechanism of directionally selective units in rabbit’s retina. J.

• Physiol. 178:477-504.

Borst A, Euler T. Seeing things in motion: models, circuits, and mechanisms. Neuron. 2011 Sep 22;71(6):974-94. Kim, I-J, Zhang, Y., Meister, M., and Sanes, J.R. (2010) Laminar restriction of retinal ganglion cell dendrites and axons: subtype specific developmental patterns revealed with transgenic markers. J. Neurosci. 30(4) 1452-1462.

11/20/2011 2

CANNONICAL CIRCUITS (Lecture 6) a) A delay line inhibitory circuit blanks excitation in the null direction

b1 b2 null direction preferred direction b1 b2

• utput

|||||||| |||||| |||||||| |||||||||| ||||||||

CANNONICAL CIRCUITS (Lecture 6) Delay-line coincidence detector responds to movement direction a

b1 b2 b1 b2 null direction preferred direction b1 b2

• utput

|||||||| |||||| |||||||| |||||||||| ||||||||||

11/20/2011 3

The Reichardt (Correlation) Motion Detector

Photoreceptors Low-pass filters create delay Multiplier Subtractor

t)

• (T

(T)F A

• t)
• (T

(T)F A R(t)

2 1 1 2

1

F

1 2

1

A

2

A

2

F

Barlow Levick Detector

• Barlow and Levick

(1965)

• Identical to Reichardt

but with one half of basic Reichardt model

• And not (veto) from

inhibition delay

11/20/2011 4 DS Cells are now known from Flies and from Mammals

• Lobula plate: third layer of

neurons in the optic pathway

• (cells in the medulla are too small

to study)

• Lobula Plate Tangential cells (LPTC)

respond to time ordered signals.

• Number about 50. Varies by
• species. HS horizontal sensitive VS

vertical sensitive

• HS: front to back motion sensitive.

Tangential Cell

Flies: Tangential Cells in the Lobula Plate The Barlow and Levick DS cells are ON/OFF ganglion cells. They have dendrites that terminate in both the inner part

• f the IPL and the outer part of the IPL (accounting for the

Off response and the On response). Broad tuning to both temporal frequency and spatial frequency, but with a preference for temporal tuning (i.e. Reichardt detector) 4 sub types defined by direction (DV; VD; AP; PA) ON DS ganglion cells. Dendrites only in On sublamina of IPL OFF DS ganglion cells. Dendrites only in the Off sublamina

• f IPL.

Borst and Euler, 2011

11/20/2011 5 Network mechanisms for directional selectivity at the cellular and subcellular level

Good evidence that in the INSECT DS Neurons in the lobula plate, there are numerous inputs from Reichardt type detectors all over the visual field, but which cells? i.e. both excitatory and inhibitory inputs, already directional, onto tangential neurons of the lobula plate.

11/20/2011 6

Excitatory inputs to the LPTC is via nAChRs Inhibition to LPTC is via GABA receptors. In Drosophila, both receptor types were colocalized in dendrites of HS and VS neurons.

11/20/2011 7

Barlow and Levick’s (1965) hypothesis for a DS ganglion cell in the Rabbit retina

11/20/2011 8

(a) In principle, directional selectivity may not occur in the retina of some mammals (i.e. primates). Instead, DS may be imparted by combining inputs from a high pass (or transient responding) bipolar cell pathway, and a low pass (sustained) pathway contacting ganglion cells with narrow stratification. These ganglion cells woulod be transmitted via separate channels to the brain. (Masland (2001) Nature Neuroscience 4(9):877) (b) A more broadly stratified ganglion cell receives inputs from both the high pass bipolar cell and the low pass bipolar cell, thereby preserving its broad band

• responsiveness. Such cells might receive directionally selective permutations from

amacrine cells. (Masland (2001) Nature Neuroscience 4(9):877)

11/20/2011 9

DS Ganglion cells receive input from both bipolar on cells and off cells, and Starburst Amacrine Cells. SACs have both excitatory and inhibitory terminals on Ganglion cells OFF responding cells are shown, ON pathway is not shown for clarity. Starburst amacrine cells in retina contribute directionally sensitive inputs to ganglion cells. Gavrikov et al. PNAS 2006;103:18381-18382 Ablation of SACs knock out directional sensitivity (Amthor et al, 2002)

11/20/2011 10

• Starburst Amacrine Cells are sensitive to centrifugal light stimulation (Expanding

circular wave of light), but not centripital. Expanding light evokes strong calcium response in the distal dendrites of this Starburst Amacrine Cell, while a contracting stimulus does not.

• The distal dendrites are where the output synapses on ganglion cells are located.
• Each separate arm of the dendritic field is essential ly electrically independent of

each other arm. Euler et al., 2002; Borst and Euler(2011) input zones from bipolar cells

• utput to ganglion

cells

11/20/2011 11

Apparent motion stimulation of a DS retinal ganglion cell (1 followed by 2, or 1’ by 2’)

• r single flashes, 1, or 2. The directional selectivity is facilitated by cholinergic input

from the Starburst Amacrine Cells Asymmetric synaptic wiring between Starburst Amacrine Cells and Directionally Selective ganglion cells. SAC neuron with output synapses indicated by black dots. The synapses are color coded according to the preferred direction of the post-synaptic ganglion cells. The dendritic field of the ganglion cells are shown as elipses, showing the asymmetry in synaptic inputs. Briggman, K.L., Helmstaedter, M., and Denk, W. (2011). Wiring specificity in the direction- selectivity circuit of the retina. Nature 471, 183–188.

11/20/2011 12

11/20/2011 13

Kay et al (2011)’s genetic markers indicate that the patterns of molecular specificity are determined early in embryonic life, before eye opening and are thus experience independent. Also, there are differences amongst the genetically identified cells in the embryonic dendritic patterns and axon projections to the brain. Information about motion in different directions is sent to different destinations in the brain. “The last decade has witnessed much progress in our understanding of the cellular and subcellular mechanisms underlying direction selectivity. To a large extent, this is due to the application of advanced optical as well as genetic methods to this problem….. Borst and Euler (2011)

11/20/2011 14

“The last decade has witnessed much progress in our understanding of the cellular and subcellular mechanisms underlying direction selectivity. To a large extent, this is due to the application of advanced optical as well as genetic methods to this problem….. Optical methods are indispensible whenever different anatomical compartments of a neuron turn out to be electrically separated, operating almost in isolation from the rest

• f the cell, such as the different dendritic branches of a SAC in the vertebrate

retina and the output terminals versus the dendrite of lamina cells or the dendrite of lobula plate tangential cells in the fly. … Borst and Euler (2011) “The last decade has witnessed much progress in our understanding of the cellular and subcellular mechanisms underlying direction selectivity. To a large extent, this is due to the application of advanced optical as well as genetic methods to this problem….. Optical methods are indispensible whenever different anatomical compartments of a neuron turn out to be electrically separated, operating almost in isolation from the rest

• f the cell, such as the different dendritic branches of a SAC in the vertebrate

retina and the output terminals versus the dendrite of lamina cells or the dendrite of lobula plate tangential cells in the fly. … Another amazing fact is how much effort over so many years had to be invested in this

• ne single problem of direction selectivity in order to achieve the current level of

understanding, a problem that, in terms of computation and information processing, seems quite modest (telling leftward from rightward), compared to the complex intellectual capabilities of humans. Our hope is that understanding this simple neural computation of direction selectivity in full detail will provide an important stepping stone toward our understanding of more complex functions of the nervous system.” Borst and Euler (2011)

11/20/2011 15

Cajal, c. 1892

11/20/2011 16

Bibliography

Barlow, H.B., and Hill, R.M. (1963). Selective sensitivity to direction of movement in ganglion cells of the rabbit retina. Science 139, 412–414. Barlow, H.B., and Levick, W.R. (1965). The mechanism of directionally selective units in rabbit’s retina. J. Physiol. 178, 477–504. Barlow, H.B., Hill, R.M., and Levick, W.R. (1964). Rabbit retinal ganglion cells responding selectively to direction and speed of image motion in the

• rabbit. J. Physiol. 173, 377–407.

Masland, R. H. (2001) The fundamental plan of the retina. Nature

• Neuroscience. 4(9) 877-886.

Masland, R.H. (2004). Direction Selectivity in Retinal Ganglion Cells. In The Visual Neurosciences, L.M. Chalupa and J.S. Werner, eds. (Cambridge, MA: The MIT Press), pp. 451–462. Masland, R.H. (2005). The many roles of starburst amacrine cells. Trends

• Neurosci. 28, 395–396.

Bibliography

Barlow, H. B. and Levick, W. R. (1965). The mechanism of directionally selective units in rabbit's retina. J Physiol 178, 477-504. Borst A, Euler T. Seeing things in motion: models, circuits, and mechanisms.Neuron. 2011 Sep 22;71(6):974-94. Epub 2011 Sep 21. PubMed PMID: 21943597. Borst, A. (2006) Correlation versus gradient type motion detectors: the pros and the cons. Phil. Trans of Roy. Soc. B. 362:369-374. Borst, A. & Egelhaaf, M. 1989 Principles of visual motion detection. Trends Neurosci. 12, 297–306.Clifford CW, Ibbotson

• MR. Fundamental mechanisms of visual motion detection: models, cells and functions. Prog Neurobiol. 2002 Dec;68(6):409-

37. Douglass JK, Strausfeld NJ. Optic flow representation in the optic lobes of Diptera: modeling innervation matrices onto collators and their evolutionary implications. J Comp Physiol A. 2000 Sep;186(9):799-811. PubMed PMID: 11085634. Clifford, C. W. G. and Ibbotson, M. R. (2003). Fundamental mechanisms of visual motion detection: models, cells and functions. Progress in Neurobiology 68, 409-437. Joesch M, Schnell B, Raghu SV, Reiff DF, Borst A. ON and OFF pathways in Drosophila motion vision. Nature. 2010 Nov 11;468(7321):300-4. PubMed PMID: 21068841. Kay, J. N., De la Huerta, I., Kim, I. J., Zhang, Y., Yamagata, M., Chu, M. W., Meister, M. and Sanes, J. R. (2011). Retinal ganglion cells with distinct directional preferences differ in molecular identity, structure, and central projections. J Neurosci 31, 7753-62. Kim, I. J., Zhang, Y., Yamagata, M., Meister, M. and Sanes, J. R. (2008). Molecular identification of a retinal cell type that responds to upward motion. Nature 452, 478-82. Münch TA, da Silveira RA, Siegert S, Viney TJ, Awatramani GB, Roska B.Approach sensitivity in the retina processed by a multifunctional neural circuit.Nat Neurosci. 2009 Oct;12(10):1308-16. Epub 2009 Sep 6. PubMed PMID: 19734895. Köhler T, Röchter F, Lindemann JP, Möller R. Bio-inspired motion detection in an FPGA-based smart camera module. Bioinspir

• Biomim. 2009 Mar;4(1):015008. Epub 2009 Mar 4. PubMed PMID: 19258686.

Hassenstein, B. & Reichardt, W. 1956 Systemtheoretische Analyse der Zeit-Reihenfolgen- und Vorzeichenauswertung bei der Bewegungsperzeption des Russelkafers Chlorophanus. Z. Naturforsch. 11b, 513–524. Reichardt, W. 1961 Autocorrelation, a principle for the evaluation of sensory information by the central nervous system. In Sensory communication (ed. W. A. Rosenblith), pp. 303–317. New York, NY; London, UK: MIT Press; Wiley.
