Reactor neutrino spectrum . . . . H. B. Li () . April 25, 2011 - - PowerPoint PPT Presentation

. . Reactor neutrino spectrum . . . . H. B. Li () . April 25, 2011 H. B. Li () Reactor neutrino spectrum . . Motivation Accurate reactor oscillations experiments. Better sesitivities on magnetic search.


slide-1

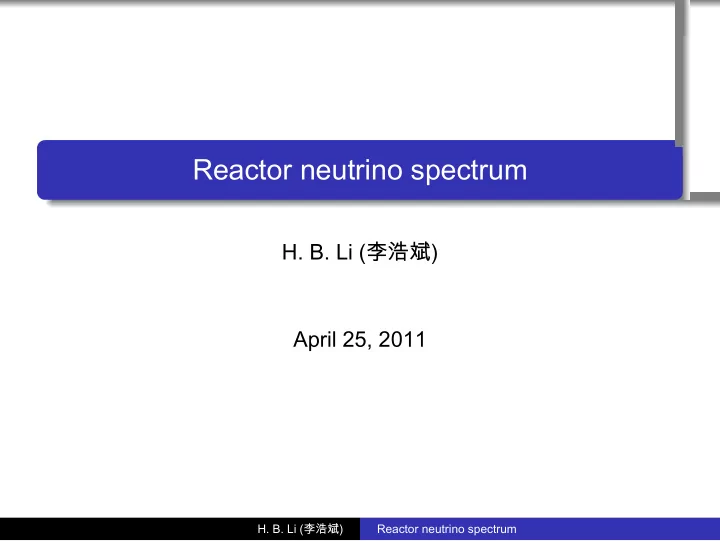

SLIDE 1

. . . . . . .

Reactor neutrino spectrum

  • H. B. Li (李浩斌)

April 25, 2011

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-2
SLIDE 2

. . Motivation

  • Accurate reactor ν oscillations experiments.
  • Better sesitivities on ν magnetic search.
  • Reactor monitoring.

SONGS: replacement of Pu was seen.

Most of the material based on arXiv:1101.2663v2 [hep-ex].

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-3
SLIDE 3

. . The Reactor's ¯ νe and e−

Spectrum(E) = Sfission + Sn capture on 238U + Sn capture on fission product Sfission: fission of 235U, 238U, 239Pu, 241Pu. Sn capture on 238U: 238U+n → 239U →

β(1.26MeV) 239Np → β 239Pu

Sn capture on fission product: e. g. 135Xe+n.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-4
SLIDE 4

. . The fissions

Sfission(t, E) = ∑

k=235U, 238U, 239Pu, 241Pu

αk(t)Sk(t, E) αk: fission rate, depend on abundance of isotope and neutrons. Sk: ¯ νe or e− spectrum per fission. Sk(t, E) = ∑

fp=fission product

Afp(t)Sfp(E) Afp: activity of fpth fission product, depend on neutrons. Sfp: ¯ νe or e− spectrum of fpth fission product. Sfp = ∑

b=decay branch

BRbSb BRb: branching ratio of each decay branch. Sb: ¯ νe or e− spectrum of each β-decay Number of nuclei involve: 845 + unknown. Number of decay branch: >10000 + unknown.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-5
SLIDE 5

. . The fissions

Example: A fission of 235U into 92Kr and 141Ba, and β-decay branchs of 92Kr

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-6
SLIDE 6

. . decay branchs

Sb ∝ peEe(E0 − Ee)2 × F(Z, Ee) × [QEDcorrection] F(Z, Ee): Fermi function, Coumlomb field attract outgoing e− → shift e− spectrum toward left. → create jigsaw at ¯ νe spectrum.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-7
SLIDE 7

. . Convert e− spectrum to ¯ νe spectrum: old way

e− spectrum of 235U, 239Pu, 241Pu are measured at ILL(Institut Laue-Langevin) High-Flux reactor by neutron bombardment on

235U, 239Pu, 241Pu thin foil.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-8
SLIDE 8

. . Convert e− spectrum to ¯ νe spectrum: old way

Sk ∑

b=virtual decay branch

BRbSb Cut e− spectrum into n-bin, the highest E bin must come from largest branch(one branch), assume constant Z → fit the last bin with SINGLE branch e− spectrum → subtract that spectrum from measured e− spectrum → fit the last bin after subtraction. Z dependent of Fermi function affect jigsaw structure of low Energy ¯ νe spectrum.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-9
SLIDE 9

. . Add all the fission product and β-branch

A near complete data available at ENSDF(Evaluated Nuclear Structure Data File). However ... E0 and branching ratio was measured by γ spectrum, and γ could "lost" in measurement → assign larger E0 → Pandemonium Effect(Hardy, 1977) Using Total Absorption Gamma Spectrometer(TAGS).

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-10
SLIDE 10

. . Compare with Measured e− spectrum

Calculate e− spectrum - ILL Measured spectrum: ENSDF only, replace some with Pandemonium-corrected data, add in JENDL(Japanese Evaluated Nuclear Data Library) and model. ±10%

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-11
SLIDE 11

. . Another way

Add everythings in ENSDF and Pandemonium-corrected data, and fit remaining as "old way". The remaning are fitted with 5 virtual branches with Z=46. e− spectrum ±1% ¯ νe spectrum shift +3%

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-12
SLIDE 12

. . Cross check on the method

Use ENSDF only to generated ¯ νe and e−, then convert generated-e− spectrum to ¯ νe with old way. Switch on-off various effects → +3% below 4 MeV from QED correction. → +3% above 4 MeV from using correct Z ("old way" use constant Z to fit all virtual branches)

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-13
SLIDE 13

. . Error

Activities was simulated by MCNP(Monte-Carlo N-Particle transport code) for Reactor Evolution. after 12h, after 36h, accumulate. Time variation affect ±1%. Total error for 235U, 239Pu, 241Pu < 4% at 2-5 meV.

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-14
SLIDE 14

. .

238U

No measured e− spectrum exist for 238U. Using ENSDF, Pandemonium-corrected, JENDL and model. Compare with [Vogel, 1981](different nuclear database) ±10%.

238U+n → 239U

β(1.26MeV) 239Np

β(0.71MeV) 239Pu

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-15
SLIDE 15

. . Time evolution

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-16
SLIDE 16

. . n capture on fission product

Mainly on 135Xe, very strong n-absorber.

135Xe → 135Cs.

  • r 135Xe + n → 136Xe(stable)

The effect is minor. [Kipeikin, 2004]

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-17
SLIDE 17

. . Impact of +3%

Average Nobs/Npred = 0.937±0.027(used to 0.979±0.029). → a sterile neutrino?

  • H. B. Li (李浩斌)

Reactor neutrino spectrum

slide-18
SLIDE 18

. . Conclusion

  • ± ∼1% on e− spectrum of 235U, 239Pu, 241Pu.
  • ± ∼10% on new/old calculation on 238U's ¯

νe.

  • + 3% shift above 2 MeV.
  • < 2 MeV spectrum uncheck.
  • H. B. Li (李浩斌)

Reactor neutrino spectrum
