RADITEK Telecom www.raditek.com/telecom 2015 A California USA corporation RADITEK 2015 TELECOM PRESENTATION 1 www.raditek.com/ telecom Component and System Products Founded in 1 9 9 3 By Malcolm Lee & Peter Corbett RF/ Microw ave

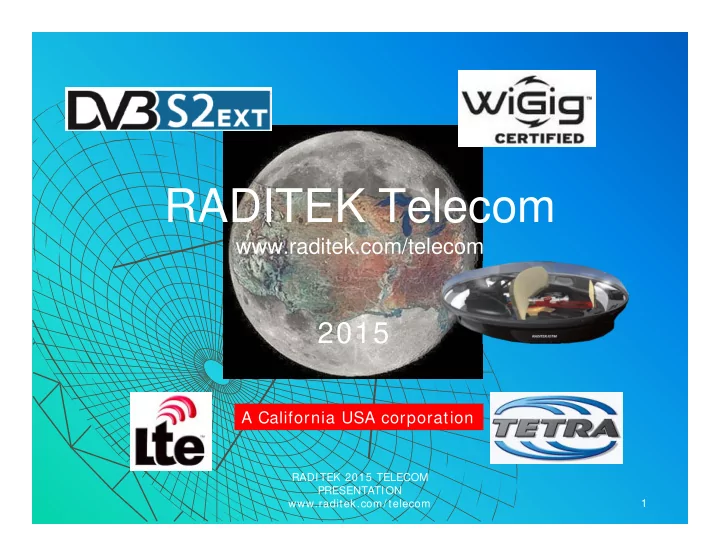

SLIDE 1

RADITEK Telecom

www.raditek.com/telecom

2015

1 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

A California USA corporation

SLIDE 2

Component and System Products

Founded in 1 9 9 3 By Malcolm Lee & Peter Corbett

RF/ Microw ave Com ponents m anufacturer… Stripline, Coax, Microstrip, w aveguide isolators and circulators Phase locked DRO, Synthesizer Filters, couplers, Splitters, com biners Telecom m unications SYSTEMS:-

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 3

Long range UHF transceiver

3 0 0 MHz to 2 .5 GHz (Licensed ETSI Bands) RADLI NK-P2 P-3 0 0 M-2 5 0 0 M ( split bands) Features: 3 0 0 MHz, 4 0 0 MHz, 6 0 0 MHz…. to 2 .5 GHz ( licensed bands) Supports voice, data and IP applications Range (over land and water) of up to 150+ km (100+ miles) Built-in cross-connect and multiplexer Up to 65.4 Mbit/ s capacity 25 kHz, 50 kHz, 75 kHz… to 14MHz channel sizes QPSK to 128 QAM modulation Web server and SNMP management MHSB (Hot stand by) and HSD (Space diversity) protection options To 5 x “9s” availability and over 90 years MTBF!

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 4

Tetra mobile base station

RTBTS-8 0 0 M-0 1 8 0 0 MHz ( other bands available) Tetra BASE STATI ON ( BTS)

A complete, single carrier TETRA base station
Tower or ground mounted, outdoor or indoor unit
0.5 to 10W transmit power, Built-in duplex filter
To 7 Erlang, moderate traffic operation
Allows dual RX diversity on two antennas, and:
Can operate on a single antenna (without diversity)
Expandable to 4-carriers (four RTBTS-800M-01) with jumpers
-48 VDC operation
10/100Mbit/s Ethernet interface (including VOIP/Voice Over IP)

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 5

Tetra mobile handsets

The RHS4 0 0 0 is the flagship of a highly innovative series of TETRA hand-portable radios, designed for users w ho w ant the best. W aterproof, subm ersible, dust-proof and m arine-hardened, the I P6 7 -rated RHS4 0 0 0 provides the latest sm art technology in a ‘go anyw here’ package

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 6

WIFI mobile handsets

Features sum m ary: Rugged notepad com puter Magnesium alloy case front SD/ SDHC Card slot Bluetooth 2 .0 + EDR, 8 0 2 .1 1 b/ g W iFi Quad-band 3 G GSM/ GPRS/ EDGE 8 5 0 / 9 0 0 / 1 8 0 0 / 1 9 0 0 MHz Data com s interface GPS 1 x RS2 3 2 DB9 serial, 1 x USB host, 1 x USB client ( Mini-B) , 3 .5 m m audio in/ out W eighs 2 .2 pounds w ith tw o batteries

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 7

WIFI mobile handsets

The RADI TEK RHS6 0 0 0 hand held is fully subm ersible and fully m eets repeated I P6 7 ingress

protection. I t is robust enough in alm ost any
utdoor environm ent.

The Android OS allow s full access to Google apps, supporting MAPS, e-m ail and cloud storage, w here

available. Antenna is internal.

The RHS 6 0 0 0 ( Android) and RHS 5 0 0 0 ( W indow s OS) are both suitable for com m ercial and m ilitary, applications, requiring rugged, protected equipm ent.

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 8

VHF/UHF mobile handsets

The RADI TEK RHS1 0 0 0 0 is a feature rich, dual VHF/ UHF m ode, to 5 W , hand held, I t is fully subm ersible and fully m eets repeated I P6 7 ingress protection. I t is robust enough in alm ost any outdoor environm ent, including extrem e abuse as surviving driving over and dropping 1 0 m onto concrete.

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 9

DVB-S/S2/S2x modulator module

Features:

• Either ASI inputs or MPEG over I P input ( SMPTE-2 0 2 2 ) up to 2 0 0 Mbps
• BI SS 0 / 1 / E encryption
• Better bandw idth efficiency w ith low roll off
• Variable sym bol rate from 0 .1 to 6 8 Mbauds w ith 1 baud increm ent
• Low roll-off ( 5 / 1 0 / 1 5 % ) to increase the useful bitrate
• High perform ances
• I nternal PRBS generator for test
• Physical Layer Scram bling according to EN 3 0 2 3 0 7 standard
• Em bedded W eb Brow ser
• SNMP control & m onitoring
• Boot tim e < 1 4 s
• Pow er consum ption < 2 5 W

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 10

3.7m Antenna

Transm it-Receive C and Ku Band versions 3 .7 Meter Dia. Non Penetrating Roof m ount Hot dip Zinc galvanized

n steel Structure.

NEW !

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 11

Satellite Products Converters

UP/ Dow nConverters: Up to 4 independent converters per rack unit Hot sw ap, redundant pow er supplies L, C, X, Ku and new Ka band

11 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 12

Satellite Products BUCs

C, X, Ku and new Ka band Exam ple: 5 0 W Ku Band GaN BUC Lightest and sm allest in the industry 1 + 1 and High Pow ers ( indoor and outdoor)

12 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 13

Satellite Products

Dream and Super Dream (DamaREAdy Modem) DAMA (Demand Assigned Multiple Acess) ABOD (Adaptive Bandwidth on Demand)

ALL IP based ROUTER SCPC modem, which is always SINGLE HOP. Can be used as either: 1.A Stand alone SCPC, Point to Point modem or 2.A remote “TDM” based modem function used in a DREAM Super Hub modem network or 3.A super (satellite) efficient DAMA (Demand Assigned Multiple Access) based SCPC modem ABOD)

Multiple STAR or MESH networks
Central network status display, spectrum analyzer display etc

TPC or LDPC To 22MBPS To 16QAM

RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 14

LNB BUC SPLITTER Broadcasts the TDM control Channel to the w hole netw ork Tx From STSR Card To 8RO cards To 4 per Dream Super Zero loss active splitter IF UNIT CAT 5 IP cables DAMA HUB I ncom ing RX channels for all the netw ork Are m onitored here NMS Server

14 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 15

Satellite Products DVB-S2/S2x Modulator

Features:

L-Band and I F ( 7 0 / 1 4 0 M) Band support
Sym bol rate from 0 .1 to 6 8 Msps ( w ith 1 sps step)
Low channel roll-off ( 5 % to 3 5 % , 1 % step)
1 6 APSK & 3 2 APSK m odulations included
Carrier I D com pliant ( ETSI 1 0 3 1 2 9 ) DVB-CI D
ASI and I P inputs
BI SS 0 / 1 / E encryption
Multi-stream according to EN 3 0 2 3 0 7 standard
Block Up Converter ( BUC) Driver options
Up to 6 4 em bedded profiles
Physical Layer Scram bling according to EN 3 0 2 3 0 7
1 + 1 redundancy m anagem ent
Low pow er consum ption

15 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 16

Satellite Products DVB-S2/S2x DeModulator

Features:

Dual L-Band ( 9 5 0 -2 1 5 0 M) ports
Sym bol rate from 0 .2 to 6 5 Msps to 2 4 0 MBPS
Low channel roll-off: 5 % to 3 5 % , ( 5 % step) support
1 6 APSK & 3 2 APSK dem odulation included
Very low im plem entation loss ( w ith dem od. option)
Quick boot tim e
Low pow er consum ption ( 9 W fan-less)
RS2 3 2 and 1 2 C control and m onitor
Physical layer scram bling to EN 3 0 2 3 0 7 standard
Multi-stream support
CCM, VCM, ACM support
Seam less sw itching of MODCOD w ith ACM

16 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 17

Satellite Products

DVB-S2/S2x MODEM

17 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 18

Satellite Products DVB-S2/S2x Modulator

18 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 19

Satellite Products DVB-S2/S2x Modulator

19 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 20

Satellite Products EXTREME MODEM

Multi I F band support: ( 7 0 M/ 1 4 0 MHz and L-band) Data rates 1 8 Kbps to 1 5 5 Mbps DVB-S2 -/ ACM, to 1 6 APSK. LDPC/ BCH, TPC FEC options Terrestrial interface options including Ethernet: EI A-5 3 0 , G.7 0 3 ( balanced & unbalanced) , OC-3 , STM-1 , Serial LVDS, ASI , HSSI , Quad E1 , Modulation up to 6 4 QAM Sim u-Carrier™ option ( reusing uplink frequencies) Uplink Pow er control ( AUPC) Signal-under-carrier™ real tim e interferer detection tool Built-in spectrum and constellation m onitors tool I Pv6 com pliant Drop and insert: T1 -D4 , T1 -ESF, E1 -G.7 3 2 I nteroperable w ith other Raditek SCPC m odem s

20 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 21

Satellite Products Antenna

21 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 22

Satellite Products

Man Pack Antenna system

22 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 23

Satellite Products IOTM antenna Ku, Ka

Linear or circular polarization available
Com patible w ith RADI TEK DREAM m odem s, BUCs and LNBs
Cold start acquisition < 3 m in,
< 1 0 0 m s re-acquisition after signal loss/ block
Rescan < 2 0 s
High Pow er, low profile BUC ( eg 4 0 W ) available

23 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 24

Broadcast Products

FM Exciter/1KW Power Amp.

The RTXE-8 7 .5 -1 0 8 M-5 0 0 W -T1 5 RADI TEK Transm itter w ith built in FM exciter in a 3 U high, 1 9 inch rack m ount: Digital and analog standard interfaces LCD ( full color, touch screen) and optional OLED display RBDS and RDS 2 yr standard w arranty I nternal filtering ( low pass) W eighs only 3 5 Lbs RF m onitor ( -3 5 dBc) BNC Pow er level adjustable 1 0 -1 0 0 %

24 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 25

Broadcast Products

Transmitter-Power Amp.

Frequency Range VHF 5 0 – 2 3 0 MHz, UHF 4 7 0 - 8 6 0 MHz I nput Pow er 0 dBm into pow er am plifier from m odulator Nom inal Output Pow er ( 8 VSB) VHF ( 2 5 W , 1 0 0 W , 2 5 0 W , 5 0 0 W , 1 kW ) UHF ( 3 0 W , 4 0 W , 5 0 W , 1 0 0 W , 2 5 0 W , 5 0 0 W , 7 0 0 W , 1 kW ) Pow er Level Adjustable 1 0 – 1 0 0 % I nput I m pedance 5 0 into am plifier, BNC fem ale Output I m pedance 5 0 , N or 7 -1 6 DI N fem ale ( dependent on pow er level) Modulation 8 VSB, QAM, DVBT/ H, etc ( output pow er w ill change betw een standards) Modulator input: 2 x ASI MER > 3 6 dB typical BER > 3 8 dB typical SN > 4 0 dB typical Phase Jitter > 1 0 4 dB Shoulders > -5 0 dB typical, ATSC m ode com pliant to ATSC A5 3 / B

25 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 26

Transmission Products

WIFI Metro-fi

8 0 2 .1 1 a/ b/ g/ n MI MO NLOS/ OFDM Radio I ntegrated Multi-Radios ( to 3 per node) Fast Data Sw itching Technology Real Aggregate TCP rate ≧ 3 2 0 Mbps for 4 x4 & 6 x6 MI MO Base Station High Efficiency in Multi-hops Repeating

Low Throughput data drop, eg 1 0 0 Mbps @ 1 0 hops
Multi-hop latency increased, eg≦1 5 m s w ith 1 0 hops

Operate in 2 .4 GHz / 5 GHz I SM Band Create the best, fastest, low est latency W I FI village/ tow n/ city.

26 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 27

Transmission Products

Licensed band Point to Point.

27 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 28

Broadcast Products

Special Projects.

RADI TEK can provide turnkey solutions Exam ple1 : Rapid response system ( using m anpacks and vehicles) using Satellite backhaul, w ith TETRA/ LTE m icro-base stations, handsets etc. Also connects to VHF, UHF radio system s and video over I nternet. Using video servers and m ulti large screen displays of 1 0 0 0 s of video feeds. Exam ple2 : Design single and m ulti-hop satellite links around the w orld, connecting to m ulti-redundant, ship borne and ground locations to track a Mars Orbiter launch. Contact us for m ore inform ation, W e w ant to be your turn-key solutions partner ( 4 0 8 ) 2 6 6 -7 4 0 4 , sales@raditek.com

28 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom

SLIDE 29

Satellite Products

Beacon Tracking Receivers

29 RADITEK 2015 TELECOM PRESENTATION www.raditek.com/ telecom
