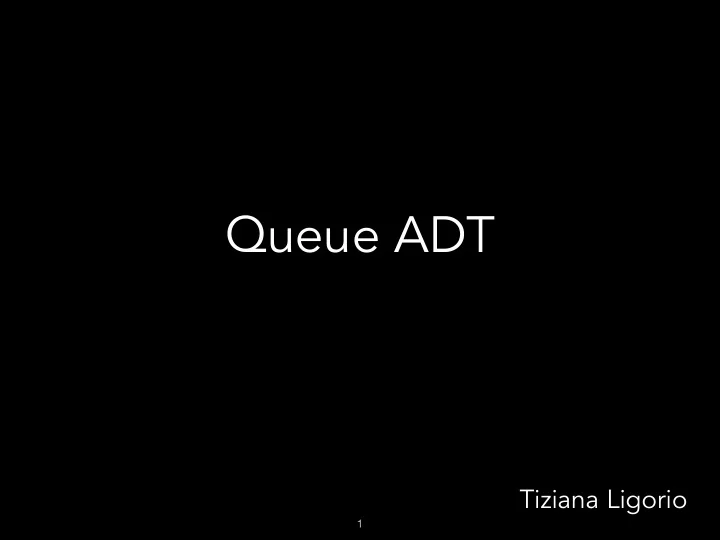

SLIDE 1
Queue ADT
Tiziana Ligorio
1
Today’s Plan
Announcements Queue ADT Applications
2
Queue ADT Tiziana Ligorio 1 Todays Plan Announcements Queue ADT - - PowerPoint PPT Presentation
Queue ADT Tiziana Ligorio 1 Todays Plan Announcements Queue ADT - - PowerPoint PPT Presentation
Queue ADT Tiziana Ligorio 1 Todays Plan Announcements Queue ADT Applications 2 Queue A data structure representing a waiting line Objects can be enqueued to the back of the line or dequeued from the front of the line 34
SLIDE 2
SLIDE 3
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
3
34
SLIDE 4
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
4
34
SLIDE 5
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
5
34 127
SLIDE 6
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
6
34 127
SLIDE 7
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
7
34 127 13
SLIDE 8
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
8
34 127 13
SLIDE 9
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
9
34 127 13
SLIDE 10
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
10
127 13
SLIDE 11
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
11
49 127 13
SLIDE 12
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
12
49 127 13
SLIDE 13
Queue
A data structure representing a waiting line Objects can be enqueued to the back of the line
- r dequeued from the front of the line
FIFO: First In First Out Only front of queue is accessible (front), no other
- bjects in the queue are visible
13
SLIDE 14
Queue Applications
Generating all substrings Recognizing Palindromes Any waiting queue
- Print jobs
- OS scheduling processes with equal priority
- Messages between asynchronous processes
. . .
14
SLIDE 15
Queue Applications
Generating all substrings Any waiting queue
- Print jobs
- OS scheduling processes with equal priority
- Messages between asynchronous processes
. . .
15
SLIDE 16
Generating all substrings
Generate all possible strings up to some fixed length n with repetition (same character included multiple times) We saw how to do something similar recursively (generate permutations of fixed size n no repetition) How might we do it with a queue? Example simplified to n = 2 and only letters A and B
16
SLIDE 17
17
“ ” “A” “B” “AA” “AB” “BA” “BB”
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
SLIDE 18
18
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
SLIDE 19
19
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
SLIDE 20
20
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “ “A“ “B“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”}
SLIDE 21
21
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “B“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”}
SLIDE 22
22
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “B“ “AA“ “AB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”}
SLIDE 23
23
“ ” “A” “B” “AA” “AB” “BA” “BB”
“B“ “AA“ “AB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”}
SLIDE 24
24
“ ” “A” “B” “AA” “AB” “BA” “BB”
“B“ “AA“ “AB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”}
SLIDE 25
25
“ ” “A” “B” “AA” “AB” “BA” “BB”
“B“ “AA“ “AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”}
SLIDE 26
26
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ “AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”}
SLIDE 27
27
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ “AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”}
SLIDE 28
28
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ “AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”}
SLIDE 29
29
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”}
SLIDE 30
30
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AB“ “BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”, “AB”}
SLIDE 31
31
“ ” “A” “B” “AA” “AB” “BA” “BB”
“BA“ “BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”, “AB”, “BA”}
SLIDE 32
32
“ ” “A” “B” “AA” “AB” “BA” “BB”
“BB“
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”, “AB”, “BA”, “BB” }
SLIDE 33
33
“ ” “A” “B” “AA” “AB” “BA” “BB”
Generate all substrings of size 2 from alphabet {‘A’, ‘B’}
{ “”, “A”, “B”, “AA”, “AB”, “BA”, “BB” }
SLIDE 34
Breadth-First Search
Applications Find shortest path in graph GPS navigation systems Crawlers in search engines . . . Generally good when looking for the “shortest” or “best” way to do something => lists things in increasing order of “size” stopping at the “shortest” solution
34
SLIDE 35
35
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; } Size of Substring
SLIDE 36
Finding all substrings (with repetition) of size up to n Assume alphabet (A, B, … , Z) of size 26 The empty string= 1= 260 All strings of size 1 = 261 All strings of size 2 = 262 . . . All strings of size n = 26n
Analysis
36
With repetition: I have 26
- ptions for each of the
n characters A B C
. . .
Z
AA BA CA . . .
ZA
AB BC
. . .
AZ
. . . . . .
ZB ZZ
CB
BZ CZ
””
SLIDE 37
Lecture Activity
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
37
Analyze the worst-case time complexity of this algorithm assuming alphabet of size 26 and up to strings of length n T(n) = ? O(?) Size of Substring
SLIDE 38
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
38
Will stop when all strings have been removed from queue
SLIDE 39
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
39
Adds 26 strings to the queue Removes 1 string from the queue Will stop when all strings have been removed from queue
SLIDE 40
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
40
Adds 26 strings to the queue Removes 1 string from the queue Will stop when all strings have been removed from queue
Loop until queue is empty and dequeue only 1 each time. So the question becomes: How many strings are enqueued in total?
SLIDE 41
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
41
Adds 26 strings to the queue Removes 1 string from the queue Will stop when all strings have been removed from queue
T(n) = 260 + 261 + 262 + . . . 26n
SLIDE 42
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
42
Adds 26 strings to the queue Removes 1 string from the queue Will stop when all strings have been removed from queue
T(n) = 260 + 261 + 262 + . . . 26n
SLIDE 43
findAllSubstrings(int n) { put empty string on the queue while(queue is not empty){ let current_string = dequeue and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and enqueue it } } return result; }
43
Adds 26 strings to the queue Removes 1 string from the queue Will stop when all strings have been removed from queue
O( 26n)
SLIDE 44
44
“ ” “A” “B” “AA” “AB” “BA” “BB”
Let n = 3, alphabet still {‘A’,’B’}
“AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“ “
20
SLIDE 45
45
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“A“ “B“
Let n = 3, alphabet still {‘A’,’B’}
21
SLIDE 46
46
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“AA“ “AB“ “BA“ “BB“
Let n = 3, alphabet still {‘A’,’B’}
22
SLIDE 47
47
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“AB“ “BA“ “BB“
Let n = 3, alphabet still {‘A’,’B’}
“AAA“ “AAB“ “AA“
SLIDE 48
48
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“BA“ “BB“
Let n = 3, alphabet still {‘A’,’B’}
“AAA“ “AAB“ “ABA“ “ABB“ “AB“
SLIDE 49
49
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“BA“ “BB“
Let n = 3, alphabet still {‘A’,’B’}
“AAA“ “AAB“ “ABA“ “ABB“ “BAA“ “BAB“
SLIDE 50
50
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“BB“
Let n = 3, alphabet still {‘A’,’B’}
“AAA“ “AAB“ “ABA“ “ABB“ “BAA“ “BAB“
SLIDE 51
51
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“AAA“ “AAB“ “ABA“ “ABB“ “BAA“ “BAB“ “BBA“ “BBB“
Let n = 3, alphabet still {‘A’,’B’}
“BB“
SLIDE 52
52
“ ” “A” “B” “AA” “AB” “BA” “BB” “AAA” “AAB” “ABA” “ABB” “BAA” “BAB” “BBA” “BBB
“AAA“ “AAB“ “ABA“ “ABB“ “BAA“ “BAB“ “BBA“ “BBB“
Let n = 3, alphabet still {‘A’,’B’}
23
SLIDE 53
Memory Usage
With alphabet {’A’, ’B’, …, ’Z’}, at some point we end up with 26n strings in memory Size of string on my machine = 24 bytes Running this algorithm for n = 7 (≈ 193GB) is the maximum that can be handled by a standard personal computer For n = 8 ≈ 5TB
53
Massive space requirement
SLIDE 54
What if we use a stack?
54
O( 26n)
findAllSubstrings(int n) { push empty string on the stack while(stack is not empty){ let current_string = pop and add to result if(size of current_string < n){ for(each character ch)//every character in alphabet append ch to current_string and push it } } return result; }
SLIDE 55
55
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “
SLIDE 56
56
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “ { “” }
SLIDE 57
57
“ ” “A” “B” “AA” “AB” “BA” “BB”
“ “ “A“ “B“ { “” }
SLIDE 58
58
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “B“ { “” }
SLIDE 59
59
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “B“ { “” }
SLIDE 60
60
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “B“ “BA“ “BB“ { “”,“B”}
SLIDE 61
61
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “BA“ “BB“ { “”,“B”}
SLIDE 62
62
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “BA“ “BB“ { “”,“B”,”BB”}
SLIDE 63
63
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “BA“ { “”,“B”,”BB”,”BA”}
SLIDE 64
64
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ { “”,“B”,”BB”,”BA”,”A”}
SLIDE 65
65
“ ” “A” “B” “AA” “AB” “BA” “BB”
“A“ “AA“ “AB“ { “”,“B”,”BB”,”BA”,”A”}
SLIDE 66
66
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ “AB“ { “”,“B”,”BB”,”BA”,”A”}
SLIDE 67
67
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ “AB“ { “”,“B”,”BB”,”BA”,”A”,”AB”}
SLIDE 68
68
“ ” “A” “B” “AA” “AB” “BA” “BB”
“AA“ { “”,“B”,”BB”,”BA”,”A”,”AB”,”AA”}
SLIDE 69
69
“ ” “A” “B” “AA” “AB” “BA” “BB”
What’s the difference?
{ “”,“B”,”BB”,”BA”,”A”,”AB”,”AA”}
SLIDE 70
Depth-First Search
Applications Detecting cycles in graphs Path finding Finding strongly connected components in graph . . . Same worst-case runtime analysis More space efficient than previous approach Does not explore options in increasing order of size
70
SLIDE 71
Comparison
Breadth-First Search (using a queue) Time O( 26n) Space O( 26n) Good for exploring options in increasing order of size when expecting to find “shallow” or “short” solution Memory inefficient when must keep each “level” in memory
71
Depth-First Search (using a stack) Time O( 26n) Space O( n) Explores each option individually to max size - does NOT list options by increasing size More memory efficient
SLIDE 72
Other ADTs
72
SLIDE 73
Deque
Double ended queue (deque) Can add and remove to/from front and back
73
34
SLIDE 74
Deque
Double ended queue (deque) Can add and remove to/from front and back
74
34
SLIDE 75
Deque
Double ended queue (deque) Can add and remove to/from front and back
75
34 127
SLIDE 76
Deque
Double ended queue (deque) Can add and remove to/from front and back
76
34 127
SLIDE 77
Deque
Double ended queue (deque) Can add and remove to/from front and back
77
34 127 49
SLIDE 78
Deque
Double ended queue (deque) Can add and remove to/from front and back
78
34 127 49
SLIDE 79
Deque
Double ended queue (deque) Can add and remove to/from front and back
79
34 127 49
SLIDE 80
Deque
Double ended queue (deque) Can add and remove to/from front and back
80
34 127
SLIDE 81
Deque
Double ended queue (deque) Can add and remove to/from front and back
81
34 127
SLIDE 82
Deque
In STL :
- does not use contiguous memory
- more complex to implement (keep track of memory
blocks)
- grows more efficiently than vector
82
SLIDE 83
Deque
In STL :
- does not use contiguous memory
- more complex to implement (keep track of memory
blocks)
- grows more efficiently than vector
In STL stack and queue are adapters of deck
83
SLIDE 84
Deque
In STL :
- does not use contiguous memory
- more complex to implement (keep track of memory
blocks)
- grows more efficiently than vector
In STL stack and queue are adapters of deque STL standardized the use of “push” and “pop”, adapting with “push_back”, “push_front” etc. for all containers
84
SLIDE 85
Priority Queue
A queue of items “sorted” by priority
85
A Low Priority High Priority
SLIDE 86
Priority Queue
A queue of items “sorted” by priority
86
A Low Priority High Priority
SLIDE 87
Priority Queue
A queue of items “sorted” by priority
87
A Low Priority High Priority D
SLIDE 88
Priority Queue
A queue of items “sorted” by priority
88
A Low Priority High Priority D
SLIDE 89
Priority Queue
A queue of items “sorted” by priority
89
A Low Priority High Priority D X
SLIDE 90
Priority Queue
A queue of items “sorted” by priority
90
X Low Priority High Priority A D
SLIDE 91
Priority Queue
A queue of items “sorted” by priority
91
X Low Priority High Priority A D
SLIDE 92
Priority Queue
A queue of items “sorted” by priority
92
Low Priority High Priority A D
If value indicates priority, it amounts to a sorted list that accesses/removes the “highest” items first
SLIDE 93
Priority Queue
Orders elements by priority => removing an element will return the element with highest priority value Elements with same priority kept in queue order (in some implementations)
93
SLIDE 94
Priority Queue
Spoiler Alert!!!! Often implemented with a Heap Will tell you what it is in soon… but it is another example of ADT vs data structure
94
