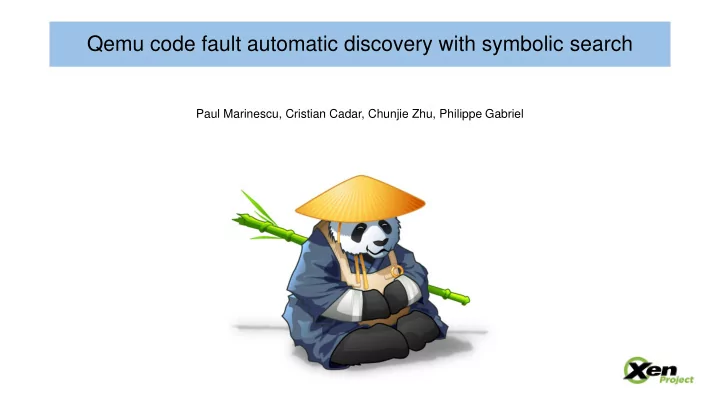

Qemu code fault automatic discovery with symbolic search

Paul Marinescu, Cristian Cadar, Chunjie Zhu, Philippe Gabriel

Goals of this presentation

 Introduction of KLEE (symbolic execution tool)  Qemu fault/patch retrospective  Understand how Qemu-dm works  Qemu code check by symbolic execution  Work on the way

Introduction of KLEE (symbolic execution tool) - 1

https://github.com/klee/klee

klee_make_symbolic(&a, sizeof(a), “a”) klee_make_symbolic(&b, sizeof(b), “b”) int foo(int x, int y) { int ret = 0; if (x + y < 15) { if (y != 10) ret = 1; else ret = 2; } else { if (y != 10) ret = 3; else ret = 4; } return ret; } foo(a, b);

Introduction of KLEE (symbolic execution tool) - 2

 See real execution paths explored by KLEE

https://github.com/klee/klee

test000001.ktest test000002.ktest test000003.ktest test000004.ktest (int32 overflow) args : ['test.o'] num objects: 2

• bject 0: name: b'a'
• bject 0: size: 4
• bject 0: data:

2147483635

• bject 1: name: b'b'
• bject 1: size: 4
• bject 1: data: 10

args : ['test.o'] num objects: 2

• bject 0: name: b'a'
• bject 0: size: 4
• bject 0: data: 0
• bject 1: name: b'b'
• bject 1: size: 4
• bject 1: data: 0

args : ['test.o'] num objects: 2

• bject 0: name: b'a'
• bject 0: size: 4
• bject 0: data:

2110308033

• bject 1: name: b'b'
• bject 1: size: 4
• bject 1: data:

37170385 args : ['test.o'] num objects: 2

• bject 0: name: b'a'
• bject 0: size: 4
• bject 0: data:

2147483640

• bject 1: name: b'b'
• bject 1: size: 4
• bject 1: data: 10

Introduction of KLEE (symbolic execution tool) - 3

 How does KLEE work

 compile target program to LLVM bitcode  core engine plays the role of a virtual machine for LLVM bitcode symbolic execution  traverses as many possible code paths in a given time budget (dead loop?)

1. depth-first search/breadth-first search/non-uniform-random search 2. query-cost-optimization/code-coverage-optimization

 requests constraint solver to give a solution once run into code branch  special case handling

1. constraint solver does not support symbolic-sized objects, e.g. malloc(size)

 external environment modeling (e.g. file system access)  one test case is generated once a code path reaches its end or encounters an error  replay the test case after klee code check is completed

https://github.com/klee/klee

Introduction of KLEE (symbolic execution tool) - 4

 Successful story (see http://llvm.org/pubs/2008-12-OSDI-KLEE.pdf)

https://github.com/klee/klee

Qemu fault/patch retrospective - 1

 Qemu buffer overflow

 CVE-2015-4106, does not restrict PCI config space write access for PCI pass-through  CVE-2015-3456, floppy disk controller issue  CVE-2015-2752, XEN_DOMCTL_memory_mapping hypercall issue  others

 Postmortem

 idea to spot any potential vulnerability automatically?

Qemu fault/patch retrospective - 2

 Solutions  fuzz testing

a) treat Qemu as a black box b) generate random input to Qemu, easy to implement c) a very hard time reaching some code paths (e.g. int32 x == 764387, 1/2^32 chance to hit the branch without any guidance) d) not reproducible

 symbolic execution

a) have internal state representation of Qemu b) generate stable test case to reproduce any code fault c) higher code coverage d) difficult to adopt

Understand how Qemu-dm works - 1

Understand how Qemu-dm works - 2

guest os <-> xen hypervisor  guest os issues “IN AL, 0x10”  VM exit traps guest os into hypervisor  hypervisor packages an ioreq and fills it into ioreq queue (shared memory between hypervisor and qemu), notifies qemu to handle this request and waits the io instruction done (hypervisor schedules other task to execute on CPU, but does not block forever)  qemu gives response, hypervisor reads the data

• ut, and then copies it to guest os registers in

VMCS (See x86 VT-x spec) xen-hypervisor <-> qemu process (qemu calls libxc to map the shared memory into its own virtual memory address space at startsup)  qemu event loop polls ioreq from queue  qemu gets an ioreq and parse it (0x10, read, memory to store 0x10 data)  qemu calls xen_platform ioport read function (xen_platform registers ioport 0x10)  qemu writes the data into the memory block (ioreq contains a memory point which is used to store the data)  qemu notifies hypervisor that job is done

Qemu code check by symbolic search

 Rebuild Qemu in LLVM bitcode (libxc dependencies?)  Minimal Qemu image

 necessary load/startup instructions  ioport in/out instructions

 Run check

 klee core engine loads Qemu LLVM bitcode and the minimal image  klee generates input and traverses Qemu program state space  klee records the input sequence (change on klee?)  watchdog monitor, restart if klee terminates when it runs into Qemu code fault  code coverage report?

 Alternative option

 start Qemu from an actual instruction trace and treat various instruction arguments as symbolic input, see if some input causes errors

Work on the way

 Rebuild Qemu

 remove dependency

 stub libxc?  klee libxc modeling?

 achievement

 boot toy OS using klee and do some initial symbolic checks

 KLEE

 symbolic variable input -> instruction input?  restart after crash, next crash at the same location? (using klee seeds)  others

 We are still on the way ...

Q & A

Thanks. Questions?
