Route 9 Active Transportation Conceptual Design Plan Public Workshop #2 October 2017 Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active PROJECT GOALS: Hastings through Sleepy Hollow Safe

slide-1
SLIDE 1

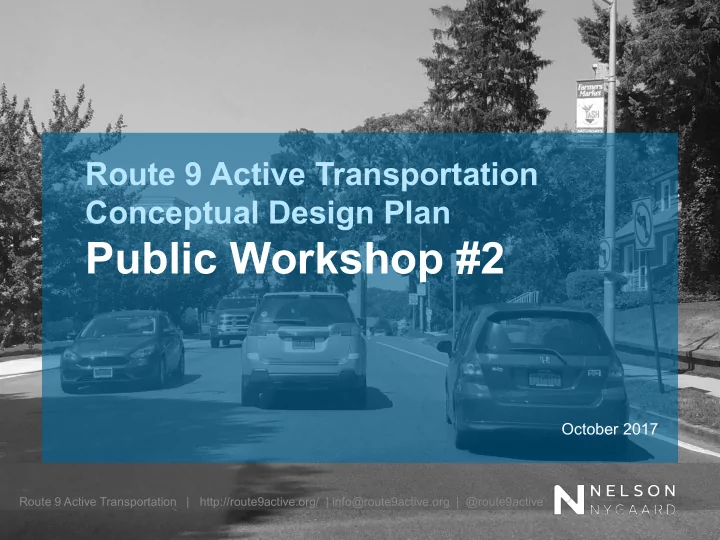

Route 9 Active Transportation Conceptual Design Plan

Public Workshop #2

October 2017

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-2
SLIDE 2

PROJECT GOALS: Hastings through Sleepy Hollow

  • Safe and connected places to walk

along & across Route 9

  • Safe and continuous places to bike

within and between villages

  • Improve traffic safety for all
  • Support planned and existing transit to

reduce automobile trips

  • Attract people using new bridge path to

shops & restaurants

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-3
SLIDE 3

OUTREACH TO DATE

  • June Workshops:

‐ 140 attendees

  • Online tools:

‐

496 survey responses

‐

813 WikiMap entries

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-4
SLIDE 4

OUTREACH: Trade-offs

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-5
SLIDE 5

OUTREACH: Higher Speeds vs Safer Walking

For our villages, safety and community vitality are best supported by...

Fast traffic speeds

More comfortable walking environment

Fast traffic speeds 10% More comfortable walking environment 90%

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-6
SLIDE 6

OUTREACH: Biking on Trails vs Biking On-street

For our villages, safety and community vitality are best supported by...

Biking on trails Biking on- street

Biking on trails 52% Biking on- street 48%

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-7
SLIDE 7

OUTREACH: Areas of Concern

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-8
SLIDE 8

OUTREACH: Key Intersections

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

Intersection Village Issue

Beekman Avenue & Route 448 Sleepy Hollow Pedestrian crossing safety Cobb Lane Tarrytown Pedestrian crossing safety Franklin St Tarrytown General concern Prospect Ave Tarrytown Pedestrian crossing safety Route 119 Tarrytown Pedestrian crossing safety OCA crossing Tarrytown Pedestrian crossing safety Sunnyside Ln Tarrytown General concern Heritage Hill Rd Irvington Pedestrian crossing safety Main St Irvington General concern Harriman Rd Irvington Signal timing adjustment Ardsley Ave Irvington Pedestrian crossing safety Belden Ave Dobbs Ferry Pedestrian crossing safety Ashford Ave Dobbs Ferry General concern Clinton Ave Dobbs Ferry Crossing safety OCA crossing Dobbs Ferry Pedestrian crossing safety Farragut Avenue (“Five Corners”) Hastings-on-Hudson General concern Olinda Ave Hastings-on-Hudson Pedestrian crossing safety

slide-9
SLIDE 9

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

  • 2,448 car spaces, 80% in off-street lots
  • Parking study focused on Route 9 and

lots within 5’ walk

  • Supply and occupancy of spaces
  • Potential impact of new designs on

supply

ANALYSIS: Parking

57 136 24 280 452 740 339 374 46 100 200 300 400 500 600 700 800 900 Sleep Hollow Tarrytown Irvington Dobbs Ferry Hastings on Hudson

Parking supply along Route 9

On-Street Supply on Route 9 Off-Street

slide-10
SLIDE 10
  • Varying quality of stop amenities at high

ridership stops

  • Opportunities to relocate and improve stops

for existing and planned transit projects (Lower Hudson Transit Link).

ANALYSIS: Transit

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

No 44% Yes 56%

Bus stops connected to sidewalk

Pole, schedule 62% Pole, schedule, and bench 19% Pole, schedule, bench and shelter…

Type of Facilities

slide-11
SLIDE 11

CONCEPT DEVELOPMENT: Street Design Guidelines

  • Reduce pedestrian exposure at key intersections
  • Streets w <25,000/day can be supported w 1-lane per direction
  • Phased designs will be recommended where current on-street and

nearby off-street utilization is high

  • Recommendations will maintain standard vehicle delay (Level of

Service E)

  • Minimum lane widths:
  • 11’ travel lanes, 10’ turning lanes
  • 7’ parking lane (where provided)
  • 5’ bike lane (each direction)
  • 1-3’ bike lane buffer
  • 5’ sidewalk, where provided

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-12
SLIDE 12

CONCEPT DEVELOPMENT: Sample Pedestrian Crossing Improvement

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

  • OCA crossing in Dobbs Ferry
slide-13
SLIDE 13

CONCEPT DEVELOPMENT: Ideal Design

  • Existing:
  • Potential:

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-14
SLIDE 14

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

CONCEPT DEVELOPMENT: Opportunities and Constraints

Opportunities

  • Many Route 9 segments with sufficient roadway width

to meet design guidelines

  • Better connections to BRT and transit
  • Improving Old Croton Aqueduct connectivity at street

crossings

  • Some suitable parallel alternatives close to village

destinations

  • Improve student safety for school journey and reduce

school drop off traffic

Constraints

  • Street segments with insufficient roadway width due to:
  • On- street parking demand
  • Narrow roadway width
  • Higher traffic volumes
  • Locations without nearby parallel routes
  • Locations where parallel routes are unsuitable due to

slope, lighting or surface type

slide-15
SLIDE 15

TODAY’S STATIONS

  • Information: Goals and Context
  • Information: Outreach summary

– Summer workshops – Online survey

  • Information: Analysis update
  • Information: Design Guidelines

and Safety

– General cross section

  • Input: Key locations by village

– Constrained areas – Key intersections – Proposed cross sections

Route 9 Active Transportation | http://route9active.org/ | info@route9active.org | @route9active

slide-16
SLIDE 16

NEXT STEPS

  • Ongoing traffic analysis
  • Refine transit analysis
  • Refine design concepts for

connected walking and bikeways

  • Test with demonstration project
