ASTORIA STATION PUBLIC INPUT HEARING Deubrook Elementary School Gymnasium Toronto, South Dakota November 27 th , 2017 Docket: EL 17-042 1 PRESENTERS Bill Swanson, Manager, Supply Engineering Astoria Station Project Manager Mark

slide-1
SLIDE 1

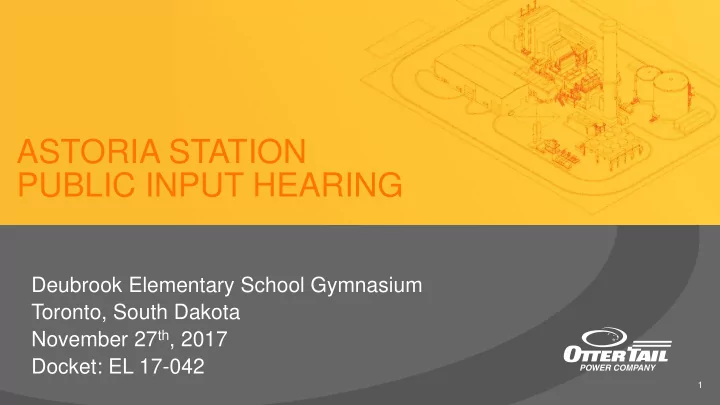

Deubrook Elementary School Gymnasium Toronto, South Dakota November 27th, 2017 Docket: EL 17-042

1

ASTORIA STATION PUBLIC INPUT HEARING

slide-2
SLIDE 2
  • Bill Swanson, Manager, Supply Engineering
  • Astoria Station Project Manager
  • Mark Thoma, Manager, Environmental Services
  • Astoria Station Permitting Manager

PRESENTERS

2

slide-3
SLIDE 3
  • HDR
  • Air Permit and Site Permit Support
  • Sargent & Lundy
  • Preliminary Engineering
  • First District Association of Local Governments
  • Social & Economic Impact Study
  • Banner Engineering
  • Groundwater Evaluation
  • Power Engineers
  • Generation-Tie Line Design

CONSULTANTS SUPPORTING PROJECT

3

slide-4
SLIDE 4
  • Who we are
  • Project need and location
  • Project components and schedule
  • Community impacts
  • Environmental review

AGENDA

4

slide-5
SLIDE 5

WHO WE ARE

5

slide-6
SLIDE 6

WHO WE SERVE

  • 70,000 Square Miles
  • 131,551 Customers
  • 422 Communities
  • Avg. population ≈400
  • 796 Employees
  • 472 Minnesota
  • 205 North Dakota
  • 119 South Dakota
  • About 800 MW owned

generation

6

slide-7
SLIDE 7

80% 10% 9% 1% 53% 4% 31% 12% 59% 16% 24% 1%

2001 2011 2021

HOW WE CREATE ELECTRICITY

7

slide-8
SLIDE 8

PROJECT NEED AND LOCATION

8

slide-9
SLIDE 9

Astoria Station is a needed project for OTP. Three factors:

  • 1. Hoot Lake Plant is retiring in May 2021.
  • Hoot Lake is a 140 MW coal-fired facility in Fergus Falls, MN.
  • 2. We have expiring capacity contracts in approximately the same

timeframe.

  • 3. We project future load growth.

PROJECT NEED & KEY HISTORY

9

slide-10
SLIDE 10

ASTORIA, SD - LOCATION

10

Intersection of new 345 kV transmission and major natural gas pipeline is key to SD site advantage

Northern Border Natural Gas Line Project Site near Astoria, SD BSSB – Big Stone South to Brookings 345 kV CAPX

slide-11
SLIDE 11

PROJECT SITE OVERVIEW

11

N

28 311

OTP Property Astoria

482nd Ave

345 kV Line Existing Northern Border Natural Gas Pipeline

slide-12
SLIDE 12

PROJECT COMPONENTS AND SCHEDULE

12

slide-13
SLIDE 13
  • Astoria Station will be an

approximate 250 MW simple- cycle natural gas combustion turbine.

  • The peaking plant will serve

during periods of high demand

  • r when other generating

sources are not available.

  • Cost ~$165M. We expect the

station to be online in 2021.

ASTORIA STATION

13

slide-14
SLIDE 14
  • Resources Needed:

Water, Air, Natural Gas

  • Major Components:
  • Inlet Air Filter
  • Air Compressor Section
  • Gas Combustion Chamber
  • Power Turbine
  • Electrical Generator
  • Generator Step Up Transformer

SIMPLE CYCLE TURBINE

14

slide-15
SLIDE 15

PLANT GENERAL ARRANGEMENT

Side View 45° Angle View

15

slide-16
SLIDE 16
  • Less than ½ mile to interconnect to

BSSB 345-kV transmission system

  • 3-5 new structures
  • OTP’s property connects to the

preliminary location identified for the BSSB switching station

GEN-TIE LINE

16

slide-17
SLIDE 17
  • Will connect into the Northern

Border Pipeline on Otter Tail property

  • < 1,000’ pipe from meter

station to turbine

  • 10” diameter pipe

NATURAL GAS PIPING

17

OTP Property Existing Northern Border Pipeline N

slide-18
SLIDE 18
  • Onsite well is proposed
  • < 1,500’ long, 5” diameter pipe to

storage tank

  • Proposed capacity of 100 gpm
  • Above ground 350,000 gallon

storage tank

  • There will be many days or months

when process water is not required

WATER LINE

18

Well OTP Property

Existing Northern Border Pipeline

482nd Ave

N

slide-19
SLIDE 19

PROJECT SCHEDULE

19

slide-20
SLIDE 20

COMMUNITY IMPACTS

20

slide-21
SLIDE 21

Date Number of Workers Onsite Ground Breaking and Month 1 20 Month 2 30 Month 3 30 Month 4 40 Month 5 50 Month 6 60 Month 7 60 Month 8 70 Month 9 70 Month 10 70 Month 11 60 Month 12 40 Month 13 30

CONSTRUCTION WORKFORCE

21

slide-22
SLIDE 22
  • Most likely heavy haul route will be

East along Hwy 28 from I29 to 482nd Ave.

  • Road agreements and heavy haul

permits will be reviewed with the Township/County.

  • Necessary roadway improvements

will be made to 482nd Ave.

TRANSPORTATION

22

slide-23
SLIDE 23
  • Astoria Station will pay property tax totaling approximately $3 million

within the first five years of operation, then approximately $1 million each subsequent year.

  • These tax payments will get distributed between the Deubrook

School District, Deuel County, Scandinavia Township, and the Water and Fire District.

  • Astoria Station will:
  • Create construction jobs that equates to approximately $30 million

in labor.

  • Require three to five full-time employees to operate.

ECONOMIC IMPACTS

23

slide-24
SLIDE 24

Representatives From:

  • Deuel County Commission
  • Brookings County Commission
  • Deubrook School District 05-6
  • Deuel School District 19-4
  • Town of Astoria
  • Town of Brandt
  • Town of Toronto
  • Otter Tail Power Company

LOCAL REVIEW COMMITTEE

24

Areas to Study:

  • Housing Supplies
  • Educational Facilities and Manpower
  • Water Supply and Distribution
  • Wastewater Treatment and Collection
  • Solid Waste Disposal and Collection
  • Law Enforcement
  • Transportation
  • Fire Protection
  • Health
  • Recreation
  • Government
  • Energy
slide-25
SLIDE 25

ENVIRONMENTAL REVIEW

25

slide-26
SLIDE 26

ENVIRONMENTAL REVIEW

26

Impacts Studied Included:

  • Aquatic Ecosystems: No wetland

impacts are anticipated

  • Cultural Resources: No historic

properties on the site

  • Terrestrial Ecosystems: No known

threatened, endangered, or rare species

  • Air Quality
  • Water Quality
  • Sound
slide-27
SLIDE 27

0.5 1 1.5 2 2.5 3 3.5 4

Astoria Station Modern Coal Plant Regional Fossil Average

AIR QUALITY: SULFUR DIOXIDE (SO2) LBS/MWH

27

slide-28
SLIDE 28

0.5 1 1.5 2 2.5

Astoria Station Modern Coal Plant Regional Fossil Average

AIR QUALITY: NITROGEN OXIDE (NOX) LBS/MWH

28

slide-29
SLIDE 29

500 1000 1500 2000 2500

Astoria Station Modern Coal Plant Regional Fossil Average

AIR QUALITY: CARBON DIOXIDE (CO2) LBS/MWH

29

slide-30
SLIDE 30

WATER QUALITY

30

Water Appropriation:

  • Test well installed into the Altamont aquifer
  • Well depth of 679 feet; reports on file with

DENR for other wells within five miles are into shallower aquifers

Surface Water and Stormwater:

  • Existing surface water drainage patterns

will not be altered

  • Stormwater from site operations will be

directed into a stormwater retention pond

slide-31
SLIDE 31

SOUND COMPARISONS

31 20 36 50 60 60 70 84 120 20 40 60 80 100 120 140

Whisper Rural Night Setting Office Astoria Station from 482nd Ave Normal Conversation Passenger Car Tractor Jet Plane at Takeoff

dBA

slide-32
SLIDE 32

Thank You!

For the latest Project information:

  • tpco.com/AstoriaStation
