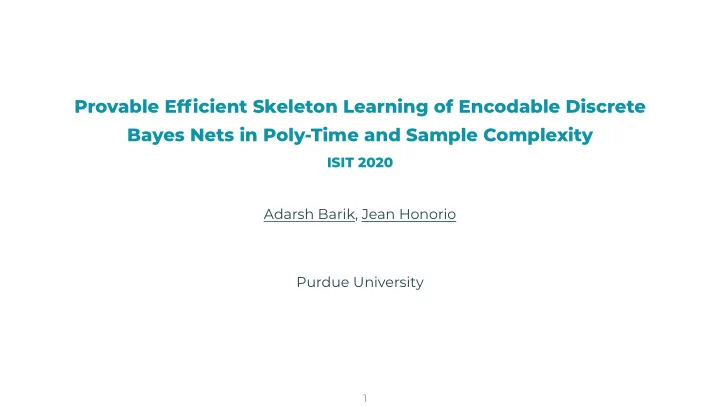

Provable Efficient Skeleton Learning of Encodable Discrete Bayes Nets in Poly-Time and Sample Complexity

ISIT 2020 Adarsh Barik, Jean Honorio Purdue University

1

What are Bayesian networks?

Example: Burglar Alarm [Russel’02] “I’m at work, neighbor John calls to say my alarm is ringing, but neighbor Mary doesn’t

• call. Sometimes it’s set off by minor earthquakes. Is there a burglar?”

2

What are Bayesian networks?

Example: Burglar Alarm [Russel’02] “I’m at work, neighbor John calls to say my alarm is ringing, but neighbor Mary doesn’t

• call. Sometimes it’s set off by minor earthquakes. Is there a burglar?”

2

What are Bayesian networks?

Example: Burglar Alarm [Russel’02] “I’m at work, neighbor John calls to say my alarm is ringing, but neighbor Mary doesn’t

• call. Sometimes it’s set off by minor earthquakes. Is there a burglar?”

Systems with multiple variables and their interactions

2

What are Bayesian networks?

How to model variables and their interactions?

• John calls: J takes two values

{Calls, Doesn’t Call} = {1, 0}.

• Mary doesn’t call: M ∈ {1, 0}
• Alarm is ringing: A ∈ {1, 0}
• Earthquake : E ∈ {1, 0}
• Burglar : B ∈ {1, 0}
• Need joint probability distribution table
• 2n − 1 entries for n variables
• Quickly becomes too large: 250 ∼ 1015
• Cannot handle even moderately big

systems this way

3

What are Bayesian networks?

How to model variables and their interactions?

• John calls: J takes two values

{Calls, Doesn’t Call} = {1, 0}.

• Mary doesn’t call: M ∈ {1, 0}
• Alarm is ringing: A ∈ {1, 0}
• Earthquake : E ∈ {1, 0}
• Burglar : B ∈ {1, 0}
• Need joint probability distribution table
• 2n − 1 entries for n variables
• Quickly becomes too large: 250 ∼ 1015
• Cannot handle even moderately big

systems this way

3

What are Bayesian networks?

Bayesian networks A Directed Acyclic Graph (DAG) that specifies a joint distribution

• ver random variables as a product of conditional probability func-

tions, one for each variable given its set of parents

B E A J M

• P(B, E, A, J, M) =

P(B)P(E)P(A|B, E)P(J|A)P(M|A)

• From 25 − 1 = 31 entries to

1 + 1 + 22 + 2 + 2 = 10 entries

4

What’s the problem?

We want to learn the structure of Bayesian network from data.

X1 X2 X3 Xi Xn

• Realization of each random variable:

X1, X2, X3, · · · , Xi, · · · , Xn

• Need not be ordered:

X3, Xn, Xi, · · · , X1, · · · , X2

• N i.i.d. samples

5

What’s the problem?

We want to learn the structure of Bayesian network from data.

X1 X2 X3 Xi Xn

• Realization of each random variable:

X1, X2, X3, · · · , Xi, · · · , Xn

• Need not be ordered:

X3, Xn, Xi, · · · , X1, · · · , X2

• N i.i.d. samples

5

What’s the problem?

We want to learn the structure of Bayesian network from data.

X1 X2 X3 Xi Xn

• Realization of each random variable:

X1, X2, X3, · · · , Xi, · · · , Xn

• Need not be ordered:

X3, Xn, Xi, · · · , X1, · · · , X2

• N i.i.d. samples

5

What’s the problem?

We want to learn the structure of Bayesian network from data.

X1 X2 X3 Xi Xn

• Realization of each random variable:

X1, X2, X3, · · · , Xi, · · · , Xn

• Need not be ordered:

X3, Xn, Xi, · · · , X1, · · · , X2

• N i.i.d. samples

5

What’s the problem?

We want to learn the structure of Bayesian network from data.

X1 X2 X3 Xi Xn

• Realization of each random variable:

X1, X2, X3, · · · , Xi, · · · , Xn

• Need not be ordered:

X3, Xn, Xi, · · · , X1, · · · , X2

• N i.i.d. samples

n variables N samples

Data

5

What’s the problem?

n variables N samples

Data

→ X1 X2 X3 Xi Xn

Can we recover Bayesian network structure from data? Yes, but it is hard!

6

What’s the problem?

n variables N samples

Data

→ X1 X2 X3 Xi Xn

Can we recover Bayesian network structure from data? Yes, but it is NP-Hard [Chickering’04]!

6

Recovering structure of Bayesian network from data

Related Work

• Score maximization method - [Friedman’99, Margaritis’00, Moore’03,

Tsamardinos’06], [Koivisto’04, Jakkola’10, Silander’12, Cussens’12]

• Independence test based method - [Spirtes’00, Cheng’02, Yehezkel’05, Xie’08]
• Special Cases with guarantees
• Linear structural equation models with additive noise: poly time and sample

complexity [Ghoshal’17a, 17b]

• Node ordering for ordinal variables: poly time and sample complexity [Park’15,17]
• Binary variables: poly sample complexity [Brenner’13]

7

Our Problem

We want to learn the structure skeleton of Bayesian network from data.

n variables N samples

Data

→ X1 X2 X3 Xi Xn

• Correctness
• Polynomial time complexity
• Polynomial sample complexity

8

Our Problem

We want to learn the structure skeleton of Bayesian network from data.

n variables N samples

Data

→ X1 X2 X3 Xi Xn

• Correctness
• Polynomial time complexity
• Polynomial sample complexity

8

Our Problem

We want to learn the structure skeleton of Bayesian network from data.

n variables N samples

Data

→ X1 X2 X3 Xi Xn

• Correctness
• Polynomial time complexity
• Polynomial sample complexity

Possible to learn DAG from skeleton efficiently under some technical conditions [Ordyniak’13]

8

Encoding Variables

n variables N samples

Data

• Type of variables matters as it is the
• nly input we have for our

mathematical model

• Numerical variables - marks in exam:

25 < 30 < 45 (natural order)

• Categorical (Nominal) variables -

country name: USA, India, China (no natural order)

9

Encoding Variables

• We use encoding for categorical

variables

• Variable - country name: USA, India,

China

• Dummy Encoding - USA: (1, 0, 0),

India: (0, 1, 0), China: (0, 0, 1)

• Effects Encoding - USA: (1, 0), India:

(0, 1), China: (−1, −1)

• Xr is encoded as E(Xr) ∈ Rk

10

Our Method

• X−r = [X1 · · · Xr−1 Xr+1 · · · Xn]⊺
• E(X−r) =

[E(X1) · · · E(Xr−1) E(Xr+1) · · · E(Xn)]⊺

• π(r) is set of parents for variable r and

c(r) is set of children for variable r

• Recover π(r) and c(r) for every node

and then combine

X1 X2 X3 Xi Xn

11

Our Method

• X−r = [X1 · · · Xr−1 Xr+1 · · · Xn]⊺
• E(X−r) =

[E(X1) · · · E(Xr−1) E(Xr+1) · · · E(Xn)]⊺

• π(r) is set of parents for variable r and

c(r) is set of children for variable r

• Recover π(r) and c(r) for every node

and then combine

X1 X2 X3 Xi Xn

Idea: Express E(Xr) as a linear function of E(X−r)

11

Our Method

Substitute model in population setting

• Let E(Xr) = W∗⊺E(X−r) + e(E(X−r))
• e(E(X−r)) depends on X−r. Let ∥E(|e|)∥∞ ⩽ µ and ∥e∥∞ = 2σ
• Solve for W∗ as

arg min

W

1 2E(∥E(Xr) − W⊺E(X−r)∥2

2)

such that Wi = 0, ∀i /

∈ π(r) ∪ c(r)

• W =

    

W1 W2 . . . Wn

    

, each Wi ∈ Rk×k, W ∈ R(n−1)k×k

12

Our Method

Substitute model in sample setting

• Solve for

W = arg minW

1 2N∥E(Xr) − E(X−r)W∥2 F + λN∥W∥B,1,2

• E(Xr) ∈ RN×k, E(X−r) ∈ RN×(n−1)k
• ∥W∥B,1,2 = ∑

i∈B ∥Wi∥F

• Idea: Provide condition on N and λN such that ∥Wi∥F = 0, ∀i /

∈ π(r) ∪ c(r) and ∥Wi∥F ̸= 0, ∀i ∈ π(r) ∪ c(r)

13

Our Method

Substitute model in sample setting

• Solve for

W = arg minW

1 2N∥E(Xr) − E(X−r)W∥2 F + λN∥W∥B,1,2

• E(Xr) ∈ RN×k, E(X−r) ∈ RN×(n−1)k
• ∥W∥B,1,2 = ∑

i∈B ∥Wi∥F

• Idea: Provide condition on N and λN such that ∥Wi∥F = 0, ∀i /

∈ π(r) ∪ c(r) and ∥Wi∥F ̸= 0, ∀i ∈ π(r) ∪ c(r)

13

Our Method

Let H = E(E(X−r)E(X−r)⊺) and H = 1

NE(X−r)⊺E(X−r).

Assumptions

• 1. Need to have a unique solution. Mathematically,

Λmin(Hπ(r)∪c(r),π(r)∪c(r)) = C > 0

• 2. Mutual Incoherence: Large number of irrelavant covariates (non parent or children
• f node r) should not exert an overly strong effect on the subset of relevant

covariates (parent and children of node r). Mathematically, for some α ∈ (0, 1],

∥H(π(r)∪c(r))cπ(r)∪c(r)H−1

π(r)∪c(r)π(r)∪c(r)∥B,∞,1 ⩽ 1 − α

• 3. ∥A∥B,∞,1 = maxi∈B ∥ vec(Ai)∥1
• 4. Also holds in sample with high probability if N = O(k5d3 log(kn)) where

d = |π(r) ∪ c(r)|

14

Our Method

Let H = E(E(X−r)E(X−r)⊺) and H = 1

NE(X−r)⊺E(X−r).

Assumptions

• 1. Need to have a unique solution. Mathematically,

Λmin(Hπ(r)∪c(r),π(r)∪c(r)) = C > 0

• 2. Mutual Incoherence: Large number of irrelavant covariates (non parent or children
• f node r) should not exert an overly strong effect on the subset of relevant

covariates (parent and children of node r). Mathematically, for some α ∈ (0, 1],

∥H(π(r)∪c(r))cπ(r)∪c(r)H−1

π(r)∪c(r)π(r)∪c(r)∥B,∞,1 ⩽ 1 − α

• 3. ∥A∥B,∞,1 = maxi∈B ∥ vec(Ai)∥1
• 4. Also holds in sample with high probability if N = O(k5d3 log(kn)) where

d = |π(r) ∪ c(r)|

14

Our Method

Let H = E(E(X−r)E(X−r)⊺) and H = 1

NE(X−r)⊺E(X−r).

Assumptions

• 1. Need to have a unique solution. Mathematically,

Λmin(Hπ(r)∪c(r),π(r)∪c(r)) = C > 0

• 2. Mutual Incoherence: Large number of irrelavant covariates (non parent or children
• f node r) should not exert an overly strong effect on the subset of relevant

covariates (parent and children of node r). Mathematically, for some α ∈ (0, 1],

∥H(π(r)∪c(r))cπ(r)∪c(r)H−1

π(r)∪c(r)π(r)∪c(r)∥B,∞,1 ⩽ 1 − α

• 3. ∥A∥B,∞,1 = maxi∈B ∥ vec(Ai)∥1
• 4. Also holds in sample with high probability if N = O(k5d3 log(kn)) where

d = |π(r) ∪ c(r)|

14

Our Method

Example

1 2 3 4

• Let |E[E(Xi)E(Xj)]| < 1, ∀i, j ∈ {1, 2, 3, 4}, i ̸= j.
• Also E[E(X1)E(X4)] = q,

E[E(X1)E(X2)] = E[E(X2)E(X4)] = E[E(X3)E(X4)] = p

and E[E(X1)] = E[E(X3)] = 0.

• Then Mutual Incoherence implies that |p| + |q| < 1

15

Main Result

Let

λN > 4 α( k N)

1 2 max

( (1 − α)((2σ2 log(k2d))

1 2 + µ), k 1 2 ((2σ2 log((n − d)k2)) 1 2 + µ)

)

and

N = O(k5d3 log(kn))

then,

• 1. We correctly recover every node which is neither a parent nor a child for all the

nodes.

• 2. If mini∈π(r)∪c(r) ∥W∗

i∥F > 4k C ( α 4(1−α) + k

1 2 + 1)(kd) 1 2 λN then we correctly recover

every node which is either parent or a child for all the nodes.

• 3. Subsequently, we correctly recover the skeleton.

16

Main Result

Let

λN > 4 α( k N)

1 2 max

( (1 − α)((2σ2 log(k2d))

1 2 + µ), k 1 2 ((2σ2 log((n − d)k2)) 1 2 + µ)

)

and

N = O(k5d3 log(kn))

then,

• 1. We correctly recover every node which is neither a parent nor a child for all the

nodes.

• 2. If mini∈π(r)∪c(r) ∥W∗

i∥F > 4k C ( α 4(1−α) + k

1 2 + 1)(kd) 1 2 λN then we correctly recover

every node which is either parent or a child for all the nodes.

• 3. Subsequently, we correctly recover the skeleton.

Proof is done through primal-dual witness construction [Wainwright’09]

16

Main Result

Method Correctness guarantee Time Complexity Sample Complexity MMPC/MMHC

[Tsamardinos’03, 06]

Skeleton Exponential Infinite sample OverDispersion

[Park’15, 17]

DAG, for ordinal data Polynomial Polynomial SparsityBoost

[Brenner’13]

DAG without false in- clusion, for binary data Exponential Polynomial PC Algorithm

[Spirtes’00]

DAG Exponential with degree Infinite sample

[Moore’03, Koivisto’04, Jakkola’10, Cussens’12...]

No guarantees Exponential No guarantees Our Method Skeleton Polynomial Logarithmic Correctness guarantee, and time and sample complexity, with respect to the number of nodes

17

Experimental Results

(a) Precision vs. CP (k = 4) (b) Recall vs. CP (k = 4) Figure: Plots of precision and recall versus the control parameter CP for Bayesian networks on

n = 20, 200 and 500 nodes with N = 10CP log((k − 1)n) samples.

18

Experimental Results

Network (n) Our Method + Greedy MMHC Greedy Search barley (48)

0.74 ± 0.06 0.73 ± 0.05 0.61 ± 0.05

carpo (60)

0.89 ± 0.01 0.86 ± 0.03 0.78 ± 0.02

mildew (35)

0.83 ± 0.01 0.77 ± 0.00 0.70 ± 0.08

water (32)

0.61 ± 0.02 0.60 ± 0.05 0.51 ± 0.06 F1-Scores and standard errors at 95% confidence level on benchmark Bayesian networks

Network (n) Our Method + Greedy MMHC Greedy Search moviereview (1001)

339.27 ± 8.85 340.60 ± 9.03 343.64 ± 9.28

dna (180)

80.37 ± 0.24 80.57 ± 0.24 80.45 ± 0.25

autos (26)

18.61 ± 2.98 24.45 ± 1.74 18.62 ± 3.27

Negative log-likelihood and standard errors at 95% confidence level on real world datasets

19

Conclusion

• We provided a method to correctly recover skeleton of a Bayesian network with

provable theoretical guarantees.

• Our method works with non-ordinal categorical variables.
• Our formulation is also independent of any specific conditional probability

distribution for the nodes.

• We obtain sufficient conditions for skeleton recovery by controlling the interaction

between node pairs for arbitrary conditional probability distributions.

• Sample complexity of our method is logarithmic with respect to the number of

nodes and has a polynomial run time.

20

Thank You!

21
