Projects: IoT based on Cloud Ruixuan Dai Spring, 2020 Internet-of-Things Things (Devices) q Many of them Different Types Isolated Systems q Data and Command Sensing the world Give Response q Challenge United: Connected +

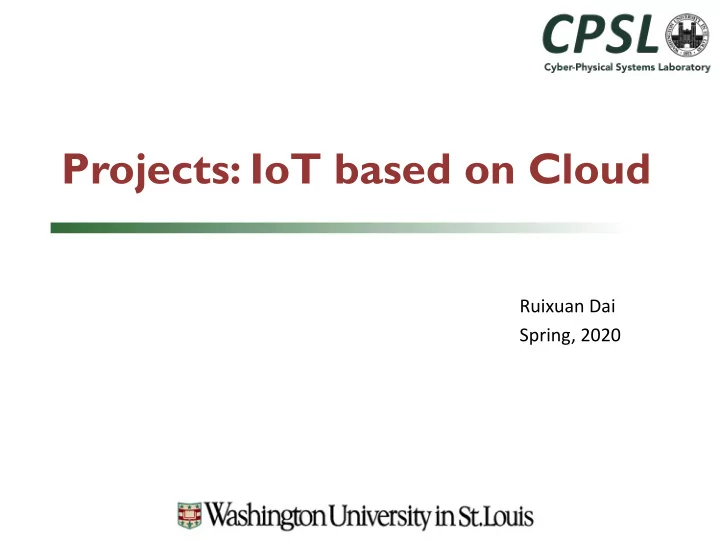

SLIDE 1

Projects: IoT based on Cloud

Ruixuan Dai Spring, 2020

SLIDE 2

Internet-of-Things

1/28/20 2

Ø Things (Devices)

q Many of them

Different Types
Isolated Systems

q Data and Command

Sensing the world
Give Response

q Challenge

United: Connected + Communication
Smart: Data Analytics + Strategy

Source: https://aws.amazon.com/iot-platform/ http://www.brain-smart.net/smart-brain-health-blog/page/2/#axzz4W4oSp8a6

SLIDE 3

AWS IoT platform

1/28/20 3

United: Connect + Communication Smart: Other Cloud Service

Data Storage Machine Learning

Source: https://aws.amazon.com/iot-platform/

Stated: “Thing Shadow”

SLIDE 4

Recap: Hello AWS IoT!

1/28/20 4 Source: https://aws.amazon.com/iot-platform/

Publish Amazon SNS Forward Temperature sensor Period: 5s (0.2Hz) Sensing Connecting Smart

SLIDE 5

Some IoT system projects in our lab

SLIDE 6

Timed Up and Go @ Home

Ø Timed Up and Go (TUG) Test

q A test of mobility and fall risk in community-dwelling, frail older

adults[1]

q Widely used in hospital

Test before surgery
Predict Falls

q Only measure the total time by the doctors

1/28/20 6

Can we do TUG @ home with more measurements?

SLIDE 7

Smartwatch TUG systems

Ø A cloud-based Smartwatch TUG system

q Send reminders to the subjects q Automatically collect and analyze the motion data q Doctors can see the results in real time.

1/28/20 7

SLIDE 8

TUG test Result

Ø The analysis is on cloud with AWS Lambda

1/28/20 8

Raw Motion data

SLIDE 9

Smartwatch TUG System Architecture

Ø Cloud based IoT system

q Sensing

Smartwatch motion sensors

q Connection

Auto upload the sensor data to AWS S3
S3 triggers an event to AWS Lambda

q Smart

AWS Lambda does the smart analysis
Give the feedback to the doctors

1/28/20 9

Upload data

Result Storage Feedback

AWS S3 data storage Data analysis

SLIDE 10

Alexa Voice-Agent for mental health

Ø A smart voice-agent based Amazon Alexa

q An “App” in Alexa is called as a skill q Guided Breath exercise to help soothe the patients

Mindfulness is reported to be able to relief stress[1]

1/28/20 10

[1] Academic Mindfulness Interest Group, Melbourne, and Melbourne Academic Mindfulness Interest Group. "Mindfulness-based psychotherapies: A review of conceptual foundations, empirical evidence and practical considerations." Australian and New Zealand Journal of Psychiatry 40.4 (2006): 285-294.

SLIDE 11

Mindfulness Skill Architecture

Ø Echo device as frontend (Sensor and actuator)

q Get patients’ feelings; help the patient relaxed.

Ø Alexa Skill platform (Middleware) Ø AWS Lambda (Analysis)

q Build a database for each patient (AWS DynamoDB)

1/28/20 11

User info Table User info

SLIDE 12

Recap: IoT concepts

Ø Sensor & actuator

q Smartwatch, Raspberry Pi (with Camera, mic), motion sensors… q Stepping motor, Light bulb, A/C

Ø Connection

q AWS IoT…

You don’t need to use AWS IoT, but you need to connect your

devices to other devices or cloud.

Ø Smart

q AWS Machine learning

Analyze the big data from the sensors, then make a smart decision

1/28/20 12

SLIDE 13

Q&A

Ø Feel free to email me about any questions.

q dairuixuan@wustl.edu

1/28/20 13
