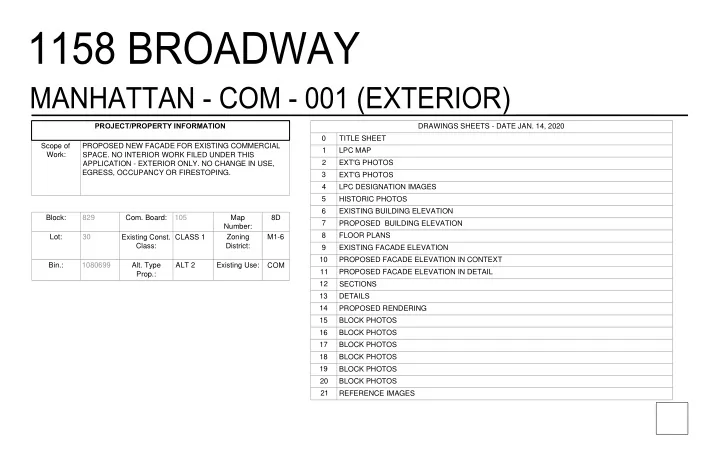

PROJECT/PROPERTY INFORMATION DRAWINGS SHEETS - DATE JAN. 14, 2020 0 - - PowerPoint PPT Presentation

PROJECT/PROPERTY INFORMATION Scope of Work: PROPOSED NEW FACADE FOR EXISTING COMMERCIAL

• SPACE. NO INTERIOR WORK FILED UNDER THIS

APPLICATION - EXTERIOR ONLY. NO CHANGE IN USE, EGRESS, OCCUPANCY OR FIRESTOPING. Block: 829

• Com. Board:

105 Map Number: 8D Lot: 30 Existing Const. Class: CLASS 1 Zoning District: M1-6 Bin.: 1080699

• Alt. Type

Prop.: ALT 2 Existing Use: COM DRAWINGS SHEETS - DATE JAN. 14, 2020 TITLE SHEET 1 LPC MAP 2 EXT'G PHOTOS 3 EXT'G PHOTOS 4 LPC DESIGNATION IMAGES 5 HISTORIC PHOTOS 6 EXISTING BUILDING ELEVATION 7 PROPOSED BUILDING ELEVATION 8 FLOOR PLANS 9 EXISTING FACADE ELEVATION 10 PROPOSED FACADE ELEVATION IN CONTEXT 11 PROPOSED FACADE ELEVATION IN DETAIL 12 SECTIONS 13 DETAILS 14 PROPOSED RENDERING 15 BLOCK PHOTOS 16 BLOCK PHOTOS 17 BLOCK PHOTOS 18 BLOCK PHOTOS 19 BLOCK PHOTOS 20 BLOCK PHOTOS 21 REFERENCE IMAGES

BROADWAY DELI MATCHA CHA CHA

LITA TRADING INC.

15 W

15w

ELEV.=0'-0"

GRADE

ELEV.= 17'-11"

T.O. 2ND FLOOR

ELEV.=27'-11"

T.O. 3RD FLOOR

ELEV.=37'-11"

T.O. 4TH FLOOR

ELEV.=47'-11"

T.O. 5TH FLOOR

ELEV.=57'-11"

T.O. ROOF

ELEV.=67'-11"

T.O. GUARDRAIL

ELEV.=70'-1"

T.O. BULKHEAD

ELEV.= 75'-0"

T.O. BULKHEAD MATCHA 1 1 5 8

6

01 - EXT'G. ELEVATION

SCALE: 1/16" = 1'-0" (BROADWAY SIDE - NO WORK)

02 - EXT'G ELEVATION

SCALE: 1/16" = 1'-0" (WEST 27 STREET SIDE)

MATCHA CHA CHA

LITA TRADING INC.

15 W

15w

ELEV.=0'-0"

GRADE

ELEV.= 17'-11"

T.O. 2ND FLOOR

ELEV.=27'-11"

T.O. 3RD FLOOR

ELEV.=37'-11"

T.O. 4TH FLOOR

ELEV.=47'-11"

T.O. 5TH FLOOR

ELEV.=57'-11"

T.O. ROOF

ELEV.=67'-11"

T.O. GUARDRAIL

ELEV.=70'-1"

T.O. BULKHEAD

ELEV.= 75'-0"

T.O. BULKHEAD

• MATCHA

1 1 5 8

7

01 - PROP. ELEVATION

SCALE: 1/16" = 1'-0" (BROADWAY SIDE - NO WORK)

02 - PROP. ELEVATION

SCALE: 1/16" = 1'-0" (WEST 27 STREET SIDE)

CH=11'11'' CH=8' CH=9'11''

WINDOW H = 42 3

4''

W SEAL H = 30 3

4''

SINK

CH=11'11'' CH=8' CH=9'11''

WINDOW H = 42 3

4''

W SEAL H = 30 3

4''

8

01 - EXT'G FLOOR PLAN

SCALE: 1/4" = 1'-0" (NO INTERIOR WORK PROPOSED. FOR REFERENCE ONLY)

02 - PROP. FLOOR PLAN

SCALE: 1/4" = 1'-0" (NO INTERIOR WORK PROPOSED. FOR REFERENCE ONLY)

1 1 5 8

ELEV.=0'-0"

GRADE

ELEV.= 17'-11"

T.O. 2ND FLOOR

9

01 - EXISTING FACADE

SCALE: 3/8" = 1'-0"

• 1 1 5 8

10

01 - PROPOSED FACADE IN CONTEXT

SCALE: 1/4" = 1'-0"

AREA SHOWN IN ELEVATION

KEY ELEVATION

• 11

01 - PROP. FACADE

SCALE: NTS

4" 1" 1'-6" 1" 1" 111 16" EXT'G FRONT WALL 1 2 1'-10" 1" 2" 1'-6" 4" 1'-10" 1" 1'-6" 1" 1'-9" 1'-10" 3" 3" 1" SCREW 1" STEEL BAR PAINTED BLACK WELDED TO PLATE 3X3 STEEL BRACKET PAINTED BLACK 1" 2" 1 2" 1'-8" 111 16" 1"

12

• PROP. SECTION 1

3/8" = 1'-0"

HANGING SIGN ELEVATION

SCALE: 1-1/2" = 1'-0"

HANGING SIGN PLAN

SCALE: 1-1/2" = 1'-0"

• PROP. SECTION 2

3/8" = 1'-0"

• HANG. SIGN SEC. 1

SCALE: 3" = 1'-0"

• HANG. SIGN SEC. 2

SCALE: 1-1/2" = 1'-0"

• 3'-71

8" 4 1 16" 1" 41 8" 15 8" 5" 1 4" 4 5 16" 1 5 16" 4 3 16" 15 16" 43 4" 1 7 16" 4 5 16" 17 8" 4"

2'-07 8" 21 2" 7 16" 2 3 16" 3 8" 2 9 16" 3 8" 1 2" 17 8" 2 1 16" 9 16" 23 8" 5 16" 313 16" 3 8" 115 16" 3 8" 21 8" 61 4" 33 4"

11 2" 6" EXISTING METAL PANEL AND WALL PROPOSED METAL FRAME PAINTED BLACK TO MATCH EXISTING UPPER FLOOR ENTRANCE CORROSIVE RESISTANT SCREWS

13

LETTERS SECTION DETAIL

NTS

LETTERS SECTION

NTS

LETTERS ELEVATION

NTS

METAL FRAME SECTION DETAIL

NTS

14
