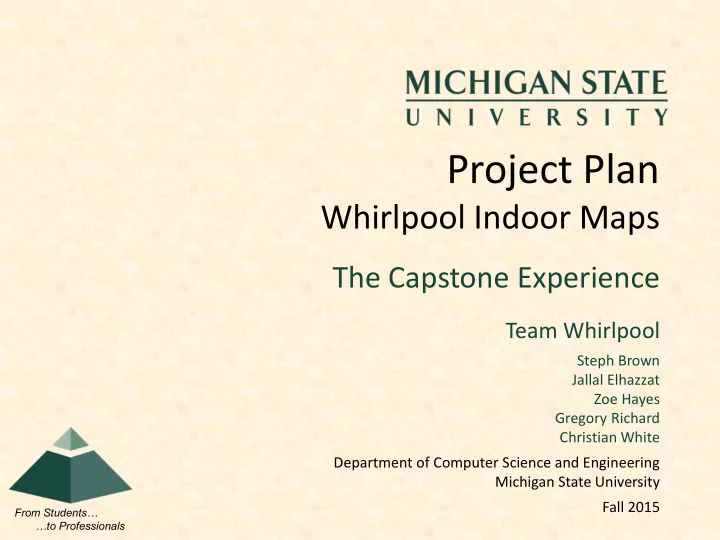

Project Plan Whirlpool Indoor Maps The Capstone Experience Team Whirlpool Steph Brown Jallal Elhazzat Zoe Hayes Gregory Richard Christian White Department of Computer Science and Engineering Michigan State University Fall 2015 From

SLIDE 1

From Students… …to Professionals

The Capstone Experience

Project Plan

Whirlpool Indoor Maps

Team Whirlpool

Steph Brown Jallal Elhazzat Zoe Hayes Gregory Richard Christian White Department of Computer Science and Engineering Michigan State University Fall 2015

SLIDE 2

Functional Specifications

Indoor Mapping of Large Buildings
Locate and book
Google Integration
Authenticate and navigate
Directions/Navigation
Indoor & outdoor

The Capstone Experience Team Whirlpool Project Plan 2

SLIDE 3

Functional Specifications

Search
Conference rooms & buildings
Filter
Capacity, availability, and logistics
Favorites
Fast & convenient

The Capstone Experience Team Whirlpool Project Plan 3

SLIDE 4

Design Specifications

Home Screen
Calendar & relevant rooms
Search Screen
Advanced filter
Room Screen
Location & related info
Directions
Current location & landmark

The Capstone Experience Team Whirlpool Project Plan 4

SLIDE 5

Screen Mockup: Home Screen

The Capstone Experience Team Whirlpool Project Plan 5

SLIDE 6

Screen Mockup: Search Screen

The Capstone Experience Team Whirlpool Project Plan 6

SLIDE 7

Screen Mockup: Room Screen

The Capstone Experience Team Whirlpool Project Plan 7

SLIDE 8

Screen Mockup: Directions

The Capstone Experience Team Whirlpool Project Plan 8

SLIDE 9

Screen Mockup: Directions

The Capstone Experience Team Whirlpool Project Plan 9

SLIDE 10

Technical Specifications

The Capstone Experience Team Whirlpool Project Plan 10

Android/iOS application
Google Authentication and maps SDK
Micello API for indoor mapping and turn by turn

directions

Real time updating and pulling of facility room

information

SLIDE 11

System Architecture

The Capstone Experience 11 Team Whirlpool Project Plan

SLIDE 12

System Components

Hardware Platforms

▪ Google Cloud ▪ Whirlpool Database

Software Platforms / Technologies

▪ xCode, Android Studio ▪ Swift, Java, HTML, JavaScript ▪ Phone Geo-location

The Capstone Experience Team Whirlpool Project Plan 12

SLIDE 13

Testing

Test-driven development (TDD)
Swift & Java
Android application
Nexus 7, Samsung S5, Samsung S6
iOS application
iPhone 5s, iPhone 6, iPad

The Capstone Experience Team Whirlpool Project Plan 13

SLIDE 14

Risks

Geo-locating within buildings.
GPS , floors, and the approximation
Mitigation: WIFI (for now)
Implementing Micello API and SDK
Micello : Javascript for IOS, SDK Android
Mitigation: Webviews
Turn by turn navigation
Challenge with the indoor positioning
Mitigation: User select a starting point
Google map integration with Micello
Switching between the two maps slows response time
None
