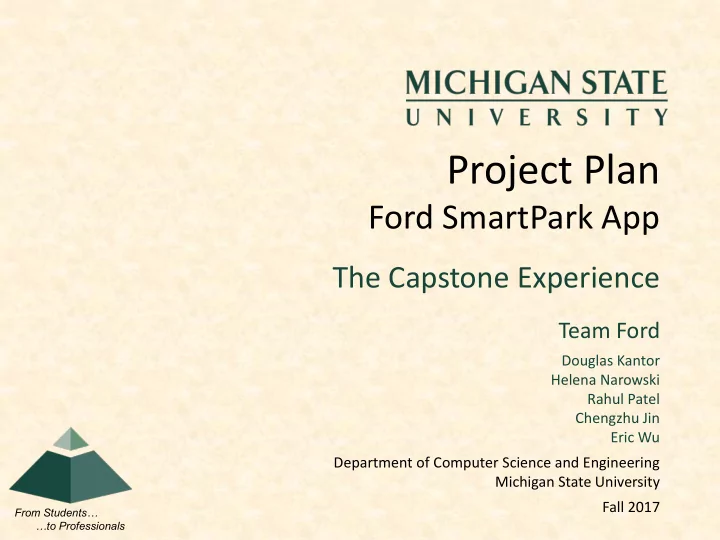

Project Plan Ford SmartPark App The Capstone Experience Team Ford Douglas Kantor Helena Narowski Rahul Patel Chengzhu Jin Eric Wu Department of Computer Science and Engineering Michigan State University Fall 2017 From Students to


slide-1
SLIDE 1

From Students… …to Professionals

The Capstone Experience

Project Plan

Ford SmartPark App

Team Ford

Douglas Kantor Helena Narowski Rahul Patel Chengzhu Jin Eric Wu Department of Computer Science and Engineering Michigan State University Fall 2017

slide-2
SLIDE 2

Functional Specifications

  • Mobile App
  • Create / Edit Ford Smart Park Profile
  • Send in parking spots for reward incentives
  • View Rewards Leaderboard
  • Receive notifications of available parking spots nearby
  • Register owned vehicles
  • Google Tango
  • Scan parking spots
  • Analyze and report measurements
  • Sync 3
  • Receive alerts from mobile app of available parking spots
  • Map to available parking spots
  • Server
  • AWS Free Tier Server

The Capstone Experience Team Ford Project Plan Presentation 2

slide-3
SLIDE 3

Design Specifications

  • Our project has two User Interfaces: Mobile

Application and Sync 3

  • Mobile Application has 7 interfaces
  • Sync 3 mirrors mobile app in the vehicle

The Capstone Experience Team Ford Project Plan Presentation 3

slide-4
SLIDE 4

Screen Mockup: Android Application

The Capstone Experience 4 Team Ford Project Plan Presentation

slide-5
SLIDE 5

Screen Mockup: Android Application

The Capstone Experience 5 Team Ford Project Plan Presentation

slide-6
SLIDE 6

Screen Mockup: Google Tango Parking Spot Scanning

The Capstone Experience 6 Team Ford Project Plan Presentation

5.4m 5.4m 2.8m 2.8m 2.8m 4.8m 4.8m 3.0m

slide-7
SLIDE 7

Technical Specifications

  • Mobile Application
  • Android Studio 2.3.3
  • Google Tango
  • Software Development Kit
  • Sync 3
  • Emulator
  • Testing Development Kit
  • Server
  • MySQL
  • Amazon Relational Database Services

The Capstone Experience Team Ford Project Plan Presentation 7

slide-8
SLIDE 8

System Architecture

The Capstone Experience 8 Team Ford Project Plan Presentation

slide-9
SLIDE 9

System Components

  • Hardware Platforms
  • Sync 3 Testing Development Kit
  • Lenovo Phab 2 Pro Smartphone
  • Software Platforms / Technologies
  • Android (Java)
  • Google Tango (Java)
  • Sync 3 Emulator & TDK
  • MySQL Database

The Capstone Experience Team Ford Project Plan Presentation 9

slide-10
SLIDE 10

Testing

  • Server Communication
  • Google Tango Communication
  • Sync 3 Communication
  • Sync 3 Emulator
  • Sync 3 TDK

The Capstone Experience Team Ford Project Plan Presentation 10

slide-11
SLIDE 11

Risks

  • Google Tango Augmented Reality Implementation
  • Team has no experience with AR.
  • No existing evidence can prove that Google Tango can implement scanning functionality.
  • Lots of time-consuming research and building process
  • Starting early is most efficient solution for time consuming tasks.
  • Using Documentation and tutorials to manipulate source code.
  • More team member work on AR implementation if needed.
  • Depth Sensing camera compatibility
  • Depth Sensing camera has maximum 3.5m detecting distance. However, length of most parking

spot is larger than 4.5m

  • Try different method of depth sensing process and create new scanning algorithm.
  • Inbuilt Hardware corporation
  • Need to communicate lots of sensors since team is creating source code and no experiences.
  • Barely any documentation provided
  • Go through tutorials and Test carefully ensure specific software functionality is cooperating with

correct hardware signal

The Capstone Experience Team Ford Project Plan Presentation 11

slide-12
SLIDE 12

Questions?

The Capstone Experience Team Ford Project Plan Presentation 12

? ? ? ? ? ? ? ? ?
