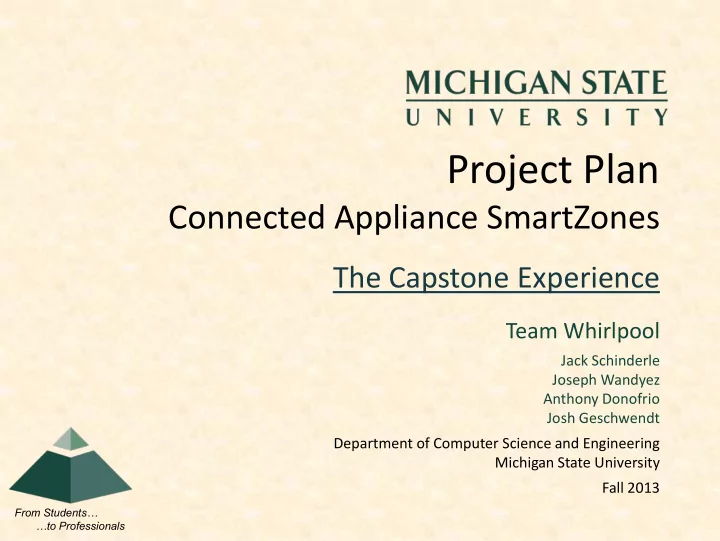

Project Plan Connected Appliance SmartZones The Capstone Experience Team Whirlpool Jack Schinderle Joseph Wandyez Anthony Donofrio Josh Geschwendt Department of Computer Science and Engineering Michigan State University Fall 2013 From

slide-1
SLIDE 1

From Students… …to Professionals

The Capstone Experience

Project Plan

Connected Appliance SmartZones

Team Whirlpool

Jack Schinderle Joseph Wandyez Anthony Donofrio Josh Geschwendt Department of Computer Science and Engineering Michigan State University Fall 2013

slide-2
SLIDE 2

Project Overview

  • Energy efficiency is important
  • Appliances need to be smarter
  • The mobile advantage

The Capstone Experience Team Whirlpool Project Plan 2

slide-3
SLIDE 3

Functional Specifications

  • Detects user location
  • Control user appliances based on location
  • Alert user of appliance status

The Capstone Experience Team Whirlpool Project Plan 3

slide-4
SLIDE 4

Design Specifications

  • Native Android application
  • Uses geolocation and geofencing
  • Defines SmartZones
  • Vacation
  • Comfort
  • AlertMe
  • RemindMe

The Capstone Experience Team Whirlpool Project Plan 4

slide-5
SLIDE 5

Screen Mockup: Login Screen

The Capstone Experience Team Whirlpool Project Plan 5

slide-6
SLIDE 6

Screen Mockup: Activate Screen

The Capstone Experience Team Whirlpool Project Plan 6

slide-7
SLIDE 7

Screen Mockup: Add/Modify Screen

The Capstone Experience Team Whirlpool Project Plan 7

slide-8
SLIDE 8

Screen Mockup: Map It Screen

The Capstone Experience Team Whirlpool Project Plan 8

slide-9
SLIDE 9

Use Case Diagrams

The Capstone Experience 9 Team Whirlpool Project Plan

ComfortZone: User interaction with a ComfortZone

slide-10
SLIDE 10

Use Case Diagrams

The Capstone Experience 10 Team Whirlpool Project Plan

VacationZone: User interaction with a VacationZone

slide-11
SLIDE 11

Use Case Diagrams

The Capstone Experience 11 Team Whirlpool Project Plan

AlertMe: User interaction with an AlertMeZone

slide-12
SLIDE 12

Use Case Diagrams

The Capstone Experience 12 Team Whirlpool Project Plan

RemindMe: User interaction with a RemindMeZone

slide-13
SLIDE 13

Technical Specifications

  • Android application
  • Targets Android Jelly Bean 4.2 or higher
  • Written in Eclipse using Java
  • Refrigerator
  • Communicates status with Whirlpool API
  • Mapping API
  • Uses mobile geolocation services to set SmartZones

The Capstone Experience Team Whirlpool Project Plan 13

slide-14
SLIDE 14

System Architecture

The Capstone Experience Team Whirlpool Project Plan 14

slide-15
SLIDE 15

System Components

  • Hardware Platforms
  • Android Mobile Device
  • Whirlpool Refrigerator
  • Software Platforms / Technologies
  • Eclipse IDE
  • Git-hub
  • Whirlpool Connected Appliance API

The Capstone Experience Team Whirlpool Project Plan 15

slide-16
SLIDE 16

Testing

  • 4 Prototypes
  • UI
  • Whirlpool API interaction
  • User alerts
  • Geofencing
  • Integrated build
  • Ensure components work together
  • Final build
  • Polish and feature complete

The Capstone Experience Team Whirlpool Project Plan 16

slide-17
SLIDE 17

Risks

  • Whirlpool API
  • Client documentation and communication
  • Geofencing
  • Research and testing
  • General
  • Feature based prototyping

The Capstone Experience Team Whirlpool Project Plan 17
