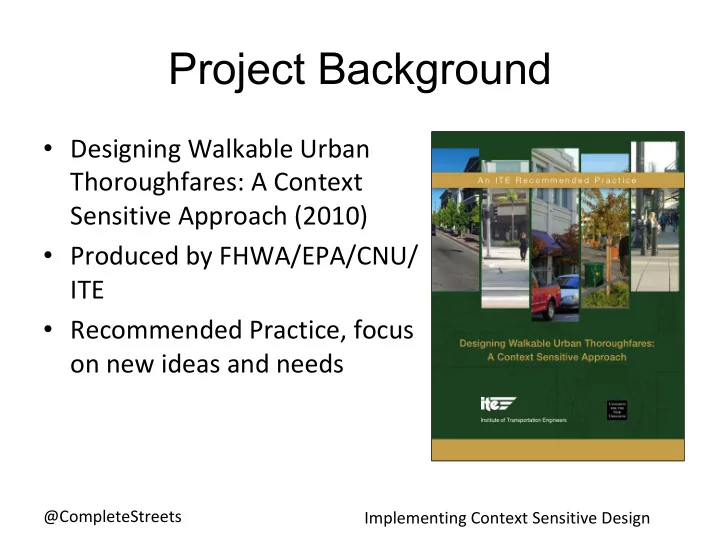

Project Background

  • Designing Walkable Urban

Thoroughfares: A Context Sensitive Approach (2010)

  • Produced by FHWA/EPA/CNU/

ITE

  • Recommended Practice, focus
  • n new ideas and needs

Implementing Context Sensitive Design @CompleteStreets

slide-2
SLIDE 2

Limitations

  • 2010 vs. 2017 à Differences in understanding

CSS and Complete Streets

  • Some difficulty adapting recommended

practices to local contexts

  • RP focus on design, less so on policy and

process

  • Lack of strong guidance for suburban-type

areas

Implementing Context Sensitive Design @CompleteStreets

slide-3
SLIDE 3

This Publication

  • Implementing Context

Sensitive Design on Multimodal Corridors: A Practitioner’s Handbook

  • Produced by FHWA/ITE
  • Informational Report, focus
  • n adapting to new

information and audiences

Implementing Context Sensitive Design @CompleteStreets

slide-4
SLIDE 4

Project Goals

  • User-friendly, graphically-rich application guide
  • Expand and enhance the content of the ITE RP

and the NACTO Guide through case studies

  • Demonstrate successful practical applications
  • Solutions with multimodal focus (ped, bike,

freight)

Implementing Context Sensitive Design @CompleteStreets

slide-5
SLIDE 5
  • Technical Editor:

Nelson\Nygaard

  • Case Studies: CNU
  • FHWA Office of Planning,

Environment, Realty

  • 30+ Subject Matter

Experts

  • AASHTO
  • AMPO
  • ITE Complete Streets

Council

  • ABPB
  • US Access Board
  • Smart Growth America
  • Independent Truckers

(OOIDA)

  • Development and Land

Use (NADO)

  • Freight & Research

Communities

Content Development and Review

Implementing Context Sensitive Design @CompleteStreets

slide-6
SLIDE 6

Reception and Feedback

  • Launch webinar in November 2017
  • FHWA dissemination and promotion
  • Over 700 copies downloaded since launch
  • Positive feedback, innovation with “mature”

case studies

Implementing Context Sensitive Design @CompleteStreets

slide-7
SLIDE 7

@CompleteStreets Implementing Context Sensitive Design

Managing Transition

A Practitioner’s Guide to Multimodal Thoroughfare Design

December 11, 2018

slide-8
SLIDE 8

Why Another Guide?

2

slide-9
SLIDE 9

Strong, Clear Urban Guidance

3

slide-10
SLIDE 10

Other Contexts Are Harder To Discern

4

Things The Green Book Says:

  • Provisions should be made, because pedestrians are

the lifeblood of our urban areas.

  • There are important differences between the design

criteria applicable to low- and high-speed designs.

  • Use simple designs that minimize crossing widths

and minimize the use of more complex elements such as channelization and separate turning lanes.

  • On lower speed facilities, use of above-minimum

design criteria may encourage travel at speeds higher than the design speed.

@CompleteStreets Implementing Context Sensitive Design

slide-11
SLIDE 11

Our Communities Don’t Fit a Mold

53% of Americans describe where they live as suburban

5 @CompleteStreets Implementing Context Sensitive Design

slide-12
SLIDE 12

6 @CompleteStreets Implementing Context Sensitive Design

slide-13
SLIDE 13

Places Are Not Static

7

Des Moines, Iowa

slide-14
SLIDE 14

Design Process

  • 1. Define Problem
  • 2. Document Physical and Policy Context
  • 3. Identify Process and Stakeholders
  • 4. Analyze Collaboratively
  • 5. Manage Communication

8 @CompleteStreets Implementing Context Sensitive Design

slide-15
SLIDE 15

Design Process

  • 1. Define Problem
  • 2. Document Physical and Policy Context
  • 3. Identify Process and Stakeholders
  • 4. Analyze Collaboratively
  • 5. Manage Communication

9

Pre-Design Activities

@CompleteStreets Implementing Context Sensitive Design

slide-16
SLIDE 16

Part 1 - Pre-Design: Defining The Problem

10 @CompleteStreets Implementing Context Sensitive Design

slide-17
SLIDE 17

11

Pounds of CO2 Per Person-Mile

@CompleteStreets Implementing Context Sensitive Design

slide-18
SLIDE 18

12 @CompleteStreets Implementing Context Sensitive Design

slide-19
SLIDE 19

13 @CompleteStreets Implementing Context Sensitive Design

slide-20
SLIDE 20

Results Over the Last 50 Years

  • 1. Vehicle Miles of Travel (VMT) Growing Faster Than

Population Growth

  • 2. Longer Commute Times
  • 3. Decreased Transit Ridership

14 @CompleteStreets Implementing Context Sensitive Design

slide-21
SLIDE 21

Public Health Impacts

15

  • Cardiovascular:

Heart Attack Stroke

  • Respiratory: Asthma

Emphysema

  • Weight Related: Diabetes II

Heart Disease

  • Environmental:

Cancer & other “chronic” diseases

@CompleteStreets Implementing Context Sensitive Design

slide-22
SLIDE 22

Pre-Design Decisions That Affect Outcomes

16

  • 1. Traffic Growth Rate – Be Realistic…Don’t Preclude Success

@CompleteStreets Implementing Context Sensitive Design

slide-23
SLIDE 23

Measure, Don’t Just Project Traffic

17 @CompleteStreets Implementing Context Sensitive Design

slide-24
SLIDE 24

Pre-Design Decisions That Affect Outcomes

18

  • 1. Traffic Growth Rate – Be Realistic…Don’t Preclude Success
  • 2. Planning Horizon – Select Thoughtfully

@CompleteStreets Implementing Context Sensitive Design

slide-25
SLIDE 25

Pre-Design Decisions That Affect Outcomes

19 @CompleteStreets Implementing Context Sensitive Design

slide-26
SLIDE 26

Pre-Design Decisions That Affect Outcomes

20

  • 1. Traffic Growth Rate – Be Realistic…Don’t Preclude Success
  • 2. Planning Horizon – Select Thoughtfully
  • 3. “Success” Metrics – Know Your Market

1. Level of Service vs. Travel Time 2. Auto-Only vs. Multi-Modal 3. Traditional Analysis vs. Broadly-Focused

@CompleteStreets Implementing Context Sensitive Design

slide-27
SLIDE 27

Level of Service A

21

San Francisco, CA

@CompleteStreets Implementing Context Sensitive Design

slide-28
SLIDE 28

Level of Service F

22

San Francisco, CA

@CompleteStreets Implementing Context Sensitive Design

slide-29
SLIDE 29

Strategy 1: Observation Studies

23

Newark, NJ

@CompleteStreets Implementing Context Sensitive Design

slide-30
SLIDE 30

Strategy 2: Safety Analyses (Vision Zero)

24 @CompleteStreets Implementing Context Sensitive Design

slide-31
SLIDE 31

Strategy 3: Future-Proofing

25

  • Plan For Horizon Demographics

@CompleteStreets Implementing Context Sensitive Design

slide-32
SLIDE 32

Baby Boomers

26 @CompleteStreets Implementing Context Sensitive Design

slide-33
SLIDE 33

Licensed Drivers by Age Group

27

Source: Michael Sivaka & Brandon Schoettlea, “Update: Percentage of Young Persons With a Driver's License Continues to Drop.” Traffic Injury Prevention, Volume 13, Issue 4, 2012. Page 341.

@CompleteStreets Implementing Context Sensitive Design

slide-34
SLIDE 34

Strategy 3: Future-Proofing

28

  • Plan For Horizon Demographics
  • Be Realistic About Funding

@CompleteStreets Implementing Context Sensitive Design

slide-35
SLIDE 35

Funding

29 @CompleteStreets Implementing Context Sensitive Design

slide-36
SLIDE 36

Strategy 3: Future-Proofing

30

  • Plan For Horizon Demographics
  • Be Realistic About Funding
  • Build In Autonomy Triggers

@CompleteStreets Implementing Context Sensitive Design

slide-37
SLIDE 37

Driverless Cars

31

Kemner Iott Benz

@CompleteStreets Implementing Context Sensitive Design

slide-38
SLIDE 38

The Shift In Mobility

@CompleteStreets Implementing Context Sensitive Design

slide-39
SLIDE 39

Transportation Management Platforms

LUUM RIDE AMIGOS

@CompleteStreets Implementing Context Sensitive Design

slide-40
SLIDE 40

New Mobility Is About Curb Management

@CompleteStreets Implementing Context Sensitive Design

slide-41
SLIDE 41

Part 2 - Modes and Networks – The Physical and Policy Context

35 @CompleteStreets Implementing Context Sensitive Design

slide-42
SLIDE 42

Tradeoffs

36 @CompleteStreets Implementing Context Sensitive Design

slide-43
SLIDE 43

Street Users

37

Needs Wants Capacity Speed Safety Comfort Frequency Reliability Space Separation Cars Peds Transit Bikes

@CompleteStreets Implementing Context Sensitive Design

slide-44
SLIDE 44

Street Users

38

Needs Wants Capacity Speed Safety Comfort Frequency Reliability Space Separation Cars Peds Transit Bikes

@CompleteStreets Implementing Context Sensitive Design

slide-45
SLIDE 45

Primary Tradeoff Drivers

39

  • 1. Mobility Function
  • 2. Modal Emphasis
  • 3. Context

@CompleteStreets Implementing Context Sensitive Design

slide-46
SLIDE 46

40 @CompleteStreets Implementing Context Sensitive Design

slide-47
SLIDE 47

Tradeoff Tools: Zones

41 @CompleteStreets Implementing Context Sensitive Design

slide-48
SLIDE 48

Tradeoff Tools: Function-Driven Zones

42

Function and Modal Emphasis

@CompleteStreets Implementing Context Sensitive Design

slide-49
SLIDE 49

Tradeoff Tools: Context-Driven Zones

Context

@CompleteStreets Implementing Context Sensitive Design

slide-50
SLIDE 50

44

  • 1. Mobility Function

Atlanta, GA

@CompleteStreets Implementing Context Sensitive Design

slide-51
SLIDE 51

45

  • 1. Mobility Function

Atlanta, GA

@CompleteStreets Implementing Context Sensitive Design

slide-52
SLIDE 52
  • 2. Modal Emphasis

46 @CompleteStreets Implementing Context Sensitive Design

slide-53
SLIDE 53

Successful Transit Must Be

47

  • 1. Convenient

@CompleteStreets Implementing Context Sensitive Design

slide-54
SLIDE 54

Successful Transit Must Be

48

  • 1. Convenient
  • 2. Safe & Comfortable

@CompleteStreets Implementing Context Sensitive Design

slide-55
SLIDE 55

Successful Transit Must Be

49

  • 1. Convenient
  • 2. Safe & Comfortable
  • 3. Reliable

@CompleteStreets Implementing Context Sensitive Design

slide-56
SLIDE 56

Context (Urban Form) Matters

50

Walk Bike Transit Automobile

@CompleteStreets Implementing Context Sensitive Design

slide-57
SLIDE 57

“First/Last Mile” Options Are Often Poor

51 @CompleteStreets Implementing Context Sensitive Design

slide-58
SLIDE 58

Will People Ride Bikes?

52 @CompleteStreets Implementing Context Sensitive Design

slide-59
SLIDE 59

Cyclists Are Not Monolithic

53 @CompleteStreets Implementing Context Sensitive Design

slide-60
SLIDE 60
  • Who is the market?

54

Bike Travelers

Portland Department of Transportation

@CompleteStreets Implementing Context Sensitive Design

slide-61
SLIDE 61
  • Who is the market?

55

Bike Travelers

Portland Department of Transportation

@CompleteStreets Implementing Context Sensitive Design

slide-62
SLIDE 62

56 @CompleteStreets Implementing Context Sensitive Design

slide-63
SLIDE 63
  • 3. Identifying Context

57 @CompleteStreets Implementing Context Sensitive Design

slide-64
SLIDE 64

Speed

58 @CompleteStreets Implementing Context Sensitive Design

slide-65
SLIDE 65

59 @CompleteStreets Implementing Context Sensitive Design

slide-66
SLIDE 66

Context May Not Be Temporally Constant

60

San Diego, CA

@CompleteStreets Implementing Context Sensitive Design

slide-67
SLIDE 67

61

Context May Not Be Temporally Constant

San Diego, CA

@CompleteStreets Implementing Context Sensitive Design

slide-68
SLIDE 68

62 @CompleteStreets Implementing Context Sensitive Design

slide-69
SLIDE 69

63

Network Strategy 1: Break Down The Blocks

@CompleteStreets Implementing Context Sensitive Design

slide-70
SLIDE 70

64

Same Total Lanes More Capacity

4 4 6 6 2 2 2 2 2

Network Strategy 1: Break Down The Blocks

@CompleteStreets Implementing Context Sensitive Design

slide-71
SLIDE 71

Relationship Between Unimpeded Block Length and Speed

Source: City of San Antonio, TX

@CompleteStreets Implementing Context Sensitive Design

slide-72
SLIDE 72

66

Capacity of Additional Through Lane (VPH)

Lane Capacity

Network Strategy 2: Look For Efficiency

@CompleteStreets Implementing Context Sensitive Design

slide-73
SLIDE 73

67

Strategy 3: Use The Network

@CompleteStreets Implementing Context Sensitive Design

slide-74
SLIDE 74

68

Abercorn Street - Historic District

40,000 Sq.Ft per Acre Density 10.4 Miles

  • f Streets

@CompleteStreets Implementing Context Sensitive Design

slide-75
SLIDE 75

69

Abercorn Street: Suburban Pattern

15,500 Sq.Ft per Acre Built Density 4.3 Miles

  • f Streets

@CompleteStreets Implementing Context Sensitive Design

slide-76
SLIDE 76

70

Abercorn Street: Retail Mall District

13,500

  • Sq. Ft.

per Acre built Density 3.3 Miles

  • f Streets

@CompleteStreets Implementing Context Sensitive Design

slide-77
SLIDE 77

Part 3 - Safety and Walkability: Process and Tools

71 @CompleteStreets Implementing Context Sensitive Design

slide-78
SLIDE 78

Stakeholders and Outreach

72 @CompleteStreets Implementing Context Sensitive Design

slide-79
SLIDE 79

73

Speed Matters – (See Next Section)

@CompleteStreets Implementing Context Sensitive Design

slide-80
SLIDE 80

How much safer are livable streets?

  • Per vehicle mile traveled:
  • 40% fewer

midblock crashes

than roadway averages.

  • 67% fewer roadside

crashes than roadway

averages.

Source: Eric Dumbaugh, Texas A&M § Examined lengths of arterials in 3 small metro regions: § Substantial design variation: § Pedestrian-oriented “livable” streetscape in downtown core. § Conventional suburban. § Suburban/rural transition.

@CompleteStreets Implementing Context Sensitive Design

slide-81
SLIDE 81

75

The Transit “Arterial” The “Escape Route”

Common Situations

@CompleteStreets Implementing Context Sensitive Design

slide-82
SLIDE 82

Scale Myth: Some Streets Only Feel Big

76 @CompleteStreets Implementing Context Sensitive Design

slide-83
SLIDE 83

77

Crossing Opportunity Isolation Proportion & Scale

Scale Myth: Some Streets Only Feel Big

@CompleteStreets Implementing Context Sensitive Design

slide-84
SLIDE 84

78 @CompleteStreets Implementing Context Sensitive Design

slide-85
SLIDE 85

79

Vertical Enclosure

@CompleteStreets Implementing Context Sensitive Design

slide-86
SLIDE 86

80

Scale

@CompleteStreets Implementing Context Sensitive Design

slide-87
SLIDE 87

81

Crossing Opportunity

@CompleteStreets Implementing Context Sensitive Design

slide-88
SLIDE 88

82

Activity (Driven By Density)

@CompleteStreets Implementing Context Sensitive Design

slide-89
SLIDE 89

Crossing Toolkit 1: Safety Standards

83 @CompleteStreets Implementing Context Sensitive Design

slide-90
SLIDE 90

Pedestrian Crossings

84 @CompleteStreets Implementing Context Sensitive Design

slide-91
SLIDE 91

85

Speed Limits Above 30mph

Generator Component Transit Stops (Boarding Thresholds?) Jobs Centers (Density Definition?) Schools Risk Component Spacing (Tied to Typology?) Speed Width

Generator Score Risk Score

Crossing Toolkit 2: Policies and Priorities

Set Spacing Standard Prioritize Locations

Should be well under 1000’ in any walkable context

@CompleteStreets Implementing Context Sensitive Design

slide-92
SLIDE 92

Crossing Toolkit 3: Warrants

86

From MUTCD:

  • They (traffic signals) are used to interrupt heavy traffic at intervals to permit
  • ther traffic, vehicular or pedestrian, to cross.

Pedestrian Warrant

  • The Pedestrian Volume signal warrant is intended for application where the

traffic volume on a major street is so heavy that pedestrians experience excessive delay in crossing the major street.

  • The criterion for the pedestrian volume crossing the major street may be

reduced as much as 50 percent if the 15th-percentile crossing speed of pedestrians is less than 3.5 feet per second.

  • School Warrant and Progression Warrant

Pedestrian Hybrid Beacon

  • A pedestrian hybrid beacon may be considered for installation to facilitate

pedestrian crossings at a location that does not meet traffic signal warrants.

@CompleteStreets Implementing Context Sensitive Design

slide-93
SLIDE 93

Case Study Great Street: Main St / Greenville, SC

designed in 1970’s by Lawrence Halprin

Crossing Toolkit 4: Legibility

@CompleteStreets Implementing Context Sensitive Design

slide-94
SLIDE 94

Speed Management: Process and Tools

88 @CompleteStreets Implementing Context Sensitive Design

slide-95
SLIDE 95

Myth: Freeways Are Efficient

89 @CompleteStreets Implementing Context Sensitive Design

slide-96
SLIDE 96

Reality: Good At Certain Things

90 @CompleteStreets Implementing Context Sensitive Design

slide-97
SLIDE 97

“Metro areas that invested heavily in road capacity expansion fared no better in easing congestion than metro areas that did not. Trends in congestion show that areas that exhibited greater growth in lane capacity spent roughly $22 billion more on road construction than those that didn’t, yet ended up with slightly higher congestion costs per person, wasted fuel, and travel delay.” –Surface Transportation Policy Project

91 @CompleteStreets Implementing Context Sensitive Design

slide-98
SLIDE 98

Speed Myth: Speed vs. Capacity

92 @CompleteStreets Implementing Context Sensitive Design

slide-99
SLIDE 99

NACTO

93 @CompleteStreets Implementing Context Sensitive Design

slide-100
SLIDE 100

Space Myth: The Cars in MY City Are Huge!

94

Prius

5.8’

Pickup

6.6’

Bus

8-9’

Stabilizers 12-16’

Ladder Truck

7-8’

@CompleteStreets Implementing Context Sensitive Design

slide-101
SLIDE 101

95

7’ 10’

@CompleteStreets Implementing Context Sensitive Design

slide-102
SLIDE 102

What Makes Drivers Slow Down?

96 @CompleteStreets Implementing Context Sensitive Design

slide-103
SLIDE 103

Design Speed vs. Operating Speed

  • Selection of design speed controls:
  • Horizontal curvature
  • Vertical curvature

97 @CompleteStreets Implementing Context Sensitive Design

slide-104
SLIDE 104

Speed Selection

98

Design Engineers: Design Speed (60 mph) - 5

@CompleteStreets Implementing Context Sensitive Design

slide-105
SLIDE 105

Speed Selection

99

Design Speed (100 mph) - 5 Design Engineers: Design Speed (60 mph) - 5

@CompleteStreets Implementing Context Sensitive Design

slide-106
SLIDE 106

100 @CompleteStreets Implementing Context Sensitive Design

slide-107
SLIDE 107

Risk vs. Reward

  • Risk:
  • Design of street/street type
  • Weather
  • Presence of pedestrians/cyclists
  • Vertical elements (trees, buildings, etc.)

101 @CompleteStreets Implementing Context Sensitive Design

slide-108
SLIDE 108

Risk vs. Reward

  • Risk:
  • Design of street/street type
  • Weather
  • Presence of pedestrians/cyclists
  • Vertical elements (trees, buildings, etc.)
  • Reward:
  • Decreased travel time

102 @CompleteStreets Implementing Context Sensitive Design

slide-109
SLIDE 109

Design Speed vs. Operating Speed

  • Selection of design speed controls:
  • Horizontal curvature
  • Vertical curvature
  • Design elements that affect operating speed:
  • Multilane Cartways
  • Lane width
  • Edge activity
  • Vertical elements

103 @CompleteStreets Implementing Context Sensitive Design

slide-110
SLIDE 110

104

Opposing Vehicles In Blind Spots

Strategy 1: Road Diets

@CompleteStreets Implementing Context Sensitive Design

slide-111
SLIDE 111

105 @CompleteStreets Implementing Context Sensitive Design

slide-112
SLIDE 112

Edgewater Drive (Orlando, FL)

106 @CompleteStreets Implementing Context Sensitive Design

slide-113
SLIDE 113

Edgewater Drive (Orlando, FL)

107 @CompleteStreets Implementing Context Sensitive Design

slide-114
SLIDE 114

Edgewater Drive (Orlando, FL)

108 @CompleteStreets Implementing Context Sensitive Design

slide-115
SLIDE 115

Edgewater Drive (Orlando, FL)

109 @CompleteStreets Implementing Context Sensitive Design

slide-116
SLIDE 116

110 @CompleteStreets Implementing Context Sensitive Design

slide-117
SLIDE 117

Minneapolis Lane Removals

111 @CompleteStreets Implementing Context Sensitive Design

slide-118
SLIDE 118

Strategy 2: Lane Width Adjustment

112

Before Testing Plan Knox St, Dallas (Demonstration Project)

@CompleteStreets Implementing Context Sensitive Design

slide-119
SLIDE 119

Lane Widths and Speed

113

Knox St, Dallas (Demonstration Project)

@CompleteStreets Implementing Context Sensitive Design

slide-120
SLIDE 120

Strategies 1 and 2

114

The bike lanes may only be incidental, but you still get them.

@CompleteStreets Implementing Context Sensitive Design

slide-121
SLIDE 121

115

Strategy 3: Amenitize The Space Saved

@CompleteStreets Implementing Context Sensitive Design

slide-122
SLIDE 122

Curb Space

Bicycle Parking or Infrastructure Dedicated Transit Lanes/Stops Public Space More Vehicle Lanes

@CompleteStreets Implementing Context Sensitive Design

slide-123
SLIDE 123

117

Pittsburgh Street Design Guidelines

@CompleteStreets Implementing Context Sensitive Design

slide-124
SLIDE 124

THANK YOU

Paul Moore Nelson\Nygaard 213.785.5500

@CompleteStreets Implementing Context Sensitive Design
