Profiling Go Code FLAME GRAPHS Ram Nadella Online Marketplace CPU - - PowerPoint PPT Presentation

▶

May 12, 2023 483 likes •780 views

Profiling Go Code FLAME GRAPHS Ram Nadella Online Marketplace CPU Flame Graph of Linux Kernel Flame Graphs Function call stacks Each cell => Function Width => cost of the function Colors have no meaning Flame Graphs

SLIDE 1

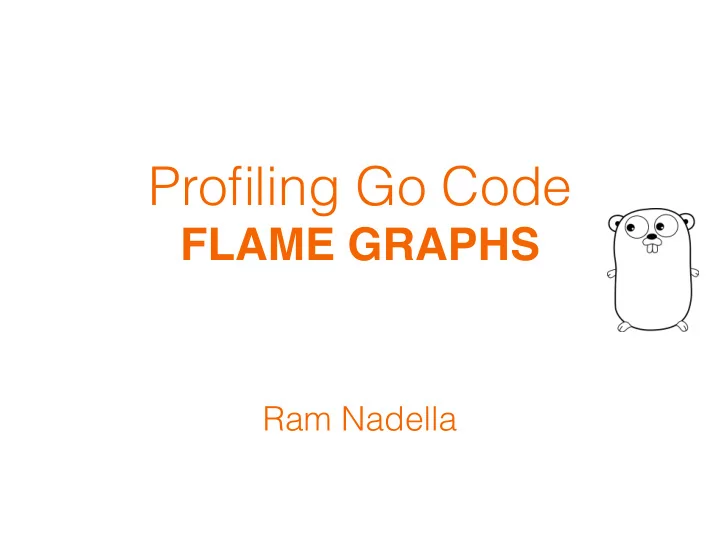

Profiling Go Code

FLAME GRAPHS

Ram Nadella

SLIDE 2

SLIDE 3

Online Marketplace

SLIDE 4

SLIDE 5

SLIDE 6

CPU Flame Graph of Linux Kernel

SLIDE 7

Flame Graphs

Function call stacks
Each cell => Function
Width => cost of the function
Colors have no meaning

SLIDE 8

Flame Graphs

SVG file
Interactive

SLIDE 9

SLIDE 10

SLIDE 11

SLIDE 12

SLIDE 13

SLIDE 14

Generating CPU Flame Graphs

Use perf/stap/dtrace to

generate call stacks

Collapse stacks & generate

SVG file

brendangregg.com/FlameGraphs/cpuflamegraphs.html

SLIDE 15

Go

SLIDE 16

Setting up

import _ “net/http/pprof"

SLIDE 17

Setting up

import _ “net/http/pprof"

SLIDE 18

pprof

Registers http handlers that expose profiling

actions

/debug/pprof/profile
/debug/pprof/trace
/debug/pprof/heap

SLIDE 19

Setting up

package main import _ "net/http/pprof" func main() { … go func() { http.ListenAndServe(":27590", nil) }() … }

SLIDE 20

Setting up

package main import _ "net/http/pprof" func main() { … go func() { http.ListenAndServe(":27590", nil) }() … }

SLIDE 21

Profiling Go Code: Flame Graphs

> go get https://github.com/uber/go-torch > git clone https://github.com/brendangregg/FlameGraph > go-torch --time=10 --file “torch.svg" \

-url http://<host>:<port>

SLIDE 22

Profiling Go Code: Flame Graphs

> go get https://github.com/uber/go-torch > git clone https://github.com/brendangregg/FlameGraph > go-torch --time=10 --file “torch.svg" \

-url http://<host>:<port>

SLIDE 23

SLIDE 24

SLIDE 25

SLIDE 26

Search – stats*

SLIDE 27

SLIDE 28

References

Flame Graphs
go-torch
