Productivity from a Single Source Part of the Gardner Denver Group www.compair.com Companies are Under Pressure to Control Costs & Costs for Compressed Air Compressed Air Cost over 10 Years Equipment 12% Maintenance 12% Electricity

slide-1
SLIDE 1

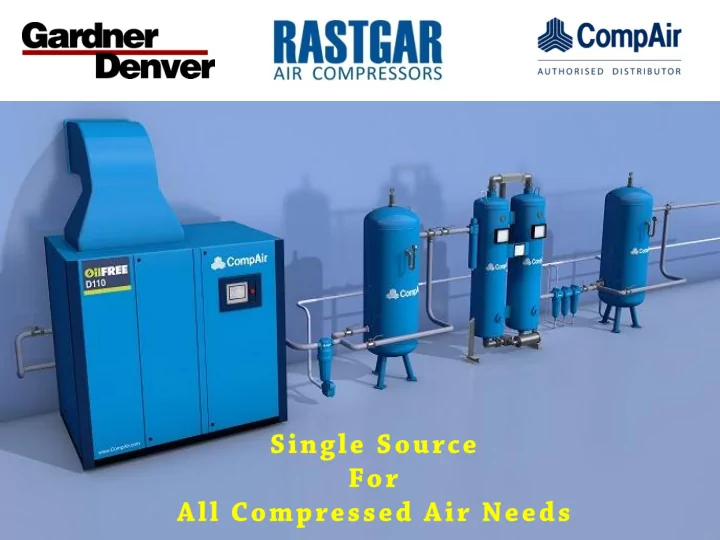

Part of the Gardner Denver Group www.compair.com

Productivity from a Single Source

slide-2
SLIDE 2

SALES SERVICES SPARES SOLUTIONS

2

Companies are Under Pressure to Control Costs & Costs for Compressed Air

Equipment 12% Maintenance 12% Electricity 76%

Compressed Air Cost over 10 Years

slide-3
SLIDE 3

SALES SERVICES SPARES SOLUTIONS

3

Compair Engineers have Two Main Design Criteria

  • Reliability
  • Efficiency

So Compair Makes Machines that are

  • Easy to Set Up
  • Easy to Service
slide-4
SLIDE 4

SALES SERVICES SPARES SOLUTIONS

4

CompAir makes Airends for Quality Reasons

slide-5
SLIDE 5

SALES SERVICES SPARES SOLUTIONS

5

Products & Services

slide-6
SLIDE 6

SALES SERVICES SPARES SOLUTIONS

6

Products & Services

Compressor Series Pressure Range (bar) FAD (m3/min) Motor Output (kW)

L Series Oil Lubricated Screw Compressors 5 – 13 0.2 – 41.0 2.2 - 250 D Series Oil-Free Screw Compressors 4 – 10 7.0 – 42.6 75 – 300 DH Series Oil-Free Water Injected Screw Compressors 5 - 10 2.3 – 18.6 15 - 110

slide-7
SLIDE 7

SALES SERVICES SPARES SOLUTIONS

7

Products & Services

Compressor Series Pressure Range (bar) FAD (m3/min) Motor Output (kW)

Quantima Oil-Free Centrifugal Compressors 3 – 8 26.7 – 70.9 150 - 300 R Series Oil Lubricated Piston Compressors 4 – 10 7.8 – 18.7 45 - 110 R Series Oil-Free Water Injected Screw Compressors 4 – 12 7.5 – 18.1 45 - 110

slide-8
SLIDE 8

SALES SERVICES SPARES SOLUTIONS

8

Products & Services

Compressor Series Pressure Range (bar) FAD (m3/min) Motor Output (kW)

C Series Oil lubricated portable screw compressors 7 - 24 1.0 – 27.0 13.2 - 228

Portable Compressors

slide-9
SLIDE 9

SALES SERVICES SPARES SOLUTIONS

9

Compressed Air Treatment & Accessories

slide-10
SLIDE 10

SALES SERVICES SPARES SOLUTIONS

10

Water Separators

The X Range of Water Separators

  • Bulk Condensed Water Removal
  • Liquid Oil Removal
  • Protects Filters from Contamination

Range:

  • 0.6 – 421 m3/min*
  • 21 – 14885 cfm*

* Flow rate at 25⁰C, 7bar

slide-11
SLIDE 11

SALES SERVICES SPARES SOLUTIONS

11

Compressed Air Filters

The CF Range of Cast Filters

  • Removes Water and Oil aerosols
  • Atmospheric Dirt and Solid Particles
  • Protects your Piping & Machinery

from rust, pipe scale Range:

  • 0.6 – 60 m3/min*
  • 21 – 12119 cfm*

* Flow rate at 25⁰C, 7bar

slide-12
SLIDE 12

SALES SERVICES SPARES SOLUTIONS

12

Compressed Air Filters

The CF Range of Flanged Filters

  • Larger Flow Rate
  • Higher Pressure
  • Available in 5 Filtration Grades

Range:

  • 37 – 521 m3/min
  • 1312 – 18380 cfm*

* Flow rate at 25⁰C, 7bar

slide-13
SLIDE 13

SALES SERVICES SPARES SOLUTIONS

13

Refrigerant Dryers

Refrigerant Dryers for Energy Efficient Compressed Air Quality

  • High Quality Heat Exchanger
  • Low Operating Cost
  • Environmentally Friendly refrigerants
  • Easy to install, operate and maintain

Range:

  • F4 HS – F96 HS, 0.4 – 9.5 m3/min
  • F120 HS – F1800 HS, 12 – 180 m3/min
slide-14
SLIDE 14

SALES SERVICES SPARES SOLUTIONS

14

Absorption Dryers

Heatless Regenerative Adsorption Dryers

  • Low energy costs
  • Low regeneration temperature
  • Reliable dew points - down to -70 °C available
  • Operating status and alarms

Range:

  • A18TX - A930TX, 1.75 – 102 m3/min
  • A18TXA - A157TXA HS, 1.75 – 15.67 m3/min
slide-15
SLIDE 15

SALES SERVICES SPARES SOLUTIONS

15

Nitrogen Generators

Advantages

  • Converting high quality oil free air to Nitrogen
  • compressed air to high quality
  • Nitrogen Save up to 90% costs over traditional

Nitrogen supply methods

  • Greater control over nitrogen supply
  • Consistent and reliable gas quality
  • Elimination of logistical requirements of cylinder deliveries
  • Return on investment is 12 to 24 months
slide-16
SLIDE 16

SALES SERVICES SPARES SOLUTIONS

16

Nitrogen Generators

Heat Treatment Metals

Nitrogen Oxygen 99% is 1% 99.5% is 0.5% 99.9% is 0.1% 99.99% is 100ppm 99.993% is 70ppm 99.995% is 50ppm 99.999% is 10ppm

F&B Pharmaceutical

Purity Levels

slide-17
SLIDE 17

SALES SERVICES SPARES SOLUTIONS

17

Nitrogen Generators

slide-18
SLIDE 18

SALES SERVICES SPARES SOLUTIONS

18

Condensate Drains

  • Eliminates daily man-hours required to manually drain air lines and

equipment

  • Eliminates daily man-hours required every morning to purge the air

lines of condensate before work begins

  • Prevents the receiver tank from filling up with condensate and

causing the compressor to short cycle.

  • Ensures timely and effective condensate removal during working

hours to protect end products and processes from contamination

Using Drains Saves You Money

slide-19
SLIDE 19

SALES SERVICES SPARES SOLUTIONS

19

Condensate Drains

  • CMD Series: Pneumatic
  • CDX Series: Electronic Demand
  • CED Series: Timed Electric

Drain Technologies

Drains offered by CompAir are zero-loss as No compressed air is lost during the drain process

slide-20
SLIDE 20

SALES SERVICES SPARES SOLUTIONS

20

Sequencers

  • The Smart Air Master controls multiple

compressors (up to 12)

  • Flexible, Easy to Use & Cost Efficient
  • Touch screen - indicating trends and

performances of each compressor individually or as a complete network.

  • Energy savings of up to 30% on all

compressed air energy usage.

Smart Air Master : Compressed Air Management System

slide-21
SLIDE 21

SALES SERVICES SPARES SOLUTIONS

21

Service and Maintenance

  • Compressed air audits
  • Warranty and service offering
  • Qualified, factory-trained service

technicians

  • Original spare parts and lubricants
  • Worldwide spare parts and distribution

network

slide-22
SLIDE 22

SALES SERVICES SPARES SOLUTIONS

22

New Product Development

New L – Series (132kW – 290KW)

  • 4 fixed speed models
  • 160, 200, 250 and 290
  • 4 variable speed models
  • 160, 200, 250 and 290
  • Gardner Denver Airend
  • Max flow = 47,1m³/min @ L290

model

  • Pressure models
  • 7,5 bar(g) / 10 bar(g) / 13 bar(g)
  • Water and Air cooled
  • Max ambient temperature
  • 45°C
  • Touch screen controller
  • Delcos XL
slide-23
SLIDE 23

SALES SERVICES SPARES SOLUTIONS

23

New Product Development

New D - Series (160kW - 315kW)

  • 4 fixed speed models
  • 160, 200, 250 and 315 kW
  • 3 variable speed models
  • 200, 250 and 315 kW
  • Gardner Denver Airend
  • Max flow = 50m³/min @8bar
  • Pressure models
  • 8 bar(g) / 10 bar(g)
  • Water and Air cooled
  • Air cooled version incl. speed

regulated fans

  • Max ambient temperature
  • 45°C
  • Touch screen controller
  • Delcos XL
slide-24
SLIDE 24

SALES SERVICES SPARES SOLUTIONS

CompAir 6 Years Assure Warranty

slide-25
SLIDE 25

SALES SERVICES SPARES SOLUTIONS

25

Productivity from a Single Source

slide-26
SLIDE 26

SALES SERVICES SPARES SOLUTIONS

Success Stories

(Rahim Yar Khan)

26

  • GFC Fans Gujrat
  • QSA Surgical Sialkot
  • Hilbro Sialkot
  • Awan Sports Sialkot
  • GTDMC Gujranwala

More than

3,000 CompAir

Installation All Over Pakistan

slide-27
SLIDE 27

SALES SERVICES SPARES SOLUTIONS

www.rastgar.com www.compair.com www.gardnerdenver.com Your System Partner for Efficient Compressed Air Technology in Pakistan

slide-28
SLIDE 28

SALES SERVICES SPARES SOLUTIONS

28

Thank you ! Any Questions?
