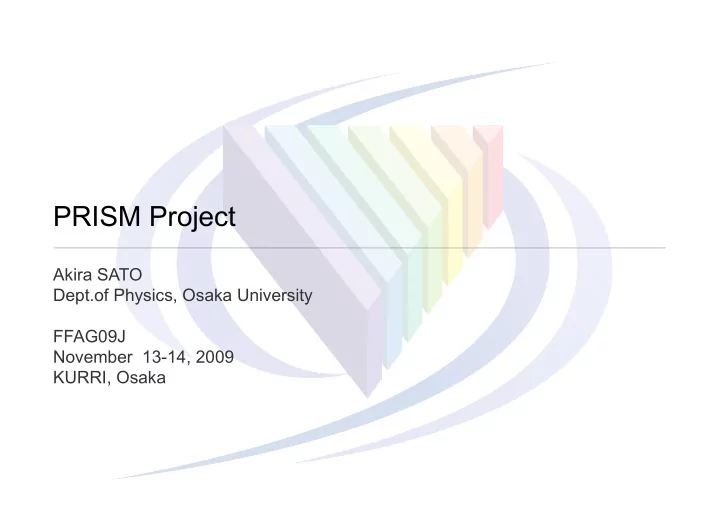

PRISM Project Akira SATO Dept.of Physics, Osaka University FFAG09J - PowerPoint PPT Presentation

PRISM Project Akira SATO Dept.of Physics, Osaka University FFAG09J November 13-14, 2009 KURRI, Osaka Contents Motivation of PRISM-FFAG Overview of R&D results FFAG Design Magnet RF system 6-cell FFAG


  1. PRISM Project Akira SATO Dept.of Physics, Osaka University FFAG09J November 13-14, 2009 KURRI, Osaka

  2. Contents • Motivation of PRISM-FFAG • Overview of R&D results • FFAG Design • Magnet • RF system • 6-cell FFAG • Phase rotation test • PRISM Task Force • New Muon beamline(MUSIC) at Osaka Univ. • Summary

  3. Muon - Electron Conversion If a new physics beyond the 1s state in a muonic atom SM exist, Neutrino-less muon nuclear capture nucleus (= μ -e conversion)  + ( A , Z )  e  + ( A , Z ) µ  µ signal : m µ − B µ ∼ 105 MeV muon decay in orbit   e   µ  N ) =  ( µ  N  e  N )  N  e B ( µ  N   N nuclear muon capture  ( µ ' )  + ( A , Z )   µ + ( A , Z  1) current upper limit by SINDRUM II µ B(µ Ti -> e Ti) < 4.3 x 10 -12 Many models with new physics predict within the Standard Model B~10 -14 ~10 -18

  4. Japanese staging plan of µ-e conversion 2nd Stage : PRISM/PRIME 1st Stage : COMET Production Target Stopping Target B ( µ − + Al → e − + Al ) < 10 − 16 B ( µ − + Ti → e − + Ti ) < 10 − 18 • with a muon storage ring. • without a muon storage ring. (MECO-type) • with a fast-extracted pulsed proton beam. • with a slowly-extracted pulsed proton beam. • need a new beamline and experimental hall. • at the J-PARC NP Hall. • Ultimate search • for early realization (~2017) The sensitivity is limited by backgrounds: A muon storage ring can solve the problem. pion induced electrons, decay in orbit electrons, and so on.

  5. 2003.4-2009.3 R&Ds Capture Solenoid PRISM : Super-muon source PRIME : µ-N → e-N Search with PRISM • Intensity : 10 11 -10 12 µ±/sec, 100-1000Hz Matching Section • Energy : 20±0.5 MeV (=68 MeV/c) Solenoid • Purity : π contamination < 10 -20 Ejection System Injection System C-shaped FFAG Magnet Functions of the Muon Storage Ring FFAG ring Detector • Makes momentum spread narrower , RF Power Supply • improves the σ E to 250keV RF Cavity RF AMP • Eliminates unwanted particle • long flight length • charge selection PRISM-FFAG • momentum selection 5 m

  6. Phase rotation in PRISM-FFAG • To achieve a mono-energetic • Proton beam pulse should be muon beam, a technique of narrow (< 10 nsec). phase rotation is adopted. • Phase rotation is a well- • The phase rotation is to established technique, but we decelerate fast beam particles need to apply this to a low and accelerate slow beam energy muons (P μ ~68MeV/ c ) for particles by RF . stopping muon experiments. • To identify energy of beam particles, a time of flight (TOF) from the proton bunch is used. • Fast particle comes earlier and slow particle comes late.

  7. Design of PRISM-FFAG

  8. PRISM-FFAG N=10 k=4.6 C型FFAG電磁石 F/D(BL)= 6.2 取り出し用 キッカー電磁石 r0=6.5m for 68MeV/c half gap = 17cm 高周波空洞 mag. size 110cm @ F center 高周波増幅器 入射用 キッカー電磁石 Radial sector DFD Triplet 高周波電源 θ F/2=2.2deg θ D=1.1deg Max. field F : 0.4T • Large transverse acceptance • Horizontal : 38,000 π mm mrad D : 0.065T • Vertical : 5,700 π mm mrad tune • High field gradient RF system • field gradient ~170kV/m (~2MV/turn) h : 2.73 • quick phase rotation (~1.5µs) • large mom. acceptance (68MeV/c +- 20%)

  9. Expected phase rotation with PRISM-FFAG ± 20% ± 2% Δ p /p : 2% num. of turn : 6 time : 1.5 μ s μ survival rate : 56%

  10. The First PRISM-FFAG Magnet Radial sector type scaling FFAG magnet DFD triplet, C-shape, Field clumps at both sides Large aperture: H:1m x V:0.3m

  11. y z Results of Field Measurements On median plane tosca_vs_meas.kumac 4000 4000 4000 50 50 50 Bz (Gauss) B z (Gauss) B z (Gauss) B z (Gauss) B z_MEAS - B z_TOS (Gauss) B z_MEAS - B z_TOS (Gauss) B z_MEAS - B z_TOS (Gauss) Measurement Measurement Measurement dBz (Gauss) 3500 3500 3500 40 40 40 x TOSCA TOSCA TOSCA 3000 3000 3000 30 30 30 y = 6015 mm 2500 2500 2500 20 20 20 y = 6335 mm 2000 2000 2000 10 10 10 y = 6975 mm 1500 1500 1500 0 0 0 1000 1000 1000 -10 -10 -10 500 500 500 -20 -20 -20 0 0 0 -30 -30 -30 -500 -500 -500 -40 -40 -40 -1000 -1000 -1000 -50 -50 -50 0 0 0 200 200 200 400 400 400 600 600 600 800 800 800 1000 1000 1000 0 0 0 200 200 200 400 400 400 600 600 600 800 800 800 1000 1000 1000 x (mm) x (mm) x (mm) x (mm) x (mm) x (mm) x (mm) x (mm) Difference between TOSCA and measurement is about 10 Gauss

  12. The RF system

  13. Field gradient of PRISM-FFAG P r ot o n S y n c h r ot r o n R F S y s t e m 250 SA T U N E MI M A S PRISM-RF goal CE RN P S B 200 sawtooth ) m by Hybrid PRISM-Cavity CE RN P S / V for muon beam sinusoidal AG S k achieved with Test-Cavity ( 150 nt IS I S e KE K BS T R i ad sinusoidal KE K P S r with PRISM-Cavity d G 100 for alpha-ray achieved J-PARC 50GeV MR l e J-PARC 3GeV RCS i F 50 5 0 Ge V M R Up g r a d e J-PARC MA Cavities (High Duty) KE K-H G C PR I S M 0 0 2 4 6 8 1 0 1 2 Fr e q u e n c y ( M H z )

  14. How to realize the 4MHz sawtooth RF • Requirements on RF system for PRISM-FFAG • high field gradient :> 170kV/m @4MHz • Sawtooth-RF • Magnetic Alloy cores have been adopted • Q <1: enable to add higher harmonics • large aperture is possible • Adjust the frequency • Solution 1 : cut core • used in RF cores for J-PARC MR • too expensive for PRISM-cores due to their size • Solution 2 : hybrid RF system • tested for J-PARC RCS • can use for PRISM-cavities

  15. Hybrid RF system • Proposed by A. Schnase. • Combination of MA cavity with a resonant circuit composed by inductor and capacitor. • Developed for J-PARC RCS cavities. f=1/2 � � LC 1/L=1/Lcore+1/Lind Q=Rp/ � L Rp: shunt J-PARC: add C and L to control Q and f PRISM : add L to control f

  16. Hybrid RF system Parallel inductor for J-PARC Inside of PRISM AMP This will be tested in this year.

  17. 6-cell PRISM-FFAG

  18. Demo. of Phase Rotation with α -particles • FFAG-ring • PRISM-FFAG Magnet x 6 、 RF x 1 • Beam : α -particles from radioactive isotopes • 241 Am 5.48MeV(200MeV/c) → degrade to 100MeV/c • small emittance by collimators • pulsing by electrostatic kickers • Detector : Solid state detector • energy • timing

  19. 6-cell PRISM-FFAG in the M-exp. hall of RCNP, Osaka University This FFAG will be dismantled in coming Dec. and moved to a lager experimental hall in Jan. 2010 for MUSIC project. If you want see the FFAG, please visit Osaka-U. before the December.

  20. 第 章 位相空間回転実験 図 位相空間回転実験でのセットアップ。α線源 スリット をそれぞれ図に示す位置に設 置した。 Apparatus for the test of phase rotation α s stop. SSD can measure SSD φ 2cm, their energy and arrival timr σ E = 27 keV relative to the RF phase. 241 Am, 3MBq f=1.916 MHz with Al foil V pp =33 kV α s are accelerated/ Degraded by an Al foil. decelerated by RF. Momentum selection by a slit.

  21. 6 図 5 4 3 2 倍して重ね合わせている。 合。ただし、測定結果のエネルギー変化量は の場 α線の位相空間回転のシミュレーションと測定結果の比較。高周波電圧 Comparison b/w data and simulation h0 E (MeV) Initial after 1 turn Simulation 1.5 after 2 turn after 3 turn after 4 turn after 5 turn after 6 turn 1.45 1.4 Initial phase 1.35 1 turn 1.3 Measured data : E data x 1.25 1.25 -200 -150 -100 -50 0 50 100 150 200 t-t (ns) ref phase rotation of α in the 6-cell FFAG

  22. Capture Solenoid Issues related on the PRISM-FFAG Injection/Extraction Matching Section Solenoid Ejection System Injection System Matching with the C-shaped solenoids FFAG Magnet FFAG ring Detector RF Power Supply RF Cavity RF AMP Cost of RF system 5 m

  23. PRISM Task Force • The PRISM-FFAG Task Force was proposed and discussed during the last PRISM-FFAG workshop at IC (1-2 July’09). • UK, JP, US, EU • The aim of the PRISM-FFAG Task Force is to address the technological challenges in realizing an FFAG based muon-to- electron conversion experiment, • but also to strengthen the R&D for muon accelerators in the context of the Neutrino Factory and future muon physics experiments. • It was proposed to achieve a conceptual design of the PRISM machine at the end of 2010/beginning 2011.

  24. PRISM Task Force (cont.) • The following key areas of activity were identified and proposed to be covered within the Task Force: • - the physics of muon to electron conversion, - proton source, - pion capture, - muon beam transport, - injection and extraction for PRISM-FFAG ring, - FFAG ring design including the search for a new improved version, - FFAG hardware R&D for RF system and injection/extraction kicker and septum magnets. • Monthly video meetings and biannual meeting • injection/extraction • new lattices with insertion/racetrack • RF issues • Please join! j.pasternak@imperial.ac.uk

  25. MUSIC project Muon beam is coming to the RCNP, Osaka-Univ.
