PricewaterhouseCoopers Building Oslo, Norway James Wilson - - PowerPoint PPT Presentation

pricewaterhousecoopers building
SMART_READER_LITE
LIVE PREVIEW

PricewaterhouseCoopers Building Oslo, Norway James Wilson - - PowerPoint PPT Presentation

PricewaterhouseCoopers Building Oslo, Norway James Wilson Structural Option Senior Thesis Presentation 2009 The Pennsylvania State University Image Courtesy of Oslo S Utvikling AS Presentation Outline Location Introduction Existing


slide-1
SLIDE 1

Image Courtesy of Oslo S Utvikling AS

James Wilson

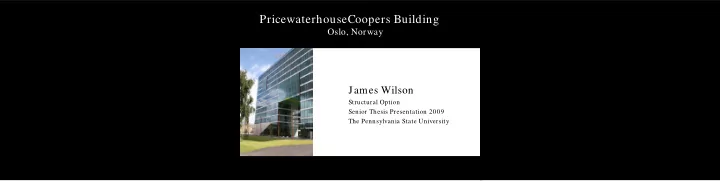

Structural Option Senior Thesis Presentation 2009 The Pennsylvania State University

PricewaterhouseCoopers Building

Oslo, Norway

slide-2
SLIDE 2

Structural Option James Wilson

4/ 14/ 09

Location

Bjørvika B10 A Oslo, Norway

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

slide-3
SLIDE 3

Structural Option James Wilson

4/ 14/ 09

BARCODE

Image Courtesy of Oslo S Utvikling AS

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

Image Courtesy of Oslo S Utvikling AS

slide-4
SLIDE 4

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Building Data

  • Occupant: PricewaterhouseCoopers – Professional Services
  • Occupancy: Office building
  • Size: 150 000ft2
  • Number of stories: 12 stories above grade

2 stories below grade

  • Cost: 300 mill NOK ≈ $43mill
  • Date of completion: November 2008
  • Project delivery method: DBB with CM as agent
  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

slide-5
SLIDE 5

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Spaces Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

1st Floor Plan 9th Floor Plan Section 1-1

1 1

Display Room / Shops 154 Person Auditorium / Lobby Office / Conference Rooms Cafeteria / Outdoor Patio

N N

  • Vert. Transportation / Tech. Zone
slide-6
SLIDE 6

Structural Option James Wilson

4/ 14/ 09

Thesis Goals

Im age Courtesy of Oslo S Utvikling AS

  • Learn about Norwegian building construction

Existing structural system

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-7
SLIDE 7

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Floor System Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Precast Hollow Core Concrete Plank 4’ wide 11” deep + 2” Topping

N

slide-8
SLIDE 8

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Floor System Presentation Outline

Images Courtesy of Norsk Stålforbund and Betongelement foreningen

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N

slide-9
SLIDE 9

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Floor System

Images Courtesy of Norsk Stålforbund and Betongelement foreningen

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N

slide-10
SLIDE 10

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Floor System

Images Courtesy of Norsk Stålforbund and Betongelement foreningen

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N

slide-11
SLIDE 11

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Columns Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N

slide-12
SLIDE 12

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

LFRS - Cast in Place Concrete Shear Walls Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N

slide-13
SLIDE 13

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Transfer Truss Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Ø323.9 x 6.3 Ø273 x 16 Ø273 x 16 HSQ 56 HSQ 56

273 x 16mm = 10.7 x .63 in 323.9 x 6.3 mm = 12.75 x .63.25 in N

slide-14
SLIDE 14

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Materials Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Item Norwegian Standard Eurocode CEN fck (ksi) fctm (ksi) Ecm (ksi) Cast in place B35 C35/45 5 0.46 4 850 Prefabricated B45 C45/55 6.5 0.55 5 222 Columns B45 C45/55 6.5 0.55 5 222 Item Euronorm ASTM Fy (ksi) Fu (ksi) Ea (ksi) Va Density (Ib/ft3) Columns S355 A572Gr50 51 74 30 500 .3 50 Beams S355 A572Gr50 51 74 30 500 .3 50 Reinforcing B500C

  • 72

30 500

  • Steel:

Concrete:

slide-15
SLIDE 15

Structural Option James Wilson

4/ 14/ 09

Proposal

Im age Courtesy of Oslo S Utvikling AS

Existing structural solution optimal for Oslo, Norway If the PwC building were located in the US it is likely design and construction methods would be different How would structural solutions change if the PwC Building were hypothetically relocated to Boston, MA?

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-16
SLIDE 16

Structural Option James Wilson

4/ 14/ 09

Proposal

Im age Courtesy of Oslo S Utvikling AS

Major variables:

  • Local labor and design expertise
  • Design codes
  • Local material availability
  • Talent pool of contractors
  • Design loads

Goal: Produce a design suitable for an office building in the Boston area

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-17
SLIDE 17

Structural Option James Wilson

4/ 14/ 09

Redesign

Im age Courtesy of Oslo S Utvikling AS

Gravity System:

  • Composite concrete deck with composite steel beams and girders
  • In comparison to concrete plank, it provides more flexibility for future modifications because

it is not limited by cutting of prestressed strands

  • Composite concrete deck is potentially lighter than concrete plank and therefore reduces

seismic loads, yielding a more economic structure

Lateral System:

  • Steel braced frames
  • Compatibility with steel framing the of proposed floor system
  • Allow for potential reduction in schedule due to the simultaneous construction of gravity and

lateral system

  • Explore steel as an alternative to the existing concrete design

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-18
SLIDE 18

Structural Option James Wilson

4/ 14/ 09

Proposal

Im age Courtesy of Oslo S Utvikling AS

Considered, but not designed:

  • Transfer truss that allows for opening at the center of the façade
  • Connections
  • Structure of the auditorium
  • Substructure

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-19
SLIDE 19

Structural Option James Wilson

4/ 14/ 09

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Relocation – Dorchester Ave. , Boston, MA

Arial images courtesy of Google Earth

Boston

Im age Courtesy of Oslo S Utvikling AS

slide-20
SLIDE 20

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Framing Plan Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

5 story opening in facade

Beams @. 2.4m (7.8ft) spacing 21.2m (70ft) 11.7m (38ft) 4.7m (15ft) 5.8m (19.1ft) 31.2m (100ft) Deck Span

N

  • Beams span East-West direction
  • Beams spaced at 7.8ft
  • Columns kept at the same locations as

existing design

slide-21
SLIDE 21

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Deck Design Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Live Load: 80 psf SIMP Dead Load: 15psf Span: 7.8ft Results using United Steel Deck Manual: 20 gage 2” LOK– FLOOR composite deck 3.25” thk. Lightweight concrete slab Provides 2hr fire rating without the need for fireproofing WWF: 6 x 6 – W2.0 x2.0 reinforcing

5.25”” 36” cover 12” 2”

slide-22
SLIDE 22

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Beam / Girder Design Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Key Member Span Composite Non Composite Most Economical (ft) Least Wt. Mem. # Studs Equivalent Wt. Least Wt. Mem. Wt by Equiv. Wt. Typical Int. Beam 19.14 W12x14 8 348 W12x19 364 Composite Typical Ext. Girder 23.6 W14x22 12 639 W14x30 708 Composite Long span beam 38.5 W14x53 23 2271 W14x68 2618 Composite Long Span Ext. Girder 23.9 W14x30 22 937 W14x43 1028 Composite

Composite or Non-composite?

slide-23
SLIDE 23

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Beam / Girder Design Criteria Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Strength – ASCE 7-05 sec2.3 LRFD load combinations:

  • 1. 1.4 Dead

2. 1.2 Dead + 1.6Live + 0.5 Roof Live 3. 1.2 Dead + 1.6 Roof Live + 0.5 Live Serviceability - Deflection: Composite: Construction Dead Load……...…. l/360 Post Composite Live Load…….... l/360 Post Composite Superimposed .. l/240 Net Total Load…………………..... l/240 Economy – Camber Do not camber: Beams less than 25ft Beams that require less than 3/4” of camber Beams in braced frames No shoring Member Depth limited to 14”

slide-24
SLIDE 24

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Beam / Girder Design Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Optimal members were determined by RAM and checked with hand calculations Example– Typical Beam and Girder

Member L (ft) Mu I Req Deflection (in4) Least Wt. Member IPC (in4) ILB (in4) ∆LL ∆T ∆PC Hand Calc Beam 19.14 70.5 103 116.4 67.5 W12x14 88.6 101 Girder 23.62 126.3 203 268.8 108.36 W14x22 199 424 RAM Beam 19.14 72.4 ‐ ‐ ‐ W12x14 88.6 101 Girder 23.62 154 ‐ ‐ ‐ W14x22 199 424

slide-25
SLIDE 25

Structural Option James Wilson

4/ 14/ 09

Final Framing Plan

3rd Floor Framing Plan

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

**Members which are part of the lateral system are not labeled

slide-26
SLIDE 26

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Column Design

Perimeter columns resisting gravity loads only: Level 1-12: W10 Columns resisting gravity + lateral load: Level 1-12: W14 Columns Spliced every 2 stories

Column E‐6 Design Summary Floor Pu (kips) KL (ft) Least Wt. Mem. ΦPn (kips) Pu < ΦPn Hand Calc. 1 157 12 W10x33 292 OK 5 293 12 W10x39 351 OK 9 424 12 W10x49 513 OK RAM 1 155 12 W10x33 292 OK 5 287 12 W10x39 351 OK 9 429 12 W10x49 513 OK

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-27
SLIDE 27

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-28
SLIDE 28

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Brace Location Study

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Lobby / Auditorium – 1st and second floor Circulation – All floors 5 Story opening in facade Braced frames at the perimeter Bring technological expression to facade

Presentation Outline

slide-29
SLIDE 29

Structural Option James Wilson

4/ 14/ 09

Braced Frames at Perimeter

Proposed Proposed Proposed Proposed Existing Existing Existing Existing

Architectural Study

slide-30
SLIDE 30

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Floor System Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Lobby / Auditorium – 1st and second floor Circulation / Social Area – All floors 5 Story opening in facade Braced Frames at the core

slide-31
SLIDE 31

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

ETABS Model - Preliminary Design Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

L’ L’ L’’ L’’

Model of lateral system only was constructed in ETABS to determine optimal framing layout Wind load application:

  • ASCE 7 – 05 – Analytical Procedure
  • Wind loads applied at the center of pressure of

diaphragm at each level

L’ L’ L’’ L’’ L’’’ L’’’

Levels 5-12

Level s 1-4

slide-32
SLIDE 32

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

ETABS Model - Preliminary Design Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Levels 5-12

Level s 1-4

Seismic load application:

ASCE 7 – 05: Equivalent Lateral Force Procedure Seismic loads applied at the center of mass at each level = Center of Mass

slide-33
SLIDE 33

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Preliminary Design Results

Very large axial forces were induced in the columns towards the base of the structure due to the narrow shape of the core

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-34
SLIDE 34

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Outriggers Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Lobby / Auditorium – 1st and second floor Circulation / Social area– All floors 5 Story opening in facade Braced Frames Moment Frames

slide-35
SLIDE 35

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

RAM

Members checked under combined loading in an integrated RAM model

  • 1. 1.4(D + F)
  • 2. 1.2(D + F + T ) + 1.6(L + H) + 0.5(Lr or S or R)
  • 3. 1.2D + 1.6(Lr or S or R) + (L or 0.8W)
  • 4. 1.2D + 1.6W + L + 0.5(Lr or S or R)
  • 5. 1.2D + 1.0E + L + 0.2S
  • 6. 0.9D + 1.6W + 1.6H
  • 7. 0.9D + 1.0E + 1.6H

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-36
SLIDE 36

3 4 5 6.8 7 8 9 C D

Elevation 3 Elevation 5 Elevation 4 Elevation 6.8

12th floor 5th floor 1st floor 12th floor 5th floor 1st floor 12th floor 5th floor 1st floor 12th floor 5th floor 1st floor

Elevation 3 Elevation 5 Elevation 4 Elevation 6.8

slide-37
SLIDE 37

Elevation 7 Elevation 8 Elevation 9

1st floor 12th floor 5th floor 1st floor 12th floor 5th floor 1st floor 3 4 5 6.8 7 8 9 C D 5th floor 12th floor

Elevation 7 Elevation 9 Elevation 8 Elevation A

1st floor 5th floor 12th floor

Elevation A

slide-38
SLIDE 38

3 4 5 6.8 7 8 9 C D 1st floor 5th floor 12th floor 1st floor 5th floor 12th floor

Elevation C Elevation D Elevation C Elevation D

slide-39
SLIDE 39

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Drift and Torsion

N ∆ = 2.7 in

Seismic load from East

Wind – Larger deflection at south end Seismic – Larger deflection at North end

∆ = 3.7 in

Presentation Outline

∆ = 2.4 in ∆ = 1.5 in

H / 400 = 4.38in > 3.7 OK

Building Deflection at 12th story:

Wind load from East Tensional irregularity type 1a ∆x < Cd ∆x / I ( ASCE7-05 sec 12.8-15)

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

N N

slide-40
SLIDE 40

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Foundations

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

Concrete substructure acts as a base to distribute loads to pile foundations Outriggers help distribute loads to the perimeter

slide-41
SLIDE 41

Structural Option James Wilson

4/ 14/ 09

Architecture

Proposed Design Existing Design

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

  • Elevator relocated
  • Duct shaft relocated
  • Wall increase from 11.8” to 15”
  • Elongated stairwell
slide-42
SLIDE 42

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Cost comparison

Composite Concrete Deck on Composite Steel Frame

Quantity

Description Extended Cost ($) Material Labor Equipment Total

150000 S.F.

Metal Decking 279,000 69,000 6,000 354,000

660 Ton

Structural Steel 1,518,000 250,800 87,120 1,855,920

1500 C.S.F

WWF 6 x 6 23,475 33,000

  • 56,475

1960 C.Y.

L.W. Concrete 286,160

  • 286,160

14871 Ea.

Studs - 3/4" 8,030 11,153 5,651 24,835

150000 S.F.

Concrete Finish

  • 73,500

3,000 76,500 Total = $ 2,653,889.57 Precast Concrete Plank on Steel Frame

Quantity

Description Extended Cost ($) Material Labor Equipment Total

430 Ton

Structural Steel 989,000 163,400 56,760 1,209,160

150000 S.F.

Precast Plank, 10" thick 1,147,500 126,000 78,000 1,351,500

923 C.Y.

2" Concrete Topping 97,838

  • 97,838

150000 S.F.

Concrete Finish

  • 52,500

6,000 58,500

2758 Ea.

Shear Stud - 3/4" 1,489 2,069 1,048 4,606 Total = $ 2,721,603.86

Cost Comparison Summary:

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Composite Concrete Deck vs. Precast Concrete Plank

slide-43
SLIDE 43

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Schedule comparison

Cost Comparison Summary:

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Construction schedule for composite concrete deck and precast concrete plank created in Microsoft Project Results for Construction of structure : + Composite steel deck = 52 days + Precast Concrete Plank = 40 days 23% schedule reduction with use of precast plank

slide-44
SLIDE 44

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Conclusions – Gravity System

  • Composite concrete deck on composite steel beams and girders is the

most viable floor system for the PwC building if located in Boston

  • However, precast concrete plank has potential to be more economical

due to cost saving incurred by reduction of construction schedule

Cost Comparison Summary:

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-45
SLIDE 45

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Conclusions – Lateral System

  • An efficient steel lateral system was not achieved due to large axial

forces in the columns induced by the narrow core

  • Given more time to explore alternative steel solutions ,a more economic

steel result could likely be achieved

Cost Comparison Summary:

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

slide-46
SLIDE 46

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Cost Comparison Summary:

Acknowledgements

I would like to thank the following for their generous support and assistance on this senior thesis: + Prof. M. Kevin Parfitt - Thesis Consultant +Pareto Investments - for granting me permission to use the PwC-building as the subject

  • f this year long project.

+All the Professors at The Pennsylvania State University - for their assistance over the past five years. + Friends and family - for their patients and support

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Presentation Outline

slide-47
SLIDE 47

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Cost Comparison Summary:

Questions?

slide-48
SLIDE 48

Structural Option James Wilson

4/ 14/ 09

12.3-1 Horizontal Structural Irregularities Irregularity Must Comply with Reference Section: 1a Torsional Irregularity Δ1 (in.) = 1.53 Δ2 (in.) = 2.67 1.2((Δ1 + Δ2)/2) = 2.52 < Δ2 12.7.3 16.2.2 3 Diaphragm Discontinuity Irregularity Slit diaphragm at the bottom four stories 12.7.3 16.2.2 5 Nonparallel Systems-Irregularity Vertical lateral force resisting elements are not parallel or symmetric about major orthogonal axes. 12.7.3 16.2.2

slide-49
SLIDE 49

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Outriggers

Δ = 9.2in Δ = 26.39in

Members Braces = HSS10x10x.5 Beams = W18x86 Columns = W14x132 1/ 3 of deflection

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion
slide-50
SLIDE 50

Structural Option James Wilson

4/ 14/ 09

Im age Courtesy of Oslo S Utvikling AS

Next Step

Braced frames Moment frames Moment Frames at the perimeter Special Steel Plate Shear Walls

3 4 5 6.8 7 8 9 C D

Presentation Outline

  • Introduction
  • Existing Structural System
  • Proposal
  • Redesign of Gravity System
  • Redesign of Lateral System
  • Breadth Study
  • Conclusion

Reduce large axial forces at the core
