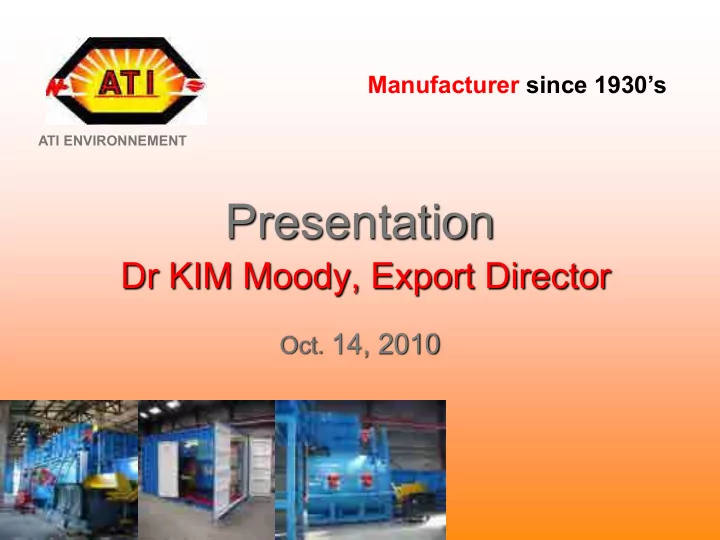

ATI ENVIRONNEMENT

Manufacturer since 1930’s

ATI ENVIRONNEMENT manufactures incinerators, since 1930

Well Known in the World

Respecting New European Regulation EC 76/2000

• Incineration is the only solution to

eliminate DEFINITIVELY organic waste like hospital waste, pharmaceutical waste, oily waste, animal waste, all kinds of industrial hazardous waste.

• Incinerators become CLEAN and

ENERGY RECYCLING technology.

NEW GENERATION INCINERATOR

1- No pollution – Water, Soil and Air 2- No colors and no smell out of chimney 3- Completely combustion (unburned rated: less 3%) 4-Entirely automatic operation

How much clean?

• Particulates

content in the air in Paris:

5 mg/m3

• Out of the chimney
• f incinerator:

3 mg/m3

How much clean?

• * 85,000 tons cigarette per year in France:
• 85,000 t/y x 8,000 m3/t x 25,000 mg CO/t
• = 17,000,000,000,000 mg CO (17,000 t CO)
• * 10,000,000 tons domestic waste

incinerated per year:

• 10,000,000 t/y x 8,000 m3/t x 50 mg CO/t
• = 4,000,000,000,000 mg CO (4,000 t CO)

Our references and experiences!

More than 3,000 installations through the world

COUNTRY CLIENT NAME MODEL DATE

Bahrain Ministry of Health

2 lines of H.P. 1000 (250 kg/hr x 2 lines) 02.2002

Iran

TEHRAN REFINERY HP 1000-24H2S 12.2007

Iraq

Yeux Al Ramad Hospital – BAGDAD H.P 350 MG 20 incinerators for whole hospitals in Iraq 19 units x C.P. 15 1 unit x C.P 50 11.2003 and 03.2005 5 incinerators for hospitals in North of Iraq (Tak Tak Hospital, Balesan Hospital and Ashti Hospital) 5 units x CP 100 11.2007

Jordan

Yajooz Hospital C.P. 100 Prince Hamzeh Hospital C.P. 100 05.2003 Al Hussein Hospital – AL SALT C.P. 50 06.2004 Aqabar Slaughterhouse C.P.100 05.2007

Kuwait

KUWAIT Hospital I.550 T.R.M

Lebanon

BEYROUTH Hospital C.P 30 BEIT CHEBBAB Hospital C.P 30 BEYROUTH Hospital PAP 75 M Notre Dame des Secours Hospital PR 175 NABATRIEN Hospital PAR 75 BEYROUTH Clinical PA 125 M Solarco Trading Cie – BEYROUTH PA 40 M C.I.S – BEYROUTH PR 40 G SYR EL DANNICH - TRIPOLI C.P.30 RACHAYA Hospital PAR 75 Dar Al-Amal Hospital C.P.50 07.2002 Halba Hospital C.P.10 03.2003 Hermel Hospital C.P.10 03.2003 Sibline Hospital C.P.10 03.2003

Your specialist in incineration for 80 years.

COUNTRY CLIENT NAME MODEL DATE

Libya TRIPOLI Slaughterhouse 2 ton/h TRIPOLI Industrial waste 500 kg/h BENGHAZI Slaughterhouse 2 ton/h BENGHAZI Industrial waste 500 kg/h BEIDA Slaughterhouse 1 ton/h BEIDA Industrial waste 250 kg/h 7th April Hawari Hospital in Benghazi C.P. 100 07.2004 Benghazi Medical Waste Treatment Centre by Benghazi Environmental Protection Authority 2 lines of CP 100 with scrubber (100 kg/hr x 2 lines) 05.2006 SAHAHARA 300 KM from kofra city CP 10 05.2006 ATHIA ELKASSEH HOSPITAL (AL KOFRA CITY) CP 30 05.2006 Al Fatah Hospital- Al Marj CP 50 11.2007 Animal Health Centre – Ras Ejdire CP 50 11.2007 Animal Health Centre - Tripoli CP 50 11.2007 GETREX - Tripoli 2 units CP 50 12.2007 Azzawiya Refinery HP 500 09.2008 (P) Agoco Refinery CP 10 04.2008 (P) Oman Ministry of Health – Municipality of Muscat 2 lines of H.P. 1000 (250 kg/hr x 2 lines) 09.2005

COUNTRY CLIENT NAME MODEL DATE

SYRIA

Tuberculous Hospital - ALEP I.200 T.R.M ALEP Hospital - ALEP I.200 T.R.M Dar El Chiffa Hospital - DAMAS PAR 75 M DAMAS Clinical - DAMAS PAR 75 M CHILDREN HOSPITAL - DAMAS I.200 B.R.M

Saudi Arabia

DUBA GENERATION STATION 150 kg/h Waste-Oil Incinerator MADINA City line of H.P.500 (150 kg/h) 04.2004 JEDDAH BIO-CITY 1 line of H.P.1250 (350 kg/h of Industrial Hazardous waste) 06.2008 SEPCO 2 line of HP 500 for industrial waste testing SAAD Trading & Contracting Co. 1 line of HP 1500 for industrial waste 9.2008

The Middle East has already chosen ATI Incinerators MULLER Technology … Join us !

RECENT REFERENCES

• Ukraine : 15 incinerators
• Russia : 14 incinerators
• Vietnam: 33 incinerators
• Cambodia: 4 incinerators
• Roumania: 16 incinerators
• Poland: 31 incinerators
• China: 3 incinerators
• Austalia: 1 incinerator
• Iraq: 65 incinerators
• Kuwait: 1 incinerator

Rotary kiln incinerators

WASTE ROTARY KILN MODEL CAPACITY YEAR CITY CLIENTS TYPE COMPOSITION PCI (Kw/kg) MODEL HEATING VALUE (kw/h) QUANTITY (tons / day) 1983 POITIERS Regional Data Processing of tax Industrial ink, painting, listing, paper 4.5 FR 45 450 0.8 1984 RODEZ Genetic Center Hospital Divers 2.5 FR 25 250 0.8 1984 TOURS University Center Hospital Industrial Divers Painting, Latex 5.0 FRCD 350 3500 10.0 1986 NOUZILLY National Research Institute of Agrono Industrial Animal carcasses and litters 2.0 FR 25 250 0.5 1986 MULHOUSE Hospital Center of

• St. Damien

Hospital Industrial Divers PVC, Latex 4.0 FR 35 350 0.8 1987 LIBOURNE General Hospital Hospital Industrial Divers PVC, Latex 4.0 FRC 90 900 2.0 1987 BRIVES General Hospital Hospital Industrial Divers PVC, Latex 4.0 FRC 120 1200 2.5 1987 MELUN General Hospital Hospital Industrial Divers PVC, Latex 4.0 FRC230 2300 5.0 1987 LA BUISSE Vallorga Industry Industrial Waste presses and divers 2.5 FRCD350 3500 22.0 1987 AMIENS Vallorga Industry Industrial Waste presses 2.5 FRCD350 3500 25.0 1988 DOULLENS Vallorga Industry Industrial Waste presses 2.5 FRCD250 2500 10.0 1988 BASSENS Prociner Industry Industrial Hospital – Films – Tires 5.0 FRCD600 6000 25 1988 AURILLAC C.G.C Industry Industrial Hospital – Plastics 3.0 FRCD350 3500 20

1988 VANNES University Hospital Hospital Industrial Divers Paint, Latex 4.0 FRC140 1400 8 1989 MONTELIMA R General Hospital Hospital Divers 4.0 FR35 350 2.1 1990 SPOLEK Industrial complex SKODA (Tch) Industrial Paint- Plastics – Tires - Liquids 4.0 FRCD600 6000 22 1992 BRUXELLES Les 2 Alices Hospital Divers 4.0 FRC120 1200 2.5 1996 TISZAUJVAR OS Industrial complex T.V.K. (Hungry) Industrial All waste from complex 5.5 FRCD600 6000 22.0 1997 DOTTINGEN SEILER Co. (Switzerland) Industrial Divers 3.5 FR35SP 350 0.8 2000 POLAND F.N. Environment Industrial Pesticide – Fertilizer 6.3 FRCD160 1600 7.2 2006 BASSENS Prociner Industry Medical Hospital – Films – Tires 5.0 FRCD1400 12500 60 2008 SOUTH KOREA Tae Yang Industrial & domestic All 5.0 FRCD1200 11600 48

UDON THANI (THALILAND) MEDICAL WASTE TREATMENT CENTRE

inaugurated in January 1998

MUSCAT (OMAN) MEDICAL WASTE TREATMENT CENTRE

2 lines x 250 kg/h

inaugurated in January 2006

FOSAN CITY (CHINA) MEDICAL WASTE TREATMENT CENTRE

1 lines x 15 tons/day

Adelaider CITY (AUSTRALIA) HAZARDOUS WASTE TREATMENT CENTRE

1 lines x 20 tons/day

AL-AIN (UAE) WASTE TREATMENT CENTRE

2 lines x 250 kg/h Operating by Saudi DALLAH GROUP CO.

BARHEIN WASTE TREATMENT CENTRE

Inauguration of Medical and Hazardous Waste Treatment Centre – Bahrain on 22 April, 2002 under the presence of the Bahrain Minister of Health and the French Ambassador.

SEPCO PHARMACEUTICAL WASTE TREATMENT CENTRE – SAUDI ARABIA : Jeddah-

INDUSTRIAL COMPLEX T.V.K.-HUNGARY

ENVITEK – Pajou Korea

Flow Charter (2.4 Tons/h)

Flow Chart (2.4 Tons/Hour x 1 unit)

2nd bag filter Flying ash water De-Ashing conveyer Secondary combus. Air fan Ammonia ID/Fan Stack Rotary Kiln 2 Bicaronate Sodium Waste Pit Industrial Water ▶ HCI : <10 mg/Nm3 ▶ SOx : <50 mg/Nm3 ▶ NOx : <200 mg/Nm3 ▶ DUST : <10mg/Nm

▶ DIOXINS : 0.1ng-TEQ/Nm

SCR Ammonia 1st bag filter Heater Waste Pit Premary Air Fan 3 1 5 4 1 1 1 Dry reactor Dry reactor Active cabon

• Bicar. Sodium

1 1 1 9 Sodium 1 LNG Landfill solidification waste water semi-dry tower Steam Boiler waste air 7 1

Our technologies and Now How!

• 1. Automatic Loader
• 2. Automatic Bucket Upturn System
• 3. Combustion Chamber
• 4. Combustion Burner
• 5. Post Combustion Chamber
• 6. Post Combustion Burner

7.By-pass

• 8. Energy recuperation

boiler

• 9. Radiator
• 10. Reactor I
• 11. Injection System I
• 12. Reactor II
• 13. Injection System II
• 14. Ceramic Filter
• 15. Clean Gas
• 16. Gas Extracting Fan
• 17. Platform for

analysis

• 18. Chimney

Container incinerator

For mobile installation, ATI has created compact incinerator with full equipment.

Sewage Sludge Waste

Moisture 80% to 30%

Dehydrated sludge dry process flow chart

incinerator

dryer

boiler Dehydrated sludge Dried sludge the Flue gas clean system

gas

Refinery residu waste incinerator

Spent Engin

• il

incinerator

Battery Recycling Incinerators

Oily sand incinerator (fluidised bed incinerator)

Recuperate maximum your oil by Centrifuge

Ashes collection Feeding of sludge or Oily sand Post-Combustion Chamber Ceramic Filter I/D Fan Combustion chamber Send Bed sables Reactor of fluidised bed fluidisé Post-Combustion burner Chimney

INCINERATOR OF FLUIDISED BED SYSTEM

Surpressor 1,100 °C 850 °C 450-600 °C Feeding of gas

Traitment of contaminated soil

5% carbon 0% carbon

Liquid waste Incinerator

(4% phenol + 96% water) Capacity: 3 tons per hour (300L x 10 injectors) Dynea Resins Production factory

Entire animals

Waste from Non-Conventional Transmissible Agents as Bovine Spongiform Encephalopathy…

Aqabar Slaughterhouse

Domestic animals cremation

CREMATORIUM (FRANCE) with flue gas treatment system

CREMATORIUM (TAIWAN)

Rotary kiln incinerator for hazardous wastes (paint, latex, plastic, tires, pesticide, fertilizer)

Electric generator for energy recovering

W.H.O. Recommendation for YEMEN

From: Ministry of Health of Yeman To: Minister of Health of Oman We were recommended by WHO to visit your Medical Waste Treatment Center and to constuct the same Center in Sanaa.

Bottom ash after incineration

• f 5 tons of bio-medical waste

Complet destruction of germs Reduction in volume of 98% Reduction in weight of 90%

Solidification of ashes

Concrete-mixer with cement (25%), sand (65%) and ashes (10%)

Emission Warranty (New European Emission Standard EU 76/2000)

No odours No fumes No liquid

Internalional Emission Standard

Pollutants U.S.EPA Standard (5/12/1999) Singapore Emission European standard (ATI guarantee) Directive 4/12/2000

Dust particles (mg/Nm3) 34 50 10 HCl (mg/Nm3) 31.5 60 10 CO (mg/Nm3) 125 100 50 SO2 (mg/Nm3)

• 200

50 Nox (mg/Nm3)

• 400

200 HF (mg/Nm3)

• 5

1 Dioxine & Furane (ngTEQ/Nm3) 0.2 0.1 0.1 Mercury (mg/Nm3) 0.13 0.05 0.05 Heavy Metals (mg/Nm3) 0.9 0.5 0.5

Emission gas test results after gas traitment system

ADVANTAGES OF ATI-INCINERATORS MULLER TECHNOLOGY

ATI has the confident technologies made of long Experience (70 years), R & D and Renovation. We are always concerning the Emission level and the Robust and Simplicity of conception in

• rder to reduce the Environment Impact and

the Operation Cost. Our experimented engineers can offer a Solution for Each client according to his necessity and situation

You are always welcome to ATI ENVIRONNEMENT

Office and factory

Le Bourg 45420 Champoulet – France Tel : +33 (0)2 38 29 29 02 Fax : +33 (0)2 38 31 94 59 e-mail:info@ati-environnement.com Web : www.ati-environnement.com

THANK YOU

FURTHER MORE

B.A.T.N.E.E.C Best Available Technique Not Entailing Excessive Costs

DIOXINS

• Chemical compound:

Which is the Most Studied in chemical science history! Which is the Most Controversial between scientists

Because nobody know exactly its effects (small quantity) to humans until now:

• Debates on Dioxins started after an

accident at SEVESO, North of Italy 1976, when one kg of its compounds was diffused in the air because of explosion of reactor.

• Regulation against Dioxins was fixed by

EC Directive only on December 2000 (EC 76/2000)

WHERE ARE DIOXINS ?

• 8,000 years old Japanese sediments
• Millions years old American clay deposit,
• Mummy of pharaohs
• Archeological site in Dormager in Germany
• Forest fire, Cigarette, biogas, barbecue, thermal

power station, compost, water treatment station, volcanic work, cars, recycled paper, fishes, mother milk (baby drinks 100 times more that adult, and certain want to stop mother milk!)

ATTENTION !

1 mg 1 ng =

• 1,000,000

TRAVELS OF DIOXINS

1) Out of chimney 2) Diffused on the air 3) Deport on the green or in the lake 4) Eaten by animals or fished 5) Animals or fished contaminated 6) Eaten by human 7) Finally : Human contaminated

• YES. INCINERATOR ALSO

PRODUCES DIOXINS. HOW MUCH ?

With One chamber : 60-120 ng/m3 With Two chamber : 2-5 ng/m3 (> 1,100°C) With gas treatment system: 0.01-0.1 ng/m3 (using active carbon) *0.1 ng/m3 recommended by WHO*

Dioxins/Furans Elimination

Dioxins/Furans (PCDD/PCDF) production = Carbon (C) in dusts + Oxygen (0) in Gas + Cl (produced from plastics) + T° (250°C – 450°C)

In general, in the hospital waste in France, the production of Dioxins/Furans after the boiler : 5 ng/Nm3

Where :

• 3 ng/Nm3 in particle form, eliminated by Ceramic or

bag filters

• 2 ng/Nm3 in gaseous form, absorbed by Active

carbon

Dioxins are chemical compound consists of O, H and CL

3.5

Energy Exchanger Boiler

1,100°C 200°C

12.4

Active carbon injection system d’injection

Hydrate lime injection system Reactor Dioxins-Furans Reactor H.C.L / SO2 / H.F .

12.5.2
