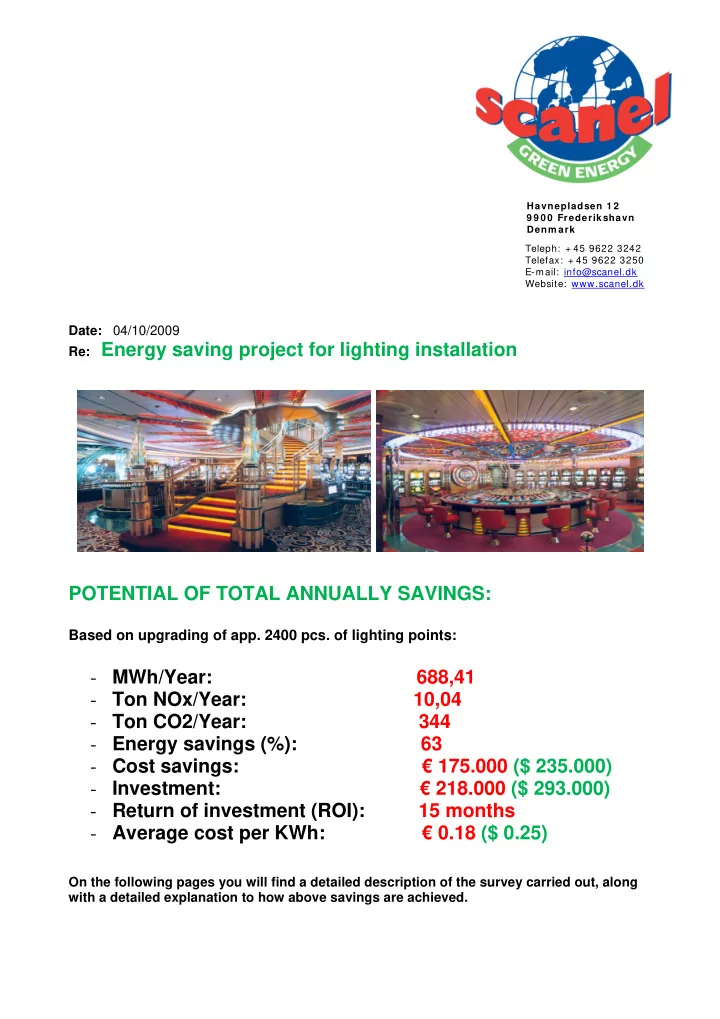

Date: 04/10/2009 Re: Energy saving project for lighting installation

POTENTIAL OF TOTAL ANNUALLY SAVINGS:

Based on upgrading of app. 2400 pcs. of lighting points:

• MWh/Year: 688,41
• Ton NOx/Year: 10,04
• Ton CO2/Year: 344
• Energy savings (%): 63
• Cost savings: € 175.000 ($ 235.000)
• Investment: € 218.000 ($ 293.000)
• Return of investment (ROI): 15 months
• Average cost per KWh: € 0.18 ($ 0.25)

On the following pages you will find a detailed description of the survey carried out, along with a detailed explanation to how above savings are achieved.

Havnepladsen 1 2 9 9 0 0 Frederikshavn Denm ark Teleph: + 45 9622 3242 Telefax: + 45 9622 3250 E-mail: info@scanel.dk Website: www.scanel.dk

The following report is based on a survey onboard a passenger vessel with app. 2400 lighting points, to verify and confirm an energy saving program of recommended change and / or upgrades

• f the existing lighting installation.

This report is based on following issues: Keys:

• To record and verify the complete light installation for different types and numbers of

installed light fixtures and lamps throughout the ship.

• To measure and record different areas for the total energy consumption with an average in

different light circuits to have the real calculation for possible savings.

• Recommendations, for upgrade or change to the most optimal energy efficient products on

the market according to given calculation with ROI. Based on your requirements, standards and specifications from architect or class societies.

• Reduction in Mercury containing equipments.
• Reduction in KWh, oil consumption, CO2 and NOx.
• To minimize the total numbers of different kind of light types and lamps for better

maintenance and logistic.

• To reduce the total numbers of lamps with same or better light outputs.
• To reduce the heat and fire risk.
• To verify with calculation a guaranteed energy savings with given ROI and extended

lifetime.

• Spare parts available for at least 10 Years.

This report includes: Measurements and calculations for energy savings in:

• Engine & technical rooms.
• Accommodation with corridors, stairs public areas
• Cargo hold, provision, car deck and deck lighting.
• Restaurants and other public areas.

Complete survey with measurement for the existing lighting installation. The effect analyses measured for existing installation has been done together the vessel’s chief electrician for approval. Recommendation for upgrade to the most energy efficient solutions and products.

Instrument used: Logger type: - CA 8334 (Chauvin Arnoux) Power & quality analyzer (Power meter) Recorded measurements: Vrms (True voltage) Arms (True Current) VA (Volt Ampere) W (Active effect) PF (Power factor) Cos phi. All measurements are done according to installed lighting in comparison with upgrade or change to new energy efficient technology. Best regards Scanel Green Energy A/S Tom Haugen Global Sales Director

Introduction: Due to today's high running cost it's important to evaluate old and exciting high consuming electrical light equipments compared to new technology with focus on low effect & low power consumption. Fluorescent lighting has been adopted in the majority of marine, business and industrial sites because of the increased efficiency compared to other lamps. Although this is a welcome step, a significant proportion of electricity consumption is still required for lighting. With the agreements between EU members and many other countries to reduce the levels of CO2 emissions by significant amounts, directives are in place to ensure that inefficient systems are phased out thus reducing energy generating requirements and hence emissions. There is scope to make these savings because all fluorescent tubes require a ballast to ensure that the necessary conditions are present to strike and sustain the lamp. In fluorescent lighting, conventional magnetic ballasts - the original designs are still most commonly found in existing installations - are inefficient. The poorest examples, class D types, have been banned in EU member states since 21/05/2002. Class C types, which limit input power to 70W when operating a 58W lamp, will be banned from 21/11/2005. Even the most energy efficient magnetic ballast, under the CELMA energy efficiency scheme, requires more input power than the rated power of the lamp driven at 50-60Hz. Other issues with magnetic ballasts are flicker, noise and lack of control. Flicker and noise occur because the lamp is being driven at the line frequency, 50Hz, which is on the edge of human sight perception and well within hearing range. The passive design prevents control such as dimming being used to further reduce energy consumption without resorting to expensive, external control equipment. In contrast, electronic ballasts enable large energy savings to be realised. This is primarily because they operate the tube at high frequency which is more efficient and allows equivalent light output with input power equal to or less than the tube rated power. Dimming can be implemented within the ballast, reacting automatically to ambient conditions or via operator interaction, to provide further savings. Reducing the energy consumed by lighting decreases the load on air conditioning systems giving additional indirect savings. Lamp flicker and audible noise are eliminated thus enhancing the working environment. The directives, with which ballasts sold in the EU must comply, also specify how effectively power must be consumed from the supply. The Power Factor (PF) is a measure of this effectiveness. It is the ratio of the actual load power to the apparent load power. A PF of less than 1.0 indicates increased losses in the supply system usually as a consequence of a phase difference between the applied voltage and the current drawn, a high harmonic content or a distorted/discontinuous current waveform. Electronic ballasts commonly include a Power Factor Correction controller (PFC) to maintain the PF within acceptable limits. However, the PFC circuit itself consumes power and is one of the remaining inefficiencies in the ballast-lamp system. Compact fluorescent lamps are being adopted increasingly by consumers keen to reduce their domestic energy costs. Many of the ballasts used to control these low wattage lamps claim compliance with the relevant EU directives whereas in reality they rely on an exemption clause for ballast-lamp combinations consuming less than 25W. The poor PF performance of these units is tolerated by the energy suppliers at present but one has to wonder how long this will continue to be the case when used in ever increasing numbers. The differences can be visualised by comparing voltage and current waveforms for different ballast types.

Scanel Green Energy A/S introduces a complete new solution as a part to your energy saving program where we evaluate a project’s light installation. Do effect measurements with suggested upgrades to new energy efficient solutions with real calculations for the investments. Scanel Green Energy A/S can offer a complete range of fluorescent tube lights, compact down- lights, energy efficient lamps and high quality LED technology for interior, engine room, technical rooms and outside luminaries from IP22 - IP68 and Ex. For refit projects we can offer replacement kits for existing and onboard installed light fixtures of fluorescent, PL lights. This report is based on a complete survey with logged and true measurements for three different light circuits when operating by shaft generators and standard generators: SHAFT GENERATOR OPERATION: Measurement # 1: Switchboard LB9-F19 “Corridor deck 4 stbd .” Consists: 10 units fluorescent light fixture 2x18Watt all T8 tubes. Glamox GKI 218 IP58, magnetic ballast. Measurement # 2: Switchboard LV2- F14 “Aux. engine room deck 1.” Consists: 5 unit’s fluorescent light fixture 2x36Watt, 1 units 2x18Watt T8 tubes. Glamox GKI-IP67, magnetic ballast. AUX.ENGINE/GENERATOR OPERATION: Measurement # 3: Switchboard LB9-F19 “Corridor deck 4 stbd .” Consists: 10 units fluorescent light fixture 2x18Watt all T8 tubes. Glamox GKI 218 IP58, magnetic ballast. Measurement # 4: Switchboard LV5- F10 “Car deck stbd deck 2” Consists: 10 units fluorescent light fixture 2x36Watt all T8 tubes. Glamox GKI-IP67, magnetic ballast.

APPENDIX 1 Existing light installation. 1.1 Engine and technical rooms. Engine and technical rooms: The light installation is based on fluorescent tube light fixtures with T8 tubes, magnetic ballast and starters.

• 174 fluorescent fixtures 2x18Watt T8 IP58, normal lighting, ref. # 1 & 2.
• 99 fluorescent fixtures 2x36Watt T8 IP58, normal lighting, ref. # 4 & 5.
• 50 Down lights, GLX 2x9W PL IP22 normal lighting, ref. # 17.

Main engine room: Measurement # 2: Switchboard LV2- F14 “Aux. engine room deck 1.” Consists: 5 unit’s fluorescent light fixture 2x36Watt, 1 units 2x18Watt T8 tubes. Glamox GKI-IP67, magnetic ballast.

Suggested change and / or upgrade to energy efficient solutions: Engine rooms and technical areas: It is recommended to upgrade existing and high energy consuming fluorescent tube light fixtures to new energy efficient solution in T5 technology as rep-kit. Keep the fixtures housing without disconnection of power/supply cables e.g. and strip the existing insert,

• nly.

New rep-kits consisting, customized insert, designed to fit the existing fixture/housing. New reflector, electronic ballast, lamp holders wiring and multi plug for easy change. Existing fixtures with conventional ballasts and starters will be upgraded as follows:

• Existing 2x18 Watt T8. New rep-kit 1x24 Watt T5.
• Existing 2x36 Watt T8. New rep-kit 1x54 Watt T5
• Existing 2x9 Watt compact down lights. New 1x10/13Watt with same trim

ring and design. We will recommend an installation with presence sensors in all ventilation and store rooms that normally are unmanned or not in 24/7operation. A presence sensor can replace or be installed in addition to a room’s light switch and have delay/timer function after active to non active. Benefits: An overall potential of >50% effect reduction, same or better light output, extended lifetime for tubes, 50% reduction of tubes and no starters.

ANNUALLY FIGURES OF POTENTIAL SAVINGS AFTER SUGGESTED UPGRADES IN ENGINE

• TECHNICAL ROOMS

Environmental parameters Existing New Savings % Energy reduction kWh/Year 181 537 73 531 108 006 59 % Nox reduction Tonn NOx/Year 2,65 1,07 1,57 59 % CO2 reduction Tonn CO2/Year 91 37 54 59 %

1.2 Car deck, cargo holds and deck lighting. Car deck: The light installation is based on fluorescent tube light fixtures with magnetic ballast. The ceilings are covered with stainless steel plates and light boxes installed for all light fixtures.

• 70 Tube light fixture AQS 2x36W, normal lighting, ref. # 8 & 9.

Cargo holds: The light installation is based on fluorescent tube light fixtures with T8 tubes, magnetic ballast and starter. The ceilings are covered with stainless steel plates and light boxes installed for all light fixtures.

• 27 Tube light fixture AQS 1x110W, special lighting, ref. # 10.
• 26 Tube light fixture AQS 2x40W, special lighting, ref. # 11.

Deck light installation: Installation is based on fluorescent tube light fixtures with magnetic ballast in 1x18W and

• 1x36Watt. Flood lights are of sodium damp 250 - 500Watt
• 48 Tube light fixture AQS 1x18W,normal lighting ref. # 6 & 15.
• 29 Tube light fixture AQS 1x36W,normal lighting ref. # 7.
• xx floodlights 1x250-750 Watt, Sodium lamps installed for deck and hull

lighting. Measurement # 4: Switchboard LV5- F10 “Car deck stbd deck 2” Consists: 10 units fluorescent light fixture 2x36Watt all T8 tubes. Glamox GKI-IP67, magnetic ballast.

Suggested change or upgrade to energy efficient solutions: It is recommended to upgrade all existing and high energy consuming tube light fixtures to new energy efficient solution with T5 technology as rep-kit. Keep the fixtures housing without disconnection of supply cables e.g. and strip the existing insert. New rep-kits consisting, customized insert, designed to fit the existing fixture / housing. New reflector, electronic ballast, lamp holders wiring and multi plug for easy change. For car deck we will recommend a dimmable system solution based on sensors and 25-30% preset dim level, where a communication cable have to be installed between all light fixtures (except emergency lights). The rep-kit solutions can be prepared for dimming with a smaller change and cost upon order. The highest investment will in this matter be the installation work due to dismantling and replacing of ceiling plates. This solution should be of interest if we agree the total investment based on savings and payback time. Change of high energy consuming floodlights to new low consuming floodlights with LED technology or metal halogen lamp. Existing fixtures with conventional ballasts and starters will be upgraded as follows:

• Existing 2x18 Watt T8. New rep-kit 1x24 Watt T5.
• Existing 2x36 Watt T8. New rep-kit 1x54 Watt T5
• Existing 1x36 Watt T8. New rep-kit 1x28Watt T5.
• Existing halogen floodlights 1x250 -1000Watt. New floodlight in LED, to be

tested before decision. We will recommend installation of daylight sensors for all deck lights in parallel with main switches

• n bridge.

Benefits: An overall potential of >50% effect reduction (75-85% as dimmable solution, but depending on the daily operating hours) same or better light output, extended lifetime for tubes, 50% reduction of tubes and no starters.

ANNUALLY FIGURES OF POTENTIAL SAVINGS AFTER SUGGESTED UPGRADES ON CAR DECK, CARGO HOLDS AND DECK LIGHTING

Environmental parameters Existing New Savings % Energy reduction kWh/Year 151 471 70 676 80 796 53 % Nox reduction Tonn NOx/Year 2,21 1,03 1,18 53 % CO2 reduction Tonn CO2/Year 76 35 40 53 %

1.3 Accommodation areas. Crew / passenger stairs / corridors: The light installation is mainly based on fluorescent tube light fixtures in recessed ceiling boxes in passenger corridors and surface mounted for service stairs, all with conventional starters and ballasts. Some 12Volt down/spot lights has been added. It is also important to notice that the low location lighting system installation is of PL and has to fulfill the required luminance for charging.

• 295 Tube light fixtures 2x18Watt T8 IP22 recessed, ref. # 39.
• 86 Tube light fixture Glamox GUN 2x18 T8, ref. #22.
• 30 Tube light fixture Glamox GUN 1x36 T8, ref. #23.
• 13 Recessed ceiling lamp, AQS 2x11W PL IP22, ref. # 38.

Crew / passenger accommodation areas: The light installation is mainly based on fluorescent tube light and PL fixtures in recessed ceiling boxes, all with conventional starters and ballasts. Some 12Volt down/spot lights has been added.

• 55 Recessed ceiling lamp (Rondo) AQS 2x9W PL IP22, ref. # 25 & 26.
• 50 Recessed ceiling lamp, AQS 2x13W PL IP22, ref. # 33.
• 35 Tube light fixture Glamox GSB 1x18W ref. #53,54,55,56
• 42 Tube light fixture AQS 2x18w, ref. #34.
• 15 Tube light fixture AQS 2x36w, ref. #35.
• 11 Recessed ceiling lamp, AQS 2x9 ERCO, ref. # 338
• 390 Down lights, GLX 2x9W ref. # 77,306,316,317,360,366,376,377,378.
• 150 Spot light, ww 1x50 ref.# 85,86,308,309,378,386.
• 45 Spot light, ww 1x20 ref.# 310,336.

Galley: The light installation is based on fluorescent lighting as tube light fixtures in USPH class.

• 39 Tube light fixture AQS / GAL 2x36 as normal lighting, ref. # 20.
• 33 Tube light fixture AQS / GAL 2x18 as normal lighting, ref. # 21.

Measurement # 3: Switchboard LB9-F19 “Corridor deck 4 stbd .” Consists: 10 units fluorescent light fixture 2x18Watt all T8 tubes. Glamox GKI 218 IP58, magnetic ballast.

Suggested change or upgrade to energy efficient solutions:

It is recommended to upgrade all existing and high energy consuming compact down lights to complete new version with optimal aluminum reflector, energy efficient electronic ballast technology and lamp wattage reduction. New down light with multi plug for easy replacement/change. Upgrade all existing and high energy consuming tube light fixtures to new energy efficient solution with T5 technology as rep-kit. Keep the fixtures housing without disconnection of supply cables e.g. and strip the existing insert. New rep-kits consisting, customized insert, designed to fit the existing fixture / housing. New reflector, electronic ballast, lamp holders wiring and multi plug for easy change. Change of high energy consuming floodlights to new low consuming floodlights with metal halogen lamp.

Existing fixtures with conventional ballasts and starters will be upgraded as follows:

• Existing 2x18 Watt T8. recessed corridor, rep-kit 1x24 Watt T5.
• Existing 2x18 Watt T8. service area, rep-kit 2x14 Watt T5.
• Existing 2x18 Watt T8. galley, rep-kit 2x14 Watt T5.
• Existing 2x36 Watt T8. New rep-kit 1x54 Watt T5
• Existing 2x36 Watt T8. galley, rep-kit 2x28 Watt T5.
• Existing 1x36 Watt T8. service area New rep-kit 1x28 Watt T5.
• Existing 2x9 Watt compact down light. New 1x10 Watt with same trim ring

and design.

• Existing 1x18 Watt compact down lights. New 1x13Watt with same trim ring

and design.

• Existing 2x13 Watt compact PL. Rep-kit 1x14 W compact PL.
• Existing 1x20 Watt halogen spot. Lamp change to LED 6Watt.
• Existing 1x50 Watt halogen spot. Lamp change to LED 9Watt.

We can also recommend a dimmable system solution based on presence sensors and 25- 30% preset dim level, where a communication cable have to be installed between all light fixtures. Existing 12Volt down/spot light with 20-50Watt halogen lamps are recommended changed to an energy efficient solution with 6 -9Watt LED. A test installation is required before

• decision. Important notice: LED has an average lifetime of 30 - 50000Hrs.

Benefits: An overall of >50% effect reduction, same or better light output, extended lifetime for tubes, 50% reduction of tubes and no starters. IMPORTANT: In corridors and stairways where low location lighting (LLL) system are installed and if this installation is of photolumenescent (PL)material, it will be necessary to re-certify this installation after the change. We will confirm the LUX values before and after the change.

ANNUALLY FIGURES FOR POTENTIAL SAVINGS AFTER SUGGESTED UPGRADES IN ACCOMMODATION AREAS.

Comparison with upgrades of general lighting.

Environmental parameters Existing New Savings % Energy reduction kWh/Year 436 020 209 557 226 464 52 % Nox reduction Tonn NOx/Year 6,36 3,06 3,30 52 % CO2 reduction Tonn CO2/Year 218 105 113 52 %

Comparision with change of halogen lamps to LED lamps in accommodation area, not dimmable.

Environmental parameters Existing New Savings % Energy reduction kWh/Year 90 469 14 191 76 278 84 % Nox reduction Tonn NOx/Year 1,32 0,21 1,11 84 % CO2 reduction Tonn CO2/Year 45 7 38 84 %

1.4 Restaurants, dining room and lounges. Restaurants: Light installation is based on a combination of fluorescent compact down lights with PL, indirect tube lighting, spot/down lights in 12 VDC versions in 20 - 50Watt halogen lamps

• and. All lights are dimmable through old dimmer panel/rack from Aqua Signal. The designs

are architectural adjusted. Other public areas and shopping areas with displays: Light installation is based on a combination with fluorescent tube lights, spot/down-lights in 220VAC and 12VDC version with 20-50Watt halogen lamps Suggested upgrades or new installation to energy efficient solutions: The dimmer system is of old technology with special designed ballasts for fluorescent down lights in PL, where the total consumption is equal to 80-100% light even it’s dimmed due to the dimmer control systems old technology. We will recommend a complete new system solution with new dimmer panels with DALI/1- 10Volt controls, new down lights with electronic gears and change from halogen lamps to LED Standard halogen lamps has a typical lifetime span of < 2000Hrs depending on vibration, dimming and heat. With change to LED, the lifetime span will be > 30000Hrs and will not be affected by vibration.

Shop desks and displays: Installed 12 Volt halogen spot lights are recommended changed to new LED lamps. LED strips are recommended as shelter lighting.

ANNUALLY FIGURES FOR POTENTIAL SAVINGS AFTER SUGGESTED UPGRADES IN ACCOMMODATION AREAS, DINING ROOM, RESTAURANTS AND LOUNGES.

Dimmable installation:

Comparison with change to new down lights, tube lights and LED technology

Environmental parameters Existing New Savings % Energy reduction kWh/Year 224 479 26 420 198 059 88 % Nox reduction Tonn NOx/Year 3,27 0,39 2,89 88 % CO2 reduction Tonn CO2/Year 112 13 99 88 %

1.5 Cabins. Pax cabins: Light installation is based on a combination of fluorescent tube lights and down lights in 220VAC version. Cabins are not installed with key main switch. As we are going to do a test installation on board for verification of the differences in savings from the original installation to PL/T5 and LED, we will wait with the calculation until a conclusion has been taken in this matters.

Vall lamps: 2 off 1x7Watt E27 energy efficient lamp Bed lamp: 2 off 1x9Watt TC with magnetic ballast Ceiling lamps: 2 off 2x9Watt PL Mirror lamp: 1 off 1x15Watt tube T8

1.6 Summary According measurements, we found part of the installation with low power factor (Cos phi) especially in corridors, down lighters below 25Watt and dimmerable installations in restaurants and dining room. Low power factor (Cos Fi) will create high current (Amps) and reactive effect (VA) with result

• f low active and given effect (Watt).

Products with low power factor need more power to create the active effect. For calculation of ROI, we have used KWh as basic values. Upgrades to new technology will give a power factor up to 1 and the total savings will be higher than calculated in our report. Existing light installation undergoes a normal service and maintenance procedures with change of lamps, starters, capacitors, lamp holders and ballasts. The equipment is now 16 years old and a continuous change will therefore be necessary to keep everything upgraded for the best conditions. Mostly all checked light fixtures housing, are in a good condition and can easily be upgraded with new inserts as rep-kit. A total upgrade of 2482 light points according to this report for counting and calculations in different areas. We have not included any cabins or restaurants. Any changes in the remaining high energy consuming lamps as halogen and par20 must undergo a test installation before decision. Summary of existing lighting for replacement and upgrade:

• 638 Fluorescent light fixtures, 2x18Watt T8 with magnetic ballast and starter,

change to rep-kit 1x24Watt T5.

• 249 Fluorescent light fixtures, 2x36Watt T8 with magnetic ballast and starter

Change to rep-kit 1x54Watt T5.

• 83 Fluorescent light fixtures, surface mounted 1x18Watt T8 with magnetic

ballast and starter, change to rep-kit 1x14Watt T5.

• 61 Fluorescent light fixtures, surface mounted 1x36Watt T8 with magnetic

ballast and starter, change to rep-kit 1x28Watt T5.

• 63 Down lights 2x13Watt PL with magnetic ballast in special designed

ceiling box, change to rep-kit 1X14Watt PL with electronic ballast.

• 525 Down lights 1x18Watt PL with magnetic ballast and starter,

change to new down light 1x10/13Watt with electronic ballast and high performance

• 27 Fluorescent light fixtures, 2x115Watt T8 with magnetic ballast and

starter, cold rooms, change to rep-kit 1x24Watt T5.

• 195 Halogen lamps 20-50Watt for change with LED lamps
• XX Floodlight for deck and hull lighting 1x500Watt – 1000Watt, change to

new floodlight in metal halogen or LED. To be tested before decision. Dimmable installation, replacement in restaurant, lounge, conference e.g.

• DALI programmable control system for replacement of AQS dimmer

panels and racks.

• 346 Halogen lamps 20-50Watt for change with LED lamps, dimmable.
• 295 Down lights 2x9Watt PL dimmable, change to new down light

1x14Watt with dimmable electronic ballast and high performance reflector

ANNUALLY FIGURES FOR POTENTIAL SAVINGS AFTER SUGGESTED UPGRADES AS TOTAL CHANGE General Lighting as total change:

Environmental parameters Existing New Savings % Energy reduction kWh/Year 880 452 390 100 490 352 56 % Nox reduction Tonn NOx/Year 12,84 5,69 7,15 56 % CO2 reduction Tonn CO2/Year 440 195 245 56 %

LED

Accommodation area, not dimmable

Environmental parameters Existing New Savings % Energy reduction kWh/Year 90 469 14 191 76 278 84 % Nox reduction Tonn NOx/Year 1,32 0,21 1,11 84 % CO2 reduction Tonn CO2/Year 45 7 38 84 %

Dimmable areas

Environmental parameters Existing New Savings % Energy reduction kWh/Year 224 479 26 420 198 059 88 % Nox reduction Tonn NOx/Year 3,27 0,39 2,89 88 % CO2 reduction Tonn CO2/Year 112 13 99 88 %

POTENTIAL OF TOTAL ANNUALLY SAVING:

• KWh/Year: 688 411
• Ton NOx/Year: 10,04
• Ton CO2/Year: 344
• Cost savings ( € ): 175.000 ($ 235.000)

Measurements from existing light installation:

Measurement # 1&2: Switchboard LB9-F19 “Corridor deck 4 stbd .” Consists: 10 units fluorescent light fixture 2x18Watt all T8 tubes. Glamox GKI 218 IP58, magnetic ballast.

Measurement with shaft generator Measurement with normal generator

Recomm endation to new energy efficient technolo gy: Rep-kit solution, custmized inserts 1x24Watt T5, calculated according CELMA’s official figures and known values.

Summa ry

Type of Measurement Existing light installation New rep-kit solution Differences. Cooling effect with factor 4:1 Effect saving without cooling Effect saving with cooling Vrms 231 231

• Arms

4,0 1,23 2,77 0,6925 69,2% 86,5% VA 923,9 285,7 638,2 159,55 69,2% 86,5% W 605,1 280 325,1 81,27 53,7% 67,1% PF 0,655 0,98 0,325 33% better Type of Measurement Existing light installation Total units for measurement Numbers of lamps per existing fixture Effect per tube/ lamp in existing fittings Effect per fixture Vrms 231 10 units 2x18Watt T8 2 Arms 4,0 0,40 VA 923,9 46,2 92,4 W 605,1 30,25 60,5 PF 0,655 Type of Measurement New light installation Total units for measurement Numbers of lamps per new fixture Effect per lamp in new fittings Effect per fixture Vrms 231 10 units 1x24Watt T5 1 Arms 1,23 0,12 VA 285,7 28,5 W 280 28 PF 0,98

Measurement # 3: Switchboard LV2- F14 “Aux. engine room deck 1.” Consists: 5 unit’s fluorescent light fixture 2x36Watt, 1 units 2x18Watt T8 tubes. Glamox GKI-IP67, magnetic ballast. Reco mmen dation to new energ y efficie nt technology:

Rep-kit solution, custmized inserts 1x54Watt T5, calculated according CELMA’s official figures and known values.

Sum mary

Type of Measurement Existing light installation New rep-kit solution Differences. Cooling effect with factor 4:1 Effect saving without cooling Effect saving with cooling Vrms 231 231

• Arms

2,5 1,4 1,1 43,4% VA 573,2 324,5 248,7 43,4% W 504,7 318 186,7 37% PF 0,88 0,98 0,10 10% better

There will not be any additional savings from cooling effect due to areas are engine and technical rooms.

Type of Measurement Existing light installation Total units for measurement Numbers

• f lamps

per existing fixture Effect per tube/ lamp in existing fittings Effect per fixture Vrms 231 5 units 2x36W T8 1 unit 2x18W T8 2 36W / 18W 36W / 18W Arms 2,5 0,22 / 0,11 0,44 / 0,22 VA 573,2 52,11 / 26 104,22 / 52,11 W 504,7 45,9 / 23 91,8 / 45,9 PF 0,88 Type of Measurement New light installation Total units for measurement Numbers

• f lamps

per new fixture Effect per lamp in new fittings Effect per fixture Vrms 231 5 units 1x54W T5 1 unit 1x24W T5 1 Arms 1,4 0,256 / 0,12 VA 324,5 59,2 / 28,6 59,2 / 28,6 W 318 58 / 28 58 / 28 PF 0,98

Measurement # 4: Switchboard LV5- F10 “Car deck stbd deck 2” Consists: 10 units fluorescent light fixture 2x36Watt all T8 tubes. Glamox GKI-IP67, magnetic ballast. Recommendation to new energy efficient technology:

Rep-kit solution, custmized inserts 1x54Watt T5, calculated according CELMA’s official figures and known values. Summary

Type of Measurement Existing light installation New rep-kit solution Differences. Cooling effect with factor 4:1 Effect saving without cooling Effect saving with cooling Vrms 230,2 230,2

• Arms

4,8 2,56 2,24 46,6% VA 1102 590,2 511,8 46,6% W 888 580 308 34,7% DPF 0,80 0.98 0,18 18,4% better

There will not be any additional savings from cooling effect due to areas are car / cargo deck

Type of Measurement Existing light installation Total units for measurement Numbers

• f lamps

per existing fixture Effect per tube/ lamp in existing fittings Effect per fixture Vrms 230,2 10 units 2x36WT8 2 Arms 4,8 0,24 0,48 VA 1102 55,1 110,2 W 888 44,4 88,8 DPF 0,80 Type of Measurement New light installation Total units for measurement Numbers of lamps per new fixture Effect per lamp in new fittings Effect per fixture Vrms 230,2 Arms 2,56 0,256 VA 590,2 59,2 W 580 58 DPF 0.98
