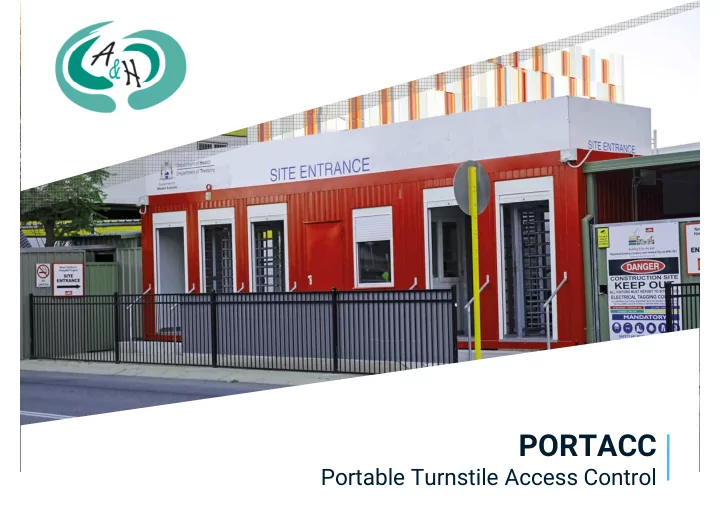

PORTACC Portable Turnstile Access Control www.ah-tuertechnik.de - - PowerPoint PPT Presentation
PORTACC Portable Turnstile Access Control www.ah-tuertechnik.de - - PowerPoint PPT Presentation
PORTACC Portable Turnstile Access Control www.ah-tuertechnik.de PORTACC - Unique Selling Points Portable 1 - Mobile solution - Office container unit - Optional forklift pockets (max. unit length = 6,5 m) Turnstile 2 - Implementation of
www.ah-tuertechnik.de
PORTACC - Unique Selling Points
2
1
- Mobile solution
- Office container unit
- Optional forklift pockets (max. unit length = 6,5 m)
Portable
2
- Implementation of any turnstile by A&H
- e.g. REXON ERA 3 turnstile for high security level
Turnstile
3
- Implementation of any Access control system
- Behind-wall cabling as high security level feature
Access control + Security level
4
- Any container unit size up to 40 feet length
- Tailor solution for any project requirements
Module unit variability
5
- Wide range of outdoor optional accessories
Optional accessories
www.ah-tuertechnik.de
PORTACC - Application Area
3
Building Industry Power Station Refineries Ports, Dockyards Large outdoor public events Military Installations Border Control Points
www.ah-tuertechnik.de
PORTACC - Container Unit Variability
4
Turnstile Room Guard House Car Gate System
Customizable Office Container Unit
www.ah-tuertechnik.de
PORTACC - Turnstile Room
5
Interior Walls
- RAL painted steel
- Waterproof treatment as standard
Flooring
- Riffled alu-sheet flooring
- Non-slip solution
Heavy Duty Interior
- Heavy steel sheeting
Optional Equipment
Roller Shutter
- Mechanical / Electrical
- Wall mounted / Flush mounted
Entry / Exit Ramp
- Steel ramp for passage lane
Fluorescent Lamps
- High performance waterproof lamps
www.ah-tuertechnik.de
PORTACC - Guard House
6
Interior Walls
- Thermally and vapour insulated
- White plastic walls
Flooring
- Nonslip rubber floorings
Exterior Window
- Window to Secure or Unsecure side
Optional equipment
HV / AC
- Air conditioner with heating convertor
Office Furniture
- Office table, chair …
Interior Window
- Openable window for direct access to
Turnstile room
www.ah-tuertechnik.de
PORTACC - Car Gate System
7
Platform
- Platform as extension of container unit
Car Gate Arm
- Removable arm
- 4-6 meter length of arm
Car Gate Arm Equipment
- Skirt kit / Lighting kit
Optional Equipment
Power Backup
- Back-up battery for Car gate system
Control Console
- Remote control console inside Guard
House
www.ah-tuertechnik.de
PORTACC - Turnstile
8
REXON ERA 3
- Most popular turnstile for PORTACC unit
- High security level
Outdoor Package
- Heating module
- IP 65 protection class
Implementation of Access Control System
- Access control terminals
- RFID readers
Optional Equipment
Power Backup
- Back-up battery for turnstiles
Optional Surface Finish
- Stainless steel AISI 304
- Stainless steel AISI 316
- RAL powder coated
Remote Control Console
- Touch Panel / EasyTouch / Tmon SW
www.ah-tuertechnik.de
PORTACC - Container Unit Size Variability
9
www.ah-tuertechnik.de
PORTACC - Container Unit Size Variability
10
www.ah-tuertechnik.de
PORTACC - Future
11 REXON ERA MDD with impressive Latch locking system Conventional Ship container Transportation by standard ship
www.ah-tuertechnik.de
ADDRESS
THANK YOU
Contact us for more information A&H Türtechnik GmbH Paul-Ehrlich-Str. 22-26 /D1 D-63322 Rödermark Ober-Roden Tel: +49 6074 69640-0 Fax: +49 6074 69640-20 Email: info@ah-tuertechnik.de Website: www.ah-tuertechnik.de
