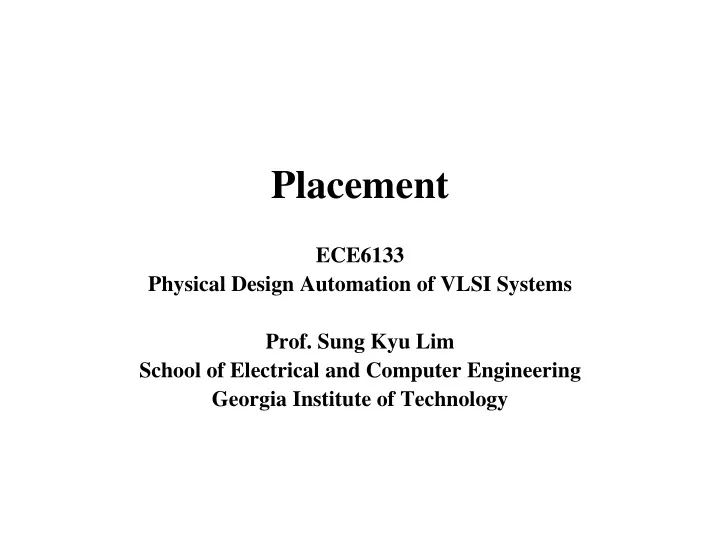

Placement ECE6133 Physical Design Automation of VLSI Systems Prof. - - PowerPoint PPT Presentation

Placement

ECE6133 Physical Design Automation of VLSI Systems

• Prof. Sung Kyu Lim

School of Electrical and Computer Engineering Georgia Institute of Technology

Placement

• The process of arranging the circuit components on a layout surface.
• Inputs: A set of fixed modules, a netlist.
• Goal: Find the best position for each module on the chip according to

appropriate cost functions. – Considerations: routability/channel density, wirelength, cut size, performance, thermal issues, I/O pads.

1 2 3 4 5 6 7 8

1 7 5 8 2 3 6 4 1 2 3 4 5 6 8 7 wirelength = 10 wirelength = 12 A Density = 2 (2 tracks required) D B C E F G H A Shorter wirelength, 3 tracks required. B C D E F G H

Estimation of Wirelength

• Semi-perimeter method: Half the perimeter of the bounding rectangle

that encloses all the pins of the net to be connected. Most widely used approximation!

• Complete graph: Since #edges in a complete graph (n(n−1)

2

) is n

2× #

• f tree edges (n − 1), wirelength ≈ 2

n

• (i,j)∈net dist(i, j).
• Minimum chain: Start from one vertex and connect to the closest one,

and then to the next closest, etc.

• Source-to-sink connection: Connect one pin to all other pins of the
• net. Not accurate for uncongested chips.
• Steiner-tree approximation: Computationally expensive.
• Minimum spanning tree

4 4 3 3 3 3 3 3 3 4 4 7 semi−perimeter len = 11 10 7 8 8 complete graph len * 2/n = 17.5 chain len = 14 10 source−to−sink len = 17 8 Steiner tree len = 12 7 Spanning tree len = 13

Placement Methods

• Constructive methods

– Cluster growth algorithm – Force-directed method – Algorithm by Goto – Min-cut based method

• Iterative improvement methods

– Pairwise exchange – Simulated annealing: Timberwolf – Genetic algorithm

• Analytical methods

– Gordian, Gordian-L

Min-Cut Placement

• Breuer, “A class of min-cut placement algorithms,” DAC-77.
• Quadrature: suitable for circuits with high density in the center.
• Bisection: good for standard-cell placement.
• Slice/Bisection: good for cells with high interconnection on the periphery.

3a 1 3b 4a 2 4b 3a 2a 3b 1 3c 2b 3d 6a5a6b 4 6c 5b6d

n/2 n/2

1 2 3 4 5 6 7 10a 9a10b8 10c 9b 10d

quadrature

bisection slice/bisection

n/4 n/4

n/2 n/2 n/2 n/4 n/4

C1 C2

C1 C2

n/k n/k (k−2)n/k C2

n/k (k−1)n/k C1

Algorithm for Min-Cut Placement

Algorithm: Min Cut Placement(N, n, C) /* N: the layout surface */ /* n: # of cells to be placed */ /* n0: # of cells in a slot */ /* C: the connectivity matrix */ 1 begin 2 if (n ≤ n0) then PlaceCells(N, n, C); 3 else 4 (N1, N2) ← CutSurface(N); 5 (n1, C1), (n2, C2) ← Partition(n, C); 6 Call Min Cut Placement(N1, n1, C1); 7 Call Min Cut Placement(N2, n2, C2); 8 end

Quadrature Placement Example

• Apply K-L heuristic to partition + Quadrature Placement: Cost C1 = 4, C2L = C2R = 2,

etc.

P Q R

Q1 Q2 Q3

1 2 3 4 5 6 7 8 9 11 10 12 13 14 15 16

C1

C2

2,4,5,7 8,12,13,14 1,3,6,9 10,11,15,16 1 2 3 4 5 6

8

9

13 14 15 16

7

12 10 11

P

C4a C2

Q C4b R

O1

C4a C2

O2 C4b O3

C1 C3b C3a

Min-Cut Placement with Terminal Propagation

• Dunlop & Kernighan, “A procedure for placement of standard-cell VLSI

circuits,” IEEE TCAD, Jan. 1985.

• Drawback of the original min-cut placement:

Does not consider the positions of terminal pins that enter a region. – What happens if we swap {1, 3, 6, 9} and {2, 4, 5, 7} in the previous example?

L1 L2

R

S L1 L2 S

prefer to have them in R1

R1 R2

Terminal Propagation

• We should use the fact that s is in L1!

L1 L2

R1 R2

L1 L2

R1 R2

center

p p

dummy cell Lower cost higher cost

P will stay in R1 for the rest of partitioning!

s

s

• When not to use p to bias partitioning? Net s has cells in many groups?

h/3

p

h

Use p! p

h/3

h

Don’t use p to bias the solution in either direction! R

L

p1 p2 p3 G minimum rectilinear Steiner tree

Terminal Propagation Example

• Partitioning must be done breadth-first, not depth-first.

d

b

a

c

S

a

b

c d S

R

L

C1

a b c

d

C1

b

c

d

a p1

L1 L2

R1 R2

c

a

d

C1

L1

L2

R1

R2

b

R

L

C1

a b c

d

without terminal propagation with terminal propagation

unbiased partition

• f R

Creating Rows

• Terminal propagation reduce overall area by ~30%
• Creating rows

– Choose α and β preferably to balance row to balance row length (during re-arrangement )

C1 C2 C3 Row 1 Row 2 Row 3 Row 4

cells in C1→ row1 cells in C3→ row1 cells in C2 C2

α β α + β = 1

Row 1 Row 2

Creating Rows

• Example

– Partitioning of circuit into 32 groups – Each group is either assigned to a single row or divided into 2 rows

1 1 1 1,2 1,2 1,2 1,2 2 2 2,3 2,3 2,3 2,3 3 3 3 3,4 3,4 3,4 3,4 4 4 4 4 5 5 5 5 5 5 4,5 4,5

a four-row standard cell design

Experimental Results

• CMOS Chip with 453 nets and 412 cells
• Manual solution

– track density=147; feedthroughs=184

• Automated solution

– without terminal propagation: t.d.=313; f.t.=591 – (t.d. reduced to 235 by iterative interchanges) – with terminal propagation: t.d.=186; f.t.=182 – (t.d. reduced to 152 by iterative interchanges) – Iterative Interchange Refinement is helpful

• The program is in production use as part of an automatic

placement system in AT&T Bell Lab.

– Solutions within 10% of the best hand layout

Remarks on Min-cut Placement

• Also implemented F-M partitioning method

– Much faster but solutions appeared to be not as good as K-L

• Use Simulated Annealing to do partitioning

– Much slower. If restricted to a reasonable CPU time, solutions are

• f similar quality of those by F-M method. Easy to implement
• Seeking an elegant way to force some cells to be in

particular positions

• Investigate other algorithms for terminal propagation

– Terminal propagation is the bottleneck of CPU time

Practical Problems in VLSI Physical Design Mincut Placement (1/12)

Mincut Placement

Perform quadrature mincut onto 4 × 4 grid

Start with vertical cut first

undirected graph model w/ k-clique weighting thin edges = weight 0.5, thick edges = weight 1

Practical Problems in VLSI Physical Design Mincut Placement (2/12)

Cut 1 and 2

First cut has min-cutsize of 3 (not unique)

Both cuts 1 and 2 divide the entire chip

Practical Problems in VLSI Physical Design Mincut Placement (3/12)

Cut 3 and 4

Each cut minimizes cutsize

Helps reduce overall wirelength

Practical Problems in VLSI Physical Design Mincut Placement (4/12)

Cut 5 and 6

16 partitions generated by 6 cuts

HPBB wirelength = 27

Practical Problems in VLSI Physical Design Mincut Placement (5/12)

Recursive Bisection

Start with vertical cut

Perform terminal propagation with middle third window

Practical Problems in VLSI Physical Design Mincut Placement (6/12)

Cut 3: Terminal Propagation

Two terminals are propagated and are “pulling” nodes

Node k and o connect to n and j: p1 propagated (outside window) Node g connect to j, f and b: p2 propagated (outside window) Terminal p1 pulls k/o/g to top partition, and p2 pulls g to bottom

Practical Problems in VLSI Physical Design Mincut Placement (7/12)

Cut 4: Terminal Propagation

One terminal propagated

Node n and j connect to o/k/g: p1 propagated Node i and j connect to e/f/a: no propagation (inside window) Terminal p1 pulls n and j to right partition

Practical Problems in VLSI Physical Design Mincut Placement (8/12)

Cut 5: Terminal Propagation

Three terminals propagated

Node i propagated to p1, j to p2, and g to p3 Terminal p1 pulls e and a to left partition Terminal p2 and p3 pull f/b/e to right partition

Practical Problems in VLSI Physical Design Mincut Placement (9/12)

Cut 6: Terminal Propagation

One terminal propagated

Node n and j are propagated to p1 Terminal p1 pulls o and k to left partition

Practical Problems in VLSI Physical Design Mincut Placement (10/12)

Cut 7: Terminal Propagation

Three terminals propagated

Node j/f/b propagated to p1, o/k to p2, and h/p to p3 Terminal p1 and p2 pull g and l to left partition Terminal p3 pull l and d to right partition

Practical Problems in VLSI Physical Design Mincut Placement (11/12)

Cut 8 to 15

16 partitions generated by 15 cuts

HPBB wirelength = 23

Practical Problems in VLSI Physical Design Mincut Placement (12/12)

Comparison

Quadrature vs recursive bisection + terminal propagation

Number of cuts: 6 vs 15 Wirelength: 27 vs 23

Analytical Placement

• Gordian package:

– GORDIAN: Gordian: VLSI Placement by Quadratic Programming and slicing Optimization: J. M. Kleinhans, G.Sigl, F.M. Johannes, K.J. Antreich, IEEE TCAD, 1991 – GORDIAN-L: Analytical Placement: A Linear or a Quadratic Objective Function?: G. Sigl, K. Doll, F.M. Johannes, DAC91

• Gordian: A Quadratic Placement Approach

– Global optimization: solves a sequence of quadratic programming problems – Partitioning: enforces the non-overlap constraints

i=0 i=29 i=58 i=87

Adaptec1 Stats

• Circuit stats

– # cells/nets/pins 210,863/219,687/19,205 – chip size 6000um × 6000um – bin size 50um × 50um – # placement bins 120 × 120 – Average bin occupancy 210K/1202 =14.6 gates/bin

• Wirelength result (HPBB)

– iteration 0 34,069,060 – iteration 29 46,352,680 – iteration 58 80,783,336 – iteration 87 98,111,904

Overview of Gordian Package

Procedure Gordian l:=1; global-optimize(l); while (there exists |Ml|>k) for each r є R(l) partition(r, r’, r”); l++; setup-constraints(l); global-optimize(l); repartition(l); final-placement(l); endprocedure

Problem Definition

module u

x y connection to

• ther modules

Squared wire length of net v pin vu (xuv, yuv) net node v (avu, bvu) = offset from center of u (xu, yu) (xv, yv) lvu

vu u uv vu u uv v uv M u v uv v

b y y a x x y y x x L

v

+ = + = − + − = ∑

∈

, ] ) ( ) [(

2 2

Cost Function

X d CX X x Y d CY Y X d CX X y x w L

T T T y T T x T v N v v

+ = + + + = = ∑

∈

) ( ) , ( 2 1 φ φ φ

• Minimize the following:

Constraints

     ∈ = = =

∑ ∑ ∑

∈ ∈ ∈

• therwise

if / , : constraint

p M i i i iu l l M u u p u M u u

M i F F a u X A F u x F

p p p

• The center of gravity constraints

– At level l, chip is divided into q (≤ 2l ) regions – For region p, the center coordinates: (up, vp) – Mp: set of modules in region p – Matrix from for all regions

Problem Formulation

D E F A B C

            = M L L M M M M M M M M M M M M M M M * * * * * * '

) (

ρ ρ

l

A G F E D C B A

(uρ, vρ) (uρ’, vρ’)

} that such ) ( { min : LQP problem g Programmin Quadratic d constraine Linearly

l l T T R x

u X A X d CX X x

m

= + = Φ

∈

Solution Method

• Algebraic Manipulation

1 1 1 1 ) (

variable t independen is variable dependent is where , ] [ ] [ x ZX u D X I B D X u D BX D X X X u X X DB B D A

i i d i d i d q m q q q m q

+ =       +      − = + − = =       =

− − − − − × × ×

• Unconstrained Quadratic Programming problem

– Solved by Conjugate-Gradient method d CX C X C CZX Z X x

T i T T T i i R x

q m i

+ = + = Ψ

−

∈

where , } ) ( { min : UQP

3 Types of Quadratic Programming (QP) Problems:

• Positive Definite Hessian Matrix

(Bowl):

• One optimal objective value
• Convex
• Easy: One Point
• Semi‐definite Hessian Matrix

(Trough):

• Line of optimal objective

values

• Convex
• Moderate: Any point on line
• Indefinite Hessian Matrix (Saddle):
• Optimal is on the boundaries.
• Non‐Convex
• NP Hard

Hessian Matrix

• Second order partial

derivatives

• Describes local curvature
• Generalization of

Laplacian

• Trace (Hessian) =

Laplacian

• Here C is Positive Definite.
• Hence LQP or UQP are Convex
• Unique optimal X.

Hence, GORDIAN QP always finds a global optimal Thanks to: Anirudha Kurhade, Fall 2016

GORDIAN Quadratic Programming (QP) Problem:

Partitioning

• Recursive partitioning is needed

– to resolve module overlap in global placement – global placement problem will be solved again with two additional center_of_gravity constraints

0.0 0.25 0.5 0.75 1.0 40 30 20 10

Cp(a)

∑ ∑ ∑

∈ ∈ ∈

= ≈ = ∈ ∈ ≤ →

C p p

N v v p M u u M u u p p u u p p p

w C F F M u M u x x M M M ) ( : value cut 5 . / ' ' and ' ) , (

'

' ' ' ' ' ' ' ' ' '

α α

Repartitioning

• Module exchange after each cut to improve cut size

– terminal propagation using global placement positions

• Repartitioning

– to ‘undo’ the mistake made at the previous level: Procedure repartition(l) if overlap exists for each r∈R(l-1) merge-regions(r, r’, r’’); partition(r, r’, r’’); setup-constraints(l); global-optimize(l); endif

Summary of Gordian

Global Optimization minimization of wire length Final Placement adoption of style dependent constraints module coordinates position constraints module coordinates Regions with ≤ k modules

Complexity: space = O(m), time = O(m1.5 log2m) Final placement: standard cell, macro-cell & SOG

Partitioning of module set and dissection of placement region

Experimental Results

Circuit scb1 scb2 scb3 scb4 scb5 scb6 scb7 scb8 scb9 CPU-time scb8 CPU-time scb9 ratio GORDIAN 2.7 5.8 15.7 14.0 10.6 11.3 16.4 51.7 54.0 120s 135s 1 Min-Cut 3.1 5.3 25.6 16.9 11.3 12.7 20.2 89.2 98.6 366s 440s :3 Annealing 2.6 5.0 9.1 13.2 10.9 12.8 19.8 59.5 80.0 39851s 34709s :300 Area After Routing/mm2 Comparison of Results for Standard Cell Blocks

Practical Problems in VLSI Physical Design GORDIAN Placement (1/21)

GORDIAN Placement

Perform GORDIAN placement

Uniform area and net weight, area balance factor = 0.5 Undirected graph model: each edge in k-clique gets weight 2/k

Practical Problems in VLSI Physical Design GORDIAN Placement (2/21)

IO Placement

Necessary for GORDIAN to work

Practical Problems in VLSI Physical Design GORDIAN Placement (3/21)

Adjacency Matrix

Shows connections among movable nodes

Among nodes a to j

Practical Problems in VLSI Physical Design GORDIAN Placement (4/21)

Pin Connection Matrix

Shows connections between movable nodes and IO

Rows = movable nodes, columns = IO (fixed)

Practical Problems in VLSI Physical Design GORDIAN Placement (5/21)

Degree Matrix

Based on both adjacency and pin connection matrices

Sum of entries in the same row (= node degree)

Practical Problems in VLSI Physical Design GORDIAN Placement (6/21)

Laplacian Matrix

Degree matrix minus adjacency matrix

Practical Problems in VLSI Physical Design GORDIAN Placement (7/21)

Fixed Pin Vectors

Based on pin connection matrix and IO location

Y-direction is defined similarly

Practical Problems in VLSI Physical Design GORDIAN Placement (8/21)

Fixed Pin Vectors (cont)

Practical Problems in VLSI Physical Design GORDIAN Placement (9/21)

Fixed Pin Vectors (cont)

Practical Problems in VLSI Physical Design GORDIAN Placement (10/21)

Level 0 QP Formulation

No constraint necessary

Practical Problems in VLSI Physical Design GORDIAN Placement (11/21)

Level 0 Placement

Cells with real dimension will overlap

Practical Problems in VLSI Physical Design GORDIAN Placement (12/21)

Level 1 Partitioning

Perform level 1 partitioning

Obtain center locations for center-of-gravity constraints

Practical Problems in VLSI Physical Design GORDIAN Placement (13/21)

Level 1 Constraint

Practical Problems in VLSI Physical Design GORDIAN Placement (14/21)

Level 1 LQP Formulation

Practical Problems in VLSI Physical Design GORDIAN Placement (15/21)

Level 1 Placement

Practical Problems in VLSI Physical Design GORDIAN Placement (16/21)

Verification

Verify that the constraints are satisfied in the left partition

Practical Problems in VLSI Physical Design GORDIAN Placement (17/21)

Level 2 Partitioning

Add two more cut-lines

This results in p1={c,d}, p2={a,b,e}, p3={g,j}, p4={f,h,i}

Practical Problems in VLSI Physical Design GORDIAN Placement (18/21)

Level 2 Constraint

Practical Problems in VLSI Physical Design GORDIAN Placement (19/21)

Level 2 LQP Formulation

Practical Problems in VLSI Physical Design GORDIAN Placement (20/21)

Level 2 Placement

Clique-based wiring is shown

Practical Problems in VLSI Physical Design GORDIAN Placement (21/21)

Summary

Center-of-gravity constraint

Helps spread the cells evenly while monitoring wirelength Removes overlaps among the cells (with real dimension)

Linear vs. Quadratic Objective

A B C

fixed movable fixed a b g

Quadratic objective function A B C

fixed fixed movable g

Linear objective function

γ β α γ β α γ γ γ γ γ γ β α

φ φ φ l l l l l l l l l l l l l l l l l l

l q q

+ + = = = = = → = + − − = + − = + + = , 2 3 1 3 2 2 ) ( 4 ) ( 2

' 2 2 2 2 2

Linear vs. Quadratic Objective

• Quadratic objective function

– tends to make very long net shorter than linear objective function – lets short nets become slightly longer

row1 row2 row3 row4 row1 row2 row3 row4 A B A B

Linear objective function Quadratic objective function

Optimizing Linear Objective

• Global Placement with linear objective function

function

• bjective

linear function

• bjective

quadratic ) (

2

→ − = → − =

∑ ∑ ∑ ∑

∈ ∈ ∈ ∈ N v M u v uv l N v M u v uv q

v v

x x x x φ φ

• Trick

– use quadratic programming to minimize linear objective function

∑ ∑ ∑ ∑ ∑

∈ ∈ ∈ ∈ ∈

− = − = − = − − =

v v v

M u v uv v v uv uv N v M u uv v uv N v M u v uv v uv l

x x g x x g g x x x x x x , ) ( ) (

2 2

φ

Analytical Placement Results

100 200 300 400 2 4 6 8 1 1 2 1 4 1 7 Gordian GordianL

wire length /mm circuit primary 2 number of pins of a net Figure: Sum of wire lengths versus #pins

Analytical Placement Results

Quadratic objective function Linear objective function (a) Global placement with 1 region

Analytical Placement Results

Quadratic objective function Linear objective function (b) Global placement with 4 regions

Analytical Placement Results

Quadratic objective function Linear objective function (c) Final placements
