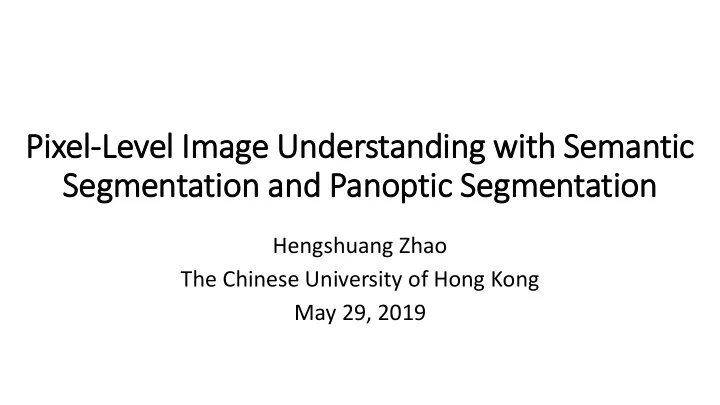

Pixel-Level Im Image Understanding wit ith Semantic Segmentation and Panoptic Segmentation

Hengshuang Zhao The Chinese University of Hong Kong May 29, 2019

Part I: I: Semantic Segmentation

Semantic Segmentation

Original Image Per-Pixel Annotation person horse car background Images adapted from PASCAL VOC 2012 Images adapted from ADE20K

Fully Convolutional Network

FCN [Long et al. 2015]

Conditional Random Field

DeepLabV1 [Chen et al. 2015], DPN [Liu et al. 2015], CRF-RNN [Zheng et al. 2015]

Encoder-Decoder

UNet [Ronneberger et al. 2015], DeconvNet [Noh et al. 2015], SegNet [Badrinarayanan et al. 2015], LRR [Ghiasi et al. 2016], RefineNet [Lin et al. 2017], FRRN [Pohlen et al. 2017]

Atrous Convolution / Dilated Convolution

DeepLabV1 [Chen et al. 2015], Dilation [Fisher et al. 2016]

Context Aggregation

Pooling: ParseNet [Liu et al. 2015], PSPNet [Zhao et al. 2017], DeepLabV2 [Chen et al. 2016] Large Kernel: GCN [Peng et al. 2017]

Neural Architecture Search

Search for backbone: Auto-DeepLab [Liu et al. 2019] Search for head: DPC [Chen et al. 2018]

Attention Mechanism

Spatial attention (dot product): Transformer [Vaswani et al. 2017], Non-Local-Net [Wang et al. 2018] OCNet [Yuan et al. 2018], DANet [Fu et al. 2018], CCNet [Huang et al. 2018] Channel reweighting: SENet [Hu et al. 2018], EncNet [Zhang et al. 2018], DFN [Yu et al. 2018]

Point-wise Spatial Attention Network (PSANet)

• Conv & Dilated Conv: Fixed grid, information flow restricted inside local regions
• Pooling Operation: Fixed weights at each position with none adaptively manner
• Feature Correlation: Relative position information ignored
• Point-wise Spatial Attention:
• Long-range context aggregation for dense prediction
• Bi-direction information propagation
• Self-adaptively learned and location-sensitive masks

Point-wise Spatial Attention Network

Point-wise Spatial Attention Network

Information collection branch Information distribution branch

Over-completed Compact

Point-wise Spatial Attention Network

Information collection branch Information distribution branch

Over-completed Compact

feature fusion: local & global

Attention Mask Generation

Incorporation with FCN

Result on ADE20K and VOC 2012

ADE20K: information aggregation approaches ADE20K: result on val set PSACAL VOC 2012:result on val set PSACAL VOC 2012: result on val set

Result on Cityscapes

result on val set result on test set (train with fine set) result on test set (train with fine+coarse set)

Visual Prediction on ADE20K

Visual Prediction on VOC 2012

Visual Prediction on Cityscapes

Mask Visualization

Part II: II: Panoptic Segmentation

Semantic Segmentation

semantic segmentation: instances indistinguishable

Instance Segmentation

instance segmentation: stuff unsolved

Panoptic Segmentation

panoptic segmentation: stuff and things are solved, instances distinguishable

Heuristic Combination

Mask R-CNN [He et al. 2017] PSPNet [Zhao et al. 2017]

Instance Semantic redundant computation for independent models

Heuristic Combination

Mask R-CNN [He et al. 2017] PSPNet [Zhao et al. 2017]

Instance Semantic

Heuristic Merge

heuristic merge logic is not end-to-end trainable

heuristic combination

• ur end-to-end output

Unified Panoptic Segmentation Network (UPSNet)

Unified Backbone Network Save Computation! Pixel-wise Classification Consistent Estimation!

Semantic & Instance Head

Semantic Head: FPN with Deformable Conv Instance Head: Same as Mask-RCNN

Panoptic Head

Mask logits from Instance head

𝑍

𝑗

resize/pad

𝑌thing

Thing & Stuff logits from Semantic head

𝑌mask𝑗

𝑂inst

H x W 𝑌stuff

𝑂stuff

H x W Panoptic logits

max max 1

Logits for Unknown

Performance Comparison

160 165 170 175 180 185 190 41.4 41.6 41.8 42 42.2 42.4 42.6 Results on COCO (800 x 1300) 200 400 600 800 1000 1200 57 57.5 58 58.5 59 59.5 Results on Cityscapes (1024 x 2048) UPSNet MR-CNN-PSP UPSNet MR-CNN-PSP

Detailed Result

result on COCO result on Cityscapes result on internal data run time comparison

Visual Prediction

result on COCO result on Cityscapes

Code Resource

I. Semantic Segmentation:

• Caffe:
• https://github.com/hszhao/PSPNet
• https://github.com/hszhao/PSANet
• https://github.com/hszhao/ICNet
• PyTorch:
• https://github.com/hszhao/semseg (new)
• highly optimized codebase with better reimplementation results

II. Panoptic Segmentation:

• PyTorch:
• https://github.com/uber-research/UPSNet
• the first open sourced codebase for unified end-to-end panoptic segmentation

Remain Problem

I. Semantic Segmentation:

• imbalance classes: long-tail distribution
• confusion classes: using human’s confusion matrix (e.g., ade20k) as prior
• data augmentation: adaptive augmentation or auto augmentation
• hard mining: effective while not elegant
• robustness and generalization: one model for different datasets
• accuracy and efficiency: can both be achieved?

II. Panoptic Segmentation:

• introduce parameters into panoptic head (e.g., 3d Conv)
• new frameworks with a single panoptic head

Thanks!
