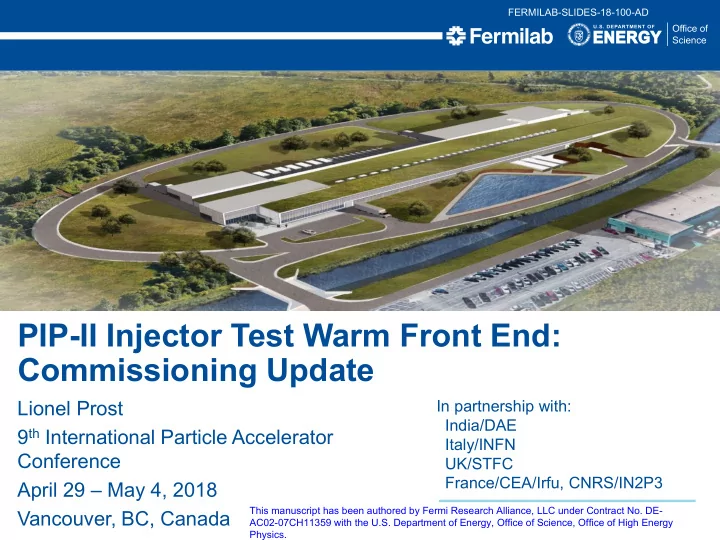

SLIDE 1

In partnership with: India/DAE Italy/INFN UK/STFC France/CEA/Irfu, CNRS/IN2P3

Lionel Prost 9th International Particle Accelerator Conference April 29 – May 4, 2018 Vancouver, BC, Canada

PIP-II Injector Test Warm Front End: Commissioning Update

FERMILAB-SLIDES-18-100-AD This manuscript has been authored by Fermi Research Alliance, LLC under Contract No. DE- AC02-07CH11359 with the U.S. Department of Energy, Office of Science, Office of High Energy Physics.

SLIDE 2

Acknowledgement

Results summarized within would not have been possible

without the help and dedication of many (and I apologize in advance for missing some), in no particular order:

D. Sun, A. Chen, P. Jones, D. Franck, D. Lambert, R. Kellett, C.

Baffes, J. Batko, J. Czajkowski, T. Hamerla, T. Zuchnik, C. Briegel,

J. Firebaugh, S. Conlon, G. Brown, R. Hagler, A. Saewert, G.

Saewert, D. Frolov, V. Lebedev, R. Pasquinelli, A. Shemyakin, J. Steimel, B. Hanna, R. Andrews, J.-P. Carneiro, K. Carlson, B. Chase, D. Peterson, J. Edelen, J. Dye, W. Mueller, J. Einstein- Curtis, D. Sharma, S. Khole, V. Scarpine, B. Fellenz, N. Eddy, A. Warner, D. Nicklaus, M. Kucera, D. Arveson, A. Saini, E. Cullerton,

M. Hassan, K. Kendziora, P. Derwent, M. Coburn, M. Ibrahim,

V.L.S. Sista, C. Richard

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

2

Designates co-authors

-----------------------------0

Fermilab

SLIDE 3

Outline

Proton Improvement Plan II (PIP-II) & PIP-II Injector Test

(PIP2IT)

– Introduction, scope & goals for the Warm Front End (WFE)

PIP2IT WFE commissioning status

– Focus on Medium Energy Beam Transfer (MEBT) line

Plans for high-power operation

– 10+ kW

Conclusion

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

3

-----------------------------0

Fermilab

SLIDE 4

Proton Improvement Plan-II (PIP-II)

Upgrades to Fermilab’s accelerator complex

– Central part: 800 MeV, 2 mA (average over ~ms) CW-compatible H- Superconducting Linac and transfer line to Booster

Present ‘warm’ Linac: 400 MeV, 30 mA, 40 ms×15 Hz

– MW-class accelerator with multi-user operation capability

Platform for future upgrades

– Higher Main Injector power, multiple experiments simultaneously

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

4

Layout of PIP-II and its possible future upgrades

S. Nagaitsev’s

talk (MOYGB3)

PIP2 linac and transfer line Booster Linac Muon rings

0Fermilab

1

I I I I I I I I I I I

SLIDE 5

PIP-II Injector Test (PIP2IT)

A test accelerator representing the PIP-II front end

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

5

PIP-II Linac scheme

~160 m

30 keV RFQ MEBT HWR SSR1 HEBT 2.1 MeV 10 MeV 25 MeV LEBT Warm front end

LEBT = Low Energy Beam Transport; RFQ= Radio Frequency Quadrupole; MEBT= Medium Energy Beam Transport; HWR = Half-Wave Resonator; SSR1=Single Spoke Resonator; HEBT = High Energy Beam Transport

PIP2IT scheme

-----------------------------0

Fermilab

- ....

_

___. <. l•i:i••;Ji•l•~tiii~

ii , •

Ji=Cl.22 Ji=0.64 Ji=0.97

..... _

+<--- RT ---31>-+-------- SC --------

1111

1111
1111

162.5 MHz 0.03 -10.3 MeV 325 MHz 10.3-185 MeV 650 MHz 185-800 MeV

SLIDE 6

Warm Front End scope

The Warm Front End (WFE) prepares a H- beam optimized

for injection into the Booster and provides capabilities for future CW operation

It is composed of:

– Two Ion Sources (IS) and a Low Energy Beam Transport (LEBT)

DC/long pulse operation

– RFQ

CW operation (RF)
30 keV

2.1 MeV

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

6

– Medium Energy Beam Transport (MEBT)

Nominal output current: 2 mA

averaged over ~ms (from ms to CW

peration)
Bunch-by-bunch chopping

capability

Ion sources LEBT RFQ MEBT

-----------------------------0

Fermilab

SLIDE 7

PIP2IT WFE main goals

Address all critical issues:

– LEBT with low emittance growth compatible with chopping

Vacuum management in the LEBT/RFQ region

– Reliable CW RFQ, including couplers – Bunch-by-bunch selection in MEBT

Bunch extinction, effective

emittance growth

– Compatibility of high-power deposition in MEBT absorber with SRF downstream

Absorber reliability &

lifetime

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

7

Warm front end of PIP2IT with HWR installed

Reported previously

/

I

I I I I I

:

.

' --------------------------------

....

\

I I I I I I I

I

0Fermilab

SLIDE 8

LEBT and RFQ performance highlights

LEBT delivers up to 10 mA, 10ms-dc, 20 Hz

– en,rms = 0.13 mm mrad (for 5 mA)

RFQ operated pulsed (up to 5 ms) or CW, 162.5 MHz, 60 kV

– Time of Flight measurements → 2.11±0.006 MeV – 98±2% transmission efficiency at 5 mA (pulsed beam)

Up to 10 mA with low losses

– en,rms < 0.2 mm mrad (for < 5 mA, nominal)

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

8

MEBT configuration for characterization of the RFQ

<

Dipol Bun hing

Emittan

SLIDE 9

PIP2IT beam line configuration

Full length MEBT has been installed at the CryoModule Test

Facility (CMTF) followed by a high-power dump

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

9

– Includes two different prototype kickers (50-Ohm & 200-Ohm), all scraper paddles, prototype absorber, Differential Pumping Insert (DPI) and various diagnostics

Absorber prototype 50-Ohm kicker prototype 200-Ohm kicker prototype DPI F-scraper Fast acting valve ACCT Emittance scanner Fast Faraday Cup RWCM

Dump

Ion Source & RFQ

DPI

200-Ohm kicker

--------------------OFermilab

/

SLIDE 10

Beam transport

Demonstrated 96% availability (over 24 hours) for beam with

nominal MEBT parameters

– 5 mA×0.55 ms×2.1 MeV×20 Hz = 115 W with appropriate bunch pattern for Booster injection

Up to 10 mA to the dump with negligible uncontrolled losses

– Dedicated distributed scraping system removes ~2% (halo)

Measured beam emittances near the end of the MEBT

– 0.22/0.34 mm mrad (rms, n) Transverse/Longitudinal

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

10

Angle, mrad Position, mm

erms,n = 0.22 mm mrad

Vertical phase- space with Allison scanner (5 mA, 10 ms pulse) Bunch length vs. bunching cavity #2 voltage (5 mA, 10 ms pulse) and ‘fit’ with Tracewin

4

50-----------------------------~

~400 (.) lL lL

:.

j350

.c

"'

300 a: + FFC Data

Tracewin («,=O, P

,=1.2 mm/mrad, c,=0.34 mm-mrad)

I

2~ ---=

35

':---4

""'

-""'

4

"=5---=

50

=---s,f,.s,---- ---==------,

1

cf:

---=

1

=-

s ----=

so

B2 Field (kV)

0Fermilab

SLIDE 11

Chopping system concept

2 identical kickers in sync and a beam absorber

– Two broadband travelling-wave kickers separate bunches by 6s – Absorber is rated for 21 kW (i.e. full max. beam power)

Beam comes at 29 mrad to decrease power density to <17 W/mm2

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

11

3σ envelopes of the transmitted (a) and chopped-out (b) bunches simulated with TraceWin.

20 15

to

E5

5 0 +-iff-+ttllt--

ttt-

...JW

>- -5

10
15

0Fermilab

20 --+-..u.J--...................
1---.........
'---r-...L.J/-.W.,--..-'L....ljl.-'--,-..........

W......--'/-W.,..II...J..,~i---........... ,,_..__~.;u.swc.--..-'L-IJ/L-----.........

~~~.....,

15

10

~5

E

5 0

>- ·5

10

10

12

14

iii ii~ If I iii Dlf

15 __

......................

-....._.,......

.......

..,.....

__

.................................... 2

4

6 8

10

12

Position (m)

14

SLIDE 12

Kickers development

Two versions developed in parallel  1 of each prototype

installed at PIP2IT

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

12

“50-Ohm”

➢ 24 electrodes per plate connected in vacuum by 50 Ohm cables ➢ Driver: commercially available linear amplifier ▪ Concept tested with similar lower-power amplified

D. Sun
A. Chen

“200-Ohm”

➢ Helix as a travelling-wave structure ➢ Driver developed at Fermilab ▪ Broadband, DC-coupled switches in push-pull configuration

A. Chen
G. Saewert
G. Saewert’s poster

(WEPML021)

0Fermilab

SLIDE 13

Demonstrated arbitrary bunch structure

– Kicked bunches intercepted with a scraper → passing bunches recorded with Resistive Wall Current Monitor (RWCM)

Kickers characterization

Both kickers (50-Ohm and 200-Ohm) meet specs

– For DV = 500 V (nominal), angle of deflection at the end of either kicker is > 7 mrad (specs)

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

13

2.4 ms

Kick

Top scraper partially inserted

RWCM

200-Ohm kicker DPI

T. Hamerla
F. Frolov
G. Saewert
J. Simmons
D. Sun
G. Saewert
A. Chen
B. Chase
V. Lebedev

0.0200 0.0175 0.0150 ~0.0125 jo.0100

J

0.0075 0.0050 , - --tf-f-t-f-+HIIIHIII 0.0025 0.0000 1 800

0Fermilab

PIP2-IT MEBT Wall Current Monitor Signal 1000

SLIDE 14

Kickers characterization(cont’)

Kickers do not significantly deteriorate

the transverse emittance of the beam

Kickers were successfully operated

together in sync

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

14

5 mA beam collimated to 1.5 mA and deflected by the 200-Ohm kicker

3s vertical envelope simulated with Tracewin showing both the passing and the deflected bunches in the configuration with both kickers used in sync.

50-Ohm Kicker 200-Ohm Kicker DPI F-scraper

Angle, mrad Position, mm

40 20

e

g

>-

20
40

2

6 Position (m) Passing Beam --

Cent r oid ••••••••·

Deflected Beam - 8 10

0Fermilab

4-,

I I I 1 I I 1 I I I I I I I I

90 -89 -88 -87 -86 -85 -84 -83 -82 ·81 -80 .79 -78 -77 -76 .75

Fast acting valve Emittance scanner

/

ACCT Fast Faraday Cup

SLIDE 15

PIP2IT vs. PIP-II WFE beam parameters

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

15

At PIP2IT, the bunch pattern for bucket-to-bucket injection into the Booster was demonstrated using only 1 kicker (2 are required to achieve nominal deflection)

* Arbitrary patterns are currently limited to 0.6 ms bursts with average switching frequency of up to 45 MHz during

the burst and 20 Hz bursts repetition rate

PIP-II Beyond PIP-II (cw) PIP2IT (concurrently) PIP2IT (max) Beam energy, MeV 2.1 2.1 2.1 2.1 Bunch frequency, MHz 162.5 162.5 162.5 162.5 Peak current (RFQ exit), mA 5 5 5 10 Macro-pulse length, ms 0.55

0.55

4.8 Macro-pulse rep. rate, Hz 20

20

60 Bunch pattern Booster inj. Arb. Booster inj. Arb.* Output current (averaged over ~ms), mA 2 2 2 10 Average power, kW 0.1 10 0.1 5

,-

,

I ' I

'

.,

0Fermilab

'

., , _______________

; I I

SLIDE 16

Path to high-power operation

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

16

RFQ consolidation

– RFQ couplers were replaced with a new design where the ceramic window is sealed with Viton O-rings (instead of brazing)

Identified solutions for the

high-power absorber

Machine Protection System (MPS)

– Protection against unexpected and sudden beam loss is critical for going to higher beam power/duty factor

Compare current measurements along the beam line

– Complications:

Beam is slightly scraped off on purpose
Beam current along the beam line varies by design
S. Kazakov
O. Pronitchev

Copper nut Rotatable flange Hole for ceramic cooling air

0Fermilab

Rotatable flange

SLIDE 17

Absorber: Main challenges

Three major challenges

– Dissipate high-power beam  Shallow angle of incidence – Significant amount of beam is reflected (~20%)

Limit propagation downstream
Manage power going to the walls of the vacuum box

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

17 Simulation of secondary particles incident on the downstream wall

f the absorber box for a flat

absorber surface

Downstream wall of vacuum box (beam going into the page)

Absorber

>800 W escape

Vacuum chamber aperture

C. Baffes
J. Batko
S. Oplt

.............. ............

'
.

,

.

...

.... .

;.it..-;,

. -~ . ........

.

,. ..

I ••

•• •

......

·

. ,

•
•

............

.

.............. -----------

0Fermilab

1)

I
•

I

6g # •

1

09
•

OL

08

06

m

SLIDE 18

Absorber fabrication status

Baffling techniques have been used to limit transmission of

secondary particles downstream

Downstream wall was made with a grid pattern to localize

thermal stress and includes multiple layers

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

18

Downstream wall of vacuum box (beam going into the page)

Design complete

– Procurement has started

Absorber assembly cutout model

---------------------------0

Fermilab

SLIDE 19

Summary

PIP-II Injector Test WFE works as an integrated system and

demonstrated key technical aspects of the PIP-II WFE design, in particular for the MEBT:

– Arbitrary bunch selection pattern – Two kickers working in sync – Beam to the dump at nominal parameters (5 mA, 0.55 ms, 20 Hz) with low losses and all aperture restrictions (kickers, DPI) – Most beam parameters within specs

Most components have been tested with ~1 kW beam

– Moving forward with demonstration of ~10 kW+ operation

Machine Protection System is key

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

19

-----------------------------0

Fermilab

SLIDE 20

Plans

Prepare for a ~2-year hiatus in the operation of PIP2IT with

beam

– For cryomodules installation and testing (RF)

Then, proceed with final round of tests of the MEBT

– Production kickers & absorber

Extinction measurements

– Emphasis on vacuum management and protection of SRF from failures upstream

May 3, 2018

L. Prost et al. | PIP-II WFE Commissioning Update (THYGBF2)

20

----------------------------------- 0 Fermilab
