Physical Complexity Part A: Emergent behaviour in physical infrastructures Prof.dr.ir. M.P.C. Weijnen Professor, Faculty of TPM, TU Delft Emergent behaviour Behaviour at the macro- level emerges from the behaviour of system elements at


slide-1

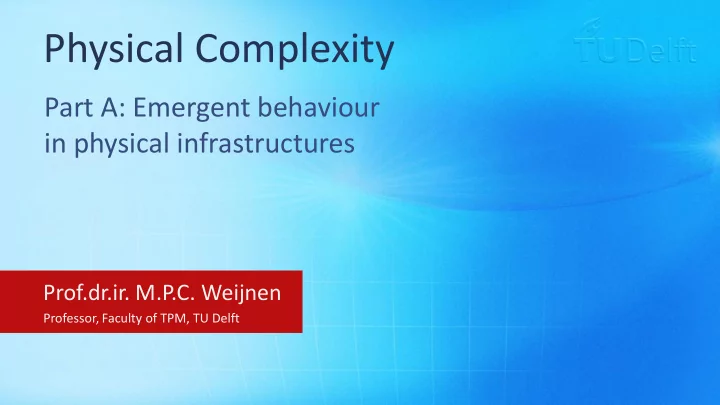

SLIDE 1

Prof.dr.ir. M.P.C. Weijnen

Professor, Faculty of TPM, TU Delft

Physical Complexity

Part A: Emergent behaviour in physical infrastructures

slide-2
SLIDE 2
  • Behaviour at the macro-

level emerges from the behaviour of system elements at the micro- level.

  • Often unpredictable

Emergent behaviour

slide-3
SLIDE 3

Behaviour = predictable Part A Part C Part D Part B Part E Behaviour = predictable Behaviour = predictable Behaviour = predictable Behaviour = predictable

slide-4
SLIDE 4

Part A Part C Part D Part B Part E Behaviour can be unpredictable! Overall system

slide-5
SLIDE 5

Part A Part C Part D Part B Part E Overall system Complexity is in the interactions

slide-6
SLIDE 6
slide-7
SLIDE 7

Emergence is everywhere

slide-8
SLIDE 8

Emergence is everywhere

slide-9
SLIDE 9

Emergence is everywhere

slide-10
SLIDE 10

Emergence is everywhere

slide-11
SLIDE 11

Emergence is everywhere

Economy Psychology Biology

slide-12
SLIDE 12

Emergence is everywhere

Chemistry Particle physics Biology

slide-13
SLIDE 13

Emergence is everywhere

slide-14
SLIDE 14
  • Are a patchwork of local,

regional and national networks

  • Were subject to national

standards

Legacy Infrastructures

slide-15
SLIDE 15
slide-16
SLIDE 16
  • Are a patchwork of old

and new technologies

Legacy infrastructures

slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
  • Yorkshire water: 40 % loss due

to leaking pipelines, 1990’s

  • Asset life cycle management

standards

Ageing infrastructures

slide-20
SLIDE 20
  • Cross-border

interconnectors

  • From back-up facility to

accommodating international electricity trading

Changing functionality

slide-21
SLIDE 21
  • The nature of electric

power generation is changing

  • More and more

electricity generated from renewable sources

Changing functionality

slide-22
SLIDE 22
  • Wind parks in the northern

part

  • Load centers in the southern

part

  • A lack of interconnection

capacity between the northern and the southern part

  • Electricity flows via

neighbouring countries

Germany

Load centers

slide-23
SLIDE 23
  • More wind power
  • More solar power
  • Higher risk of instability

Flow pattern is changing

slide-24
SLIDE 24
  • Little storage capacity
  • Hydropower reservoirs

Electricity infrastructures

slide-25
SLIDE 25
  • Little storage capacity
  • Hydropower reservoirs

Electricity infrastructures

slide-26
SLIDE 26
  • High velocity of

electricity flows

  • Balancing of supply and

demand in real time

Electricity infrastructures

slide-27
SLIDE 27

Balancing supply and demand

Supply Demand

slide-28
SLIDE 28

Balancing supply and demand

More challenging!

slide-29
SLIDE 29

Thank you for your attention!

Please post any questions you may have on

  • ur discussion forum.
slide-30
SLIDE 30

Prof.dr.ir. M.P.C. Weijnen

Professor, Faculty of TPM, TU Delft

Physical Complexity

Part B: Drivers of infrastructure development

slide-31
SLIDE 31
  • Small system: possible to

predict

  • Tendency to grow

because of:

  • Economies of scale
  • Network externalities
  • Large system: almost

impossible to predict behaviour

Predictability

slide-32
SLIDE 32
  • Decreasing cost per unit
  • f output with

increasing scale

Economies of scale

slide-33
SLIDE 33
  • The more users, the

more value for each user

Network externalities

slide-34
SLIDE 34
  • Infrastructures have a

tendency to grow into huge systems

  • Subsystem failure may cause
  • verall system failure
  • Interdependencies can have

various forms, e.g.:

  • Linear
  • Non-synchronous

Interdependencies

slide-35
SLIDE 35
  • More subsystems
  • More (diverse)

interrelationships

  • More feedback loops
  • Difficult to recognize

and model

Interdependencies

slide-36
SLIDE 36
  • Patterns in aggregated

behaviour of infra- systems

  • Recognizing patterns is

crucial for operators

  • Operators use models to

predict the implications

  • f their actions

Patterns of emergent behaviour

slide-37
SLIDE 37
  • Infrastructures: capital

intensive Huge sunk costs (costs that cannot be recovered)

Path dependency

slide-38
SLIDE 38
  • Netherlands: 37,350 km2
  • Hundreds of thousands km
  • f cables and pipelines
  • Almost 10,000 km of
  • verhead lines
  • High sunk costs  path

dependency

Sunk costs in networks

slide-39
SLIDE 39
  • Can be adopted if

competitive

  • For example: Mobile

telephony:

  • Relatively small network

investments

  • Flexibility
  • New services

New technologies

slide-40
SLIDE 40

Mobile telephony in emerging countries

slide-41
SLIDE 41
  • Interacting elements
  • Agent = decision making

entity

Concept of agents

Rules … … …

slide-42
SLIDE 42
  • Not only physical network
  • An infrastructure includes:
  • Transport and distribution

network

  • Carriers
  • Conversion and storage

facilities

  • Governance, management and

control systems

  • Actors are part of system 

Social complexity

Definition of infrastructure

slide-43
SLIDE 43

Thank you for your attention!

Please post any questions you may have on

  • ur discussion forum.
slide-44
SLIDE 44
