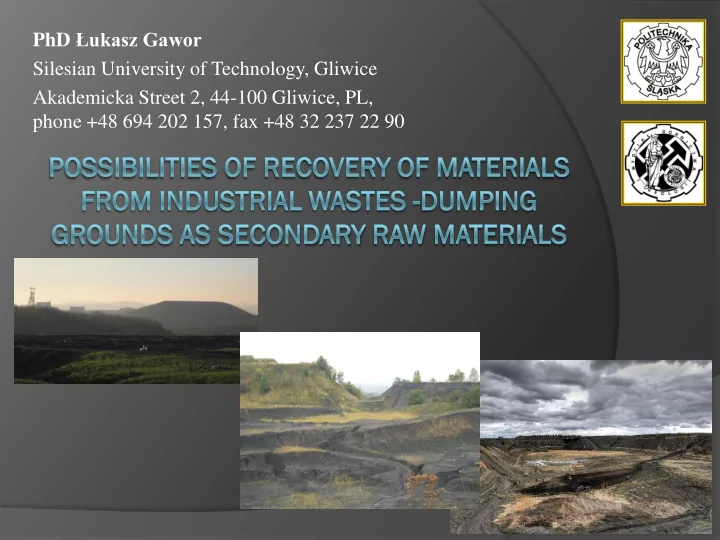

SLIDE 1
PhD Łukasz Gawor Silesian University of Technology, Gliwice Akademicka Street 2, 44-100 Gliwice, PL, phone +48 694 202 157, fax +48 32 237 22 90
SLIDE 2 In Polish coal industry the post-mining waste dumps are
stored at the area of over 4000 ha in more than 250
- bjects. The Central Statistic Office of Poland reports that
- n the coal mining waste dumps there are disposed 762,8
millions Mg of wastes from hard coal mining, what represents 51% of all stored industrial wastes in Poland. According to various sources, it is estimated that for each 1 Mg of coal produced, there is 0,4 – 0,5 Mg of waste
- material. This material has to be deposited in the coal
mining dumps.
Introduction
SLIDE 3
The production of hard coal in Poland in 2012 counted 79,2 million Mg. This allows to estimate that approximately 31,68 – 39,6 million Mg of waste material was produced in the year as well. In the past, due to the poor coal preparation technology the majority of this waste material was stored in coal mining waste dumps
SLIDE 4
Upper Silesian Coal Basin (USCB)
USCB is situated in south-western part of Poland and covers in Polish part ca. 6100 km².
SLIDE 5 Balance of coal production and coal mining wastes
1 Mg of coal ca. 0,4 Mg of coal wastes
Production of coal and coal wastes Waste management
SLIDE 6 Characteristics of mining wastes
Waste rock [%]
Siltstones
40 – 98
Mudstones
2 – 40
Coal shales
2 – 25
Sandstones
0 – 33
Coal
3 – 10
Petrographic composition of coal wastes in Upper Silesia
SLIDE 7
Coal mining waste dumps in USCB
According to the literature study in the Upper Silesian Coal Basin there are ca. 220 coal-mining waste dumps, covering over 4000 ha. The highest concentration of the dumps occurs in the central part of USCB e.g. in Zabrze (34 dumps), Jaworzno (26) Bytom (21 dumps), Ruda Śląska (12 dumps) and as well as in the south-western part of USCB e.g. Rybnik (13 dumps) and Jastrzebie- Zdroj and surroundings (9 dumps). The largest dumps cover the area of over 250 ha (e.g. Central Coal Mining Dumps in Knurów).
SLIDE 8 Coal mining waste dumps in USCB
Upper Silesian Coal Basin
Over 220 coal mining waste dumps (self study). There is stored over 700 mln Mg
Surface: over 4000 ha.
Polish Geological Institute, 2001, changed
SLIDE 9 Map of coal mining waste dumps in Polish and Czech part
- f USCB – over 250 objects (after Probierz, Marcisz,
Sobolewski, 2013)
10 10 20 20 30 30 40 40 50 50km
PL PL SK SK
Bo Bohumin Os Ostr trava Tŕinec Rožnov p. R. Příbor Frenśtát p. R. Frýdek-Mistek Karviná Cie ieszyn Skoczów Bielsko-Biała Czech chowic ice-Dzie iedzice ice Ps Pszcz czyna Jastrzębie Zdrój Wodzisław Śląski Pszów Ry Rybnik ik Żory Ty Tychy Knurów Gl Gliw iwice ice Za Zabrz rze Chorzów By Bytom So Sosnowie wiec Ka Kato towice wice Mysłowice To Toszek Łaziska Górne Dąbrowa Górnicza Tarnowskie Góry Sie Siewie ierz rz Ol Olkusz Jaworzn worzno Trz Trzebin inia ia Krz Krzeszowice wice Chrzanów Libiąż Oświęcim Za Zator Kraków Myślenice Wa Wadowice ice Andrychów
N
CZ CZ
Novy Jičin Mikołów
4 3 5 1 2
Heřmanice Ema ma Lihovarská Hrabůvka Přívozská na Os Ostr travici ici Šverma
SLIDE 10 Zabrze 34 Jaworzno 26 Bytom 21 wodzisławski 19 Katowice 14 Rybnik 13 Ruda Śląska 12 będziński 11 Chorzów 7 Piekary 7 Sosnowiec 7
6 gliwicki 5 Jastrzębie 4 Mysłowice 4 bielski 3 mikołowski 3 pszczyński 3 bieruńsko-lędziński 3 Gliwice 3 Siemianowice 3 Świętochłowice 3 Dąbrowa Górnicza 2 chrzanowski 2 cieszyński 1 rybnicki 1 tarnogórski 1 Tychy 1
Districts:
Źródło: Opracowanie własne.
Coal mining waste dumps according to districts
10km
SLIDE 11 Coal mining waste dumps in LSCB
According to the literature study in the Lower Silesian Coal Basin there are 39 coal-mining waste dumps. The majority of the dumps (23) has volume of dozen – several thousands of m3. Total surface of coal mining waste dumps covers ca. 305 ha, the volume reaches 65 millions m3. The height
- f waste dumps changes in the range of 3 do 105 m.
The largest waste dump in Wałbrzych area reaches 50 ha.
SLIDE 12
Coal mining waste dumps in LSCB
Coal mining waste dumps in Wałbrzych region. Legend: 1 – buildings, 2 – railway, 3- tunnels, 4 – roads, 5 – waste dumps, KW- Kotlina Wałbrzyska, OL-Obniżenie Leska [according to J. Wójcik].
SLIDE 13
Coal mining waste dumps in LSCB – objects with volume larger than 1 mln m3
SLIDE 14
Examples of coal mining waste dumps in LSCB
