PhD Thesis Research FE 2 approach for the modelling of coupled hydro-mechanical behaviour of partially saturated coalbeds Franois B ERTRAND Supervised by: Frdric C OLLIN University of Lige November 2015 Introduction Coalbed methane

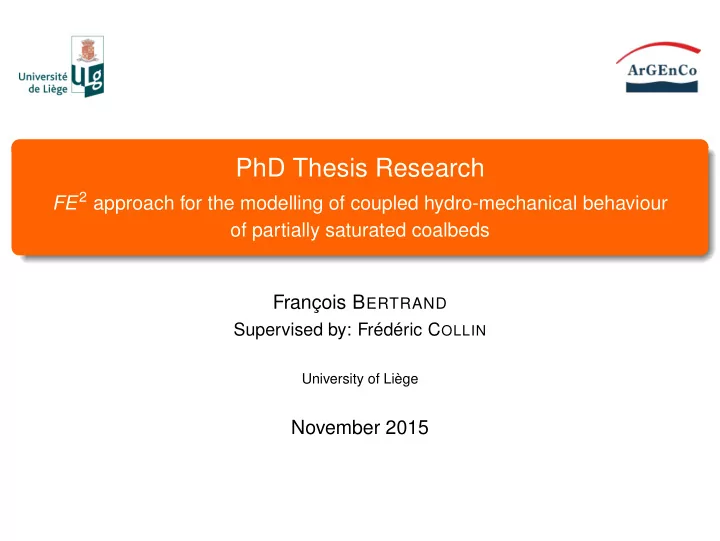

  1. PhD Thesis Research FE 2 approach for the modelling of coupled hydro-mechanical behaviour of partially saturated coalbeds François B ERTRAND Supervised by: Frédéric C OLLIN University of Liège November 2015

  2. Introduction Coalbed methane NORTH SEA THE NETHERLANDS Antwerpen 6 to 9 billions tons of coal 51°N Hasselt in the walloon basement Brussels BELGIUM GERMANY Liege Mons Namur 100 to 300 billions m 3 of methane N FRANCE ? ? 50 km LUX. 50°N 3°E 4°E 5°E 6°E 10 to 20 billions m 3 of recoverable methane? Figure: Map of the outcropping or shallow subsurface coal basins (shaded area) in and around Belgium. Modified after [Piessens and Dusar, 2006]. 3 to 10 years of gas consumption in Belgium François B ERTRAND (University of Liège) PhD Thesis Research November 2015 1 / 12

  3. Introduction Coalbed methane Coalbed methane (CBM) = unconventional resource Source rock (= coalbeds) is also the reservoir for the methane Conventional reservoir Coalbed methane Seal Reservoir Source Coal Promising alternative to conventional gas François B ERTRAND (University of Liège) PhD Thesis Research November 2015 2 / 12

  4. Introduction Coal properties Coalbeds = dual porosity systems Micropores + Macropores Matrix + Cleats ⇐ ⇒ Figure: From Schlumberger Oilfield Glossary Figure: From Schlumberger Oilfield Glossary François B ERTRAND (University of Liège) PhD Thesis Research November 2015 3 / 12

  5. Introduction Coal properties Coalbeds = dual porosity systems Micropores + Macropores Matrix + Cleats ⇐ ⇒ Figure: From Schlumberger Oilfield Glossary Cleat permeability is directly dependent on the width of the cleats . François B ERTRAND (University of Liège) PhD Thesis Research November 2015 3 / 12

  6. Introduction Challenge "The influence of geomechanical processes is an important issue for coalbed methane recovery and ignoring geomechanical processes may lead to errors in the evaluation of coalbed methane production." [Gu et al., 2005] But Coupled hydro-mechanical behaviour of coalbeds = complex + still defeats a comprehensive description François B ERTRAND (University of Liège) PhD Thesis Research November 2015 4 / 12

  7. Introduction Challenge "The influence of geomechanical processes is an important issue for coalbed methane recovery and ignoring geomechanical processes may lead to errors in the evaluation of coalbed methane production." [Gu et al., 2005] But Coupled hydro-mechanical behaviour of coalbeds = complex + still defeats a comprehensive description Current models Phenomenological constitutive models Laws at macroscale for microscopic phenomena Macroscale FE computation François B ERTRAND (University of Liège) PhD Thesis Research November 2015 4 / 12

  8. Introduction Challenge "The influence of geomechanical processes is an important issue for coalbed methane recovery and ignoring geomechanical processes may lead to errors in the evaluation of coalbed methane production." [Gu et al., 2005] But Coupled hydro-mechanical behaviour of coalbeds = complex + still defeats a comprehensive description Current models FE² method Modelling at lower scale Microscale Phenomenological constitutive models FE computation Laws at macroscale for microscopic phenomena Homogenization Macroscale FE computation Apply a multi-scale method taking advantage of the periodical structure of coal . François B ERTRAND (University of Liège) PhD Thesis Research November 2015 4 / 12

  9. Contents 1 Introduction 2 Overview of the thesis Work environment Workpackage 1: Development of a multiphase flow model Workpackage 2: Development of a mechanical model Workpackage 3: Coupled hydro-mechanical model Workpackage 4: Reservoir modelling Work plan 3 Conclusion François B ERTRAND (University of Liège) PhD Thesis Research November 2015 5 / 12

  10. Work environment Université de Liège Geomechanics and Engineering research unit Thesis supervised by F. Collin Université Joseph Fourier University of Newcastle (France, Grenoble) (Australia) Expertise in computational geomechanics (FE code Lagamine) Laboratoire 3S-R Team Pr O. Buzzi Thesis on FE² Expertise on coal by B. Van den Eijnden François B ERTRAND (University of Liège) PhD Thesis Research November 2015 6 / 12

  11. Workpackage 1: Multiphase flow model FE 2 method : REV Constitutive equations (flow law, storage law) are applied only on the Microscale microscopic scale . FE computation Task 1.1: Extension of the FE 2 method to unsaturated conditions . Task 1.2: Extension to multiphase flow conditions (liquid and gas). Task 1.3: The developed model is faced and compared with others models found in the literature: [Pan and Connell, 2012], [Shi et al., 2014]. François B ERTRAND (University of Liège) PhD Thesis Research November 2015 7 / 12

  12. Workpackage 2: Development of a mechanical model The mechanical behaviour of the coalbed results from the geometry and the properties of the components. Triaxial experimental results ⇔ REV responses Task 2.1: Evaluate numerically the influence of the cleat density in the REV on the macroscopic behaviour of the material. Task 2.2: Identification of the material parameters through a back-analysis of some experimental results. François B ERTRAND (University of Liège) PhD Thesis Research November 2015 8 / 12

  13. Workpackage 3: Coupled hydro-mechanical model Task 3.1: Experimental campaign Hydro-mechanical tests on an Australian coal : Shrinkage/swelling properties and permeability measurements Task 3.2: Coupled model implemented in the FE code LAGAMINE. Macroscale REV Microscale FE computation François B ERTRAND (University of Liège) PhD Thesis Research November 2015 9 / 12

  14. Workpackage 4: Reservoir modelling A synthetic reservoir model with one production well is simulated from the drilling of the well to the production period. The necessity or not of stimulation techniques is evaluated. François B ERTRAND (University of Liège) PhD Thesis Research November 2015 10 / 12

  15. Work plan ) ( 1st year 2nd year ( ) 3rd year 4th year : Multiphase flow model : Mechanical model : HM couplings : Reservoir modelling : Literature review : Paper writing : Thesis writing : Grenoble stay : Newcastle stay François B ERTRAND (University of Liège) PhD Thesis Research November 2015 11 / 12

  16. Conclusion High potential for coalbed methane in Wallonia Challenge = better understand methane migration to optimize recovery. Development of a coupled hydro-mechanical model for coalbed methane reservoirs in the framework of the finite element square method ( FE 2 ). François B ERTRAND (University of Liège) PhD Thesis Research November 2015 12 / 12

  17. Thank you for your attention! FE 2 approach for the modelling of coupled hydro-mechanical behaviour of partially saturated coalbeds Efficiency of shaft sealing for CO 2 sequestration in coal mines, Related work: Presentation at the Workshop on Geomechanics & Energy EU 2015 (held from 13-10-2015 to 15-10-2015 in Celle, Germany).

  18. References Gu, F., Chalaturnyk, J., et al. (2005). Analysis of coalbed methane production by reservoir and geomechanical coupling simulation. Journal of Canadian Petroleum Technology , 44(10). Pan, Z. and Connell, L. D. (2012). Modelling permeability for coal reservoirs: a review of analytical models and testing data. International Journal of Coal Geology , 92:1–44. Piessens, K. and Dusar, M. (2006). Feasibility of CO 2 sequestration in abandoned coal mines in belgium. Geologica Belgica . Shi, J.-Q., Pan, Z., and Durucan, S. (2014). Analytical models for coal permeability changes during coalbed methane recovery: Model comparison and performance evaluation. International Journal of Coal Geology , 136:17–24.

  19. SWOT Analysis Positive Negative Strengths Weaknesses - Experiments on coal required - Personal profile Internal to identify model parameters - Work environment - Strong modelling basis - Clear objectives S W O T External - Innovative approach to model - Unfavorable political decision coal behaviour about CBM ? - Industrial interest - No CBM production expertise - High CBM potential in Wallonia in Wallonia Opportunities Threats

  20. Coalification t t n n Gas content of coals e e t t n n o o c c n r e o b t a r W a C Modified after Kentucky Geological Survey (University of Kentucky)

  21. Global overview Shale gas Tight gas Coalbed methane CBM resources [10 12 m 3 ] CBM annual production [10 9 m 3 ] Country Russia 17.0 - 113.0 1 Canada 17.9 - 76.0 9 China 36.8 5 USA 21.5 52 Australia 8.0 - 14.0 4 From IEA (2010)

  22. Production Volume Methane Water Decline Time Dewatering Stable production From Schlumberger (2009), Coalbed Methane: Clean Energy for the World

  23. CBM versus Shale gas Conventional reservoir Coalbed methane Shale gas Tight sand gas Mines Seal R e s e r v o i r Source Coal
