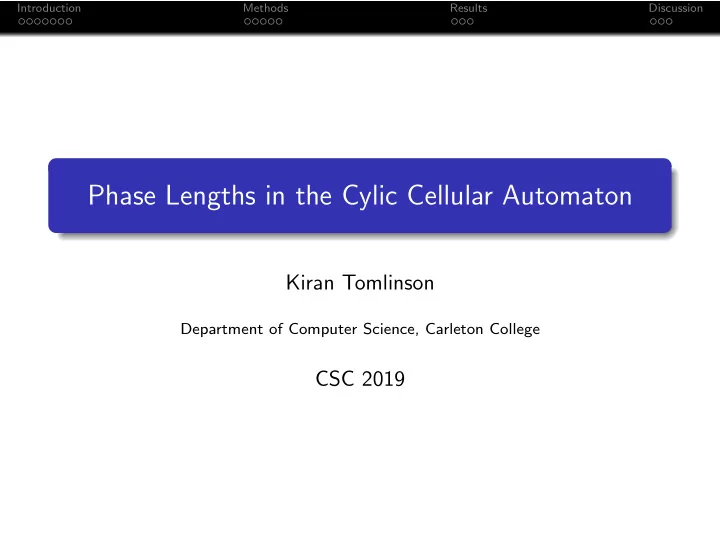

Introduction Methods Results Discussion Phase Lengths in the Cylic Cellular Automaton Kiran Tomlinson Department of Computer Science, Carleton College CSC 2019 Introduction Methods Results Discussion Outline 1 Cyclic cellular automaton

slide-1
SLIDE 1

Introduction Methods Results Discussion

Phase Lengths in the Cylic Cellular Automaton

Kiran Tomlinson

Department of Computer Science, Carleton College

CSC 2019

slide-2
SLIDE 2

Introduction Methods Results Discussion

Outline

1 Cyclic cellular automaton (CCA) 2 Phases in the CCA 3 Measuring phase lengths 4 Experimental design 5 Results

slide-3
SLIDE 3

Introduction Methods Results Discussion

Spiral Wave Excitable Media

Figure from A. T. Winfree and S. H. Strogatz, “Organiz- ing centres for three-dimensional chemical waves,” Nature,

  • vol. 311, pp. 611–615, 1984.
slide-4
SLIDE 4

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

slide-5
SLIDE 5

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

k = 9 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6

slide-6
SLIDE 6

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6

slide-7
SLIDE 7

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

t → t + 1 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6

slide-8
SLIDE 8

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

t → t + 1 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6

slide-9
SLIDE 9

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

(Fisch, Gravner, & Griffeath, 1991)

t → t + 1 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 5

slide-10
SLIDE 10

Introduction Methods Results Discussion

Cyclic Cellular Automaton (CCA)

Moore neighborhood 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 von Neumann neighborhood 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6 4 8 3 7 4 5 1 6 1 7 4 1 7 7 5 3 1 1 8 7 6

slide-11
SLIDE 11

Introduction Methods Results Discussion

Formal Definition

Notation ζt(x) ∈ {0, 1, . . . , k − 1} state of cell x at time t N(x) neighbors of cell x N +

t (x)

promoters of cell x at time t Update Rule N +

t (x) = {y ∈ N(x) | (ζt(x) + 1) mod k = ζt(y)}

ζt+1(x) =

  • (ζt(x) + 1) mod k

if |N +

t (x)| ≥ 1

ζt(x)

  • therwise
slide-12
SLIDE 12

Introduction Methods Results Discussion

CCA Phases

(Fisch, Gravner, & Griffeath, 1991)

Debris Droplet Defect Demon

slide-13
SLIDE 13

Introduction Methods Results Discussion

Prior CCA Work

1 Classifying behavior in parameter space

(Fisch, Gravner, & Griffeath, 1991), (Durrett & Griffeath, 1993), (Hawick, 2013)

2 Effects of neighborhood on spiral shape

(Reiter, 2010)

3 Quantifying self-organization

(Shalizi & Shalizi, 2003)

slide-14
SLIDE 14

Introduction Methods Results Discussion

Prior CCA Work

1 Classifying behavior in parameter space

(Fisch, Gravner, & Griffeath, 1991), (Durrett & Griffeath, 1993), (Hawick, 2013)

2 Effects of neighborhood on spiral shape

(Reiter, 2010)

3 Quantifying self-organization

(Shalizi & Shalizi, 2003)

slide-15
SLIDE 15

Introduction Methods Results Discussion

Prior CCA Work

1 Classifying behavior in parameter space

(Fisch, Gravner, & Griffeath, 1991), (Durrett & Griffeath, 1993), (Hawick, 2013)

2 Effects of neighborhood on spiral shape

(Reiter, 2010)

3 Quantifying self-organization

(Shalizi & Shalizi, 2003)

slide-16
SLIDE 16

Introduction Methods Results Discussion Figure from R. Fisch, J. Gravner, and D. Griffeath, “Cyclic cellular automata in two dimensions,” in Spatial Stochastic

  • Processes. Springer, 1991, pp. 71–185.

How does the number of cell types affect phase lengths?

slide-17
SLIDE 17

Introduction Methods Results Discussion

Identifying Phase Transitions

∆(t) =

  • x

(ζt(x) − ζt−1(x) mod k)

slide-18
SLIDE 18

Introduction Methods Results Discussion

Identifying Phase Transitions

∆(t) =

  • x

(ζt(x) − ζt−1(x) mod k) = ⇒ transitions at local extrema of ∆′′(t)

slide-19
SLIDE 19

Introduction Methods Results Discussion

Noise Amplification

100 200 300 400 500 15000 30000 45000 60000

(t)

100 200 300 400 500

Step (t)

  • 100
  • 50

50 100

′′(t)

∆(t) curve (k = 13, von Neumann neighborhood)

slide-20
SLIDE 20

Introduction Methods Results Discussion

Savitzky-Golay Differentiation

(Savitzky & Golay, 1964) 1 Pick window width around point 2 Fit low-degree polynomial to data in window 3 Take derivative of fitted polynomial at point

slide-21
SLIDE 21

Introduction Methods Results Discussion

Savitzky-Golay Differentiation

(Savitzky & Golay, 1964) 1 Pick window width around point 2 Fit low-degree polynomial to data in window 3 Take derivative of fitted polynomial at point

slide-22
SLIDE 22

Introduction Methods Results Discussion

Savitzky-Golay Differentiation

(Savitzky & Golay, 1964) 1 Pick window width around point 2 Fit low-degree polynomial to data in window 3 Take derivative of fitted polynomial at point

slide-23
SLIDE 23

Introduction Methods Results Discussion

Identifying Phase Transitions

100 200 300 400 500 15000 30000 45000 60000

(t)

100 200 300 400 500

Step (t)

  • 100
  • 50

50 100

′′(t)

∆(t) curve (k = 13, von Neumann neighborhood)

slide-24
SLIDE 24

Introduction Methods Results Discussion

Identifying Phase Transitions

100 200 300 400 500 15000 30000 45000 60000

(t)

100 200 300 400 500

Step (t)

  • 100
  • 50

50 100

′′(t)

∆(t) curve (k = 13, von Neumann neighborhood)

slide-25
SLIDE 25

Introduction Methods Results Discussion

Simulation Procedure

1024 trials of 500 steps for each setting 3 grid sizes 2 neighborhoods k between 7 and 20

slide-26
SLIDE 26

Introduction Methods Results Discussion

Simulation Procedure

256

512

1024

1024 trials of 500 steps for each setting 3 grid sizes 2 neighborhoods k between 7 and 20

slide-27
SLIDE 27

Introduction Methods Results Discussion

Simulation Procedure

256

512

1024

Moore von Neumann 1024 trials of 500 steps for each setting 3 grid sizes 2 neighborhoods k between 7 and 20

slide-28
SLIDE 28

Introduction Methods Results Discussion

Simulation Procedure

256

512

1024

Moore von Neumann 1024 trials of 500 steps for each setting 3 grid sizes 2 neighborhoods k between 7 and 20

slide-29
SLIDE 29

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials

slide-30
SLIDE 30

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials

slide-31
SLIDE 31

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials

slide-32
SLIDE 32

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials 2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

slide-33
SLIDE 33

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials 2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

log L = a + b log k L = akb

slide-34
SLIDE 34

Introduction Methods Results Discussion

Phase Length Dependence on k

For each parameter setting:

1 Compute phase lengths in each trial 2 Average over trials 2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

log L = a + b log k L = akb

slide-35
SLIDE 35

Introduction Methods Results Discussion

Power Law Exponents and Coefficients

slide-36
SLIDE 36

Introduction Methods Results Discussion

Uncertainty Estimation

Random variance?

slide-37
SLIDE 37

Introduction Methods Results Discussion

Uncertainty Estimation

Random variance? = ⇒ bootstrapping

slide-38
SLIDE 38

Introduction Methods Results Discussion

Uncertainty Estimation

Random variance? = ⇒ bootstrapping Bias from Savitzky-Golay window widths?

slide-39
SLIDE 39

Introduction Methods Results Discussion

Uncertainty Estimation

Random variance? = ⇒ bootstrapping Bias from Savitzky-Golay window widths? = ⇒ perturb widths

slide-40
SLIDE 40

Introduction Methods Results Discussion

Uncertainty Estimation

Random variance? = ⇒ bootstrapping Bias from Savitzky-Golay window widths? = ⇒ perturb widths Conservative estimate: add confidence intervals

slide-41
SLIDE 41

Introduction Methods Results Discussion

Different Phase Length Sensitivities

Moore N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.34 ± 0.03 Defect 2.81 ± 0.06 von Neumann N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.81 ± 0.07 Defect 3.15 ± 0.06

slide-42
SLIDE 42

Introduction Methods Results Discussion

Different Phase Length Sensitivities

Moore N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.34 ± 0.03 Defect 2.81 ± 0.06 von Neumann N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.81 ± 0.07 Defect 3.15 ± 0.06 Smaller neighborhood = ⇒ more sensitive to k?

slide-43
SLIDE 43

Introduction Methods Results Discussion

Different Phase Length Sensitivities

Moore N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.34 ± 0.03 Defect 2.81 ± 0.06 von Neumann N Phase Exponent Debris 2.56 ± 0.01 Droplet 4.81 ± 0.07 Defect 3.15 ± 0.06 Smaller neighborhood = ⇒ more sensitive to k? Droplet phase most sensitive

slide-44
SLIDE 44

Introduction Methods Results Discussion

Other Methods for Finding Transitions

1 2 3 4 3 4 5 6 5 4 5 6 7 7 8

Identify defects directly?

slide-45
SLIDE 45

Introduction Methods Results Discussion

Conclusions

2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

1 CCA phase lengths depend on k via simple power laws 2 Independent of grid size 3 Exponent indicates sensitivity of phase to k

slide-46
SLIDE 46

Introduction Methods Results Discussion

Conclusions

2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

1 CCA phase lengths depend on k via simple power laws 2 Independent of grid size 3 Exponent indicates sensitivity of phase to k

slide-47
SLIDE 47

Introduction Methods Results Discussion

Conclusions

2.0 2.2 2.4 2.6 log k 1 2 3 4 5 log Phase Length

Debris

Grid size 256x256 512x512 1024x1024 2.0 2.2 2.4 2.6 log k

Droplet

2.0 2.2 2.4 2.6 log k

Defect

1 CCA phase lengths depend on k via simple power laws 2 Independent of grid size 3 Exponent indicates sensitivity of phase to k

slide-48
SLIDE 48

Introduction Methods Results Discussion

Acknowledgments

Travel and conference funding from Carleton College Thanks to Frank McNally for feedback
