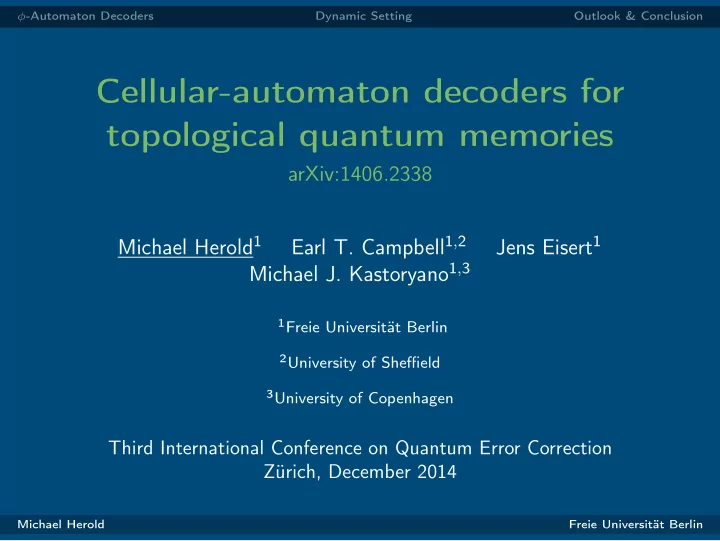

Cellular-automaton decoders for topological quantum memories

arXiv:1406.2338 Michael Herold1 Earl T. Campbell1,2 Jens Eisert1 Michael J. Kastoryano1,3

1Freie Universität Berlin 2University of Sheffield 3University of Copenhagen

Third International Conference on Quantum Error Correction Zürich, December 2014

Michael Herold Freie Universität Berlin

φ-Automaton Decoders Dynamic Setting Outlook & Conclusion

Outline

◮ φ-Automaton Decoders

2D∗-decoder 3D-decoder

◮ Dynamic Setting ◮ Outlook & Conclusion
