/ ALBERTA TRANSPORTATION LANDSLIDE RISK ASSESSMENT SECTION A: GEOTECHNICAL FILE REVIEW NORTH CENTRAL REGION (ATHABASCA AREA) SITE NC17A (BACKSLOPE FAILURE OF HIGHWAY TWINNING) HIGHWAY CONTROL SECTION Hwy 63:12, km 2 to km 10 NEAREST LANDMARK:


slide-1
SLIDE 1

/

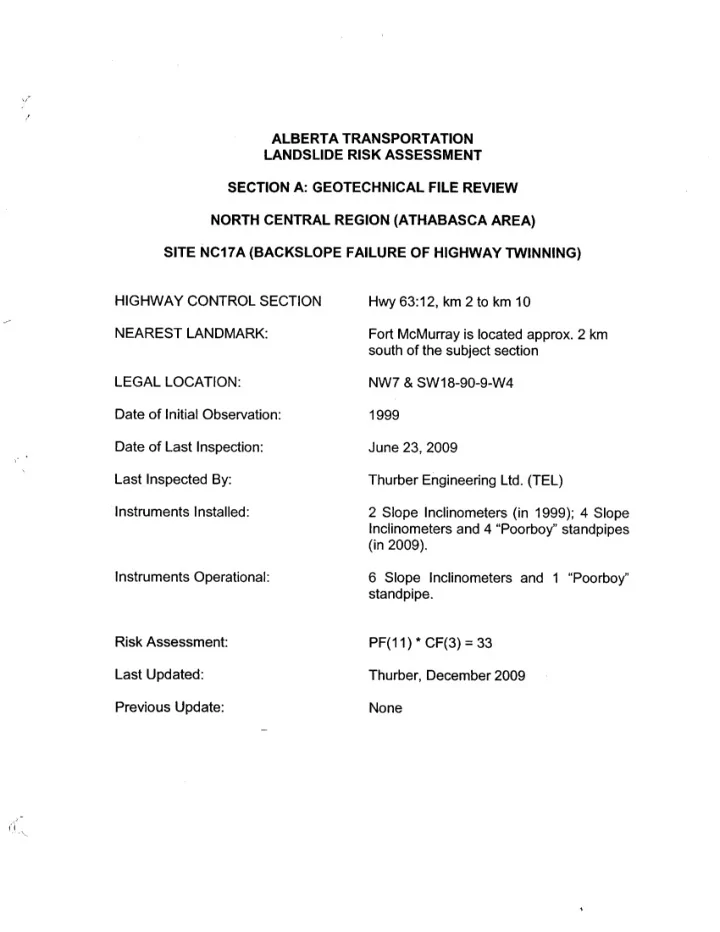

ALBERTA TRANSPORTATION LANDSLIDE RISK ASSESSMENT SECTION A: GEOTECHNICAL FILE REVIEW NORTH CENTRAL REGION (ATHABASCA AREA) SITE NC17A (BACKSLOPE FAILURE OF HIGHWAY TWINNING) HIGHWAY CONTROL SECTION NEAREST LANDMARK: LEGAL LOCATION: Date of Initial Observation: Date of Last Inspection: Last Inspected By: Instruments Installed: Instruments Operational: Risk Assessment: Last Updated: Previous Update: Hwy 63:12, km 2 to km 10 Fort McMurray is located approx. 2 km south of the subject section NW7 & SW18-90-9-W4 1999 June 23, 2009 Thurber Engineering Ltd. (TEL) 2 Slope Inclinometers (in 1999); 4 Slope Inclinometers and 4 "Poorboy" standpipes (in 2009). 6 Slope Inclinometers and 1 UPoorboy" standpipe. PF(11) * CF(3) = 33 Thurber, December 2009 None

slide-2
SLIDE 2

1. LOCATION The site consists of the SBL and backslope of Hwy 63:12 extending between km 2 and km 10, north of Fort McMurray. 2 . BACKGROUND AND GENERAL DESCRIPTION OF SLOPE INSTABILITIES Highway 63:12 extends in a north-south direction on a river terrace along the toe

  • f the west valley slope of the Athabasca River valley. The valley slope above the

highway is approximately 50 m deep along this section. Construction for twinning the highway was undertaken in 1999 to construct the new SBL along the west side of the existing highway. Highway twinning was constrained by the presence of a 760 mm diameter high pressure oil pipeline operated by Enbridge, which was located along the east side

  • f the existing highway along the south portion of the study area, crossing over to

the west side north of about km 3. 7, where the pipeline was located within the lower reaches of the valley slope, above the proposed location of the SBL. Weak marginally stable clay colluvium was present draped over the lower portion

  • f the valley slope in the vicinity of the planned twinning. North of km 3.7,-where

the pipeline was located west of the highway, the general design philosophy adopted was to locate the SBL at a higher level than the NBL to maintain backslope cuts to a maximum of about 2.5 m to reduce the risk of a possible slope failure occurring in the colluvium that could damage the pipeline. Slope inclinometers were installed at select locations between the highway backslope and the pipeline along this section to warn of potential slope movements that might affect the pipeline.· A 12 to 13 m high backslope cut centered at km 2.4 and km 2.7 could not be avoided along a section where the pipeline was located on the east side of the

  • highway. At these locations the main/lower backslope was cut at 3H:1V with 3 m

wide benches located at 6 m height intervals. The area at the top of the colluvium deposit, behind the lower backslope, was offloaded as borrow material to a create a wide upper bench extending to a depth where a global factor of safety of about 1.1 was achieved for a potential· slip surface through the lower backslope. The west side of the offloaded area (upper backslope) was inclined at 5.5H:1V.

Client: File: e-file: Alberta Transportation 15-16-216 08\16-216 let PH 17 A Section A D a t e : D e c e m b e r 10, 2 9 Page 2 of6

slide-3
SLIDE 3

Following slope offioading, some small movement was observed at the base of the colluvium layer in Slope Inclinometer Sl99-2, but the creep rate diminished with

  • time. As a whole, the slope offloading approach was successful, however some

localized slope failures developed in the colluvium since construction. Two slumps

  • ccurred (about 50 m wide and 30 m wide centered at km 2.67 and km 2.74,

respectively) in the upper 5.5H:1V backslope of the offloaded area in November, 1999 along pre-sheared surfaces in the colluvium. Remedial measures were carried out in the spring of 2000 (see Dec. 2, 1999 reference in Section 4 - Chronology), consisting of installing French drains perpendicular to the backslope through the slumps, tied into a 1 00 mm diameter "Big 0" subdrain located 4 m deep parallel to the highway along the toe of the backslope, with a higher center and outlets at both the north and south ends of the backslope. The filter zone of the subdrain trench was protected with non-woven geotextile along the upsiope side and top, and geomembrane along the bottom and downslope side. The slump surfaces were also re-graded, and the cracks sealed. The remedial measures appeared to perform satisfactorily initially, however the slumps re-appeared along the same limits later in the year. A 60 m wide slump occurred near the lower backslope in June 2000, at a location 34 m south of Sl99-2. The toe roll of the slump was present in the west highway

  • ditch. A fax (see June 27, 2000 reference in Section 4- Chronology) provided

analyses and alternate recommendations. The analyses indicated that offloading

  • f the top of the slump area would locally improve the stability of the slump area,

but might reduce the global stability through the colluvium deposit. Other options considered were placing a culvert in the highway ditch to allow a shallow toe berm to be constructed versus sub-excavation of the slump and reconstructing the slope using re-compacted clay or gravel, or clay placed overtop a gravel drainage layer. Since the slump was not affecting the highway, a decision was made to only carry

  • ut some minor re-grading to seal the scarp cracks and to continue to monitor the

condition. From 2001 to 2004, additional slight movements and retrogression were observed at the above slump locations. Since 2004, the lower highway backslope slump has steadily continued to grow in size while the North and South slumps in the upper

  • ffloaded area have also indicated some additional movements in the form of

more pronounced toe rolls, backscarp retrogression, ponded water, and fallen

  • trees. Slope inclinometer Sl99-1 in the offloaded backslope area between the

north and south slumps has only indicated negligible movement, except that in 2008 new movement appeared within the upper 6 m due to progressive slide

  • retrogression. Sl99-2 at the crest of the highway backslope about 34 m north of

the local slump showed that the deep colluvium layer had experienced global movement at a depth of 21 m along the limestone contact at a relatively steady rate of about 2 to 3 mm/year since construction in 1999, highlighting the marginal global stability of the colluvium deposit.

Client: File: e-file: Alberta Transportation 15-16-216 08\16-2161et PH 17A Section A Date: December 10, 2009 Page 3 of6

slide-4
SLIDE 4

I n 2006, another slide area began developing in the lower backslope at km 2.4

  • ver a distance of about 165 m, and the toe of the slide started to heave the SBL

and west highway shoulder and ditch. The asphalt had to be patched in 2007 and 2008 to smooth out the highway, along with minor re-grading to remove the humps in the west sideslope/ditch. 3 . GEOLOGICAUGEOTECHNICAL CONDITIONS The 1999 test holes and cross-sections for the highway twinning (see 4. Chronology/References) indicate that the soil stratigraphy at this site consists of clay surficial soils, overlying Clearwater Shale, overlying Wabiscaw Sandstone,

  • verlying McMurray Oilsand, overlying Limestone, with a colluvium deposit

(predominantly high plastic clay) overlying the eroded bedrock in the lower reaches of the valley. The highway location at this site is located within the colluvium, which was up to 21 m deep. The available map references indicated the following:

  • Physiographic Region- McMurray Lowland.
  • Bedrock Geology- Consists of Lower Cretaceous age deposits, (McMurray

Formation - thick bedded quartzose ·sandstone and siltstone, oil impregnated grey silty shale interbeds in upper part, non marine to deltaic);

  • r

Upper Devonian (Waterways Formation - grey and greenish grey shale and argillaceous limestone interbedded with grey to grey-brown fine- grained to course clastic limestone, marine). Bedrock elevation - 270 m. The drift thickness is less than 15m.

  • Surficial Geology -

Highway is located on a river terrace bordering a colluvium slope.

  • Hydrogeology - On border of: Unconsolidated deposits (sand/silt), and

where it is overlying Devonian Formation, with yields in the range of 0.1 to 3 litres/sec. 4. CHRONOLOGY/REFERENCES The following new or existing developments are noted: Nov., 1999 Report {#19-2363-13) prepared by Thurber Engineering Ltd. to EXH Engineering Services Ltd. dated Nov. 12, titled "Highway 63:12 Twinning, Backslope Cuts and Borrow Pits, Geotechnical Investigation". This report covers a total length of 12.7 km for the

Client: File: e-file: Alberta Transportation 15-1&216 08\1&2161et PH 17A Section A Date: December 10,2009 Page 4 of6

slide-5
SLIDE 5

proposed Highway 63 twinning, with a portion of it coinciding with Site NC17 A . At this site, four test holes (TH99-9 to 99-12), two test pits (TP99-1 and 99-2}, and two slope inclinometers (SI99-1 and 99- 2) were drilled/installed (the logs, a site plan, and a stratigraphic cross-section are attached for inclusion into Section G of the site binder, note that offsets are from centerline of the new southbound lane). Slide scarps were noted in the lower slope at about km 2. 7 prior to design. Cuts of up to 15 m in height were required during construction through the site area, and the analyses indicated that unloading of the colluvium at select locations (called Borrow Pits A (km 2.71) and 8 (km 2.41 )) and the installation of a subdrain parallel to the highway through this area were required to maintain or slightly increase the existing stability condition. Some sliding at the mouth of the gully at the edge of Borrow Pit A was noted during construction, and it was further recommended to excavate, replace with granular fill, and install some finger drains in the movement zone. Design sketches and cross-sections labeled as D-4 to D-11 are also included for insertion into Section G of the binder. 1999 Highway twinning west of the existing highway over the project limits was undertaken. The grading design was carried out by EXH Engineering Services Ltd., with Thurber retained to provide geotechnical input, and construction performed by Thompson Brothers Contracting Ltd. Dec., 1999 Letter and figures dated Dec. 2 from Don Proudfoot of Thurber to Lee Goehring of EXH (in Section G of the binder). Stability assessment and recommendation provided of increasing the subdrain installation depth to 4.0 m due to construction changes at Borrow Pit A from that assumed in original design. June, 2000 Fax with figures dated June 27 from Don Proudfoot of Thurber to Lee Goehring of EXH (in Section G of the binder). The backslope slump at km 2.

7 1 (Borrow Pit A) worsened, and instrumentation records

were reviewed, assessment performed, and alternative recommendations for repair were provided. April, 2002 E-mail message and cost estimate from Don Proudfoot of Thurbe_r to Mike Baik of TRANS (in Section G of binder). Recommendations for short term maintenance measures provided, basically consisting of trim, backfill and seal the slump cracks that had developed in the slope offloading areas (Borrow Pits A and B). Estimated cost was $5,000.

Client: File: a

  • f

i l e : Alberta Transportation 15-16-216 08\16-2161et PH 17A Section A Date: December 10, 2009 Page 5 of6

slide-6
SLIDE 6

2001-2008 Annual Geohazard Inspection reports by Thurber Eng. Ltd. - 8 reports for consecutive years, already included in the binder. Jan., 2009 Thurber installed four slope inclinometers and four ''poor boy'' inclinometers/standpipes west of the southbound highway lanes in the area of old Borrow Pits A and 8, for assessing the boundaries of the active slide that is now encroaching into the south bound lane of the highway near km 2.4. A description of the soil and groundwater conditions along with test hole logs showing installation details are included in a report forwarded to TRANS dated March 30, 2009 (the logs and a site plan are attached for insertion into Section G of the binder). Fall 2009 The fall instrumentation monitoring results for the geohazard program indicated a distinct shear plane and rapid movements in the colluvium at the slumps at K m 2.4 and 2.7. However, no movement was observed in the Sl installed in the median at km 2.4.

C l i e n t : F i l e :

a .

f i l e : A l b e r t a T r a n s p

  • r

t a t i

  • n

1 5

  • 1

6

  • 2

1 6 8 \ 1 6

  • 2

1 6 1 e t PH 1 7 A S e c t i

  • n

A D a t e : D e c e m b e r 1 , 2 9 P a g e 6

  • f6
