Petar Kesic TRAC Summer 2017 Cooling of CMS Detectors CMS C ompact M uon S olenoid A general purpose detector at the Large Hadron Collider (LHC) at CERN. One of 4 detection points around the LHC. Acts like a camera (which


slide-1
SLIDE 1

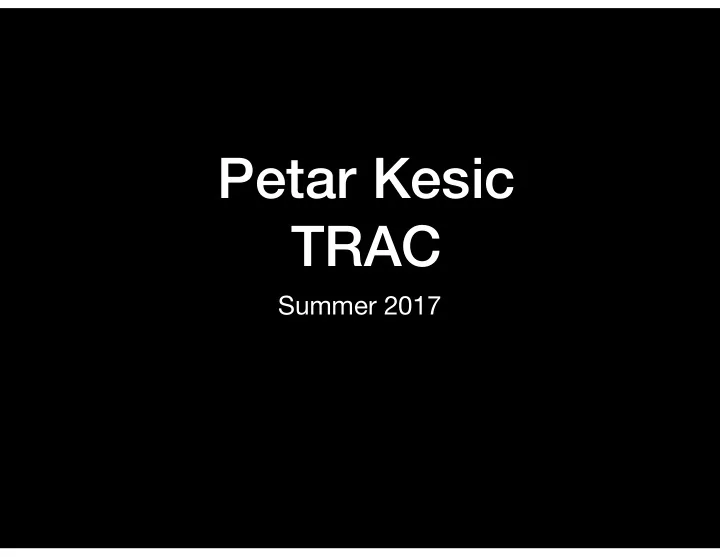

Petar Kesic
 TRAC

Summer 2017

slide-2
SLIDE 2

Cooling of CMS Detectors

slide-3
SLIDE 3

CMS

  • Compact Muon Solenoid
  • A general purpose detector at the Large Hadron

Collider (LHC) at CERN.

  • One of 4 detection points around the LHC.
  • Acts like a camera (which detects photons) taking

3D “photographs” of particle collisions and recreating images of the collisions.

slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6

Inner / Silicon / Pixel Trackers High Granularity Calorimeters

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
  • Detectors heat up because of energy released during detection and the operation of the

electronic components.

  • In order to improve operation and prevent damage, it is necessary to transfer heat away

from the components.

  • For performance and environmental reasons, CO2 has been chosen as the primary

coolant.

  • The detector components are mounted on planks with CO2 cooling tubes embedded

and then placed into the CMS.

  • It is necessary to keep the density and thickness of the planks low so that particles may

continue to detectors which are farther away.

  • This poses certain design challenges.
  • Low density and thickness usually means lower strength, so a high strength material is

needed.

  • Low density usually means poor heat transfer, so a material with exceptional heat

transfer capability was needed.

  • Carbon fiber and carbon foam were chosen as the plank material because of their

superior strength to density ratios and excellent heat transfer capabilities.

slide-10
SLIDE 10

Performance of CO2 and Carbon Fiber / Foam Planks

  • Why are we testing?
  • To assure that components are able to stay within acceptable
  • perating temperatures when
  • the system is operating under standard conditions.
  • the system is operating outside of standard operating conditions.
  • What parameters are we looking at?
  • Delta T, Delta P

, CO2 Phase Changes, Thermal Runaway, etc.

slide-11
SLIDE 11

CO2 Phase Diagram

slide-12
SLIDE 12

Different Detectors

  • Flat Barrel / PS Modules
  • 2S
  • HG Calorimeter
slide-13
SLIDE 13

Flat Barrel

slide-14
SLIDE 14

Power Calculations

slide-15
SLIDE 15
slide-16
SLIDE 16

2S

slide-17
SLIDE 17

HG Calorimeter

slide-18
SLIDE 18
  • Assisted Maral Alyari
  • Goal: Test the two phase CO2 cooling performance of FH cassette tubing with capillary at

various angles around the beam pipe.

  • Stainless steel tubes are sandwiched between 4 layers of insulation foam.
  • CO2 temperature is monitored by RTDs placed on the tubing.
  • Voltage is applied to stainless steel tubing to mimic the heat load on the tubing.
  • Tubing acts as a heater.
  • The flow is monitored by a flowmeter placed at the inlet.
  • Two pressure transmitters are placed at the inlet and the outlet.
  • Attempted to cool various heat loads with minimum possible flow and lowest possible ΔP

.

  • Data is analyzed by calibrating the RTD measurements to read the same temperature as the

return CO2 at 0 Watts.

HG Calorimeter Testing

slide-19
SLIDE 19

270 deg. 0 deg.

slide-20
SLIDE 20

Some HG Cal / CO2 Results

00000 00000

slide-21
SLIDE 21

Some HG Cal / CO2 Results

slide-22
SLIDE 22
  • Assisted Kirstyn Carlson
  • Goal: Test the water and ethylene glycol cooling performance of 2S Module.
  • Coolant is run through aluminum support structure.
  • Coolant temperature is monitored by RTDs placed at various locations on the module.
  • Voltage is applied to resistive heaters to mimic the heat load.
  • Attempted to cool various heat loads with minimum possible flow and lowest possible ΔP

.

  • Data is analyzed by calibrating the RTD measurements to read the same temperature as the

return fluid at 0 Watts.

2S Testing

slide-23
SLIDE 23

Some 2S Data / Ethylene Glycol Cooling

slide-24
SLIDE 24
  • Assisted Stefan Gruenendahl
  • Goal: Test the CO2 cooling performance of FB Modules.
  • CO2 is run through stainless steel tubing sandwiched in carbon fiber foam and sheets.
  • CO2 temperature is monitored by RTDs placed on the modules.
  • Voltage is applied to resistive heaters to mimic the heat loTubing acts as a heater.
  • The flow is monitored by a flowmeter placed at the inlet.
  • Attempted to cool various heat loads with minimum possible flow and lowest possible ΔP

.

  • Data is analyzed by calibrating the RTD measurements to read the same temperature as the

return CO2 at 0 Watts.

FB / PS Modules Testing

slide-25
SLIDE 25

FB / Modules on Plank

slide-26
SLIDE 26

Some FB / Co2 Cooling Results

slide-27
SLIDE 27

Interactions / Meetings / Workshops / Lectures

  • Interactions with Fermilab personnel.
  • Interactions with other teachers.
  • Workshops
  • Lectures
  • Tours
slide-28
SLIDE 28

Back-To-School

  • What can I take back to my students?
  • Personal growth.
  • “Real world” applications.
  • Ideas for lectures and demonstrations.
  • Inspiration to integrate particle physics into curriculum.
slide-29
SLIDE 29

Acknowledgements

  • Special thanks to:
  • Stefan Gruenendahl
  • Maral Alyari
  • Kirstyn Carlson
  • Harry Cheung
  • and many others
