Foundation Technologies Aberdeen, 12 February 2015 A supply chain perspective Eric Fin Business Development Manager eric.fine@iemco.be Smulders Group Investor & Management Eiffage Construction Mtallique Management

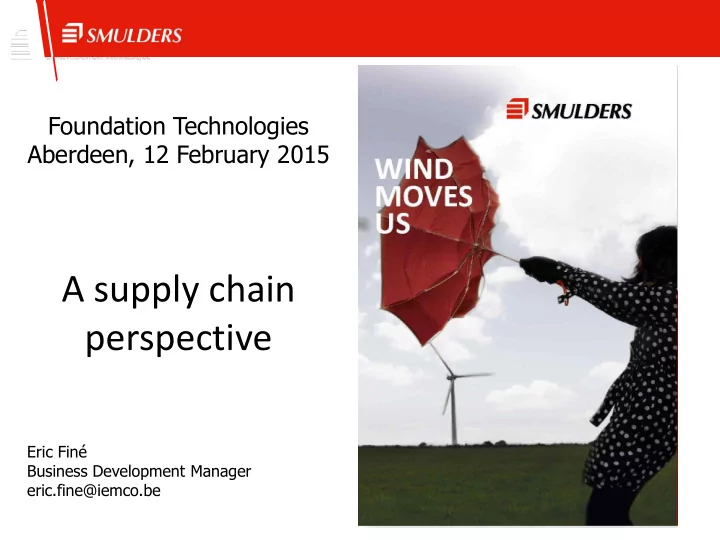

Foundation Technologies Aberdeen, 12 February 2015 A supply chain perspective Eric Finé Business Development Manager eric.fine@iemco.be
Smulders Group Investor & Management Eiffage Construction Métallique  Management  Smulders Group Market: Market: Market: Wind & Renewables Civil & Industry Offshore Oil & Gas AC / DC Substations Architectural/Bridges MFPs/Topsides TPs/Jackets/Towers Petrochemical Jackets Tidal Energy Rebuild/Renovation Spomasz Willems Smulders Projects Iemants
FABRICATION Jacket vs Monopile foundation
Fabrication The jacket is a large and The TP is a compact complex structure solution Certification JACKET AND TRANSITION PIECE
Fabrication TYPICAL DATA FOR OFFSHORE WIND PROJECT WATER DEPTH : 35 MTRS MONOPILE Area : 450 m2 Diameter : 6 mtr Volume : 2,700 m3 Length : 75 mtr TRANSITION PIECE Area : 150 m2 Diameter : 6 mtr Volume : 900 m3 Length : 25 mtr TOTAL : 600 M2 / 3,600 M³ JACKET Area : 1500 m2 Footprint : 25 mtr Volume : 37500 m3 Length : 60 mtr PILES (4 PER JACKET) Area : 210 m2 Diameter : 1,5 mtr Volume : 315 m3 Length : 35 mtr TOTAL : 1,710 M2 / 37,815 M³
Fabrication OWF THRONTON AND LINCS PROJECTS OWF THORNTON BANK SIMULTANEOUS CONSTRUCTION AT OWF LINCS HOBOKEN 1 Jacket per week 4 TP per week 16.800 m² - 588.000 m³ 12.000 m² - 204.000 m³ Height 35 mtr Height 17 mtr
Fabrication sequences Transition Piece Supply Chain
Primary Steel • Rolling • Bending • Longitudinal Welding • Circumferential Welding
Primary Steel Large size Large numbers High Output Preparation for outfitting with secondary steel Other facility
Transportation and Manipulation Transport by own tug and barge Craneage and vertical transport
Secondary Steel • Ca. 20,000 tons per year • 300,000 production hours
Secondary Steel Internal and external welding operations
Surface Treatment Surface Treatment: separate blasting and painting facilities
Assembly and Upending • Vertical assembly • Upending • Horizontal assembly
Finally • Final inspection • Temporary Storage • Load-out
Scope of Work Scope of Work Steel Material Primary steel Fabrication Primary steel Steel Material Secondary steel Fabrication Secondary steel Coating Electrical package, GRP, Temporary Cover, Bolts and Nuts etc. Anodes Fall arrest and Crane Transport PTS
Thank You THANK YOU FOR YOUR ATTENTION
