Critical Evaluation of Bus Rapid Transit System (BRTS) Corridor Performance in Delhi Dr. S. Velmurugan Principal Scientist, Traffic Engineering and Safety Division At the CSIR - Central Road Research Institute, Colloquium Study Steered by

slide-1
SLIDE 1

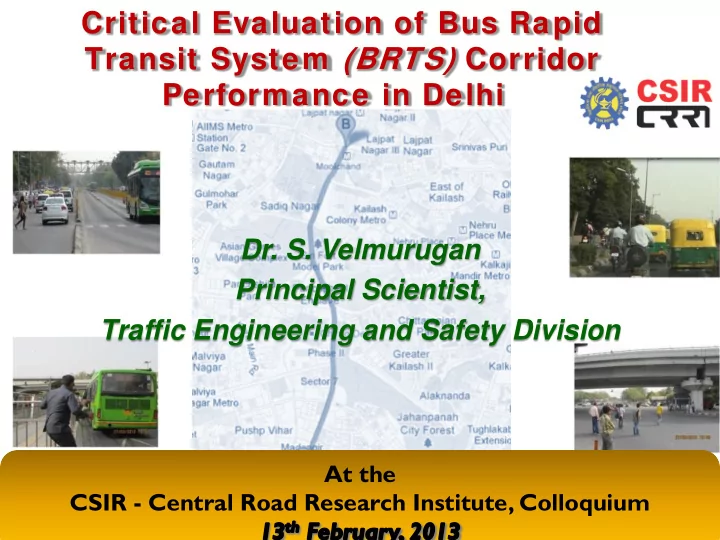

Critical Evaluation of Bus Rapid Transit System (BRTS) Corridor Performance in Delhi

At the CSIR - Central Road Research Institute, Colloquium

  • Dr. S. Velmurugan

Principal Scientist, Traffic Engineering and Safety Division

slide-2
SLIDE 2

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Study Steered by Director, Dr.S.Gangopadhyay - CSIR-Central Road Research Institute

STUDY TEAM

Principal Investigators

Dr.S. Velmurugan (Project Leader)

Dr.K. Ravinder: Passenger Flow Study (In-Charge) Dr.E.Madhu: Micro Simulation Study (In-Charge)

  • Dr. J. Nataraju: Passenger Hour Study (In Charge)
  • Dr. Ch. Ravi Sekhar: BRTS Comparison Study (In-Charge)
  • Sh. P.V. Pradeep Kumar: Fuel Consumption Study (In-Charge)
  • Dr. Ravindra Kumar: Speed and Delay Field Study (In-Charge)

Sh.S.K. Ummat: Field Logistics

Field Survey Personnel

  • Sh. S.P.Gautam
  • Sh. Anil Kumar
  • Sh. S.K. Biswas
  • Sh. Devender Kumar
  • Sh. Avinash

Secretarial

  • Sh. Daleep K.Mutreja
  • Sh. Ashok Gauba
  • Ms. Pushpa Jaitley

http://crridom.gov.in/content/evaluating-bus-rapid-transit-brt-corridor-performance- amebedkar-nagar-mool-chand

slide-3
SLIDE 3

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Focus of the Presentation

 Definition of Bus Rapid Transit System (BRTS)  Type of BRTS & A Brief on various BRTS around the world

  • USA, Latin America, Europe, Australia, Asia and India
  • Performance Evaluation Parameter deployed for BRTS

 Major Issues on the Delhi BRTS  Objectives of the Study  Scope of the Study  Study Methodology  Simulation of Pilot Corridor in Delhi ‘with’ and ‘without’ BRTS  Experimental Trial Run: Comparison with normal BRT in Delhi  Major Inferences  Delhi and Ahmedabad BRTS - A Comparison  Recommendation - Short and Long Term for Delhi BRTS

slide-4
SLIDE 4

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Definition of BRTS

“a bus-based mass transit system that delivers fast, comfortable, and cost-effective urban mobility“ by Wright (2005) “a flexible, rubber-tired rapid-transit mode that combines stations, vehicles, services, running ways and Intelligent Transportation System (ITS) elements into an integrated system with a strong positive identity that evokes a unique image” by Levison et. al. (2003)

slide-5
SLIDE 5

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Types of BRTS

BRT SYSTEM CLOSED SYTEM OPEN SYSTEM

slide-6
SLIDE 6

A Brief on Various Bus Rapid Transit Systems (BRTS) Around The World

slide-7
SLIDE 7

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in USA

First to introduce BRT concept in 1937 in the city of Chicago 1970’s Latin American countries started implementing BRT systems USA started building the BRT prototypes in this period In 1977 Pittsburgh, Pennsylvania implemented first BRT system Later on many systems were developed in USA. Percentage increase in speeds in the Cleveland and Eugene is as high as 34% and 30.4% Average time savings in different BRT corridors in USA is varying from 6 to 31 minutes with Los Angeles BRT with the maximum time saving of 31 minutes.

slide-8
SLIDE 8

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in USA (Cont…)

slide-9
SLIDE 9

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in Latin America

Known for successful implementation of BRTS In Bogotá BRT travel time savings improved by 35% Reduced fatal car accidents by 93% and reduced air pollution by 40% Ridership of 17,000 pphpd to 40,000 pphpd is

  • bserved in the BRT corridors of this region

Commercial average speeds ranging from 15 to 32 kmph TransMilenio’s double width bus way on Troncal Avenida Caracas even accommodates 35,000 Passengers Per Hour Per Direction (PPHPD)

slide-10
SLIDE 10

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in Latin America (Contd…)

slide-11
SLIDE 11

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in Europe

This region is developed part of the world and are very particular of environment sensitive BRTS is a solution since it reduces air pollution Weekday riders in Dublin and Stockholm very high ranging from 50,000 to 1,46,000. BRT lanes are also used as HOV lanes in Barcelona. Demand for BRT systems in Europe is low because

  • f

presence

  • f

already good transportation systems.

slide-12
SLIDE 12

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in Europe (Contd…)

slide-13
SLIDE 13

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in Asia

Scenario is similar to developing nations of Latin America. Maximum urban population prefer public transport mainly bus. In Indonesia total public transport trips constituted of 49.7% Pollution and environmental hazards is also one of the prominent problem in Asian countries The Guangzhou BRT system has won the 2011 sustainable transport award. Its ridership is as high as 29,000 pphpd, highest in Asia  Due to urban sprawl in Asian cities it is difficult to identify high demand corridors in the urban areas and suburban areas

slide-14
SLIDE 14

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in Asia (Contd…)

slide-15
SLIDE 15

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in Australia

Implemented its first BRT in 1986 at Adelaide Average speed in Australian BRT corridors is around 60kmph Australian BRT systems are very strong in infrastructural facilities They are generally expressway type of BRT systems. Adelaide BRT constitutes 25 bridges, and 8 tunnels.

slide-16
SLIDE 16

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in Australia (Contd…)

slide-17
SLIDE 17

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS in India

Currently operational in Ahmedabad and Delhi Started in Pune but they later discontinued ITDP has given a score of 76 out of 100 for Ahmedabad BRTS and falls under silver category 8 More BRT corridors coming up in different cities

  • f India under JNNURM

Ahmedabad is a closed system while Delhi BRT is an open system Peak Ridership of Delhi BRT is 12,500 PPHPD (CRRI, 2012) and given a rating of 24 out of 100 Present ridership in Ahmedabad BRTS is around 3000 PPHPD expected to reach 20,000 PPHPD

slide-18
SLIDE 18

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Salient Features of BRTS in India (Contd…)

slide-19
SLIDE 19

To Summarize, Examples of Typical BRTS in Multimodal Corridors 19 Delhi BRT

slide-20
SLIDE 20

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Typical Evaluation Parameters Used for BRTS

  • Bus way alignment,
  • Segregated right-of-way
  • Intersection treatments
  • Passing lanes at stations
  • Stations set back from intersections
  • Pavement quality
slide-21
SLIDE 21

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRTS Scores Derived for Selected Cities Based on the above Evaluation Parameters

Ref: ITDP 2012

slide-22
SLIDE 22

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Major Issues on the Delhi BRTS

More delays for all types of users including bus users Bus users inconvenienced due to location of bus stops at centre: Later, User Perception survey of CRRI revealed that 71% Bus passengers prefer bus stop located on the Kerb Side. Closely spaced Intersections No measures taken to reduce signal delays, No measures for bus route rationalization despite limited route km coverage on BRTS by some routes Open BRT (Not able to cater for the given traffic conditions and available road width on the present pilot BRTS Corridor)

slide-23
SLIDE 23

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Typical Illustration Problems on BRTS, Delhi

Rampant Parking on NMT lanes forcing the NMT users and Pedestrians to use Motor Vehicle Lanes Private Vehicle tend to use the empty BRT lanes violating Traffic Rules due to Saturation Flow during Peak Hours

slide-24
SLIDE 24

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Typical Illustration Problems on BRTS, Delhi (Contd..)

Kerb separation of BRT and MV Lane BROKEN along the highly Populated Madangir resulting in more violations Unused carriageway on BRT lane near Madangir Pedestrian Crossing

slide-25
SLIDE 25

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Objectives of Delhi BRTS Evaluation

  • Traffic Flow characteristics: To understand the traffic flow

characteristics on the study corridor and thus assess the performance parameters for evaluating the BRT corridor by considering ‘with’ and ‘without’ scenarios.

  • Propose Traffic Engineering Mitigation measures: To

propose traffic engineering mitigation measures and thus improve the traffic circulation plan at junctions and on the corridor by taking into account the safety of the road users including the pedestrians.

  • Present a clear direction for improving the traffic

movement: To present a clear direction for improving the

traffic movement on the study stretch in terms of evaluating the impact of the New Link connecting Saket and Outer Ring Road

slide-26
SLIDE 26

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Scope of the Delhi BRTS Evaluation

  • Classified Turning Volume Surveys - 6 Intersections: 3 days
  • Queue Length & Saturation Flow Studies at all the

Junctions

  • Pedestrian Volume Counts during the Morning & Evening

Peak Hours

  • Occupancy surveys covering all the modes for 16 hours
  • On-street parking surveys on the study corridor for 16 hrs
  • Speed and Delay studies - BRTS and adjoining non - BRTS
  • Fuel Consumption Studies (FCS) covering only Petrol and

Diesel Driven Cars - due to paucity of time and non- availability of instrumentation system for CNG Bus.

  • Spot speed studies at mid-blocks on the study corridor
slide-27
SLIDE 27

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

  • Opinion Surveys: A crisp interview was carried out to

understand the satisfaction level of all types of commuters travelling on the study corridor covering a minimum of 5 per cent stratified random sample covering bus commuters, car travellers, two wheeler riders, auto rickshaw users, cyclists and pedestrians.

  • Efficacy analysis of allowing other vehicles to ply on the

BRT lane on experimental basis carried out for eight days as per the Honourable High Court Order of Delhi.

  • Simulation of Scenarios ‘without’ and ‘with’ BRTS on the

study corridor.

Scope of the Delhi BRTS Evaluation (Contd..)

slide-28
SLIDE 28

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Methodology

slide-29
SLIDE 29

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Map of the Pilot BRTS Corridor

Ambedkar Nagar Jn.

Pushpa Bhawan Jn.

Sheikh Sarai Jn. Chirag Delhi Jn.

Siri Fort Jn. GK - I Crossing Jn. Mool Chand Jn.

Proposed New Link connecting Saket and Outer Ring Road as Per UTTIPEC Proposal

slide-30
SLIDE 30

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Infrastructure on Delhi BRTS: At Mid Block Section

slide-31
SLIDE 31

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Infrastructure on Delhi BRTS: At-Grade Intersections

slide-32
SLIDE 32

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Section-wise Passenger Flows observed on Delhi BRTS Corridor (6:00 AM to 10:00 PM)

Name of the Section Cars Two Wheelers Autos Buses SMVs Total Up Direction: Ambedkar Nagar to Mool Chand Ambedkar Nagar- Pushpa Bhawan 18858 14326 6005 65610 3150 1,07,949 Pushpa Bhawan - Sheikh Sarai 37774 30910 11453 74857 4208 1,59,202 Sheikh Sarai - Chirag Delhi 49420 32158 13291 90633 3851 1,89,352 Chirag Delhi - Siri Fort 42611 31373 8967 78420 3004 1,64,375 Siri Fort – GK I Crossing 32627 28776 9075 47728 2264 1,20,471 Down Direction: Mool Chand to Ambedkar Nagar Pushpa Bhawan -Ambedkar Nagar 28645 20889 5083 40879 2871 98,366 Sheikh Sarai -Pushpa Bhawan 32345 22200 10736 53271 5680 1,24,232 Chirag Delhi-Sheik Sarai 63679 35037 15439 84100 3571 2,01,825 Siri Fort-Chirag Delhi 41349 28628 13409 50901 2188 1,36,475 GK I Crossing-Siri Fort 31940 21911 10255 38156 1568 1,03,830 Bus Passenger Flows: 39 % - 60 %

slide-33
SLIDE 33

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Peak hour Passenger flows on Delhi BRTS Corridor

Name of the Section Cars Two Wheelers Autos Buses SMVs Total Up Direction: Ambedkar Nagar to Mool Chand Ambedkar Nagar- Pushpa Bhawan 1688 910 383 7167 127 10,275 Pushpa Bhawan - Sheikh Sarai 3814 3089 1191 6632 966 15,692 Sheikh Sarai - Chirag Delhi 3876 3490 1035 12403 980 21,784 Chirag Delhi - Siri Fort 2970 3502 871 8122 651 16,116 Siri Fort – GK I Crossing 3912 2795 922 4531 245 12,405 Down Direction: Mool Chand to Ambedkar Nagar Pushpa Bhawan -Ambedkar Nagar 3259 2337 456 3137 274 9,463 Sheikh Sarai -Pushpa Bhawan 3144 2027 868 4522 532 11,092 Chirag Delhi-Sheik Sarai 5378 3348 1046 7348 467 17,587 Siri Fort-Chirag Delhi 3845 3029 985 4288 294 12,440 GK I Crossing-Siri Fort 2523 2286 679 2921 189 8,598 Bus Passenger Flows: 34 % - 60 %

slide-34
SLIDE 34

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Composition of Total Passenger Flows from 6 am to 10 pm

Cars 24% Two Wheelers 18% Autos 7% Buses 49% SMVs 2% Composition of Passenger Flows

slide-35
SLIDE 35

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Simulation of Vehicular Movements using VISSIM - ‘with’ and ‘without’ BRTS

Observed Journey Speeds Projected Traffic for 2015 Development of Microscopic Traffic Simulation Model in VISSIM Software Evaluation of different Options: (i) Experimental Trial Run (ii) No BRT (iii) BAU 2015 (iv) New Link between Press Enclave Road and Outer Ring Road Preparation of Input Parameters for Microscopic Simulation Data Collection and Analysis (Traffic flows and turning movement flows at each of the intersection on BRT Corridor) Estimate Output: Journey Speed and Network Performance Indicators Comparison of Journey Speeds and Network Performance Indicators from different Options

  • i. Traffic Flows
  • ii. Vehicle Speeds
  • iii. Driver Characteristics
  • iv. Vehicle

Characteristics

  • v. Road Network

Calibration and Validation of Simulation model

slide-36
SLIDE 36

Development of Base Network in VISSIM

  • Developed

Basic Model in VISSIM in this Study.

  • Affect of Random seed

was also taken on board.

  • VISSIM is a stochastic

microscopic simulation tool, to achieve close results, an average of 7 run results were averaged and used in the study.

slide-37
SLIDE 37

Vehicle Inputs Given in VISSIM at Different Intersections

slide-38
SLIDE 38

Routing Decisions

Typical Routing Decisions for Press Enclave Intersection

slide-39
SLIDE 39

Inputs Given in VISSIM

Vehicle Composition at Chirag Delhi Intersection

slide-40
SLIDE 40

Signal Phasing and Cycle Length Inputs Given in VISSIM

Typical Signal Program at Chirag Delhi Intersection

slide-41
SLIDE 41

3-D View of Delhi BRTS Network Simulation of Chirag Delhi Intersection under Normal BRT Operations

slide-42
SLIDE 42

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Delhi BRTS Network Simulation of Chirag Delhi Intersection before Experimental Trial Run Operations

slide-43
SLIDE 43

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

EXPERIMENTAL TRIAL RUN ON BRT CORRIDOR (TYPICAL TRAFFIC ARRANGEMENT IN VOGUE DURING ‘NORMAL’ BRT VS. TRIAL RUN)

 Traffic Advisories in the form of pamphlet distribution (60,000 nos on the BRT Corridor) as well as advertisement in leading Newspapers  Signal phases alteration from 6/7/8 phases to a maximum 4 or 5 phases in each cycle  Installation of Median Markers/ Reflectors  Metal Barricades tied with Traffic Cones to prohibit the Right Turning Traffic from using the

  • pposite lanes

 Lane dividers were placed (Bollards)  New Sign boards were installed

slide-44
SLIDE 44

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

EXPERIMENTAL TRIAL RUN ON BRT CORRIDOR (CONTD..)

Typical Illustration of (Temporary) Informatory Sign Board Installed on the BRTS Barricades Provided by Delhi Traffic Police positioned on the corridor for Traffic Regulation Typical Placement of Overhead Signs at each Intersection Profile of Signal Plan at each Intersection

slide-45
SLIDE 45

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

EXPERIMENTAL TRIAL RUN ON BRT CORRIDOR (CONTD..)

Temporary Informatory Sign Board Installed on the Delhi BRTS Temporary Regulatory Measures Installed on the Delhi BRTS Temporary Flexible Bollards installation under Progress on the Delhi BRTS Effective Utilization of the available Road Space during the Experimental Trial Run

slide-46
SLIDE 46

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

RESULTS: OVERALL RATING OF THE BRTS CORRIDOR

Comparison of Passenger Hours Consumed

slide-47
SLIDE 47

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

RESULTS (CONTD..)

  • User Perception survey of CRRI revealed that 71% Bus

passengers prefer bus stop located on the Kerb Side.

slide-48
SLIDE 48

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Fuel Consumption from Petrol Driven Cars during normal BRT Operations Vs. Experimental Trial Run

Direction Petrol Driven Cars Journey time (seconds ) Journey speed (kmph) Time in idling (second s) Fuel loss in idling (ml) Fuel loss in idling (%) Time in idling (%) Total fuel consumed (ml) During normal BRT Operation Upward 1567 13.4 781 114 25 33 461 Downward 1469 14.3 627 92 19 30 471 During Experimental Run Upward 1233 17.0 480 72 17 28 432 Downward 1084 19.3 343 60 14 24 433

slide-49
SLIDE 49

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Fuel Consumption from Diesel Driven Cars during normal BRT Operations Vs. Experimental Trial Run

Direction

Diesel Driven Vehicles

Journey time (seconds) Journey speed (kmph) Time in idling (seconds) Fuel loss in idling (ml) Fuel loss in idling (%) Time in idling (%) During normal BRT Operation Upward 1601 13.6 816 140 23 34 Downward 1347 15.7 519 87 14 28 During Experimental Run Upward 1186 17.6 461 77 12 28 Downward 998 20.9 279 47 7 22

slide-50
SLIDE 50

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Queue Length during normal BRT operations Versus ‘Experimental Trial Run operations’

Queue Length Characteri stics

Ambedkar Nagar Pushpa Bhawan Sheik Sarai Chirag Delhi Siri Fort BRT Trial Run

BRT Trial

Run

BRT Trial

Run

BRT Trial

Run

BRT Trial

Run

Avg. Maximum Queue Length (in m) 183 117 150 138 180 167 367 100 383 175 Average SD

  • f Queue

Length (in m) 40

20

25

20

32

30

79

42

102

32

slide-51
SLIDE 51

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

MAJOR INFERENCES

  • The evaluation of passenger hours in terms of

monetary values revealed that there is a loss of Rs. 87.91 crores in a year during ‘normal BRT’

  • peration compared to ‘Experimental Trial Run’.
  • The value of fuel loss due to BRTS corridor is

around 2.48 crores per annum. This estimated monetary loss comprises of cars alone; Considering the other vehicles, this loss could be much higher which could not be estimated due to the aforesaid reasons earlier.

slide-52
SLIDE 52

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

EXPERIMENTAL TRIAL RUN (CONTD..) - NEWS COVERAGE

slide-53
SLIDE 53

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Delhi and Ahmedabad BRTS - A Comparison

slide-54
SLIDE 54

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Comparison of Delhi and Ahmedabad BRTS

Delhi BRT Corridor - Pilot

  • Open BRT System Operational since

April 20th 2008.

  • The total length is 5.8 Km , single

median lanes for buses.

  • Two lanes for motor vehicles (MV) and
  • ne lane for bus in each direction.

Ahmedabad BRTS (developed as a network)

  • Closed BRTS System; Operational since

October 14 2009. As of today, 51 Km Network is operational.

  • The total length considered in this study for

comparison is only 5.7 Km; single median lane for buses.

  • Three lanes for motor vehicles (MV) and
  • ne lane for bus in each direction.
slide-55
SLIDE 55

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Comparison of Delhi and Ahmedabad BRTS

(Contd…)

Delhi BRT corridor

  • Traffic Volume Data
  • Directional Volume count at

Intersections (16 Hours)

  • Speed and Delay Data
  • Probe Vehicle method by fitting

Global Positioning System (GPS)

Ahmedabad BRT corridor

  • Traffic Volume Data
  • Directional Volume count at

Intersections (16 Hours)

  • Speed and Delay Data
  • Probe Vehicle method by fitting

Global Positioning System (GPS)

slide-56
SLIDE 56

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Traffic Flow at Typical Intersections carrying Maximum Volume on Ahmedabad and Delhi BRTS

Delhi BRTS corridor Ahmedabad BRTS Network

Hourly Traffic Variation at Chirag Delhi Intersection Hourly Traffic Variation at Anjali Char Rasta

Total Volume = 1,55,882 Vehicles Peak Hour Volume = 15898 Vehicles Total Volume = 1,98,251 Vehicles Peak Hour Volume = 16,465 Vehicles

slide-57
SLIDE 57

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Traffic Composition

Delhi BRT corridor Ahmedabad BRTS Traffic Composition at Chirag Delhi Intersection Traffic Composition at Anjali Char Rasta

slide-58
SLIDE 58

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Comparison of Traffic Volume and Composition on BRTS and Non-BRTS Corridors in Delhi

BRT corridor Non - BRT corridor

Traffic Composition at Chirag Delhi Traffic Composition at Aurobindo Marg (Near Yusuf Sarai)

slide-59
SLIDE 59

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

BRT corridor Non - BRT corridor

Comparison of Traffic Composition on BRTS and Non-BRTS Corridors in Ahmedabad

slide-60
SLIDE 60

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Summary of Peak Hour Traffic Volume and Average Traffic Composition in Delhi and Ahmedabad BRTS

  • Proportion of car is almost double
  • n the MV lane of Delhi BRTS as

compared to Ahmedabad BRTS

  • The share of two wheelers is

comparable on both the BRTS

  • Proportion of Autos is higher (6%)
  • n Ahmedabad BRTS as compared

to Delhi BRT.

  • Commercial Vehicle
slide-61
SLIDE 61

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Comparison of Speed and Delay Studies on Delhi and Ahmedabad BRTS

 The Travel time of Cars on MV lane:

 The travel time is virtually same on both Delhi and Ahmedabad BRT before the start of morning peak (i.e. 8 am) which is about 12 - 13 minutes.  However, during the evening peak hours, very high travel time was

  • bserved on Delhi BRT corridor extending up to 33.0 minutes.

 This is to a large extent due to the insufficient road width available on MV Lane (7-8 m) as against the 10 m width available for each direction of travel before BRTS in April 2008.

 The Travel time of Buses on BRT corridor:

 Commercial travel speeds of buses are higher by about 10 kmph on Ahmedabad BRTS as compared to Delhi BRTS.  Though the bus composition is about 3% of total traffic in both the cases, the

  • bserved average speed of Buses on Ahmedabad BRT section varies between

22 to 25 Kmph (CEPT, Ahmedabad) which is much higher than that of Delhi BRTS (12-15 Kmph)

slide-62
SLIDE 62

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Short Term Recommendations proposed based

  • n CRRI study by retaining BRTS in Delhi

Redesign of Signal Phasing

It was noted all the 4 armed intersections are provided 6

  • r 7 phases (at times) on the entire BRT corridor which

includes 2 exclusive phases for BRT lane Buses. This issue can be efficiently addressed by providing the green phase for BRT lane (Straight) and MV lane (Straight) simultaneously on both directions of travel. This shall be followed by opening of the green phase for the BRT lane right and MV lane right directions

  • simultaneously. The present U-Turning maneuver
  • ccurring at each of the approaches from the MV lane

need to be accommodated appropriately in the phasing by making permitted U-Turns.

slide-63
SLIDE 63

Summary of Signal Phasing and Cycle Length

  • n Delhi BRTS before and after CSIR-CRRI

Name of the Intersection Signal Cycle Pattern in Vogue before CSIR-CRRI study Present Cycle Length in Vogue since September 2012 after Redesign Proposal of CSIR-CRRI Number of Phases* Cycle Length (sec) Number of Phases** Ambedkar Nagar 6 210 4 Pushp Bhawan 7 180 5 Sheik Sarai 7 165 3 Chirag Delhi 9 240 5 Siri Fort 8 225 5 * Including All red phase ** Without All red Phase

slide-64
SLIDE 64

Observed Vs Simulated Speeds on Delhi BRTS (Before the Implementation of New Signal Plan) During the CSIR- CRRI Study under Normal BRT Operations: Up Direction of Travel (i.e. Ambedkar Nagar to Mool Chand): Observed : Car 11.3 kmph and Bus 15.4 kmph Simulated : Car 11.7 kmph and Bus 15.9 kmph Down Direction of Travel (i.e. Mool Chand to Ambedkar): Observed : Car 9.9 kmph and Bus 13.4 kmph Simulated : Car 11.0 kmph and Bus 14.9 kmph

slide-65
SLIDE 65

Observed Vs Simulated Speeds on Delhi BRTS after the Implementation of CSIR-CRRI Signal Plan

  • n the Ground by GNCTD / DIMTS

Observed Vs Simulated (UP Direction: Ambedkar Nagar - Mool Chand) Observed Vs Simulated (DOWN Direction: Mool Chand - Ambedkar Nagar)

slide-66
SLIDE 66

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Short Term Recommendations proposed based on CRRI study by retaining BRTS in Delhi (Contd…)

Pedestrian Facilities

 Since all the six intersections located on the study corridor exhibit huge quantum of pedestrian flows and hence they have crossed the limit of hazardous index. Considering the above, it is essential to provide at least to start with the facility for exclusive signal phasing at the intersections (‘All Red for Pedestrians’ Phase).  This measure is not implemented on the ground despite the Signal Head (named as Intelligent Signalling System ISS one of the best instrumentation in the world) is having this simple provision.  Secondly, wherever feasible, grade separated facility in the form

  • f Foot Over Bridge / Subway need to be constructed. Of

course in case of intersections like Chirag Delhi Intersection, the topology of the intersections itself makes the provision of grade separated facility a difficult task.

slide-67
SLIDE 67

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Short Term Recommendations proposed based on CRRI study by retaining BRTS in Delhi (Contd…)

Parking Regulation

 It was observed that on-street parking is a common phenomenon typically witnessed on the road stretch which is causing so much interference traffic on the MV lane on both directions of travel.  Incidentally parking study results revealed that 90 % of the parkers are short term parkers and they park their vehicles

  • n main carriageway itself and thereby encroaching the

main carriageway.  Since this is more of an enforcement issue, it can be strictly controlled through law enforcement.

Signs and Markings

slide-68
SLIDE 68

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Short Term Recommendations proposed based on CRRI study by retaining BRTS in Delhi (Contd…)

Route Rationalization and Scheduling

 The maximum quantum of public transport passenger loads on the study corridor is observed on the section between Sheikh Sarai - Chirag Delhi and vice versa direction as well of the corridor.  This is to a large extent contributed by two bus routes (i.e. Route Number 534 and 534-A) entering the study corridor at Sheikh Sarai and exiting at Chirag Delhi though it was found that the average number of passengers boarding / alighting from the above two bus routes is only 4 - 5 passengers per bus.

slide-69
SLIDE 69

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Long Term Recommendations proposed by UTTIPEC by retaining BRTS

Provision of Extra Lane between (Sheikh Sarai to Chirag Delhi) Provision of Grade separated Facilities required for MV lane traffic New Link (between Press Enclave Marg and Outer Ring Road) by 2015. - Evaluation of the Option performed through Simulation

slide-70
SLIDE 70

Presentation by Dr.S..Velmurugan at CSIR-CRRI Colloquium on behalf of Entire Study Team

Scenario Evaluation ‘with’ and ‘without‘ BRT

 Comparison of the scenario with the existing BRT 2015 BAU reveals that the trial run scenario in 2015 would reduce the total travel time and stopped delay in the year 2015 by 39 % and 48 % respectively.  Out of the above scenarios, the ‘No BRT’ option yields better benefits for this corridor with the given traffic conditions.

  • S. No

Scenario Journey Speed Total Travel Time Total Stopped Delay 1 Base Case (With BRT) 12.5 kmph 10326 Hours (morning 2 ½ Hours duration) 7428 Hours (morning 2 ½ Hours duration) 2 No BRT* increase of 25 to 86% Decrease of 48% Decrease of 61% 3 Existing BRT 2015 BAU* decrease of 9 to 22% Increase of 13% Increase of 15% 4 New Link Case 2015** increase of 6 to 13% Decrease of 20% Decrease of 22%

* Compared with Base Case (with BRT) ** Compared with Existing BRT 2015 BAU i.e. (Business As Usual)

slide-71
SLIDE 71

Limitations of VISSIM Model

  • Not possible to accurately replicate the behaviour
  • f the individual Indian driver behaviour.
  • The network is unable to accommodate the total

input volume.

  • Not possible to accurately replicate the lane

change behaviour before the intersections.

slide-72
SLIDE 72
