Per-user Policy Enforcement on Mobile Apps through Network Functions Virtualization Workshop on Mobility in the Evolving Internet Architecture Sep. 11, 2014, Maui, Hawaii, USA Yong Liao, Mario Baldi, Amedeo Sapio Gyan Ranjan, Alok Tongaonkar,


slide-1
SLIDE 1

Amedeo Sapio Fulvio Risso Politecnico di Torino

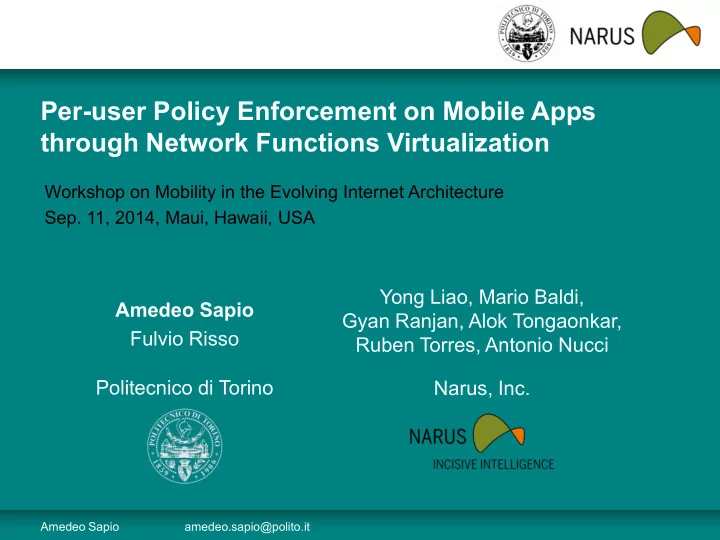

Per-user Policy Enforcement on Mobile Apps through Network Functions Virtualization

Amedeo Sapio amedeo.sapio@polito.it

Workshop on Mobility in the Evolving Internet Architecture

  • Sep. 11, 2014, Maui, Hawaii, USA

Yong Liao, Mario Baldi, Gyan Ranjan, Alok Tongaonkar, Ruben Torres, Antonio Nucci Narus, Inc.

slide-2
SLIDE 2

2 Amedeo Sapio amedeo.sapio@polito.it

Motivation

Courtesy of SEN Technologies

slide-3
SLIDE 3

3 Amedeo Sapio amedeo.sapio@polito.it

Motivation

slide-4
SLIDE 4

4 Amedeo Sapio amedeo.sapio@polito.it

Motivation

  • Smartphones can collect a wide range of data
  • Different mobile apps have different vulnerabilities
  • Mobile apps traffic is largely undistinguishable from web traffic
  • Different mobile apps can use

the same remote end-point

  • Use of encrypted connections

by mobile apps is increasing

  • Different roles within an
  • rganization have different

security clearances and necessities

slide-5
SLIDE 5

5 Amedeo Sapio amedeo.sapio@polito.it

MAPPER

Mobile Apps Personal Policy Enforcement Router

Bob’s security profile Alice’s security profile

  • Network-based approach
  • Mobile apps aware policies
  • Device independent policies
  • Per-user defined policies
  • Uniform protection among different APs
  • HTTPS support

Bob’s Security profile

slide-6
SLIDE 6

6 Amedeo Sapio amedeo.sapio@polito.it

Mobile Application Identification Module

Flows

Rule set

Features Extraction Metadata (Identifiers)

Lookup Categorization

Application Categories XML summary Features App

MAI

App profile

slide-7
SLIDE 7

7 Amedeo Sapio amedeo.sapio@polito.it

FROG – Flexible and pROGrammable network node

Dedicated lightweight VM for each user

  • Policy enforcement
  • Traffic segregation
  • Dynamic allocation
  • Flexible policy definition

Hypervisor

VM User 1

Mobile App Filter Firewall

FROG node VM User 2

Network monitor Parental control

slide-8
SLIDE 8

8 Amedeo Sapio amedeo.sapio@polito.it

MAPPER Architecture

  • Smart Wireless Access Point
  • User dedicated lightweight VMs
  • Mobile Apps Identification engine
  • TLS proxy (MiMP)
  • Application content filtering

MAPPER Mobile Application Identification Module

Mobile App Categorization Module Mobility Classifier

Metadata Rule Engine

Classified Flows

Management Server

Users & Groups User policies Permissions

MiMP

Parsed HTTP flows

FROG Hypervisor

VM User 1 VM User 2 VM User 3

App ID

Network applications Marketplace

Firewall Parental Control Malware Detector Network Monitor Content Filter Mobile app filter MiMP bridge

slide-9
SLIDE 9

9 Amedeo Sapio amedeo.sapio@polito.it

MAPPER workflow

Hypervisor

User PEX

Mobile App Filter MiMP Bridge NIC 1 NIC 2

GEX 2 MiMP

MAPPER

Virtualization layer GEX 1 MAI Client Server 1 2 - 3 - 6 4 5

PEX: Personal EXecution Environment GEX: Global EXecution Environment MAI: Mobile Application Identification module MiMP: Man-in-the-Middle Proxy

  • 1. IP redirection
  • 2. TLS proxying
  • 3. Summary extraction
  • 4. App Identification
  • 5. Policy consistency
  • 6. Policy enforcement
slide-10
SLIDE 10

10 Amedeo Sapio amedeo.sapio@polito.it

Evaluation – Single user

Average throughput (MByte/s)

ms

Response time CDF 500 requests for 1 KB file

slide-11
SLIDE 11

11 Amedeo Sapio amedeo.sapio@polito.it

Evaluation – Multi user

Memory MB

Number of clients

CPU RAM Throughput Response time 1 user 16.13% 3261 MB 104 Kb/s 778.8 ms 2 users 21.57% 3392 MB 102 Kb/s 751.6 ms

500 online search queries

slide-12
SLIDE 12

12 Amedeo Sapio amedeo.sapio@polito.it

Conclusions

  • MAPPER leverages Network Functions Virtualization for implementing

fine-grained policies on mobile devices.

  • Policies can be designed according to:

 Mobile apps  Categories  Devices

  • The system can easily scale to a large number of users exploiting load

distribution and cloud computing.

  • Future studies will be directed towards performance improvements and

additional functionalities.

slide-13
SLIDE 13

Amedeo Sapio amedeo.sapio@polito.it

Questions?

slide-14
SLIDE 14

Amedeo Sapio amedeo.sapio@polito.it Fulvio Risso fulvio.risso@polito.it Yong Liao yliao@narus.com Mario Baldi mbaldi@narus.com

Thank you!

Amedeo Sapio amedeo.sapio@polito.it

Gyan Ranjan granjan@narus.com Alok Tongaonkar atongaonkar@narus.com Ruben Torres rtorres@narus.com Antonio Nucci anucci@narus.com
