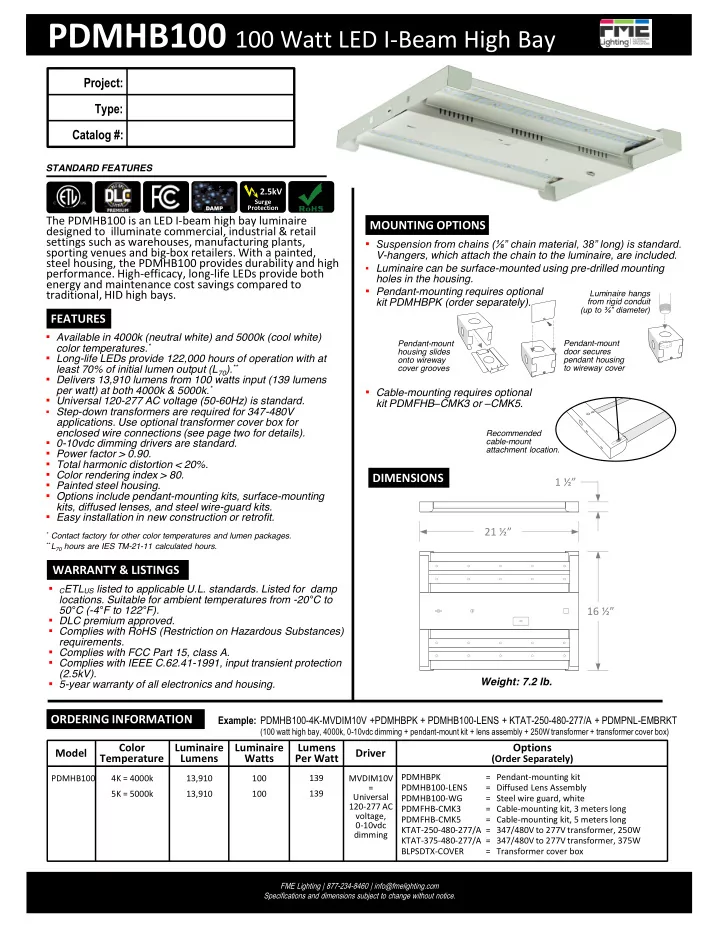

PDM HB100 100 Watt LED I-Beam High Bay Project: Type: Catalog #: STANDARD FEATURES 2.5kV Surge DAMP DAM Protection DAM DAMP The PDM HB100 is an LED I-beam high bay luminaire MOUNTING OPTIONS designed to illuminate commercial,

slide-1
SLIDE 1

Recommended cable-mount attachment location.

MOUNTING OPTIONS Project: Type: Catalog #:

FME Lighting | 877-234-8460 | info@fmelighting.com Specifications and dimensions subject to change without notice.

PDMHB100 100 Watt LED I-Beam High Bay

DIMENSIONS

STANDARD FEATURES

DAM DAMP DAM DAMP

2.5kV

Surge Protection

Weight: 7.2 lb.

16 ½” 21 ½” 1 ½”

▪

CETLUS listed to applicable U.L. standards. Listed for damp

  • locations. Suitable for ambient temperatures from -20°C to

50°C (-4°F to 122°F).

▪ DLC premium approved. ▪ Complies with RoHS (Restriction on Hazardous Substances)

requirements.

▪ Complies with FCC Part 15, class A. ▪ Complies with IEEE C.62.41-1991, input transient protection

(2.5kV).

▪ 5-year warranty of all electronics and housing. WARRANTY & LISTINGS FEATURES ▪ Available in 4000k (neutral white) and 5000k (cool white)

color temperatures.*

▪ Long-life LEDs provide 122,000 hours of operation with at

least 70% of initial lumen output (L70).**

▪ Delivers 13,910 lumens from 100 watts input (139 lumens

per watt) at both 4000k & 5000k.*

▪ Universal 120-277 AC voltage (50-60Hz) is standard.

▪ Step-down transformers are required for 347-480V

  • applications. Use optional transformer cover box for

enclosed wire connections (see page two for details).

▪ 0-10vdc dimming drivers are standard. ▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80. ▪ Painted steel housing. ▪ Options include pendant-mounting kits, surface-mounting

kits, diffused lenses, and steel wire-guard kits.

▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

The PDMHB100 is an LED I-beam high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the PDMHB100 provides durability and high

  • performance. High-efficacy, long-life LEDs provide both

energy and maintenance cost savings compared to traditional, HID high bays. ORDERING INFORMATION

Model

PDMHB100

Color Temperature

4K = 4000k 5K = 5000k

Luminaire Lumens

13,910 13,910

Luminaire Watts

100 100

Options

(Order Separately)

PDMHBPK = Pendant-mounting kit PDMHB100-LENS = Diffused Lens Assembly PDMHB100-WG = Steel wire guard, white PDMFHB-CMK3 = Cable-mounting kit, 3 meters long PDMFHB-CMK5 = Cable-mounting kit, 5 meters long KTAT-250-480-277/A = 347/480V to 277V transformer, 250W KTAT-375-480-277/A = 347/480V to 277V transformer, 375W BLPSDTX-COVER = Transformer cover box

Lumens Per Watt

139 139 MVDIM10V = Universal 120-277 AC voltage, 0-10vdc dimming

Driver

▪ Suspension from chains (⅛” chain material, 38” long) is standard.

V-hangers, which attach the chain to the luminaire, are included. ▪ Luminaire can be surface-mounted using pre-drilled mounting holes in the housing.

▪ Pendant-mounting requires optional

kit PDMHBPK (order separately).

▪ Cable-mounting requires optional

kit PDMFHB–CMK3 or –CMK5.

Pendant-mount housing slides

  • nto wireway

cover grooves Pendant-mount door secures pendant housing to wireway cover Luminaire hangs from rigid conduit (up to ¾” diameter)

Example: MHB100-4K-MVDIM10V +MHBPK + MHB100-LENS + KTAT-250-480-277/A + MPNL-EMBRKT

(100 watt high bay, 4000k, 0-10vdc dimming + pendant-mount kit + lens assembly + 250W transformer + transformer cover box)

slide-2
SLIDE 2

4,929 3,697 2,465 1,232

30 60 90 20 10 50 40 70 80

Candlepower Summary

90 4,929 4,929 10 4,804 4,882 20 4,556 4,646 30 4,191 4,282 40 3,719 3,776 50 2,895 3,137 60 1,877 2,309 70 876 1,350 80 292 425 90

Zonal Lumen Summary

Zone Lumens % Fixture 0 10 474 3.4% 0 20 1,833 13.2% 0 30 3,910 28.1% 0 40 6,453 46.4% 0 50 9,130 65.6% 0 60 11,508 82.7% 0 70 13,104 94.2% 0 80 13,780 99.1% 0 90 13,910 100.0% 90 180 0.0% 0 180 13,910 100.0%

ELECTRICAL DATA PHOTOMETRIC DATA

FME Lighting | 877-234-8460 | info@fmelighting.com Specifications and dimensions subject to change without notice.

Model Color Temperature Luminaire Lumens Luminaire Watts Lumens Per Watt

Input Current (A)

120V 240V 277V

Input Voltage2 CRI 1 Power Factor THD3 L70 Hours4

122,000 122,000 PDMHB100-4K- MVDIM10V PDMHB100-5K- MVDIM10V 4000k 5000k 13,910 13,910 100 100 139 139 0.83 0.83 0.42 0.42 0.36 0.36 120-277 120-277 > 80 > 80 > 90% > 90% < 20% < 20%

PDMHB100-5K-MV (13,910 Lumens)

90

75’ 0’ 25’ 50’ 75’ 75’ 50’ 25’ 0’ 75’ 50’ 25’ 25’ 50’

Maximum Candela = 4,929

Cone of Light

10’ 20’ 30’ 40’ 66 FC 27 FC 20 FC 17 FC

.

Nadir

PDMHB100

Foot Candles

5.0 2.0 1.0 0.5 0.2 0.1 1 Color rendering index. 2 All 50-60Hz. 3 Total harmonic distortion. 4 L70 refers to the number of hours at which lumen output declines to 70% of the initial level. L70 hours are IES TM-21-11 calculated hours.

100 Watt LED I-Beam High Bay

Notes: ▪ Isofootcandle plots depict initial footcandles at grade. ▪ Gridlines represent units of mounting height of 25 feet. Transformer Cover Box: ▪ Attach transformer to cover box. ▪ Make wiring connections. ▪ Attach transformer cover box assembly to luminaire

driver enclosure.

slide-3
SLIDE 3

PDMHB160 4K = 4000k 5K = 5000k 22,256 22,256 160 160 139 139

Example:PDMHB160-4K-MVDIM10V + PMDHBPK + PDMHB160/200-LENS + KTAT-250-480-277/A + PDMPNL-EMBRKT

(160 watt high bay, 4000k, 0-10vdc dimming + pendant-mount kit + lens assembly + 250W transformer + transformer cover box)

Project: Type: Catalog #:

M

  • PDMHB160

FEATURES ▪ Available in 4000k (neutral white) and 5000k (cool white)

color temperatures.*

▪ Long-life LEDs provide 122,000 hours of operation with at

least 70% of initial lumen output (L70).**

▪ Delivers 22,256 lumens from 160 watts input (139 lumens

per watt) at both 4000k & 5000k.*

▪ Universal 120-277 AC voltage (50-60Hz) is standard.

▪ Step-down transformers are required for 347-480V

  • applications. Use optional transformer cover box for

enclosed wire connections (see page two for details).

▪ 0-10vdc dimming drivers are standard. ▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80. ▪ Painted steel housing. ▪ Options include pendant-mounting kits, surface-mounting

kits, diffused lenses, and steel wire-guard kits.

▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

Weight: 12.3 lb.

43” 16 ½” 1 ½”

DIMENSIONS

STANDARD FEATURES

DAM DAMP DAM DAMP

2.5kV

Surge Protection

▪

CFUS listed to applicable U.L. standards. Listed for damp

  • locations. Suitable for ambient temperatures from -20°C to

50°C (-4°F to 122°F).

▪ DLC premium approved. ▪ Complies with RoHS (Restriction on Hazardous Substances)

requirements.

▪ Complies with FCC Part 15, class A. ▪ Complies with IEEE C.62.41-1991, input transient protection

(2.5kV).

▪ 5-year warranty of all electronics and housing. WARRANTY & LISTINGS

160 Watt LED I-Beam High Bay

Recommended cable-mount attachment location.

MOUNTING OPTIONS ▪ Suspension from chains (⅛” chain material, 38” long) is standard.

V-hangers, which attach the chain to the luminaire, are included. ▪ Luminaire can be surface-mounted using pre-drilled mounting holes in the housing.

▪ Pendant-mounting requires optional

kit PDMHBPK (order separately).

▪ Cable-mounting requires optional

kit PDMFHB–CMK3 or –CMK5.

Pendant-mount housing slides

  • nto wireway

cover grooves Pendant-mount door secures pendant housing to wireway cover Luminaire hangs from rigid conduit (up to ¾” diameter)

ThePDMHB100 is an LED I-beam high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the PDMHB100 provides durability and high

  • performance. High-efficacy, long-life LEDs provide both

energy and maintenance cost savings compared to traditional, HID high bays. ORDERING INFORMATION

Model Color Temperature Luminaire Lumens Luminaire Watts Options

(Order Separately)

PDMHBPK = Pendant-mounting kit PDMHB160/200-LENS = Diffused Lens Assembly PDMHB160/200-WG = Steel wire guard, white = Cable-mounting kit, 3 meters long PDMFHB-CMK3 PDMFHB-CMK5 = Cable-mounting kit, 5 meters long KTAT-250-480-277/A = 347/480V to 277V transformer, 250W KTAT-375-480-277/A = 347/480V to 277V transformer, 375W BLPSDTX-COVER = Transformer cover box

Lumens Per Watt

MVDIM10V = Universal 120-277 AC voltage, 0-10vdc dimming

Driver

slide-4
SLIDE 4

7,876 5,907 3,938 1,969

30 60 90 20 10 50 40 70 80

Candlepower Summary

90 7,876 7,876 10 7,716 7,807 20 7,333 7,462 30 6,736 6,871 40 5,942 6,070 50 4,765 5,056 60 2,731 3,734 70 1,101 2,265 80 241 855 90

Zonal Lumen Summary

Zone Lumens % Fixture 0 10 746 3.4% 0 20 2,890 13.0% 0 30 6,170 27.7% 0 40 10,184 45.8% 0 50 14,438 64.9% 0 60 18,227 81.9% 0 70 20,824 93.6% 0 80 22,003 98.9% 0 90 22,256 100.0% 90 180 0.0% 0 180 22,256 100.0%

ELECTRICAL DATA PHOTOMETRIC DATA

M

  • Model

Color Temperature Luminaire Lumens Luminaire Watts Lumens Per Watt

Input Current (A)

120V 240V 277V

Input Voltage2 CRI 1 Power Factor THD3 L70 Hours4

122,000 122,000 PDMHB160-4K- MVDIM10V PDMHB160-5K- MVDIM10V 4000k 5000k 22,256 22,256 160 160 139 139 1.33 1.33 0.67 0.67 0.58 0.58 120-277 120-277 > 80 > 80 > 90% > 90% < 20% < 20%

PDMHB160-5K-MV (22,256 Lumens)

90

75’ 0’ 25’ 50’ 75’ 75’ 50’ 25’ 0’ 75’ 50’ 25’ 25’ 50’

Maximum Candela = 7,876

Cone of Light

10’ 20’ 30’ 40’ 105 FC 44 FC 33 FC 28 FC

.

Nadir

PDMHB160

Foot Candles

5.0 2.0 1.0 0.5 0.2 0.1 1 Color rendering index. 2 All 50-60Hz. 3 Total harmonic distortion. 4 L70 refers to the number of hours at which lumen output declines to 70% of the initial level. L70 hours are IES TM-21-11 calculated hours.

160 Watt LED I-Beam High Bay

Notes: ▪ Isofootcandle plots depict initial footcandles at grade. ▪ Gridlines represent units of mounting height of 25 feet. Transformer Cover Box: ▪ Attach transformer to cover box. ▪ Make wiring connections. ▪ Attach transformer cover box assembly to luminaire

driver enclosure.

slide-5
SLIDE 5

PDMHB200 4K = 4000k 5K = 5000k 27,820 27,820 200 200 139 139

Example: PDMHB200-4K-MVDIM10V + PDMHBPK + PDMHB160/200-LENS + KTAT-250-480-277/A + PDMPNL-EMBRKT

(200 watt high bay, 4000k, 0-10vdc dimming + pendant-mount kit + lens assembly + 250W transformer + transformer cover box)

Project: Type: Catalog #:

FME Lighting | 877-234-8460 | info@fmelighting.com Specifications and dimensions subject to change without notice.

PDMHB200

Weight: 13 lb.

43” 16 ½” 1 ½”

DIMENSIONS FEATURES ▪ Available in 4000k (neutral white) and 5000k (cool white)

color temperatures.*

▪ Long-life LEDs provide 122,000 hours of operation with at

least 70% of initial lumen output (L70).**

▪ Delivers 27,820 lumens from 200 watts input (139 lumens

per watt) at both 4000k & 5000k.*

▪ Universal 120-277 AC voltage (50-60Hz) is standard.

▪ Step-down transformers are required for 347-480V

  • applications. Use optional transformer cover box for

enclosed wire connections (see page two for details).

▪ 0-10vdc dimming drivers are standard. ▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80. ▪ Painted steel housing. ▪ Options include pendant-mounting kits, surface-mounting

kits, diffused lenses, and steel wire-guard kits.

▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

STANDARD FEATURES

DAM DAMP DAM DAMP

2.5kV

Surge Protection

200 Watt LED I-Beam High Bay

▪

CFUS listed to applicable U.L. standards. Listed for damp

  • locations. Suitable for ambient temperatures from -20°C to

50°C (-4°F to 122°F).

▪ DLC premium approved. ▪ Complies with RoHS (Restriction on Hazardous Substances)

requirements.

▪ Complies with FCC Part 15, class A. ▪ Complies with IEEE C.62.41-1991, input transient protection

(2.5kV).

▪ 5-year warranty of all electronics and housing. WARRANTY & LISTINGS

Recommended cable-mount attachment location.

MOUNTING OPTIONS ▪ Suspension from chains (⅛” chain material, 38” long) is standard.

V-hangers, which attach the chain to the luminaire, are included. ▪ Luminaire can be surface-mounted using pre-drilled mounting holes in the housing.

▪ Pendant-mounting requires optional

kit PDMHBPK (order separately).

▪ Cable-mounting requires optional

kit PDMFHB–CMK3 or –CMK5.

Pendant-mount housing slides

  • nto wireway

cover grooves Pendant-mount door secures pendant housing to wireway cover Luminaire hangs from rigid conduit (up to ¾” diameter)

The PDMHB100 is an LED I-beam high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the PDMHB100 provides durability and high

  • performance. High-efficacy, long-life LEDs provide both

energy and maintenance cost savings compared to traditional, HID high bays. ORDERING INFORMATION

Model Color Temperature Luminaire Lumens Luminaire Watts Options

(Order Separately)

PDMHBPK = Pendant-mounting kit PDMHB160/200-LENS = Diffused Lens Assembly PDMHB160/200-WG = Steel wire guard, white = Cable-mounting kit, 3 meters long PDMFHB-CMK3 PDMFHB-CMK5 = Cable-mounting kit, 5 meters long KTAT-250-480-277/A = 347/480V to 277V transformer, 250W KTAT-375-480-277/A = 347/480V to 277V transformer, 375W BLPSDTX-COVER = Transformer cover box

Lumens Per Watt

MVDIM10V = Universal 120-277 AC voltage, 0-10vdc dimming

Driver

slide-6
SLIDE 6

10,098 7,573 5,049 2,524

30 60 90 20 10 50 40 70 80

FME Lighting | 877-234-8460 | info@fmelighting.com Specifications and dimensions subject to change without notice. .

75’ 0’ 25’ 50’ 75’ 75’ 50’ 25’ 0’ 75’ 50’ 25’ 25’ 50’ Candlepower Summary

90 10,098 10,098 10 9,891 9,990 20 9,397 9,543 30 8,664 8,792 40 7,652 7,785 50 6,197 6,471 60 3,468 4,824 70 1,344 2,874 80 286 1,031 90

Zonal Lumen Summary

Zone Lumens % Fixture 0 10 941 3.4% 0 20 3,645 13.1% 0 30 7,777 28.0% 0 40 12,840 46.2% 0 50 18,177 65.3% 0 60 22,943 82.5% 0 70 26,145 94.0% 0 80 27,546 99.0% 0 90 27,820 100.0% 90 180 0.0% 0 180 27,820 100.0%

PDMHB200-5K-MV (27,820 Lumens)

90 Maximum Candela = 10,098

Cone of Light

10’ 20’ 30’ 40’ 134 FC 55 FC 42 FC 35 FC

.

Nadir

PDMHB200

Model Color Temperature Luminaire Lumens Luminaire Watts Lumens Per Watt

Input Current (A)

120V 240V 277V

Input Voltage2 CRI 1 Power Factor THD3 L70 Hours4

122,000 122,000 PDMHB200-4K- MVDIM10V PDMHB200-5K- MVDIM10V 4000k 5000k 27,820 27,820 200 200 139 139 1.67 1.67 0.83 0.83 0.72 0.72 120-277 120-277 > 80 > 80 > 90% > 90% < 20% < 20%

1 Color rendering index. 2 All 50-60Hz. 3 Total harmonic distortion. 4 L70 refers to the number of hours at which lumen output declines to 70% of the initial level. L70 hours are IES TM-21-11 calculated hours.

ELECTRICAL DATA PHOTOMETRIC DATA

Foot Candles

5.0 2.0 1.0 0.5 0.2 0.1

200 Watt LED I-Beam High Bay

Notes: ▪ Isofootcandle plots depict initial footcandles at grade. ▪ Gridlines represent units of mounting height of 25 feet. Transformer Cover Box: ▪ Attach transformer to cover box. ▪ Make wiring connections. ▪ Attach transformer cover box assembly to luminaire

driver enclosure.
