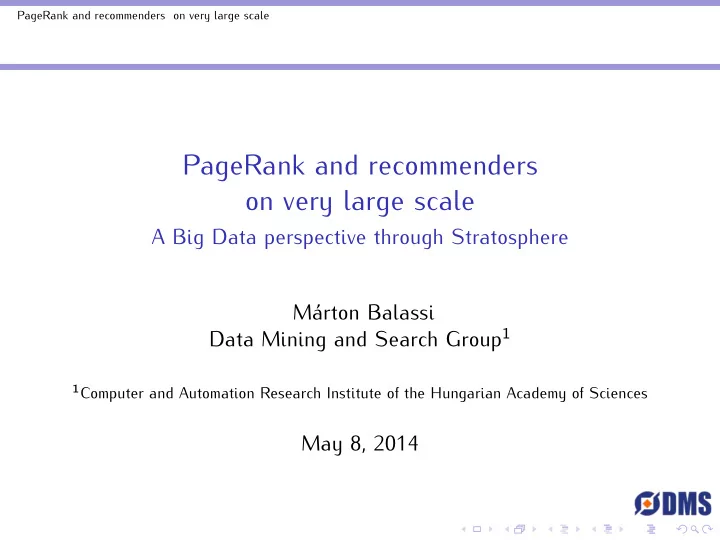

PageRank and recommenders on very large scale

PageRank and recommenders

• n very large scale

A Big Data perspective through Stratosphere Márton Balassi Data Mining and Search Group1

1Computer and Automation Research Institute of the Hungarian Academy of Sciences

May 8, 2014

PageRank and recommenders on very large scale

Table of Contents

Distributing data-intensive algorithms Stratosphere Input Contracts PageRank and recommender systems Reference

PageRank and recommenders on very large scale Distributing data-intensive algorithms

Table of contents

Distributing data-intensive algorithms Stratosphere Input Contracts PageRank and recommender systems Reference

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ The soc-LiveJournal1 provided by Stanford LNDC1 ◮ 4.8 · 106 nodes ◮ 6.9 · 107 edges ◮ 250 MB of compressed data ◮ „Conventional” single machine solution seems sufficient

1Stanford Large Network Dataset Collection

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ The soc-LiveJournal1 provided by Stanford LNDC1 ◮ 4.8 · 106 nodes ◮ 6.9 · 107 edges ◮ 250 MB of compressed data ◮ „Conventional” single machine solution seems sufficient

1Stanford Large Network Dataset Collection

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ The soc-LiveJournal1 provided by Stanford LNDC1 ◮ 4.8 · 106 nodes ◮ 6.9 · 107 edges ◮ 250 MB of compressed data ◮ „Conventional” single machine solution seems sufficient

1Stanford Large Network Dataset Collection

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ The soc-LiveJournal1 provided by Stanford LNDC1 ◮ 4.8 · 106 nodes ◮ 6.9 · 107 edges ◮ 250 MB of compressed data ◮ „Conventional” single machine solution seems sufficient

1Stanford Large Network Dataset Collection

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ The soc-LiveJournal1 provided by Stanford LNDC1 ◮ 4.8 · 106 nodes ◮ 6.9 · 107 edges ◮ 250 MB of compressed data ◮ „Conventional” single machine solution seems sufficient

1Stanford Large Network Dataset Collection

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ A large Portugese webcrawl1 ◮ 3.1 · 109 nodes ◮ 1.1 · 1011 edges ◮ 80 GB of compressed data ◮ Divide and conquer is almost mandatory

1a large Portuguese crawl of the Portuguese Web Archive obtained from

Daniel Gomes

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ A large Portugese webcrawl1 ◮ 3.1 · 109 nodes ◮ 1.1 · 1011 edges ◮ 80 GB of compressed data ◮ Divide and conquer is almost mandatory

1a large Portuguese crawl of the Portuguese Web Archive obtained from

Daniel Gomes

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ A large Portugese webcrawl1 ◮ 3.1 · 109 nodes ◮ 1.1 · 1011 edges ◮ 80 GB of compressed data ◮ Divide and conquer is almost mandatory

1a large Portuguese crawl of the Portuguese Web Archive obtained from

Daniel Gomes

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ A large Portugese webcrawl1 ◮ 3.1 · 109 nodes ◮ 1.1 · 1011 edges ◮ 80 GB of compressed data ◮ Divide and conquer is almost mandatory

1a large Portuguese crawl of the Portuguese Web Archive obtained from

Daniel Gomes

PageRank and recommenders on very large scale Distributing data-intensive algorithms Motivation

Motivation

Let’s do a PageRank on this graph. . .

◮ A large Portugese webcrawl1 ◮ 3.1 · 109 nodes ◮ 1.1 · 1011 edges ◮ 80 GB of compressed data ◮ Divide and conquer is almost mandatory

1a large Portuguese crawl of the Portuguese Web Archive obtained from

Daniel Gomes

PageRank and recommenders on very large scale Distributing data-intensive algorithms MapReduce

MapReduce

PageRank and recommenders on very large scale Distributing data-intensive algorithms Pregel

Pregel

Traits

◮ Bulk Synchronous

Parallel

◮ „Think like a vertex” ◮ Graph kept in memory

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale Distributing data-intensive algorithms Pregel

Pregel

Traits

◮ Bulk Synchronous

Parallel

◮ „Think like a vertex” ◮ Graph kept in memory

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale Distributing data-intensive algorithms Pregel

Pregel

Traits

◮ Bulk Synchronous

Parallel

◮ „Think like a vertex” ◮ Graph kept in memory

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Triangle Counter – Sequential algorithm

Sequential algorithm

Every vertex executes a search of itself bounded in depth of three. Thus every triangle is counted three times.

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Triangle Counter – MapReduce algorithm

Representation

0 1 2 1 2 2 0 3 1 2 3

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Triangle Counter – MapReduce algorithm

First Map

Let’s send our ID to all of our neighbours possessing a higher ID than ours. Let’s send our neighbours to ourselves.

First Reduce

Let’s write out the information received. 1 2 1

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Triangle Counter – MapReduce algorithm

Second Map

If the ID received is smaller then

• urs let’s pass it on to our

neighbours. Let’s send our neighbours to

• urselves.

Second Reduce

If the ID received is our neighbour then let’s increment a global counter. 0 [] 1 [0] 2 [1] 1

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Triangle Counter – MapReduce algorithm

Second Map

If the ID received is smaller then

• urs let’s pass it on to our

neighbours. Let’s send our neighbours to

• urselves.

Second Reduce

If the ID received is our neighbour then let’s increment a global counter. 0 + + 1 2

PageRank and recommenders on very large scale Distributing data-intensive algorithms Counting the number of triangles in a graph

Runtime of the three solutions

PageRank and recommenders on very large scale Stratosphere Input Contracts

Table of contents

Distributing data-intensive algorithms Stratosphere Input Contracts PageRank and recommender systems Reference

PageRank and recommenders on very large scale Stratosphere Input Contracts Map

Map

Wordcount Map

For lines of input text emit (word, 1) for each word.

PageRank and recommenders on very large scale Stratosphere Input Contracts Map

Map

public static class TokenizeLine extends MapStub implements Serializable { private static final long serialVersionUID = 1L; // initialize reusable mutable objects private final PactRecord outputRecord = new PactRecord(); private final PactString word = new PactString(); private final PactInteger one = new PactInteger(1); @Override public void map(PactRecord record, Collector<PactRecord> collector) { // get the first field (as type PactString) from the record PactString line = record.getField(0, PactString.class); // normalize the line with AsciiUtils ... // tokenize the line this.tokenizer.setStringToTokenize(line); while (tokenizer.next(this.word)){ // emit a (word, 1) pair this.outputRecord.setField(0, this.word); this.outputRecord.setField(1, this.one); collector.collect(this.outputRecord); } } }

PageRank and recommenders on very large scale Stratosphere Input Contracts Map

Map

PageRank and recommenders on very large scale Stratosphere Input Contracts Reduce

Reduce

Wordcount Reduce

For multiple instances of (word, 1) count frequency of each word.

PageRank and recommenders on very large scale Stratosphere Input Contracts Reduce

Reduce

public static class CountWords extends ReduceStub implements Serializable { private final PactInteger cnt = new PactInteger(); @Override public void reduce(Iterator<PactRecord> records, Collector<PactRecord> out) throws Exception { PactRecord element = null; int sum = 0; while (records.hasNext()) { element = records.next(); PactInteger i = element.getField(1, PactInteger.class); sum += i.getValue(); } this.cnt.setValue(sum); element.setField(1, this.cnt);

• ut.collect(element);

} @Override public void combine(Iterator<PactRecord> records, Collector<PactRecord> out) throws Exception { // same logic as reduce so simply a call to it this.reduce(records, out); } }

PageRank and recommenders on very large scale Stratosphere Input Contracts Reduce

Reduce

PageRank and recommenders on very large scale Stratosphere Input Contracts Cross

Cross

K-Means Cross

Given data points and cluster centers compute the distance between each data point and cluster center.

PageRank and recommenders on very large scale Stratosphere Input Contracts Cross

Cross

public class ComputeDistance extends CrossStub implements Serializable { private static final long serialVersionUID = 1L; private final PactDouble distance = new PactDouble(); //Output Format: (pointID, pointVector, clusterID, distance) @Override public void cross(PactRecord dataPointRecord, PactRecord clusterCenterRecord, Collector<PactRecord> out) { CoordVector dataPoint = dataPointRecord.getField(1, CoordVector.class); PactInteger clusterCenterId = clusterCenterRecord.getField(0, PactInteger.class); CoordVector clusterPoint = clusterCenterRecord.getField(1, CoordVector.class); this.distance.setValue(dataPoint.computeEuclidianDistance(clusterPoint)); // add cluster center id and distance to the data point record dataPointRecord.setField(2, clusterCenterId); dataPointRecord.setField(3, this.distance);

• ut.collect(dataPointRecord);

} }

PageRank and recommenders on very large scale Stratosphere Input Contracts Cross

Cross

PageRank and recommenders on very large scale Stratosphere Input Contracts Match

Match

Path Match

Given edges (e, f ) and (f , g) of a graph construct (e, g) paths.

PageRank and recommenders on very large scale Stratosphere Input Contracts Match

Match

public static class ConcatPaths extends MatchStub implements Serializable { //define outputRecord, length, hopCnt, hopList... @Override public void match(PactRecord rec1, PactRecord rec2, Collector<PactRecord>

• ut) throws Exception {

// rec1 has matching start, rec2 matching end final PactString fromNode = rec2.getField(0, PactString.class); final PactString toNode = rec1.getField(1, PactString.class); if (fromNode.equals(toNode)) return; //circle prevention // Create new path

• utputRecord.setField(0, fromNode);
• utputRecord.setField(1, toNode);

// Compute length of new path & hop count ... // Concatenate hops lists and insert matching node... // Append the whole path in a Stringbuilder... hopList.setValue(sb.toString().trim());

• utputRecord.setField(4, hopList);
• ut.collect(outputRecord);

} }

PageRank and recommenders on very large scale Stratosphere Input Contracts Match

Match

PageRank and recommenders on very large scale Stratosphere Input Contracts CoGroup

CoGroup

Floyd CoGroup

Given shortest paths to inneighbours of a vertex in a directed graph and the edges of the graph compute the shortest path to the vertex.

PageRank and recommenders on very large scale Stratosphere Input Contracts CoGroup

CoGroup

public static class FindShortestPath extends CoGroupStub implements Serializable { // define outputRecord, shortestPaths, hopCnts, minLength ... @Override public void coGroup(Iterator<PactRecord> inputRecords, Iterator<PactRecord> concatRecords, Collector<PactRecord> out) { // init minimum length and minimum path ... // find shortest path of all input paths... // find shortest path of all input and concatenated paths...

• utputRecord.setField(0, fromNode);
• utputRecord.setField(1, toNode);
• utputRecord.setField(2, minLength);

// emit all shortest paths for(PactString shortestPath : shortestPaths) {

• utputRecord.setField(3, hopCnts.get(shortestPath));
• utputRecord.setField(4, shortestPath);
• ut.collect(outputRecord);

} hopCnts.clear(); shortestPaths.clear(); } }

PageRank and recommenders on very large scale Stratosphere Input Contracts CoGroup

CoGroup

PageRank and recommenders on very large scale PageRank and recommender systems

Table of contents

Distributing data-intensive algorithms Stratosphere Input Contracts PageRank and recommender systems Reference

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Iterations in Stratosphere

Denotation

◮ S is a partitioned dataset ◮ f is a Stratosphere program ◮ < is a termination criterion

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Iterations in Stratosphere

Denotation

◮ S is a partitioned dataset ◮ f is a Stratosphere program ◮ < is a termination criterion

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Iterations in Stratosphere

Denotation

◮ S is a partitioned dataset ◮ f is a Stratosphere program ◮ < is a termination criterion

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Iterations in Stratosphere

Denotation

◮ S is a partitioned dataset ◮ f is a Stratosphere program ◮ < is a termination criterion

1: while S < f (S) do 2:

do S := f (S)

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Bulk iterations

Traits

◮ Each iteration is a

synchronization point (superstep)

◮ Optimizer weighs costs of

dynamic data path with iterations

◮ Caches where data paths meet ◮ Pushes repeated work to

constant data path

PageRank scheme

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Bulk iterations

Traits

◮ Each iteration is a

synchronization point (superstep)

◮ Optimizer weighs costs of

dynamic data path with iterations

◮ Caches where data paths meet ◮ Pushes repeated work to

constant data path

PageRank scheme

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Bulk iterations

Traits

◮ Each iteration is a

synchronization point (superstep)

◮ Optimizer weighs costs of

dynamic data path with iterations

◮ Caches where data paths meet ◮ Pushes repeated work to

constant data path

PageRank scheme

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Bulk iterations

Traits

◮ Each iteration is a

synchronization point (superstep)

◮ Optimizer weighs costs of

dynamic data path with iterations

◮ Caches where data paths meet ◮ Pushes repeated work to

constant data path

PageRank scheme

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Incremental iterations

Rationale

◮ New construct: incremental (workset) iteration ◮ W contains elements from S that may change in the next

iteration

◮ D computed from S, W and efficiently merged with prior S

Workset W recomputed from D

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Incremental iterations

Rationale

◮ New construct: incremental (workset) iteration ◮ W contains elements from S that may change in the next

iteration

◮ D computed from S, W and efficiently merged with prior S

Workset W recomputed from D

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Incremental iterations

Rationale

◮ New construct: incremental (workset) iteration ◮ W contains elements from S that may change in the next

iteration

◮ D computed from S, W and efficiently merged with prior S

Workset W recomputed from D

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Incremental iterations

Rationale

◮ New construct: incremental (workset) iteration ◮ W contains elements from S that may change in the next

iteration

◮ D computed from S, W and efficiently merged with prior S

Workset W recomputed from D

1: S := I, W := S 2: while W = ∅ do 3:

D := u(S, W )

4:

W := δ(D, S, W )

5:

S := S ⊎ W

PageRank and recommenders on very large scale PageRank and recommender systems Iterations in Stratosphere

Pregel as a Stratosphere job

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Recommender systems

Recommender systems

Alternating Least Squares (ALS)

◮ We have a U user and an I itemset ◮ The users rating are stored in R ∈ R|U|×|I| ◮ But |U| and |I| can easily be at the range of millions. . . ◮ Let’s find P and Q such that PQ ≈ R ◮ Let P ∈ R|U|×k and Q ∈ Rk×|I|, where k is a small constant ◮ The algorithm uses least squares to estimate, alternating for

P and Q

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Limitations of BSP

Challenge

◮ Algorithmic and

physical partitions are different to utilize cpus

◮ In PageRank its OK to

send the same rank multiple times

◮ In ALS it means

duplicating the matrix each time!

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Limitations of BSP

Challenge

◮ Algorithmic and

physical partitions are different to utilize cpus

◮ In PageRank its OK to

send the same rank multiple times

◮ In ALS it means

duplicating the matrix each time!

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Limitations of BSP

Challenge

◮ Algorithmic and

physical partitions are different to utilize cpus

◮ In PageRank its OK to

send the same rank multiple times

◮ In ALS it means

duplicating the matrix each time!

Scheme of the BSP system

Wikipedia, public domain

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Possible solution

Proposed new Stratosphere input contract

Given a set of values pi indexed by i, and a relation Rij over the index set, form the co-group ∀j as: j : pi for Rij

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Possible solution

Proposed new Stratosphere input contract

Given a set of values pi indexed by i, and a relation Rij over the index set, form the co-group ∀j as: j : pi for Rij In other words, a directed graph defines the values pi that have to be aggregated at nodes j.

PageRank and recommenders on very large scale PageRank and recommender systems Distributing ALS

Possible solution

Proposed new Stratosphere input contract

Given a set of values pi indexed by i, and a relation Rij over the index set, form the co-group ∀j as: j : pi for Rij In other words, a directed graph defines the values pi that have to be aggregated at nodes j. Both ALS and PageRank (and I guess may more) use this Input Contract.

PageRank and recommenders on very large scale Reference

Table of contents

Distributing data-intensive algorithms Stratosphere Input Contracts PageRank and recommender systems Reference

PageRank and recommenders on very large scale Reference Where to look for additional info

Literature

„TriangleCounter”

Englert et al. (2014): Efficiency Issues of Computing Graph Properties of Social Networks, Presented at The 9th International Conference on Applied Informatics, Eger, proceedings are under publish.

Stratosphere PACTs

Battré et al. (2010): Nephele/PACTs: a programming model and execution framework for web-scale analytical processing, Proceedings of the 1st ACM symposium on Cloud computing, p119-130.

PageRank and recommenders on very large scale Reference Where to look for additional info

On the web

Data Mining and Search & Big Data BI Groups

Our research groups can be found at dms.sztaki.hu and at bigdatabi.sztaki.hu.

Stratosphere project homepage

The project can be found at stratosphere.eu. The homepage served as a source for all the images and code presented on these slides.
