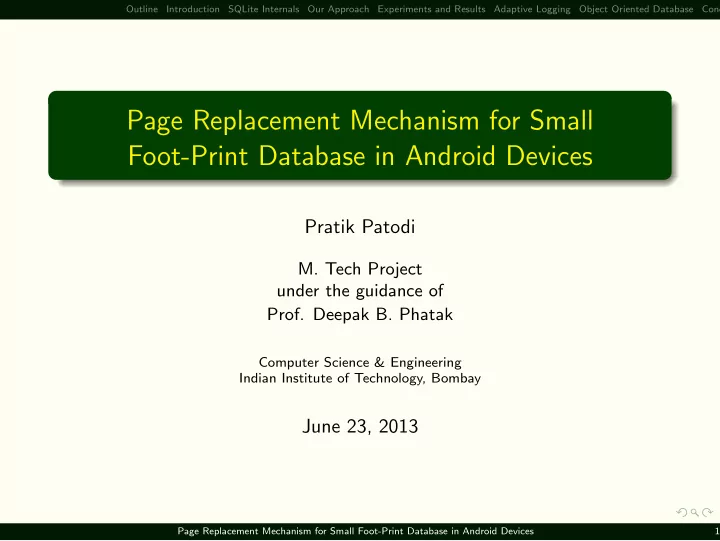

Page Replacement Mechanism for Small Foot-Print Database in Android Devices

Pratik Patodi

• M. Tech Project

under the guidance of

• Prof. Deepak B. Phatak

Computer Science & Engineering Indian Institute of Technology, Bombay

June 23, 2013

Page Replacement Mechanism for Small Foot-Print Database in Android Devices 1

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

1 Introduction

Android Flash Drives Motivation

2 SQLite Internals

SQLite Architecture Query Execution Plane Updating Content

3 Our Approach

Overview

4 Experiments and Results

Challenges

5 Adaptive Logging

Working

6 Object Oriented Database 7 Conclusion and Future Work 8 References

Outline Page Replacement Mechanism for Small Foot-Print Database in Android Devices 2

Introduction

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

“What is Android?”

• A Complete operating environment based upon the Linux kernel 2.6

provides[Bhu10]:

• Powerful operation system.
• Comprehensive Library Set.
• Multimedia User Interface.
• Phone Application.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 4

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

“What is Android?”

• A Complete operating environment based upon the Linux kernel 2.6

provides[Bhu10]:

• Powerful operation system.
• Comprehensive Library Set.
• Multimedia User Interface.
• Phone Application.
• It consists of 4 layers:
• Linux Kernel.
• Libraries and Android Runtime.
• Application Framework.
• Applications.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 4

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Android Architecture

Figure: System Architecture [Arc]

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 5

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 6

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).
• Lighter from of Mysql.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).
• Lighter from of Mysql.

Many of the functionalities of Mysql are not present in SQLite as mentioned below[MyS13].

• User management

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).
• Lighter from of Mysql.

Many of the functionalities of Mysql are not present in SQLite as mentioned below[MyS13].

• User management
• Database Capabilities: SQLite does not have right outer join.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).
• Lighter from of Mysql.

Many of the functionalities of Mysql are not present in SQLite as mentioned below[MyS13].

• User management
• Database Capabilities: SQLite does not have right outer join.
• Alter command: Rename and Add column.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• SQLite
• Native Android Database.
• Light weight.
• Executes SQL like commands.
• written in C, Requires JNI
• Provides Journaling Mechanism (Update-in-place).
• Lighter from of Mysql.

Many of the functionalities of Mysql are not present in SQLite as mentioned below[MyS13].

• User management
• Database Capabilities: SQLite does not have right outer join.
• Alter command: Rename and Add column.
• Data type: Boolean, binary, data time, enum, and set.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 7

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• Flash memory
• Internal + External
• Non-volatile, shock-resistant, and uses little power.
• Potable.
• Chip and easily available now a days.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 8

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

• Flash memory
• Internal + External
• Non-volatile, shock-resistant, and uses little power.
• Potable.
• Chip and easily available now a days.
• Limitations
• Block Write.
• Rewrite = Erase + Write.
• Fixed number of writes.

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 8

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Introduction

“Motivation”

Introduction Page Replacement Mechanism for Small Foot-Print Database in Android Devices 9

SQLite Internals

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

SQLite Architecture

Figure: Initial State [sql13]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 11

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Query Execution Plane

• Each SQL Statement is converted into an intermediate program.
• Each instruction of the program is having an Opcode, and upto five
• perands.
• pcode

P1 P2 P3 P4 P5

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 12

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Query Execution Plane

• Each SQL Statement is converted into an intermediate program.
• Each instruction of the program is having an Opcode, and upto five
• perands.
• pcode

P1 P2 P3 P4 P5

• P1 , P2, and P3 - Holds integer value.
• P4- Table name.
• P5- Flag.

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 12

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Query Execution Plane

Insert Statement

INSERT INTO tbl1 VALUES(01,pratik!); Addr

• pcode

P1 P2 P3 P4 P5 Trace 1 Goto 10 2 OpenWrite 2 2 3 NewRowid 1 4 Integer 1 2 5 String8 3 pratik! 6 MakeRecord 2 2 4 da 7 Insert 4 1 tbl1 1b 8 Close 9 Halt 10 Transaction 1 11 VerifyCookie 1 12 TableLock 2 1 tbl1 13 Goto 2

Table: Opcode program for INSERT statement

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 13

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Query Execution Plane

Update Statement

UPDATE tbl1 SET value = ’bye pratik’ WHERE key = 01; Addr

• pcode

P1 P2 P3 P4 P5 Trace 1 Goto 24 2 Null 1 2 3 OpenWrite 2 1 4 Rewind 11 5 Column 5 6 Integer 1 6 7 Ne 6 10 5 collseq(BINARY) 6c 8 Rowid 2 9 RowSetAdd 1 2 10 Next 5 1 11 Close 12 OpenWrite 2 2 13 RowSetRead 1 22 2

Table: Opcode program for UPDATE statement

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 14

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Query Execution Plane

Update Statement cont.

UPDATE tbl1 SET value = ’bye pratik’ WHERE key = 01; Addr

• pcode

P1 P2 P3 P4 P5 14 NotExists 13 2 15 Null 3 4 16 Column 3 17 String8 4 bye pratik 18 NotExists 19 2 19 MakeRecord 3 2 5 da 20 Insert 5 2 tbl1 5 21 Goto 13 22 Close 23 Halt 24 Transaction 1 25 VerifyCookie 1 26 TableLock 2 1 tbl1 27 Goto 2

Table: Opcode program for UPDATE statement

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 15

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Initial State”

Figure: Initial State [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 16

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Acquiring A Read Lock”

Figure: Acquiring A Read Lock [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 17

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Reading Data from the Database ”

Figure: Reading Data from the Database [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 18

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Obtaining A Reserved Lock”

Figure: Obtaining A Reserved Lock [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 19

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Creating A Journal File”

Figure: Journal File[Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 20

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Changing Database Pages In User Space”

Figure: Changing Database Pages In User Space[Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 21

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Flushing The Journal File To Mass Storage”

Figure: Flushing The Journal File To Mass Storage[Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 22

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Exclusive Lock”

Figure: Exclusive Lock [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 23

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Writing Changes To The Database File”

Figure: Writing Changes To The Database File [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 24

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Flushing Changes To Mass Storage”

Figure: Flushing Changes To Mass Storage [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 25

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Deleting The Journal file”

Figure: Deleting The Journal File[Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 26

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Updating Content

“Releasing Aquired Lock”

Figure: Releasing Aquired Lock [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 27

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“When Something Goes Wrong...”

Figure: When Something Goes Wrong... [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 28

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“Hot Rollback Journal”

Figure: Hot Rollback Journal [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 29

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“Obtaining An Exclusive Lock On The Database”

Figure: Obtaining An Exclusive Lock On The Database [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 30

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“Rolling Back Incomplete Changes”

Figure: Rolling Back Incomplete Changes [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 31

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“Deleting The Hot Journal”

Figure: Deleting The Hot Journal [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 32

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Rollback

“Continue As If The Uncompleted Writes Had Never Happened”

Figure: Continue As If The Uncompleted Writes Had Never Happened [Ato]

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 33

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

SQLite File structure

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 34

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Flash Drive Limitations

Limitations

• Block Write.
• Rewrite = Erase + Write.
• Fixed number of writes.

SQLite Internals Page Replacement Mechanism for Small Foot-Print Database in Android Devices 35

Our Approach

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

How it works

• All the updates in a new/free leaf pages and add original pages to

clean list.

• Update page map table, by entering these new/free page address,

that to in new/free intermediate page, and add the original page map table in the clean list.

• Update the page no of the root page of the table in the schema

table, using journaling mechanism.

• Erase all the page present in the clean list.
• Set COMMIT flag.
• Failure before COMMIT- remove at the pages from clean list and

add the new pages to clean list.

• Failure after COMMIT- database already consistent.

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 37

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 38

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 39

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 40

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 41

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Our Approach

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 42

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

SQLite File structure

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 43

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Functional Flow

Our Approach Page Replacement Mechanism for Small Foot-Print Database in Android Devices 44

Experiments And results

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Schema used

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 46

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Entries

The tables are populated with following entries.

• 5 departments - Electrical, Mechanical, Civil, Maths, Computer

Science.

• 10,000 students with 2,000 in each department. tot grades is zero

for all students.

• 15 courses - 3 courses with name basic, intermediate and advance

for in each department.

• 17 instructors.
• 15 entries in teaches table - 1 for each subject.
• 20,000 entries of student in takes table distributed evenly.

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 47

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 1: Small Delete

Query- DELETE FROM instructor where ins id NOT IN (SELECT DISTINCT ins id FROM teaches); Technique used Time in mil- liseconds Database Size in KB Expected no.

• f

pages ef- fected Journaling 3796 788 1 Shadow Paging 5468 790 1

Table: Time Taken and DB size for Small delete (1 Page)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 48

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 2: Small Delete different pages-

Query- DELETE FROM student where name = ‘Pratik Patodi; Technique used Time in mil- liseconds Database Size in KB Expected no.

• f

pages ef- fected Journaling 6478 788 3 Shadow Paging 6592 790 3

Table: Time Taken and DB size for Small delete (3 Page)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 49

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 3: Small Update

Query- UPDATE instructor SET salary = salary + 5000 WHERE dept id = (SELECT dept id FROM department WHERE dept name = ‘Computer Science’); Technique used Time in mil- liseconds Database Size in KB Expected no.

• f

pages ef- fected Journaling 3894 788 1 Shadow Paging 5643 790 1

Table: Time Taken and DB size for Small delete (1 Page)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 50

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 4: Large Delete

Query- DELETE FROM department WHERE dept name = ‘Computer Science’); Technique used Time in mil- liseconds Database Size in KB Expected no.

• f

pages ef- fected Journaling 69149 788 77 Shadow Paging 39236 863 77

Table: Time Taken and DB size for Mass delete (Approx 77 Pages)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 51

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 5: Mass Update-

Query- UPDATE student as s SET tot grade = (SELECT sum(grade) FROM takes where s.roll no = takes.roll no GROUP BY roll no); Technique used Time in mil- liseconds Database Size in KB Expected no.

• f

pages ef- fected Journaling 259396 788 233 Shadow Paging 149086 1021 233

Table: Time Taken and DB size for Mass update (Approx 233 Pages)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 52

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Case 6: Select after update-

Query- SELECT name,CNT FROM student AS A JOIN (SELECT roll no,COUNT(*) AS CNT FROM takes GROUP BY roll no) B ON A.roll no=B.roll no; Technique used Time in milliseconds Database Size in KB Journaling 15223 788 Shadow Paging 15325 1021

Table: Time Taken and DB size for Mass update (Approx 233 Pages)

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 53

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Comparison

Figure: comparison

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 54

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Analysis

• In case of small update/delete Journaling Mechanism is more

efficient then our approach.

• In case of Large update/delete our approach out performance

journaling approach.

• In case of reading from database- both techniques performs equally.

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 55

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Challenges

Distorted file structure Solution: On flash memory, data location is not important than data access speed.[BCH05] Extra Space Required This extra overhead can be compromised at the cost of decreased response time. storing log records is not required. Large Number of Small Updates Solution: Use Adaptive logging.

Experiments and Results Page Replacement Mechanism for Small Foot-Print Database in Android Devices 56

Adaptive Logging

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Adaptive Logging

Overview

• A-type update.

Adaptive Logging Page Replacement Mechanism for Small Foot-Print Database in Android Devices 58

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Adaptive Logging

Overview

• A-type update.
• S-type update.

Adaptive Logging Page Replacement Mechanism for Small Foot-Print Database in Android Devices 58

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Adaptive Logging

Overview

• A-type update.
• S-type update.
• Default technique: Journaling.

Adaptive Logging Page Replacement Mechanism for Small Foot-Print Database in Android Devices 58

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Adaptive Logging

Overview

• A-type update.
• S-type update.
• Default technique: Journaling.
• Journal size >Threshold, Switch to Our Approach.

Adaptive Logging Page Replacement Mechanism for Small Foot-Print Database in Android Devices 58

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Adaptive Logging

Figure: Two Update Pattern [KJW10]

Adaptive Logging Page Replacement Mechanism for Small Foot-Print Database in Android Devices 59

Object Oriented Database

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Object Oriented Database

• Berkley DB JE: Berkley DB Java edition(JE) is developed at

Berkley university. It is written in Java. Hence, it does not uses any JNI to execute its instructions. It uses logging mechanism.

• Perst DB: It is an Open Source Database Engine, developed by the

McOject company. This company has developed many embedded Database system for different framework like C#, .NET, Java, etc. Here, we have used its Java version.

Object Oriented Database Page Replacement Mechanism for Small Foot-Print Database in Android Devices 61

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Object Oriented Database

Figure: Time Taken of 10 key-value Records

Object Oriented Database Page Replacement Mechanism for Small Foot-Print Database in Android Devices 62

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Object Oriented Database

Figure: Time Taken of 100 key-value Records

Object Oriented Database Page Replacement Mechanism for Small Foot-Print Database in Android Devices 63

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Object Oriented Database

Figure: Time Taken of 1,000 key-value Records

Object Oriented Database Page Replacement Mechanism for Small Foot-Print Database in Android Devices 64

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Object Oriented Database

Figure: Time Taken of 10,000 key-value Records

Object Oriented Database Page Replacement Mechanism for Small Foot-Print Database in Android Devices 65

Conclusion and Future Work

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Conclusion and Future Work

Conclusion

• Android Operating System provides a native database engine,

SQLite.

Conclusion and Future Work Page Replacement Mechanism for Small Foot-Print Database in Android Devices 67

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Conclusion and Future Work

Conclusion

• Android Operating System provides a native database engine,

SQLite.

• SQLite uses Update-in-place Mechanism.

Conclusion and Future Work Page Replacement Mechanism for Small Foot-Print Database in Android Devices 67

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Conclusion and Future Work

Conclusion

• Android Operating System provides a native database engine,

SQLite.

• SQLite uses Update-in-place Mechanism.
• Our technique is better for flash memory, in case of large update.

Conclusion and Future Work Page Replacement Mechanism for Small Foot-Print Database in Android Devices 67

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

Conclusion and Future Work

Future Work

• Performance can further be enhanced by implementing Adaptive

logging.

• Analysis of pros and cons of object oriented database.
• Implement the concurrency part and experiment.

Conclusion and Future Work Page Replacement Mechanism for Small Foot-Print Database in Android Devices 68

Outline Introduction SQLite Internals Our Approach Experiments and Results Adaptive Logging Object Oriented Database Conclusion

References I

Android Architecture. http://http://www.elinux.org/Android Architecture. [Online; accessed 3-Oct-2012]. Roolback Journal. http://www.sqlite.org/draft/atomiccommit.html. [Online; accessed 3-Oct-2012]. Siwoo Byun, Seongyun Cho, and Moonhaeng Huh. Flash memory shadow paging scheme for portable computers: Design and performance evaluation. ACM Trans. Database Syst., 39(3), October 2005. Vijay K. Madisetti Bhupinder S. Mongia. Reliable real-time applications on android os. http://www.ece.gatech.edu/~vkm/Android_Real_Time.pdf, 2010. Young-Seok Kim, Heegyu Jin, and Kyoung-Gu Woo. Adaptive logging for mobile device.

• Proc. VLDB Endow., 3(1-2):1481–1492, September 2010.

MySQL-vs-SQLite. http://database-management-systems.findthebest.com/compare/30-53/MySQL-vs-SQLite, 2013. [Online; last accessed 20-June-2013]. Architecture Of SQLite. http://www.sqlite.org/arch.html, 2013. [Online; last accessed 20-June-2013]. References Page Replacement Mechanism for Small Foot-Print Database in Android Devices 69
