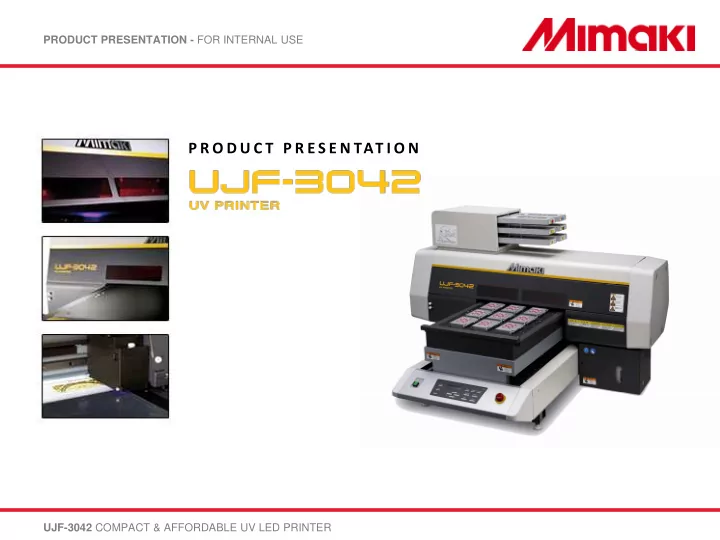

PRODUCT PRESENTATION - FOR INTERNAL USE P R O D U C T P R E S E N TAT I O N UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Contents Product Features Technical Information Product Concept • Print Speed • System Configuration • Product Description • Inks • Installation Condition • Key Benefits • Specifications • Media Holding System • Main Features • Supplies • Printing on 3D Objects • UV LED Benefits • Market and Applications • Printing on Many Substrates Additional Information • Included RIP Software • Digital Printing Benefits • Adding Value with Doming • Digital vs. Analog Workflow Cost Calculation • Ink Cost per Item UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Product Description High quality, reliable entry level A3 UV printer. For objects up to 5 cm thick. For screen, pad and digital printers, retailers, gift shops, and manufacturers. For on-demand production and personalization with a short job turnaround time. UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Key Benefits UV LED benefits - Printing on heat sensitive media - No lamp warm up time - LEDs last ten times longer (10,000 hours) Media thickness up to 50 mm White and clear ink Space saving compact design Can be used with 220V electricity UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Main Features • Up to 1,440 x 1,200 dpi • Speed: 4 minutes in standard mode* • UV ink: CMYK + white + clear ink • 50 mm thick and 5 kg weight • Vacuum system for holding down the media • Spray suppressor system prevents satellite ink drops • UV LED print technology • High performance Rasterlink Pro5 IP included * Depending on the job UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept UV LED Benefits over Conventional UV Lamps • Printing on more substrates, including heat sensitive media • Faster production / quick setup; no ink drying time, instant switching on and off of the printer • Low power consumption (less than 500VA), enabling cost saving • Long lifetime of UV LEDs (10x longer than conventional metal halide UV lamps) • Low operation costs (UV LEDs are including in the annual maintenance contract) UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Markets and Applications Promotional Products / Novelties - Bottle opener - Linear scale - Pens - USB sticks, etc. Gifts and Premiums - Graphic awards / trophy - Souvenirs Indoor Signs - Nameplates Discover more possibilities: - Route signs http://www.mimakieurope.com/ujf/ujf-discover-the-possibilities.php UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Markets and Applications Cards and rigid labels - ID / loyalty cards - Rigid label Electronic Covers - Mobile phone - Game console - Laptop Other industrial products - Electronics covers - Control panels Discover more possibilities: - Art (re)production http://www.mimakieurope.com/ujf/ujf-discover-the-possibilities.php - Package prototypes UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Concept Benefits of UJF Series over Pad & Screen Printing Full colour Full colour images + white Short run On-demand production of many items From design to finish in one day Short turnaround Cost saving Lower set up / operational costs Larger surfaces Printing on larger surfaces User friendliness Quick setup, easy handling Variable data and imprinting Personalization UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product concept Digital Workflow vs. Analog Workflow Design/ Prepress Printing Finishing Data input No processing Data management Media Only placement UJF Series checking Short runs, and immediate Just call up the data Full colour printing different versions printing for repeat orders Film Plate Printing Traditional Compilation compilation generation Drying Plate cleaning Ink toning from screen and of data and for each (1 for each faint colour pad printing versioning colour color) Repeat for Framework and exposure Repetition for each color Thinner cleaning etc. each colour to light drying etc UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Print Speed Print speed – at maximum print size (300 x 420 mm) Staggered print head Speed Resolution arrangement for effective simultaneous 4 min (1.9 m 2 /h) Standard 720 x 600 dpi 8 pass color and white printing ＭＣ ＹＫ High Quality 11.5 min (0.6 m 2 /h) 1440 x 1200 dpi 16 pass • Same speed applies for simultaneous white printing One set of each • It is possible to simultaneously print white over- and (white and clear can be inserted) underprint for additional effects W SP [ a maximum of 4 colours + white + clear possible ] UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Inks LH-100 Hard UV LED Ink b* 120 • Resin is ideal for printing later in the process and does not require plastic 100 • Excellent scratch and chemical resistance 80 60 • Clear ink provide for excellent results and add value to products 40 • Wide colour gamut (wider than ISO Coated v2) 20 0 a* -100 -50 0 50 100 -20 - Media : White ＰＥＴ -40 - Measurement conditions: Light source Ｄ 50, 2 o field of view -60 -80 Hard UV LED ink （ LH-100 ） ISO Coated v2 • Physical properties (adhesion, water resistance, etc.) of different substrates may vary. Please check before printing. UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Media Holding System Use a jig or the vacuum system Typically users can choose between placing the objects directly on the vacuum bed or to use a jig. A jig is handy to precisely print a range of smaller objects, whereas the vacuum table is excellent to be used for plates of acrylic, dibond, forex, glass, etc. Top : Jig for pens Left : Jig for cards Right: Vacuum bed UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Printing on 3D Objects • Maximum thickness of 50 mm • Non-contact printing allows for high quality images, also on uneven surfaces (allowing a maximum head gap of approx. 2 mm) Head Approx. 2 mm When printing on 3-dimensional objects, it is advised to set the jig and adjust it to the height of the material surface in order to decrease amount of satellite drops Cross-section diagram The distance between the print head and the object should ■ Substrate ■ Jig not be more than 2 mm to achieve good image quality. UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Printing on Many Substrates • Many substrates can be directly printed upon and have excellent adhesion • A number of substrates, such as metals or glass, need pretreatment for acceptable adhesion results • Ways to pre-treat: 1. Applying primer 2. Flaming the substrate 3. Plasma / Corona • The available clear ink can further protect the image UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Product Features Included RIP Software: Rasterlink Pro 5 IP • The Mimaki Web Server is accessible Internet Mimaki Win from Rasterlink Pro 5 to download the Web latest software and profiles. Server • 8 bits 16 bits 16 bit rendering eliminates tone jump and produces fine colour reproduction and smoother gradation MPM2 (optional) can be used for optimum colour profiling of individual media UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Cost Calculation UJF-3042: Ink Cost per Item Triangle Marker (32 x 34 mm) Approximate Ink Item Resolution Description Cost per Item* Bottle opener 1200x1200 dpi 1 layer + white € 0.01591 Notebook Bottle opener 600 x 600 dpi 1 layer + white € 0.00859 (71 x 93 mm) Triangle marker 1200x1200 dpi 1 layer, no white € 0.00355 Triangle marker 600 x 600 dpi 1 layer, no white € 0.00233 Notebook 1200x1200 dpi 1 layer + white € 0.03055 Notebook 600 x 600 dpi 1 layer + white € 0.01655 Bottle Opener ** (33 x 43 mm) * Calculated using Rasterlink Pro ** Blue background is not printed. It is the colour of the bottle opener UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
PRODUCT PRESENTATION - FOR INTERNAL USE Technical Information System Configuration ( PC ) USB 2.0 cable (max. 5 m) Option < RIP Software > < Compatible Inks> File formats: EPS, PS, TIFF, JPEG, BMP Hard (LH-100) Item Included RIP software Rasterlink Pro 5 IP (standard) UJF-3042 6 x 220 cc ink cartridge (1 cartridge per colour) UJF-3042 COMPACT & AFFORDABLE UV LED PRINTER
