CS101 Lecture 32 Advanced Topics: Computer Graphics & Computer Vision John Magee 6 August 2013 1 Overview/Questions What are Computer Graphics? How do video games work? How are computer animation movies made? What is

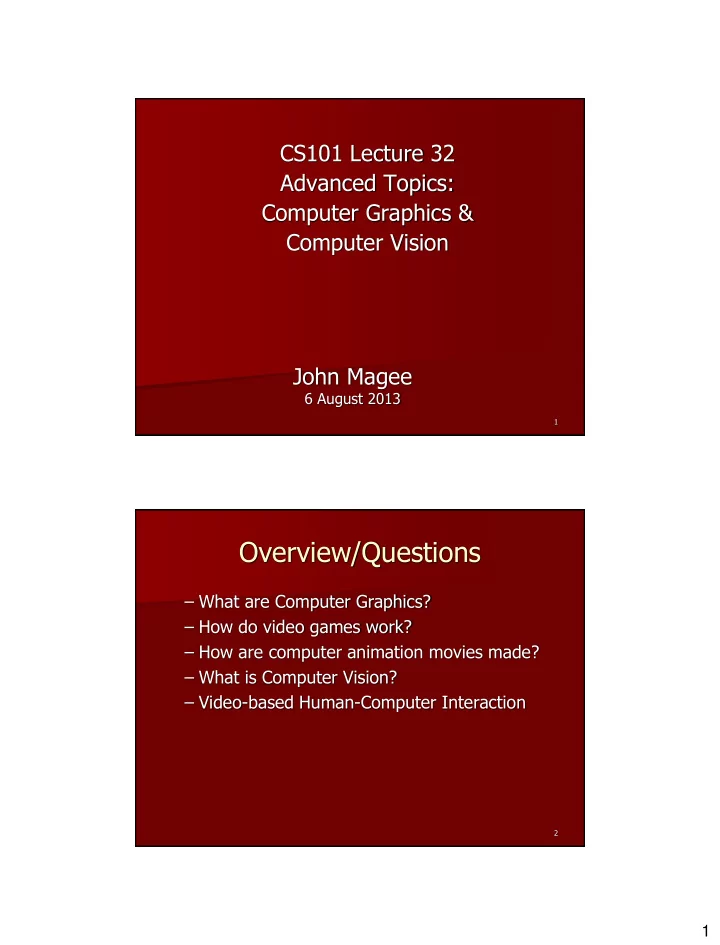

SLIDE 1

1

John Magee

6 August 2013

CS101 Lecture 32 Advanced Topics: Computer Graphics & Computer Vision

Overview/Questions

– What are Computer Graphics? – How do video games work? – How are computer animation movies made? – What is Computer Vision? – Video-based Human-Computer Interaction

SLIDE 2

2

What are Computer Graphics?

Many uses:

– User interfaces, Applications – Design, Art – Video games – Animation – Visualization

Recall: Vector Graphics Example

A vector-graphics example in Python.

Computer graphics in general: Description of scene  Visual representation (Image)

Recall Computing: Input  processing  output

SLIDE 3

3

2D Graphics

Imagine a flat world

Vector Graphics assignment by CS108 student, Spring 2008

2D Games

 Arrangement of graphic

elements on a plane.

 Can be vector graphics or

raster graphics.

 Sprite – A (small) raster

graphic that can be moved around a display.

Sprites and masks from Pac-man

SLIDE 4

4

What happens in real world?

Pinhole camera

3D world is projected through a pinhole or a lens

n to a 2D plane.

3D Graphics

Description of 3D scene and viewpoint  simulated projected image

How do you describe 3D world?

Math equations – spheres,

planes, etc.

Polygon mesh – represent a

complex 3D surface with many triangles.

SLIDE 5

5

Real-Time vs. Long Rendering

Rendering – The process of creating the images from the description. Usually involves Rasterization.

 Interactive graphics (GUI,

Video Games) must render the scene quickly.

 Art, Animation, etc. can

take much longer.

Ray Tracing

 Traces a path of light

from the camera through the image pixels into the scene description.

 Long rendering time.

Good for creating photorealistic images.

SLIDE 6

6

Ray Tracing

– My CS680 homework assignment #4 from 2001

Ray Tracing

 Some better examples:  POV-Ray Hall of Fame

– http://hof.povray.org/ Persistence of Vision Ray Tracer http://www.povray.org/

SLIDE 7

7

Other Techniques

Texture Mapping

Shading

Bump Mapping

Sphere Bump Map Result

SLIDE 8

8

Graphics Accelerator

– Specialized hardware for real-time rendering (usually gaming!)

Graphics in the news recently:

WSJ: In Pixar's 'Brave,' New Software Adds Rich Detail

http://online.wsj.com/article/SB10001424052702303836404577472942036042750.html http://www.msnbc.msn.com/id/47914137/ns/technology_and_science-science/t/brave-brings-hair-raising-animation- life/#.T-flfrVrMYQ http://phys.org/news/2012-06-brave-features-hair-raising-animations.html 16

SLIDE 9

9

Graphics in the news recently:

 Throwing shade: how Pixar changed the way light works

for 'Monsters University'

– Inside the studio's new Global Illumination system  http://www.theverge.com/2013/6/21/4446606/how-pixar-

changed-the-way-light-works-for-monsters-university

17 18

Animation

How does Pixar make their movies?

– They have custom software and a large “rendering farm”

Open Movie Project:

– 2 Films made with free/open source software. – Made with Blender http://www.blender.org/ and other software. – Code for the movie is available. http://www.bigbuckbunny.org/ http://www.elephantsdream.org/

SLIDE 10

10

Computer Vision

Recall: Computer graphics in general Description of scene  Visual representation (Image) Computer Vision in general: Image(s)  Some description of the scene How are Computer Graphics and Computer Vision Related? Example - Input: Image Output: Face locations

Fujifilm camera demo

Computer Vision

Many Subfields

SLIDE 11

11

Some Easy Techniques

 Color Analysis  Motion Analysis  Template matching

(Ignore the extra detail on the next few slides)

Color Analysis

Skin color analyzed by lookup of 2D histogram: Histogram can be updated during operation 

SLIDE 12

12

Motion Analysis

Motion analysis by frame differencing: Recall: Video compression uses frame differencing.

Template Matching

 Normalized correlation coefficient matching over

multi-resolution search space.

12 x 16 Template matching over all resolutions 

Sum of Absolute Differences

SLIDE 13

13

Face Tracking

Face Detection vs. Face Recognition

Face Detection exploits the similarities between human faces. Face Recognition exploits the differences between human faces.

SLIDE 14

14

Computer Vision

What can go wrong?

– You might not know anything about a scene! – Lighting could change! – People could do weird things!

Human-Computer Interaction

We’re all used to mouse and keyboard… But you could use a camera to track motion… Camera Mouse

http://www.cameramouse.org/ (Free Download)

Articles and Videos:

http://www.bu.edu/today/2009/04/10/seeing-eye-mouse http://www.bu.edu/today/2011/big-meaning-in-the- smallest-movements/ A user with severe paralysis using the Camera Mouse

SLIDE 15

15

Google Similar Images

http://www.youtube.com/watch?v=6fD2t4d2Ln4

http://similar-images.googlelabs.com/

Bat Tracking

http://www.cs.bu.edu/faculty/betke/research/bats/

SLIDE 16

16

Computer Vision in Games

 Playstation Eye

– http://en.wikipedia.org/wiki/PlayStation_Eye – http://www.youtube.com/watch?v=bgLN7uOj8Jg

 Xbox Kinect

– http://www.youtube.com/watch?v=oACt9R9z37U – http://www.youtube.com/watch?v=GH_gDreIdcM&feature=related
