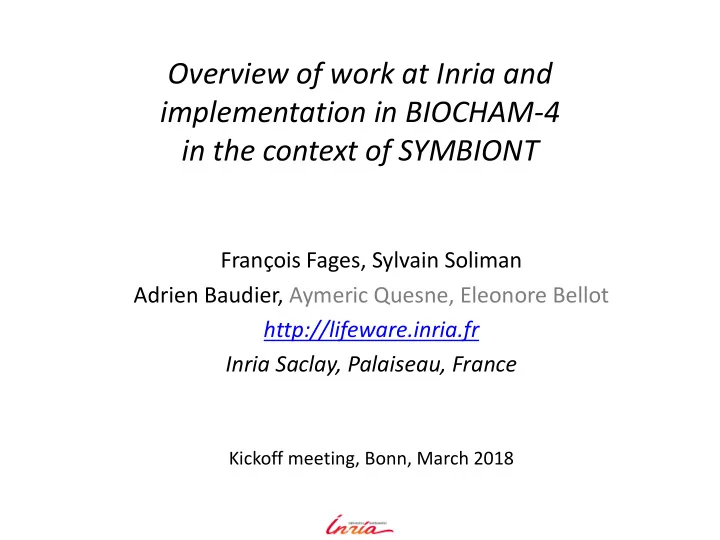

Overview of work at Inria and implementation in BIOCHAM-4 in the context of SYMBIONT

François Fages, Sylvain Soliman Adrien Baudier, Aymeric Quesne, Eleonore Bellot http://lifeware.inria.fr Inria Saclay, Palaiseau, France

Kickoff meeting, Bonn, March 2018

Overview of talk

• Tropical equilibration problem solver based on Constraint Logic

Programming

– Implementation in BIOCHAM-4 and evaluation in BioModels – Extension of the tropical solver with inequalities and scaling intervals [master internship Aymeric Quesne from July 9th] – Extension of the solver to integrate consistency constraints such as Tikhonov hyperbolicity constraints [PhD thesis of Eleonore Bellot from Sep. 1st]

• A graphical method for multistationarity analysis and its evaluation in

BioModels

– Thomas-Soulé necessary conditions for continuous influence networks – Soliman’s necessary conditions for continuous reaction networks – Graph rewriting algorithm [master internship of Adrien Baudier] – Evaluation in BioModels

Symbiont July 2018 François Fages

Constraint-based Methods

Constraint Programming (CP) provides efficient algorithms to solve many “practical” instances of NP-hard problems. Unlike “generate and test”, CP uses constraints (over different domains) actively to prune the search space a priori during search by applying

• domain-filtering algorithms (e.g. interval arithmetic) associated to each

constraint for over-approximating the set of solutions

• and (complete) search heuristics to enumerate the set of solutions
• Redundant constraints for better pruning
• Global constraints are n-ary relations with domain-filtering algorithms (of

any kind, graph-theoretic, linear relaxation, symbolic computation, etc) to provide better pruning than their decomposition with elementary constraints Pros: general method to handle a wide variety of constraints and domains Cons: does not provide a symbolic representation of the set of all solutions

Symbiont July 2018 François Fages

CP in Symbiont

Tropical algebra constraints (ℤ, +, min, =, ≤)

Soliman F Radulescu 2014 Algorithms for Molecular Biology

Can provide numerical solutions to tropical constraint satisfaction problems out

• f reach of current symbolic methods

Can make use of symbolic methods for domain filtering algorithms for global constraints (tractable subproblems) à Potentially able to deal with, and enforce, extra consistency constraints (e.g. Tikhonov hyperbolicity condition) for guaranteeing the correctness of model reduction a priori during search

Symbiont July 2018 François Fages

Current Implementation in BIOCHAM-4

Symbiont July 2018 François Fages

Tyson Cell Cycle Model

Symbiont July 2018 François Fages

Symbiont July 2018 François Fages

On-going Work

• Master internship: Aymeric Quesne (Supelec) from July 9th

– Add inequality constraints (ℤ, +, min, =, ≤) to our solver – Define the tropical abstraction 𝛽 by intervals: 𝛽(x+y)≠min(𝛽(x), 𝛽(y)) in general 𝛽(x+y)∈[ min(𝛽(x), 𝛽(y)) - 1 , min(𝛽(x), 𝛽(y) ] e.g. ∊=0.1 𝛽(0.4)=1 𝛽(0.4+0.4)=0 – Study the properties of 𝛽 with respect to the elimination of linear invariants

• PhD thesis: Eléonore Bellot (master AIV, master Physics) from Sep. 1st

– Add consistency constraints such as Tikhonov hyperbolicity constraints to our constraint solver – Compute tropical equilibration solutions that lead a priori to correct reductions – Add matching constraints for chaining model reductions

• Master internship of Adrien Baudier (Centrale Lyon) since April 1st

– Graphical requirements for multistationarity in continuous reaction networks

Symbiont July 2018 François Fages

Submitted to a special issue of the Journal of Theoretical Biology

Symbiont July 2018 François Fages

Necessary Conditions for Multistationarity in Reaction Networks and their Verification in BioModels in memoriam of Ren´ e Thomas

Adrien Baudier, Fran¸ cois Fages, Sylvain Soliman

Inria Saclay ˆ Ile-de-France, Palaiseau, France

F:ℝnà ℝn 𝜵: product of intervals G: graph of the signs of the Jacobian of F Thomas’ conjecture [Springer Synergetic 1981] for gene regulatory networks Soulé’s theorem [Complexus 2003] : But always satisfied in the influence graph

• f a reaction network

containing a binary reaction…

Thomas-Soulé’s Necessary Conditions for Multistationarity

Assume that is open and that Fhas at least two nondegenerate zeroes in .Then there exists a such that G(a) contains a positive circuit. Remark.

Symbiont July 2018 François Fages

E S ES P R1 R1 R−1 R−1 R2 R2 R1 R1

Labelled Influence Graphs of a Reaction Network

Symbiont July 2018 François Fages

. A hooping is a collection C = {C1, ..., Ck} of circuits such that, for all i ) j, Ci and Cj do not have a common vertex. A circuit is thus a special case of hooping. We let

Computed from the signs of the Jacobian matrix (may be an over-approximation for non mass action law kinetics)

E S ES P R1 R1 R−1 R−1 R2 R2 R1 R1 E R1 S ES R2 P R1

∂v1 ∂E

• 1

∂v1 ∂S

• 1

1

∂v1 ∂ES

• 1

1

∂v2 ∂ES

• 1

1 1 1

Figure 1: DSR graph of the enzymatic reaction: S + E <=> ES => E + P.

Soliman’s [BMB 2013] Necessary Conditions for Multistability in Reaction Networks

Theorem 2.2 ([1]). Let F be any differentiable map from Ω to Rn cor- responding to a biochemical reaction system. If Ω is open and F has two nondegenerate zeroes in Ω then there exists some a in Ω such that:

• 1. The reaction-labelled influence graph G of F at point a contains a pos-

itive circuit C;

• 2. There exists a hooping H in G, such that C is subcycle of H with

(Y 0 − Y )|H of full rank.

Symbiont July 2018 François Fages

Definition 2. The restriction of the system to a species hooping H (noted |H) is the system where reactions {Ri | i ∈ I} not appearing in H are omitted.

i.e. the stoichiometry matrix built using only the reactions appearing in C is of full rank

Conditions on the Labelled Influence Graph

Symbiont July 2018 François Fages

Corollary 2.3. A necessary condition for the multistationarity of a biochem- ical reaction system is that there exists a positive cycle in its influence graph, using at most once each reaction.

Corollary 2.4. A necessary condition for the multistationarity of a biochem- ical reaction system is that there exists a positive cycle in its influence graph, not using both forward and backward directions of any reversible reaction. Corollary 2.5. A necessary condition for the multistationarity of a biochem- ical reaction system is that there exists a positive cycle in its influence graph, not using all species involved in a conservation law.

E S ES P R1 R1 R−1 R−1 R2 R2 R1 R1

Checking Acyclicity by Graph Simplification in

Symbiont July 2018 François Fages

• f O(e log(n))

A graph is acyclic if and only if it reduces to the empty graph with the following graph reduction rules:

• IN0(v): Remove vertex v and all associated edges if v has no incoming

edge.

• OUT0(v): Remove vertex v and all associated edges if v has no out-

going edge.

• IN1(v): Remove vertex v if v has exactly one incoming edge and con-

nect this edge to all the outgoing edges of v.

• OUT1(v): Remove vertex v if v has exactly one outgoing edge and

connect all incoming edges to it.

Checking Corollary Conditions by Graph Rewriting

• INOUTi(v): Remove vertex v if v has exactly i incoming or outgoing

edges, and create the incoming-outcoming edges labeled by the product

• f the signs and the union of the reactions if, and only if, those labels

satisfy the conditions of the corollaries.

Symbiont July 2018 François Fages

contracting the graph to check acyclicity

We can remove a node and associate all incoming and outgoing arcs by keeping a track of the reactions and species involved.

8

Graph Rewriting Algorithm

Symbiont July 2018 François Fages

contracting the graph to check acyclicity

∙ At each step we remove the node with the least incoming or

• utgoing arcs.

∙ When creating a new arc, its sign is the product of the sign of the considered arcs. ∙ We apply our rules on the labels of the arcs to immediately remove arcs that could give incoherent loops. ∙ When we have a self-loop, we check its sign and continue if it is negative. ∙ If it is positive, we can conclude or continue if we want to enumerate all possible cycles in the graph. ∙ This allows us to determine that 105 models of BioModels cannot present multistationarity (over 506 models).

9

Theoretical and Practical Complexity

Proposition 3.1. The time complexity of Alg. 3 is O

• k2n

where n the number of nodes and k is the maximum degree of the graph.

Symbiont July 2018 François Fages

Conditions verified Number Nb of species Computation time

• f graphs

avg. max.

• avg. (s)

max (s) All graphs 506 21.24 430 No positive circuit 48 3.42 18 < 0.01 < 0.01

• Cor. 2.3 2.4 2.5

105 6.22 46 < 0.01 < 0.01

• Cor. 2.3 2.4 2.5 2.6

160 8.23 54 < 0.01 0.05

• Cor. 2.3 2.4 2.5 2.6 2.7

180 8.38 54 5.90 980.1

Table 1: Analysis of 506 sanitized models from the curated branch of the BioModels

• repository. The table reports the proportion of graphs for which it was possible to rule-out

multistationarity using Thomas’s positive circuit condition and using the refined conditions expressed in the corollaries described above.

Evaluation results in BioModels:

Sign Change Condition

Corollary 2.6. A necessary condition for the multistationarity of a biochem- ical reaction system is that there exist positive cycles fulfilling condition 2 of Theorem 2.2 in the influence graph corresponding to its Jacobian, and in any graph obtained from it choosing a set of species and by reversing the sign

• f all arcs that have as target some species belonging to that set.

Symbiont July 2018 François Fages

changing the sign

Changing the signs (E) S E ES P R1 R1 R1 R−1 R2 R−1 R1 R2

12

changing the sign

Changing the signs (E) S E ES P R1 R1 R1 R−1 R2 R−1 R1 R2

12

Sign Change Algorithm by Gaussian Elimination

Symbiont July 2018 François Fages

finding sign changes

K M MK Mp MpK Mpp R1 R1 R3 R3 R1 R−1 R2 R−1 R1 R2 R3 R−3 R−3 R4 R3 R4 In 2 : xK xMK 1 xK xMpK 1 xK xMK xMp

14

solving the system

+ : K

R1

− → MK

R2

− → K + : K

R3

− → MpK

R4

− → K − : K

R1

− → MK

R2

− → Mp

R3

− → K In Z/2Z :      xK + xMK = 1 xK + xMpK = 1 xK + xMK + xMp = 0 If the system has no solutions, then, there is no change of sign that will give no positive loop. We can solve the system using a Gaussian elimination. + : K − MK − : MK − MpK + : Mp      xK + xMK = 1 xMK + xMpK = 0 xMp = 1 Adding two equations is the same as taking the symmetric difference between the sets of species. This can be updated for each loop we find.

15

To change the sign of x or not ? x=1/0 Sum on positive/negative circuits = 1/0

Target Swapping Condition

Symbiont July 2018 François Fages

Corollary 2.7. A necessary condition for the multistationarity of a biochem- ical reaction system is that there exist positive cycles fulfilling condition 2 of Theorem 2.2 in the influence graph corresponding to its Jacobian, and in any graph obtained from it by choosing a permutation of the species and by rewiring the arcs’ target according to the permutation.

swapping targets

Changing targets (E↔P) S E ES P R1 R1 R1 R1 R1 R−1 R2 R1 R−1 R2 R−1 R1 R2

19

swapping targets

Changing targets (E↔P) S E ES P R1 R1 R1 R1 R1 R−1 R2 R1 R−1 R2 R−1 R1 R2

19

Target Swapping Algorithm (on remaining circuits)

Symbiont July 2018 François Fages

problems of swapping targets

∙ There are too many swaps to check explicitly the solutions. ∙ Failure of the Gaussian resolution gives us a set of loops that present a contradiction. To remove the contradiction, a swap needs to be done with at least one species in the set of loops. We don’t need to swap between two species that are not concerned by the contradiction. ∙ Although this highly reduces the number of swaps to check, there are still too many.

20

Performance Evaluation in BioModels

Conditions verified Number Nb of species Computation time

• f graphs

avg. max.

• avg. (s)

max (s) All graphs 506 21.24 430 No positive circuit 48 3.42 18 < 0.01 < 0.01

• Cor. 2.3 2.4 2.5

105 6.22 46 < 0.01 < 0.01

• Cor. 2.3 2.4 2.5 2.6

160 8.23 54 < 0.01 0.05

• Cor. 2.3 2.4 2.5 2.6 2.7

180 8.38 54 5.90 980.1

Symbiont July 2018 François Fages

Beyond our expectations…
