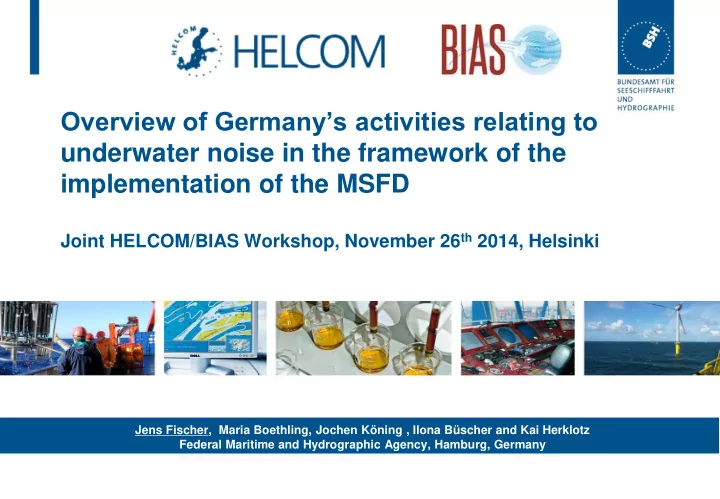

Overview of Germany’s activities relating to underwater noise in the framework of the implementation of the MSFD

Joint HELCOM/BIAS Workshop, November 26th 2014, Helsinki

Jens Fischer, Maria Boethling, Jochen Köning , Ilona Büscher and Kai Herklotz Federal Maritime and Hydrographic Agency, Hamburg, Germany

Overview

2 November 26, 2014

Topics

• General
• Ambient noise (monitoring)
• Impulsive noise (registry)
• German Navy; restrictions and

contributions

General

November 26, 2014 3

Formation of a national expert group to work out a strategy for handling the topic underwater sound in German waters (in the framework of MSFD)

• three federal agencies BSH, BfN and UBA are involved
• experts from state governmental agencies, the German Navy,

research institutes and consultants

Federal Maritime and Hydrographic Agency (BSH) Federal Agency for Nature Conversation (BfN) Federal Environmental Agency (UBA)

General

November 26, 2014 4

Core tasks of the working group

• development of a concept for ambient noise monitoring and

standardization

• development of the national underwater noise registry

Both issues are part of current discussion. National responsibilities are defined only for the register

November 26, 2014 5

Ambient noise (monitoring) Possible Approach (BSH)

• Development of standards for ambient noise monitoring and

measurements, based on the experiences gathered in BIAS and the measurements in the North Sea by itap All activities are part of research and development projects involving external assistance

• connections to potential international monitoring projects

Ambient noise (monitoring)

6 November 26, 2014

Current Status:

• Examination of existing data for the

quantification of open questions (measurement requirements, positions, intervals, etc.)

• Definition of specifications for

sound measuring points

• Compilation / comparison of

existing acoustic models and their properties for the determination of reliable noise maps

Existing sound measuring points (since 2010)

Ambient noise (monitoring)

November 26, 2014 7

Milestones

• 2015: Test measurements for evaluation of measurement requirements
• March 2015 : Publication of a report for a German underwater sound

monitoring concept

• Workshop in the framework of the TG-Noise to discuss issues of

monitoring the ambient noise and standardisation (8-9 April 2015) in Hamburg (BSH), Germany Planning of the workshop is currently in progress; Specific information will be distributed as soon as possible!

Impulsive noise (registry)

November 26, 2014 8

Current Status:

• BSH is the responsible agency for the national register of impulsive

sound

• a sound information service is being developed, which should

cover the export for the needs of the MSFD

• first data exports are planned for August / September 2015 (fully
• perable 2016/2017)

Impulsive noise (registry)

November 26, 2014 9

Regarding reporting of impacts of pile driving

• Source level and hammer energy?

Source level is depending on Pile/hammer energy, pile diameter, pile length, penetration depth, soil properties and type of mitigation system Generic example, Two different piles (pile/hammer diameter, slightly different pile energy) with and without mitigation system

LE [dB] without mitigation LE [dB] with mitigation ΔL [dB] level difference X kJ 170.1 151.7 18.4 (X +300) kJ 181.7 167.5 14.1

Impulsive noise (registry)

November 26, 2014 10

• Reporting of “manipulate” (due to mitigation technics) noise

For the noise registry we propose to take the measured SPL at the distance of 750m for the whole system that means including the noise mitigation system

• Actually no advice for recalculation to 1m exists. Need for standard

procedure (e.g. 15 Log r)

• Which grid sizes are appropriate for the reporting (e.g. comparable with

target species countings 10x10 km)

German Navy; restrictions and contributions

November 26, 2014 11

Noise monitoring

• All noise measurements must be reported to the German Navy in advance.

National and international data-sharing is subject of restrictions 1. Only “processed “ (averaged values ) could be shared with others 2. RAW-data must stored in an appropriate way 3. Germany Navy can block measurement periods (e.g. weeks with high naval fleet activities within specific areas )

German Navy; restrictions and contributions

November 26, 2014 12

Noise registry

• As long as the interests of the military and national security are not

endangered, the German Navy reports (on voluntary basis) impulsive noise events into the national registry 1. Territorial limitation:

• coastal waters and in the German EEZ

2. Accuracy of position information:

• grid of 2° x 2° (North Sea five cells/ Baltic Sea three cells)

3. Accuracy of temporal information:

• monthly reporting with a one year delay

4. Sonar pulses / classification: only two classes (> 176 & > 210 dB)

November 26, 2014 13

Workshop in the framework of the TG-Noise to discuss issues of monitoring the ambient noise and standardisation (8-9 April 2015) in Hamburg (BSH), Germany

reminder

Vielen Dank!
