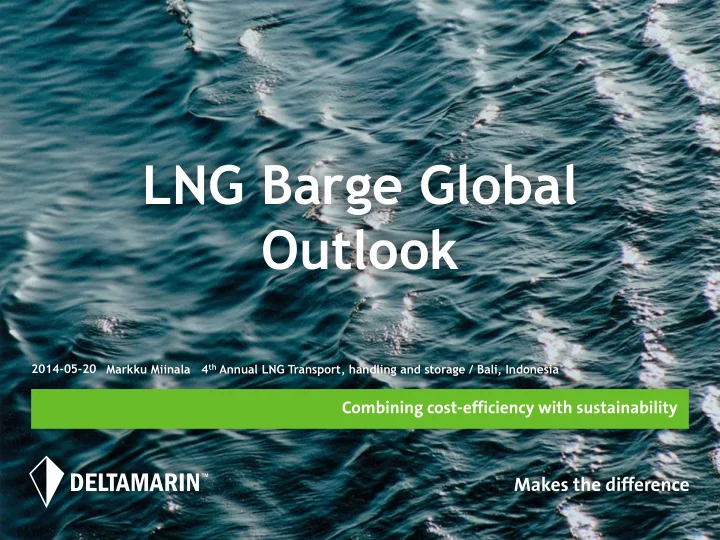

LNG Barge Global Outlook 2014-05-20 Markku Miinala 4 th Annual LNG Transport, handling and storage / Bali, Indonesia Contents > Why LNG? > LNG bunkering technology and the possible role of bunkering barge in LNG logistics > Future

slide-1
SLIDE 1

LNG Barge Global Outlook

2014-05-20 Markku Miinala 4th Annual LNG Transport, handling and storage / Bali, Indonesia

slide-2
SLIDE 2

Contents

> Why LNG? > LNG bunkering technology and the possible role of bunkering barge in LNG logistics > Future outlook for LNG and bunkering barges

Markku Miinala 2014-05-20

slide-3
SLIDE 3

Your marine partner in Consulting, Engineering and EPC packages

Innovative, energy efficient and environmental friendly concepts Project development to ensure an attractive building contract Experienced project management, planning and engineering resources Life cycle support

Markku Miinala 2014-05-20

slide-4
SLIDE 4

Deltamarin globally

Offices in Finland:

Turku (Head Office) Helsinki Rauma

Subsidiaries:

Deltamarin Sp. z o.o., Poland Deltamarin (China) Co., Ltd, Shanghai Deltamarin Brasil Ltda., Rio de Janeiro, Brazil

Associated companies:

Brodoplan d.o.o., Croatia (50%) Shandong Deltamarin, China (50%) V.Delta, Monaco (50%) DeltaAVIC, Singapore (50%) GPS Deltamarin (M) Sdn Bhd, Malaysia (49%) Turku Helsinki Rauma

Deltamarin + subsidiaries: about 300 persons in total

  • Incl. associated companies: about 400 persons in total

Markku Miinala 2014-05-20

slide-5
SLIDE 5

Key products & services for Shipbuilding Industry

2014-05-20 Markku Miinala

slide-6
SLIDE 6

Key products & services for Offshore Oil and Gas Industry

2014-05-20 Markku Miinala

slide-7
SLIDE 7

Why LNG?

Markku Miinala 2014-05-20

slide-8
SLIDE 8

LNG as fuel - overview

+ Environmentally friendly and efficient fuel + Ample resources globally (shale gas) + Proven, available technology

  • Low energy density => large storage volume
  • Cryogenic => handling / safety

Markku Miinala

? Price ? Availability / infrastructure ? Standardization / rules & requirements

2014-05-20

slide-9
SLIDE 9

LNG as fuel – overview

+ Environmentally friendly and efficient fuel + Ample resources globally (shale gas) + Proven, available technology

  • Low energy density => large storage volume
  • Cryogenic (-163 C°) => handling / safety

Markku Miinala

? Price ? Availability / infrastructure ? Standardization / rules & requirements

2014-05-20

slide-10
SLIDE 10

LNG as fuel – overview

+ Environmentally friendly and efficient fuel + Ample resources globally (shale gas) + Proven, available technology

  • Low energy density => large storage volume
  • Cryogenic (-163 C°) => handling / safety

Markku Miinala

? Price ? Availability / infrastructure ? Standardization; Rules & Requirements in the making

2014-05-20

slide-11
SLIDE 11

SOx – IMO MARPOL Annex VI

0,5 1 1,5 2 2,5 3 3,5 4 4,5 5 2000 2002 2004 2006 2008 2010 2012 2014 2016 2018 2020 2022 2024

Sulfur-%

GLOBAL Baltic SECA - SOx Emission Control Area + North Sea + English Channel SECA SOx ECAs including NA ECA EU ports and Inland waterways California

Review in 2018

Markku Miinala 2014-05-20

slide-12
SLIDE 12

The fleet of LNG fuelled vessels

Currently > ~40 sailing vessels > ~70 in order book 2020 estimate > Estimations even up to 1000 vessels

Markku Miinala 2014-05-20

slide-13
SLIDE 13

Example of current ships

> Tank capacities currently typically in 100..200m3 range (ferries, OSV’s) > Trend towards larger capacities while fleet expands, but strong small end will be maintained

Markku Miinala 2014-05-20

slide-14
SLIDE 14

LNG fleet evolution

Markku Miinala 2014-05-20

slide-15
SLIDE 15

LNG bunkering options

> Truck to ship (~40m3/h)

– Limited capacity – Flexible delivery

> Ship to ship (up to ~300m3/h)

– High capex and opex – Flexible capacity, wide coverage

> Tank to ship (up to ~400m3/h)

– High capex, flexible capacity – Fixed installation => limited coverage

Markku Miinala 2014-05-20

slide-16
SLIDE 16

Ferries

> Wide variety and sizes > Bunkering station location varies > Passenger safety related regulations > Fixed routes and schedules

Markku Miinala 2014-05-20

slide-17
SLIDE 17

Cargo vessels

Markku Miinala

> Wide variety of types and sizes > Bunkering station location varies > Routes and ports of call vary > Containerized bunkering for auxiliary power

2014-05-20

slide-18
SLIDE 18

Offshore support vessels, tugs, patrol vessels

> Relatively similar in sizes > Bunkering station location can be standardized > Operating long periods in one area/location

Markku Miinala 2014-05-20

slide-19
SLIDE 19

LNG barge design process

Markku Miinala 2014-05-20

slide-20
SLIDE 20

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 15 nm 20 nm 13 nm 10 nm

2014-05-20

slide-21
SLIDE 21

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm

2014-05-20

slide-22
SLIDE 22

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm Cargo harbour Cruise terminal Cargo harbour LNG power plant

2014-05-20

slide-23
SLIDE 23

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm Cargo harbour Cruise terminal Cargo harbour LNG power plant

Plan for the next 20 years!

2014-05-20

slide-24
SLIDE 24

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm Cargo harbour Cruise terminal Cargo harbour

Needs after 5 years

1000m3 3 times/week 5 MW/6 hours 3 times/week 4000m3 Every 2nd week 100m3 3 times/day 1000m3 3 times/week LNG power plant

2014-05-20

slide-25
SLIDE 25

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm Cargo harbour Cruise terminal Cargo harbour

Need after 15 years

1000m3 10 times/week 5 MW/6 hours 6 times/week 4000m3 Every week 100m3 3 times/day 1000m3 6 times/week LNG power plant

2014-05-20

slide-26
SLIDE 26

Sample case of LNG logistics

Markku Miinala

Island 1 Island 2 Island 3 Island 4 Island 5 Ferry Ferry Ferry Ferry 15 nm 20 nm 13 nm 10 nm Cargo harbour Cruise terminal Cargo harbour

LNG barge fleet?

1000m3 10 times/week 5 MW/6 hours 6 times/week 4000m3 Every week 100m3 3 times/day 1000m3 6 times/week LNG power plant

2014-05-20

slide-27
SLIDE 27

LNG barge design process

> Logistic feasibility study

– Estimation of the future LNG need development – Several variations to be studied – Feasibility study for needed vessels

> Barge outline project -> new building price > Barge shipbuilding contract

Markku Miinala 2014-05-20

slide-28
SLIDE 28

LNG barge design variations

> Propulsion: towed / own propulsion > Speed > Machinery: dual fuel (DF) or pure gas (PG) > Bunkering equipment: No / Yes (which type?) > Power generation possibility, capacity? > LNG storage capacity > HFO/MDO/MGO storage capacity > Restrictions for main dimensions > Sea keeping and manoeuvrability

Markku Miinala 2014-05-20

slide-29
SLIDE 29

LNG barge design variations

End result should reflect the primary design targets

Markku Miinala

Source: TGE

  • r

2014-05-20

slide-30
SLIDE 30

Markku Miinala 2014-05-20

slide-31
SLIDE 31

Thank you !
