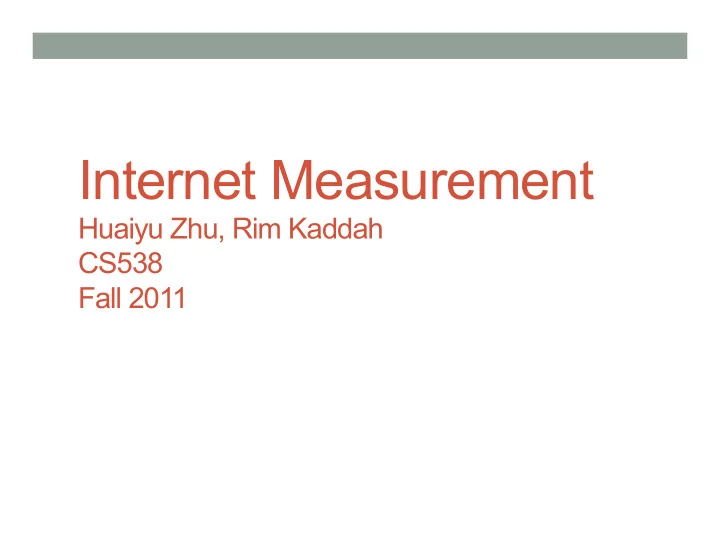

Internet Measurement

Huaiyu Zhu, Rim Kaddah CS538 Fall 2011

OUTLINE

• California Fault Lines: Understanding the

Causes and Impact of Network Failures. Feng Wang , Zhuoqing Morley MaoJia Wang3, Lixin Gao and Randy Bush

• A Measurement Study on the Impact of

Routing Events on End to End Internet Path Performance Daniel Turner, Kirill Levchenko, Alex C. Snoeren, and Stefan Savage.

OUTLINE

• California Fault Lines: Understanding the

Causes and Impact of Network Failures. Feng Wang , Zhuoqing Morley MaoJia Wang3, Lixin Gao and Randy Bush

• A Measurement Study on the Impact of

Routing Events on End to End Internet Path Performance Daniel Turner, Kirill Levchenko, Alex C. Snoeren, and Stefan Savage.

Why Study Failure

• Failure is a reality for large network
• Achieving high availability requires engineering

the network to be robust to failure

• Designing mechanisms to effectively mitigate

failures requires deep understanding of real failures

CENIC Network

• Serving California educational institutions
• Over 200 routers
• 5 years of data
• Three Types of Components:
• The Digital California (DC) network
• The High-Performance Research

(HPR) network

• Customer-premises equipment

(CPE)

Contribution

• Methodology to reconstruct historical failure events
• f CENIC network
• Using only commonly available data, No need for

additional instrumentation

• Analyze the network based on failure measurement

Reconstruction

What data are available to reconstruct a failure 4 years later?

• Syslog
• Describes interface state changes
• Router Configuration Files
• Maps interfaces to Links
• Operation announcements on mailing list

Data are not intended for failure reconstruction!

Validation

• Internal consistency
• Using the administrator announcements to validate the

event history reconstructed.

• External consistency
• CAIDA Skitter project (now Ark) validating UP.
• Route Views project validating DOWN.

Overview of Link Failures

Overview of Link Failures

Overview of Link Failures

• Vertical banding
• V1: a network-wide IS-IS configuration change requiring

a router restart

• V2: a network-wide software upgrade
• V3: a network-wide configuration change in preparation

for IPv6

• Horizontal banding
• H1: a series of failures on a link between a core

router and a County of Education office (hardware)

• H2: this link experienced over 33,000 short-duration

failures (fiber cut)

CDFs of Individual Failure Events

Various Link Hardware Types

Cause of Failure

Failure Events

Summary

• Engineering for failure requires real data
• Data has historically been difficult to obtain
• Methodology to perform historical failure analysis with

low-quality data sources

• Shared our findings in the CENIC network
• Reliability of individual components
• Causes of failures
• Impact of failure

OUTLINE

• California Fault Lines: Understanding the

Causes and Impact of Network Failures. Feng Wang , Zhuoqing Morley MaoJia Wang3, Lixin Gao and Randy Bush

• A Measurement Study on the Impact of

Routing Events on End to End Internet Path Performance Daniel Turner, Kirill Levchenko, Alex C. Snoeren, and Stefan Savage.

Key Questions

• How could routing events cause degraded

end-to-end path performance?

• How topological properties and routing

policies affect performance degradation?

Approach

• Study end-to-end performance under realistic topologies.
• Investigate several metrics to characterize the end-to-end

loss, delay, and out-of-order packets.

• Characterize the kinds of routing changes that impact

end-to-end path performance.

• Analyze the impact of topology, routing policies, MRAI

timer and iBGP configurations on end-to-end path performance.

Experiment Methodology

• A multi-homed prefix
• BGP Beacon prefix: 192.83.230.0/24
• Controlled Routing Changes
• Failover events: Beacon changes from the state of being connected to

both providers to the state of being connected to a single provider.

• Recovery events: Beacon changes from the state of being connected

to a single provider to the state of being connected to both providers.

ISP1

Beacon

ISP 2 ISP 1 ISP 2 ISP 1 ISP 2

Beacon Beacon

Failover event Recovery event

Controlled Routing Changes

Time schedule (GMT) for BGP Beacon routing transitions

• 12 routing events every

day

• 8 for beacon events:
• Failover events
• Recovery events
• 4 for resetting the

Beacon Connectivity.

Active Probing

Internet

ISP 2

Beacon host

ISP 1

host B host A host C

• Goal: capture the impact of

routing changes on the end-to- end performance.

• From 37 PlanetLab hosts to

the Beacon host (a host within the Beacon prefix).

• Three probing methods:
• Back-to-back traceroutes
• Back-to-back pings
• UDP probing (50msec

interval)

Data Plane Performance metrics Active probing traceroute ping UDP probing Pack loss √ Delay √ Out-of-order √

Packet Loss

Loss burst: consecutive UDP probing packets lost during a routing change event. Failover Recovery

Packet Delay

Roundtrip delays from the probe host to the Beacon host (clock skews problem when using one-way delays). Failover Recovery

Out-of-order Packets

• Number of reordering (number of packets out of order)
• Reordering offset

Failover Recovery

How Routing Failures Occur (Failover)?

Prefer-customer routing policy: routes received from a provider’s customers are always preferred over those received from its peers.

R1 Beacon R4 R5 R6 R2 R3 Provider 1 Provider 2 Peer link 2 0 1 0 AS 0 Customer link

How Routing Failures Occur (Failover)? (contd.)

R1 Beacon R4 R5 R6 R2 R3 Provider 1 Provider 2 Peer link 2 0 1 0 R7 R9 Provider 3 2 0 1 0

1 0 1 0 2 0

AS 0 Peer link R8

No-valley routing policy: peers do not transit traffic from one peer to another.

How Routing Failures Occur? (Recovery)

R1 R2 R4 R3 Beacon path (0) Path (0) Withdraw (2 0)

• 5. R1 regains its connection to the Beacon
• 1. Path 0 ⇒R3 recovery.
• 2. R3 sends the path to R2
• 3. R2 sends a withdrawal

to R1

• 4. R3 sends the recovery path to R1

iBGP constraint: a route received from an iBGP router cannot be transited to another iBGP router

Provider 1 Provider 2 AS 0

Summary

• During failover and recovery events
• Routing events impact packet loss significantly.
• Routing failures contribute to end-to-end packet loss significantly.
• Routing events can lead to long packet round-trip delays and

reordering

• Routing policies and iBGP configuration play a major role

in causing packet loss during routing events.

Discussion

• How could we prevent packet loss during path

exploration? Would storing an alternative path in each router be a good idea? What are the downsides?

• How could we exploit the previous results to improve end-

to-end performance?

• How realistic could we consider the topology in the

second paper?

References

• Feng Wang , Zhuoqing Morley MaoJia Wang, Lixin Gao

and Randy Bush. A Measurement Study on the Impact

• f Routing Events on End-to-End Internet Path
• Performance. SIGCOMM 2006.
• Feng Wang , Zhuoqing Morley MaoJia Wang, Lixin Gao

and Randy Bush. Presentation on SIGCOMM 2006.

• Daniel Turner, Kirill Levchenko, Alex C. Snoeren, and

Stefan Savage. California Fault Lines. SIGCOMM 2010.

• Daniel Turner, Kirill Levchenko, Alex C. Snoeren, and

Stefan Savage. Presentation on SIGCOMM 2010.
