research & development

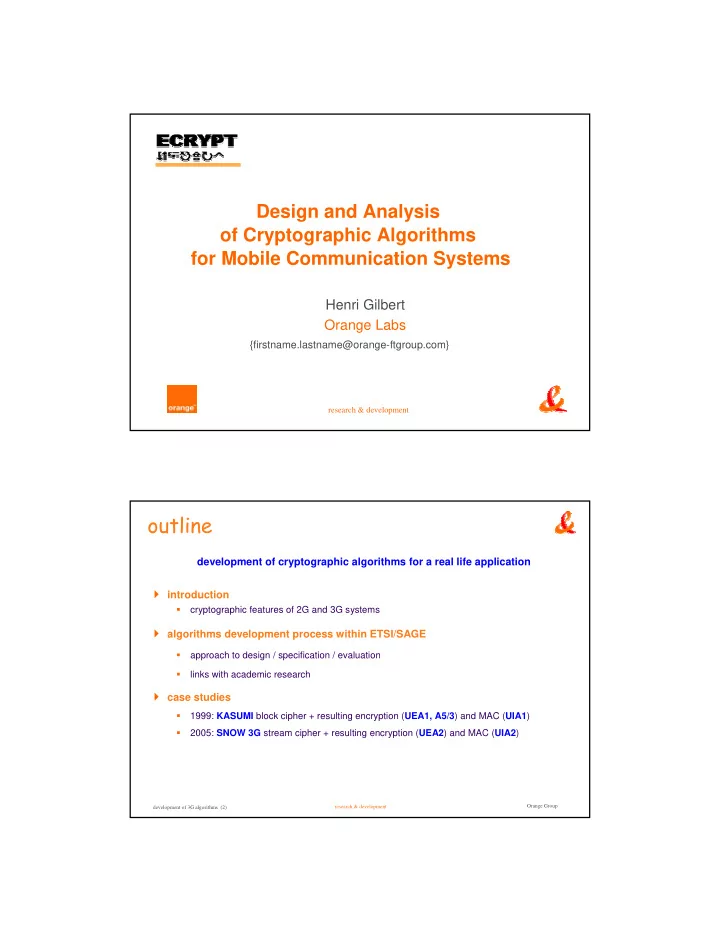

Design and Analysis

• f Cryptographic Algorithms

for Mobile Communication Systems

Henri Gilbert Orange Labs

{firstname.lastname@orange-ftgroup.com}

research & development Orange Group development of 3G algorithms (2)

• utline

development of cryptographic algorithms for a real life application

introduction

• cryptographic features of 2G and 3G systems

algorithms development process within ETSI/SAGE

• approach to design / specification / evaluation
• links with academic research

case studies

• 1999: KASUMI block cipher + resulting encryption (UEA1, A5/3) and MAC (UIA1)
• 2005: SNOW 3G stream cipher + resulting encryption (UEA2) and MAC (UIA2)

2000: MILENAGE authentication and key generation algorithm

research & development Orange Group development of 3G algorithms (3)

security in mobile systems

security aspects: Radio access network MS = ME + (U)SIM Core Network External networks (PSTN, IP…)

radio access terminal core network e2e transactions

research & development Orange Group development of 3G algorithms (4)

cryptographic algorithms of GSM

subscriber authentication

authentication & key generation algorithms A3/A8 permanent subscriber key Ki (SIM & HLR) A3/A8 is not standardized (operator dependent)

traffic and signalling encryption

circuit switched GSM: standard A5 algorithms A5/1, A5/2, A5/3 packet oriented GSM (GPRS): standard GEA algorithms GEA1, GEA2, GEA3

RAND (challenge)

A3/A8

Kc SRES

Ki Kc

IV (frame nb.)

A5

114-bit keystream

128 64 32 128

Kc*

IV

GEA

5 to 1600-byte keystream

22 33 64 64

(counter, dir.)

research & development Orange Group development of 3G algorithms (5)

HLR/AuC MSC/VLR BTS

RAND

Ki

A3/A8

SRES

Kc

checks SRES

Kc, start enc.

start enc. ACK IV (frame nb.)

A5 A5

114-bit keystream 114-bit keystream

+ +

plain traffic &sig.

Kc SIM

encrypted traffic & sig.

visited network home network

RAND

A3/A8

Kc SRES

n triplets

(RAND, SRES, Kc)

Ki ME

GSM SECURITY: OVERVIEW

IV (frame nb.) plain traffic& sig.

• ff line
• n line

research & development Orange Group development of 3G algorithms (6)

limitations of GSM security

no network authentication and no explicit integrity protection

moreover encryption initiative is left up to the network eavesdropping attacks using false base stations turned out to be a reality… ⇒ UMTS: network authentication and signalling messages auth. ⇒ GSM and UMTS: encryption indicator (in some mobiles)

limitations of GSM encryption

encryption ends at the base station => vulnerability of the BTS-BSC interface efficient attack on A5/2, gradual erosion of the protection offered by A5/1 [Biham et al.] ⇒ UMTS: strong encryption (128-bit key, hopefully full strength), ends at RNC ⇒ GSM: move to A5/3 (derived from 3G algorithm KASUMI)

research & development Orange Group development of 3G algorithms (7)

cryptographic features of UMTS

mutual authentication (slightly simplified)

subscriber auth. ≈ GSM auth generation of session keys CK and IK network auth. ≈ MAC of sequence nb. SQN SQN anonymization: mask AK f1-f5 also named AKA (auth. & key agreement) no standard AKA; example AKA: MILENAGE

traffic and signalling encryption

two standard f8 algorithms

• UEA1 derived from KASUMI
• UEA2 derived from SNOW 3G

message authentication

two standard f9 algorithms

• UEA1 derived from KASUMI
• UEA2 derived from SNOW 3G

RAND SQN AMF

K

RES CK IK AK MAC-A

64 128 128 48 64

f1 f2 f3 f4 f5

48 16 128

CK

f8

IV (count-c, bearer, dir.) keystream

f9

IK

MAC message+ (count, fresh, direction)

128 128 128 128 32

research & development Orange Group development of 3G algorithms (8)

HLR/AuC MSC/VLR

RAND, AUTN

K

f1-f5

RES

CK

checks RES start enc., CK, IK start enc. ACK IV IV

f8 f8

+ +

{ DATA || MAC }

CK USIM

RAND, SQN

home network

f1-f5

RES IK CK AUTN n quintets (RAND,RES,IK,CK, AUTN)

K RNC

checks AUTN

f9

count, fresh

IK

{ DATA || MAC }

f9

count, fresh

checks MAC ME

UMTS SECURITY: OVERVIEW

encrypted traffic & sig.

Node-B

research & development Orange Group development of 3G algorithms (9)

ETSI/SAGE

what's that?

security algorithms group of experts of European Telecommunication Standard Institute in charge of security algorithms standardisation for telecommunications

‒ mobile communication systems: 2G (GSM/GPRS), 3G (UMTS) … ‒ other systems: radio lans, teleconferencing, smart cards, inter-PNO exchanges, TETRA

created in the early 90's initial mandate included liaison with national authorities to get export approval

membership

closed group: no longer for secrecy reasons, for efficiency reasons ～ 10 telecom. operators or manufacturers with strong cryptography expertise chaired by Gert Roelofsen until he left KPN research and since then by Steve Babbage, Vodafone

research & development Orange Group development of 3G algorithms (10)

export controls

before 98

strong export restrictions on encryption, in particular for mobile systems

‒ A5/1 was much stronger than ciphers that were freely exportable at that time

no transparent rules, case by case approval SAGE algorithms were not published

‒ this was needed to get export approval ‒ however, for massively deployed algorithms, secrecy does not last long…

since 98 (Wassenaar agreements)

export controls still exist… … but have been considerably eased and are no longer a real issue for mobiles SAGE moved to public algorithms soon after 98

‒ ☺ increase public confidence ‒ ☺ take advantage from publicly available designs ‒ other less decisive pros & cons:

☺ public evaluation after deployment, increased vulnerability to side channel attacks

research & development Orange Group development of 3G algorithms (11)

SAGE approach to algorithms development

"balance the benefits of public evaluation against industry timescales" [S. Babbage]

• 1. take the best from available research results
• investigate most promising public designs
• adapt design to specific requirements of the intended application
• taking most recent advances in cryptanalysis into account
• 2. algorithm design /specification / evaluation work
• set-up a project team with clear timescales and allocation of tasks
• split participants into separate design and evaluation teams

‒ requirements capture (all) ‒ design team: 1st design, 2nd design, final design ‒ evaluation team: mathematical evaluation, statistical testing

• utput: specification, ref. implementation and spec.testing, design & eval. report
• 3. Independent evaluation and follow-on research
• evaluation reports by well known academic expert teams (limited evaluation time)
• monitoring of (and often contribution to) follow-on public research

research & development Orange Group development of 3G algorithms (12)

Case study 1: KASUMI, UEA1, UIA1 (1999)

requirements (in brief)

stream cipher f8 and MAC f9

‒ security: full strength ‒ low H/W complexity ‒ good H/W and S/W performance ‒ f8: good IV agility

⇒ block cipher with stream cipher & MAC modes

‒ for flexibility reasons

available research results to start from

strategies to thwart statistical attacks:

‒ [Daemen-Rijmen]: wide trail strategy ‒ [Vaudenay]: decorrelation theory and resulting block ciphers ‒ [Nyberg-Knudsen, Aoki]: differential & linear bounds on 3R-Feistel schemes

[Matsui]: application to the embedded construction of MISTY block cipher ⇒ MISTY (a 64-bit block cipher) was selected as the starting point for the design

‒ MISTY's designer, M. Matsui (Mitsubishi) joined SAGE ‒ KASUMI (≈ "misty" in Japanese) was designed CK

f8

IV count-c bearer dir. keystream

f9

IK

MAC message, count, fresh, dir.

128 128

research & development Orange Group development of 3G algorithms (13)

KASUMI

S9 S7 S9 zero-extend zero-extend truncate KIij1 KIij2 16 9 7

FO FI

bitwise AND operation bitwise OR operation

• ne bit left rotation

32 16 16 KLi1 KLi2 S7 truncate FIi1 KIi1 KOi1 FIi2 KIi2 KOi2 FIi3 KIi3 KOi3 16 16 32

FL

FO1 FL1 FO3 FL3 FO5 FL5 FO7 FL7 FO2 FL2 FO4 FL4 FO6 FL6 FO8 FL8 KL1 KO1, KI1 32 32 64 KL6 KL8 KL7 KL2 KL5 KL4 KL3 KO2, KI2 KO3, KI3 KO4, KI4 KO5, KI5 KO6, KI6 KO7, KI7 KO8, KI8

plaintext (64 bits) ciphertext (64 bits) Main changes from MISTY1

• 4th round in FI
• FL: modified location, rotation
• new S-boxes S7 and S9
• simplified key schedule

↓ ≈ same conjectured security slightly lower H/W complexity F

research & development Orange Group development of 3G algorithms (14)

KASUMI-based f8: UEA1

CK(128 bits)

IV

(64 bits) keystream KS

non-standard mode, combination of:

• "prewhitening" (computation of secret A),
• CNT mode
• OFB mode

64-bit blocksize => standard modes would have resulted in strong 232-block distinguishers

research & development Orange Group development of 3G algorithms (15)

KASUMI-based f9: UIA1

data

IK (128 bits)

• auth. tag

(32 bits)

non-standard mode again

• CBC-MAC variant
• 128-bit "chaining variable" instead of 64

motivation: standard CBC-MAC would have resulted in a forgery attack after 232 messages

research & development Orange Group development of 3G algorithms (16)

KASUMI, UEA1, UIA1 (end)

independent evaluation

from three well known academic teams coordinated by leading ECRYPT partners… in overall, confirmed soundness of proposed algorithms (some suggested variations not supported by strong cryptanalytic arguments against the evaluated specification were not retained)

follow on research

f9 forgery from 248 chosen message MACs [Knudsen-Mitchell] whether forgery from 232 chosen message MACs feasible as for standard modes is still open super-pseudo-randomness of 5-round MISTY [2 ind. papers at FSE 00] pseudo-randomness of expanding functions inspired from f8 and MILENAGE [Gilbert] algebraic interpretation of higher order differential properties of MISTY [Babbage-Frisch] research on modes of operation…

research & development Orange Group development of 3G algorithms (17)

Case study 2: SNOW 3G, UEA2, UIA2 (2005)

requirements (in brief)

same as UEA1, UIA1, but fallback algorithms set

‒ maximize "cryptographic distance" from KASUMI ‒ minimize potential vulnerability to algebraic attacks

⇒ stream cipher + UH MAC approach seemed worth being investigated

available research results to start from (stream ciphers)

NESSIE had failed selecting a stream cipher, but:

‒ had stimulated the design of IV-dependent stream ciphers ‒ had resulted in cryptanalytic advances, e.g. linear masking attacks [Coppersmith et al.]

ECRYPT / eSTREAM stream ciphers project had just started

‒ SASC workshop gave an accurate picture of the state of the art

⇒ SNOW 2.0 [Ekdahl-Johansson] was retained as a starting point for the design with permission

• f its authors.

‒ its resistance to linear masking & algebraic attacks had been analysed

[Watanabe et al., Billet-Gilbert]

research & development Orange Group development of 3G algorithms (18)

from SNOW 2.0 …

R1 R2 S α-1 α

s0 s2 s5 s11 s15

current state:

• LFSR: 16 32-bit words
• FSM memory: 2 32-bit words

32x32 S-box S

• based on AES

research & development Orange Group development of 3G algorithms (19)

to SNOW 3G

R1 R2 S1 α-1 α R3 S2

s0 s2 s5 s11 s15

Main changes from SNOW 2.0:

• additional memory word R3
• additional 32x32 S-box S2

based on Dickson polynomials => extra security margin against algebraic & linear masking attacks

research & development Orange Group development of 3G algorithms (20)

SNOW 3G, UEA2, UIA2 (cont.)

available research results to start from: UH function-based MACs

Wegman-Carter paradigm: MAC(M) = hk(M) ⊕ OTP, where {hk} is an almost 2-universal family of hash functions many efficient UH MACs based on polynomials had been recently proposed hk(M) = PolyM(k), typically over GF(2n) how to best derive k and OTP from IK using a streamcipher was unclear

research & development Orange Group development of 3G algorithms (21)

message authentication f9: UIA2

SNOW 3G IV

IK

128 128 COUNT-C BEARER DIRECTION

M = (M0,..,Mt)

PolyM(P)

P Q OTP

MAC

64 64 32

computations are done over GF(264)

• 32–bit OTP, but also 128-bit hash key (P,Q), is

derived fom IK using SNOW 3G (conservative choice) MAC = hPQ(M) ⊕ OTP where hPQ(M) = (PolyM(P) •Q) truncated to 32 bits multiplication by Q allows to keep forgery proba. close to ideal value 2-32, even for long messages: 2-stage MAC construction [Stinson 92, Bierbrauer et al. 93, Neversteen-Preneel 99, Bernstein 05] Truncate

hPQ

32 bits

research & development Orange Group development of 3G algorithms (22)

SNOW 3G, UEA2, and UIA2 (end)

independent evaluation

two well known academic teams (coordinated by leading ECRYPT partners…) various potential lines of attack were investigated in overall, confirmed SAGE confidence in proposed design

follow on research

improved linear masking on SNOW 2.0 [Nyberg-Wallen] note about how to improve truncated G-MAC [Nyberg-Gilbert-Robshaw] warning about key recovery attacks on some polynomial based UH MACs when unlike in UIA2 hash key is not renewed [Handschuh-Preneel, Crypto 08]

research & development Orange Group development of 3G algorithms (23)

conclusion

cryptographic research and standardisation are distinct processes…

distinct objectives, distinct timescales research must not be entirely driven by the requirements of applications standardisation may have to deal with problems research did not / cannot solve

…but they must interact closely

standardisation groups and the research community must not be disjoint the research and scientific exchanges promoted by ECRYPT and ECRYPT II in the future are quite useful to achieve this kind of interaction

next cryptography standardization challenges in mobiles?

• ther security aspects (underway)

massively deployed public key cryptography in (U)SIMs?
