AUTOMATIC IMAGE ORIENTATION DETECTION Goal Main Goal: For any given picture detect its orientation. Sub Goals: How to deal with color images Define criteria for images to separate them to 4 groups: = 0, = 90, =

slide-1
SLIDE 1

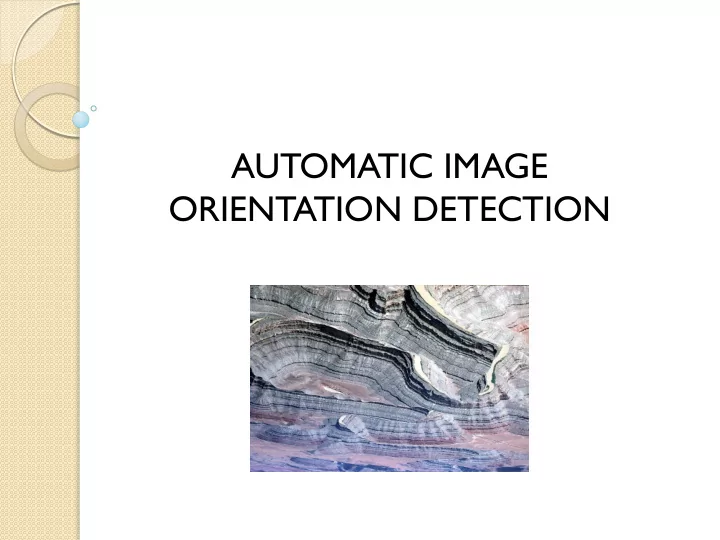

AUTOMATIC IMAGE ORIENTATION DETECTION

slide-2
SLIDE 2

Goal

Main Goal:

 For any given picture detect its orientation.

Sub Goals:

 How to deal with color images  Define criteria for images to separate them to 4

groups: 𝜕 = 0°, 𝜕 = 90°, 𝜕 = 180°, 𝜕 = 270°

 Efficiency: DB size, vector size, runtime.

slide-3
SLIDE 3

What is Color?

slide-4
SLIDE 4

What is Color?

slide-5
SLIDE 5

Color representation - RGB

slide-6
SLIDE 6

Color difference - RGB

slide-7
SLIDE 7

Color representation - HSV

slide-8
SLIDE 8

Classify function in MatLab

slide-9
SLIDE 9

Peripheral blocks

slide-10
SLIDE 10

Edge ratio

slide-11
SLIDE 11

Feature Vector

 Image resolution = 800X600  NXN blocks  4N-4 peripheral blocks  For each block:

  • Mean of H,S,V
  • Var of H,S,V
  • Edge density

Vector size: N=4 Block size : 16 peripheral blocks: 12 Vector size: 12*(3+3+1)+4 = 88

slide-12
SLIDE 12

Results

% T est size Vector size Feature Vector Color scheme DB size N 62% 50 24 Mean RGB 200 3 % 34 50 48 Mean+var RGB 200 3 76% 70 24 Mean HSV 300 4 79% 400 37 Mean+edge HSV 300 4 82% 400 88 Mean+Var+edge HSV 300 4 81% 200 200 Mean+Var+edge HSV 300 8

slide-13
SLIDE 13

Results

slide-14
SLIDE 14

Results

slide-15
SLIDE 15

Future work

 Improving the feature vector  T

esting new method of “machine learning”

 Add a rejection criteria  Add classifier of indoor/outdoor  Add an object recognition algorithm

slide-16
SLIDE 16

Thank you!
