slide-1

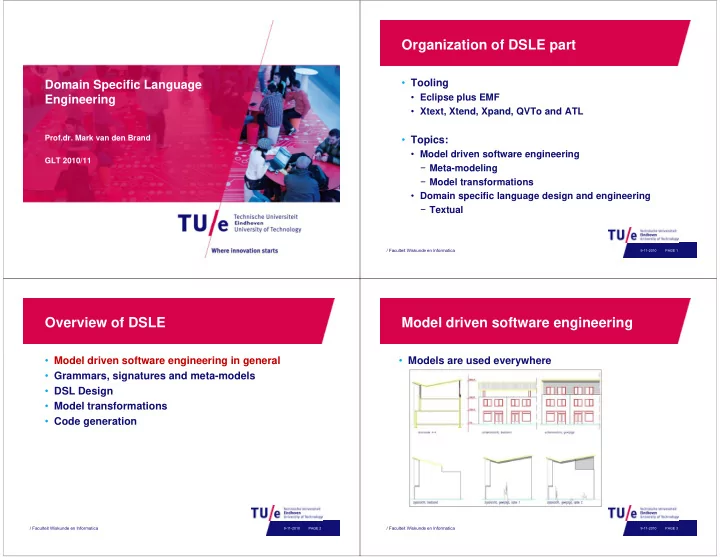

SLIDE 1

Domain Specific Language Domain Specific Language Engineering

Prof.dr. Mark van den Brand GLT 2010/11

Organization of DSLE part

  • Tooling
  • Eclipse plus EMF
  • Xtext, Xtend, Xpand, QVTo and ATL
  • Topics:
  • Model driven software engineering

Model driven software engineering − Meta-modeling − Model transformations

  • Domain specific language design and engineering

− Textual

/ Faculteit Wiskunde en Informatica

PAGE 1 9-11-2010

Overview of DSLE

  • Model driven software engineering in general

g g g

  • Grammars, signatures and meta-models
  • DSL Design
  • Model transformations
  • Code generation

/ Faculteit Wiskunde en Informatica

PAGE 2 9-11-2010

Model driven software engineering

  • Models are used everywhere

y

/ Faculteit Wiskunde en Informatica

PAGE 3 9-11-2010

slide-2
SLIDE 2

Model driven software engineering

  • Models are abstractions of real life objects

j

/ Faculteit Wiskunde en Informatica

PAGE 4 9-11-2010

Model driven software engineering

  • Models increase the level of abstraction
  • used for both hardware and software design
  • often manually translated into design documents

and code and code

  • no guarantee for consistency between model,

design and resulting code

/ Faculteit Wiskunde en Informatica

PAGE 5 9-11-2010

Model driven software engineering

  • Whole range of modeling languages are

g g g g developed over the years:

  • data oriented, e.g., E/R models, class diagrams

b h i i t d t t

  • behaviour oriented, e.g., use cases, state

machines, sequence diagrams, activity diagrams

  • architecture oriented, e.g., package diagrams,

component diagrams

  • Standardization initiative of OMG:

Standardization initiative of OMG:

  • Unified Modeling Language

/ Faculteit Wiskunde en Informatica

PAGE 6 9-11-2010

Model driven software engineering

  • UML is unified:
  • Class diagrams
  • Object diagrams
  • Use cases
  • Use cases
  • State machine diagrams
  • Sequence diagrams
  • Activity diagrams
  • Component diagrams
  • etc.
  • UML is too “universal”

/ Faculteit Wiskunde en Informatica

PAGE 7 9-11-2010

slide-3
SLIDE 3

Model driven software engineering

  • Criticism on UML:
  • It contains many diagrams and constructs that are

redundant or infrequently used.

  • Problems in learning and adopting
  • Problems in learning and adopting.
  • Linguistic incoherence.
  • Capabilities of UML and implementation language
  • Dysfunctional interchange format.

/ Faculteit Wiskunde en Informatica

PAGE 8 9-11-2010

Model driven software engineering

  • UML is too “universal”: a general purpose modeling

g g language

  • Domain specific extension via:

P fil di t t th t d l l l t

  • Profile diagram operates at the meta model level to

show − stereotypes as classes with the <<stereotype>> stereotype, and − profiles as packages with the <<profile>> stereotype

  • Meta modeling
  • Meta modeling

/ Faculteit Wiskunde en Informatica

PAGE 9 9-11-2010

Model driven software engineering

  • Meta-Object Facility (MOF) is a four-layered architecture:
  • M3 Meta-Meta-Model Layer

− defines structure of the meta-metadata − it provides a meta-meta model at the top layer

M2 M t M d l L

  • M2 Meta-Model Layer

− defines the structure of the metadata − the M3-model is used to build meta models − the most prominent example is the UML meta model the model that the most prominent example is the UML meta model, the model that describes the UML itself

  • M1 Model Layer

− describes the data in the information layer − the M2-models describe elements of the M1-layer − For example, models written in UML

  • M0 Model Layer

− describes objects or data in the information layer

/ Faculteit Wiskunde en Informatica

PAGE 10 9-11-2010

Model driven software engineering

/ Faculteit Wiskunde en Informatica

PAGE 11 9-11-2010

slide-4
SLIDE 4

Model driven software engineering

  • Meta-Object Facility (MOF) is the OMG standard

j y ( )

  • no implementation
  • EMF is the Eclipse implementation of MOF

/ Faculteit Wiskunde en Informatica

PAGE 12 9-11-2010

Model driven software engineering

EMF Model Definition

  • What is an EMF “model”?
  • Specification of an application’s data

− Object attributes − Relationships (associations) between objects − Operations available on each object Operations available on each object − Simple constraints (e.g., multiplicity) on objects and relationships E ti ll th Cl Di b t f UML

  • Essentially the Class Diagram subset of UML

/ Faculteit Wiskunde en Informatica

PAGE 13 9-11-2010

Model driven software engineering

  • What does EMF provide
  • Meta-model

− A general model of models from which any model can be defined − Models classes, attributes, relationships, data types, etc. − Referred to as Ecore − Ecore is just another EMF model

  • EMF is used to implement EMF!
  • Tooling support within the Eclipse framework
  • Runtime environment

− Reflective and dynamic model invocation − XML/XMI default model serialization

/ Faculteit Wiskunde en Informatica

PAGE 14 9-11-2010

Model driven software engineering

  • EMF is middle ground in the modeling vs. programming world
  • Focus is on class diagram subset of UML modeling (object model)
  • Transforms models into efficient, correct, and easily customizable

Java code

  • Provides the infrastructure to use models effectively in your code
  • Very low cost of entry
  • Full scale graphical modeling tool not required
  • EMF is free
  • Small subset of UML

/ Faculteit Wiskunde en Informatica

PAGE 15 9-11-2010

slide-5
SLIDE 5

Model driven software engineering

  • EMF Components
  • EMF Core

− Ecore meta model − Model change notification − Persistence and serialization − Reflection API − Runtime support for generated models − Change model and recorder − Validation framework Validation framework

  • EMF Edit

− Helps integrate models with a rich user interface − Used to build editors and viewers for your model Includes default reflective model editor − Includes default reflective model editor

  • EMF Codegen

− Code generator for core and edit based components − Model importers from Rose, XML, or Java interfaces

/ Faculteit Wiskunde en Informatica

PAGE 16 9-11-2010

Model driven software engineering

  • EClass models classes
  • Simplified Ecore meta-model

EClass models classes themselves

  • identified by name
  • number of attributes

Simplified Ecore meta model

number of attributes

  • number of reference
  • EAttribute models attributes
  • identified by name
  • identified by name
  • has a type
  • EDataType represents

i l t simple types

/ Faculteit Wiskunde en Informatica

PAGE 17 9-11-2010

Model driven software engineering

  • Simplified Ecore meta-model
  • EReference models

Simplified Ecore meta model associations between classes

  • identified by name
  • has a type which must be an

ECl EClass

  • containment attribute

indicating whether the EReference is used as “whole- EReference is used as whole- part” relationship

/ Faculteit Wiskunde en Informatica

PAGE 18 9-11-2010

Model driven software engineering

  • Classes, abstract classes and interfaces
  • Attributes and Operations

/ Faculteit Wiskunde en Informatica

PAGE 19 9-11-2010

slide-6
SLIDE 6

Model driven software engineering

  • Creation of abstract class

/ Faculteit Wiskunde en Informatica

PAGE 20 9-11-2010

Model driven software engineering

  • Associations in the meta-model:
  • One way association
  • Bidirectional association

/ Faculteit Wiskunde en Informatica

PAGE 21 9-11-2010

Model driven software engineering

  • Associations in the meta-model:
  • Containment association
  • Inherit association

/ Faculteit Wiskunde en Informatica

PAGE 22 9-11-2010

Model driven software engineering

  • EMF is suited for modeling domain specific

g languages

/ Faculteit Wiskunde en Informatica

PAGE 23 9-11-2010

slide-7
SLIDE 7

Model driven software engineering

  • What is a Domain Specific Language (DSL)?

p g g ( )

  • A DSL is a formal, procesable language targeting

at a specific aspect of a system

  • Its semantics, flexibility and notation is designed in
  • rder to support working with that aspect as good
  • rder to support working with that aspect as good

as possible

/ Faculteit Wiskunde en Informatica

PAGE 24 9-11-2010

Model driven software engineering

  • How do we design a Domain Specific Language?

g g g

  • Establish needed language concepts

− domain specific b t t − abstract − corresponding semantics

  • Graphical vs textual representation

G ap ca s te tua ep ese tat o

  • Develop tooling

/ Faculteit Wiskunde en Informatica

PAGE 25 9-11-2010

Model driven software engineering

  • Example of a Domain Specific Language

g g

  • Specifying and Implementing the Controllers of Conveyor

Belts

− We defined a domain specific language (DSL) for modeling p g g ( ) g communicating systems − Stepwise refinement to adapt the characteristics of the communication channels to the Lego Mindstorms platform

/ Faculteit Wiskunde en Informatica

PAGE 26 9-11-2010

Model driven software engineering

  • State machine based
  • combination of:

− graphical models and − textual models textual models

  • conditional message

exchange

− plus activities plus activities

  • No data yet
  • No timing yet
slide-8
SLIDE 8

Model driven software engineering Model driven software engineering

  • Requirements for a DSL:
  • Unambiguous syntax
  • Unambiguous semantics

U bi t f bilit

  • Unambiguous transformability
  • Strongly-typed and deterministic IO
  • Encapsulation

capsu at o

  • Expressiveness
  • Readability

Overview of workshop

  • Model driven software engineering in general

g g g

  • Grammars, signatures and meta-models
  • DSL Design
  • Model transformations
  • Code generation

/ Faculteit Wiskunde en Informatica

PAGE 30 9-11-2010

Grammars, signatures and meta-models

  • Definition of a (programming) language involves:

( g g) g g

  • abstract syntax, so-called signature
  • concrete syntax:

− textual syntax textual syntax − graphical syntax

  • semantics:

− static semantics − static semantics − dynamic semantics

/ Faculteit Wiskunde en Informatica

PAGE 31 9-11-2010

slide-9
SLIDE 9

Grammars, signatures and meta-models

Grammar world Meta-Meta-Model world Grammar world

  • The 4-layer architecture
  • M3 (E)BNF/SDF grammar
  • The 4-layer architecture
  • M3 Meta-Meta-Model Layer

− defines structure of the (E)BNF in (E)BNF

  • M2 Java grammar

− defines the structure of Java in (E)BNF − defines structure of the meta-metadata

  • M2 Meta-Model Layer

− defines the structure of the metadata ( )

  • M1 Java program

− describes the manipulation (algorithm) of objects in the object layer

  • M1 Model Layer

− describes the data in the information layer

  • M0 Information Layer
  • M0 Object layer

− Objects we wish to manipulate

y

− data we wish to describe

/ Faculteit Wiskunde en Informatica

PAGE 32 9-11-2010

Grammars, signatures and meta-models

  • Abstract syntax:

y

  • defines basic structure
  • f the language

( k l t ) (skeleton)

  • is starting point for

defining: defining:

− concrete syntax − static semantics d i ti − dynamic semantics

/ Faculteit Wiskunde en Informatica

PAGE 33 9-11-2010

Grammars, signatures and meta-models

  • Abstract syntax is a

Abstract syntax definition of Booleans:

y collection of constructors/-

“true”() -> BoolCon “false”() -> BoolCon “con”(BoolCon)

  • > Bool

functions

  • No information about

k d i iti

con (BoolCon) > Bool “and”(Bool, Bool) -> Bool “or”(Bool, Bool) -> Bool “not”(Bool) -> Bool

keywords, priorities, associativities, etc.

nonterminal nonterminal constructor

/ Faculteit Wiskunde en Informatica

PAGE 34 9-11-2010

Grammars, signatures and meta-models

  • Definition of a (programming) language involves:
  • lexical syntax, so-called tokens:

− identifiers, numbers, strings, “if”, “then”, “class” (keywords)

  • context-free syntax, so-called production rules:

− Statement ::= “if” Expression “then” Statements “else” Statements “fi”

  • static semantics:

− identification and scope resolution type checking − type checking

  • dynamic semantics:

− operational semantics − interpretation interpretation − compilation

/ Faculteit Wiskunde en Informatica

PAGE 35 9-11-2010

slide-10
SLIDE 10

Grammars, signatures and meta-models

  • There is no standardized way of defining abstract

y g syntax

  • SSL (specification formalism of the Synthesizer Generator)
  • Signature-like
  • Signature-like
  • (Meta-modeling)

/ Faculteit Wiskunde en Informatica

PAGE 36 9-11-2010

Grammars, signatures and meta-models

  • SSL (grammar specification formalism of the

(g Synthesizer Generator) describes it as follows:

  • A collection of rules that define phyla and operators
  • A phylum is a nonempty set of terms
  • A phylum is a nonempty set of terms
  • A term is the application of a k-ary operator to k terms of the

appropriate phylum A k ary operator is a constructor function mapping k terms to

  • A k-ary operator is a constructor function mapping k terms to

a term

  • A phylum can be considered a nonterminal

phyl0 : op(phyl1 phyl2 … phylk)

/ Faculteit Wiskunde en Informatica

PAGE 37 9-11-2010

Grammars, signatures and meta-models

  • SSL notation of the definition of the abstract syntax

y

  • f Booleans:

boolcon : True() | False() boolcon : True() | False() bool : Con(boolcon) | And(bool bool) | Or(bool bool)

/ Faculteit Wiskunde en Informatica

PAGE 38 9-11-2010

Grammars, signatures and meta-models

  • Signature describes it as follows:

g

  • A collection of functions that define sorts and operators
  • A sort represents a nonempty set of terms
  • A term is the application of a k-ary operator to k terms of the
  • A term is the application of a k-ary operator to k terms of the

appropriate sort

  • A k-ary operator is a constructor function mapping k terms to

a term a term

  • A sort can be considered a nonterminal

( )

  • p(sort1, sort2, …, sortk)  sort0

/ Faculteit Wiskunde en Informatica

PAGE 39 9-11-2010

slide-11
SLIDE 11

Grammars, signatures and meta-models

  • Signature notation of the definition of the abstract

g syntax of Booleans:

“true”()

  • > BoolCon

true () > BoolCon “false”() -> BoolCon “con”(BoolCon) -> Bool “and”(Bool, Bool) -> Bool “or”(Bool, Bool) -> Bool “not”(Bool) -> Bool

/ Faculteit Wiskunde en Informatica

PAGE 40 9-11-2010

Grammars, signatures and meta-models

  • Meta-modeling is the analysis, construction and

g y development of the frames, rules, constraints, models and theories applicable and useful for modeling a predefined class of problems modeling a predefined class of problems.

  • Relation between meta-models and grammars?
  • Is every meta-model a context-free grammar?

− …

  • Is every context-free grammar a meta-model?

− …

/ Faculteit Wiskunde en Informatica

PAGE 41 9-11-2010

Grammars, signatures and meta-models

  • Models and meta-models:
  • Warmer et.al.:

− “A model is a description of (part of) a system written in a well- defined language” − “A meta-model is a model that defines the language for expressing a model” − “A meta-model is the collection of ‘concepts’ (things, terms, etc.) within a certain domain and an attempt at describing the world within a certain domain and an attempt at describing the world around us for a particular purpose. Meta-models are also referred to as a precise definition of the constructs and rules needed for creating semantic models.” − “The meta-model of a language, also known as abstract syntax, is a description of all the concepts that can be used in that language.”

/ Faculteit Wiskunde en Informatica

PAGE 42 9-11-2010

Grammars, signatures and meta-models

Grammar Program Syntax Schema Meta model Document XML Meta-model Model

  • cu

e t MDE Schema DBMS

/ Faculteit Wiskunde en Informatica

PAGE 43 9-11-2010

Data

slide-12
SLIDE 12

Grammars, signatures and meta-models

  • First alternative meta-model for Booleans:
  • Every operator (not, or, and) is modeled as a separate

class

  • Constructors (true false) are modeled as enumeration
  • Constructors (true, false) are modeled as enumeration
  • Second alternative meta-model for Booleans:

Seco d a te at e eta

  • de
  • o ea s
  • Binary operator is modeled as a separate class
  • Unary operator is modeled as a separate class
  • Operators are modeled as enumerations
  • Constructors (true, false) are modeled as enumeration

/ Faculteit Wiskunde en Informatica

PAGE 44 9-11-2010

Grammars, signatures and meta-models

  • First alternative for Boolean meta-model
  • Signature:

“true”() -> BoolCon “false”()

  • > BoolCon

false () > BoolCon BoolCon -> Bool AndBool -> Bool OrBool

  • > Bool

OrBool -> Bool NotBool -> Bool “and”(Bool, Bool) -> AndBool “or”(Bool Bool)

  • > OrBool
  • r (Bool, Bool) -> OrBool

“not”(Bool) -> NotBool

/ Faculteit Wiskunde en Informatica

PAGE 45 9-11-2010

Grammars, signatures and meta-models

  • First alternative for Boolean meta-model

/ Faculteit Wiskunde en Informatica

PAGE 46 9-11-2010

Grammars, signatures and meta-models

  • First alternative for Boolean meta-model

/ Faculteit Wiskunde en Informatica

PAGE 47 9-11-2010

slide-13
SLIDE 13

Grammars, signatures and meta-models

  • Second alternative for Boolean meta-model
  • Signature:

“true”() -> BoolCon “false”() -> BoolCon BoolCon -> Bool BinaryBool -> Bool UnaryBool -> Bool “bin”(BinaryOp, Bool, Bool) -> BinaryBool “una”(UnaryOp, Bool, Bool) -> UnaryBool “not”() -> UnaryOp “and”() -> BinaryOp “or”() -> BinaryOp

/ Faculteit Wiskunde en Informatica

PAGE 48 9-11-2010

Grammars, signatures and meta-models

  • Second alternative for Boolean meta-model

/ Faculteit Wiskunde en Informatica

PAGE 49 9-11-2010

Grammars, signatures and meta-models

  • Second alternative for Boolean meta-model

/ Faculteit Wiskunde en Informatica

PAGE 50 9-11-2010
