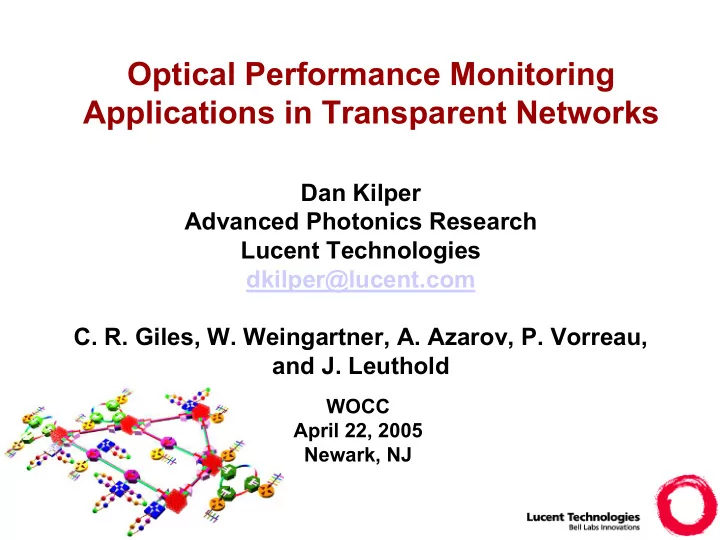

Optical Performance Monitoring Applications in Transparent Networks

Dan Kilper Advanced Photonics Research Lucent Technologies dkilper@lucent.com

• C. R. Giles, W. Weingartner, A. Azarov, P. Vorreau,

and J. Leuthold

WOCC April 22, 2005 Newark, NJ

2 Old Technology

Ultra-long Transport Systems

Point-to-Point Transparency

Current

ROADM ROADM End Terminal (opaque) End Terminal (opaque)

4000km at 10Gb/s >2000km at 40Gb/s

OA Repeaters

Mitigation of: Noise Dispersion Gain variation Nonlinearity Advanced Technologies: Raman Amplification Dispersion Managed Solitons Dynamic Gain Equalization DPSK, Advanced Modulation Formats

3

ULH+ROADM/OXC MESH NETWORK ULH+ROADM/OXC MESH NETWORK

N E S W

λ1 λ2 λ3 λ4 λ5 λ6 λ7

MOADM

A B

ET ET ET ET

C D

λ4 λ5 λ1 λ2 λ3 λ7 λ12 λ6 λ10λ11 λ12 λ10λ11

Operational Complexity + Advanced Technology Advanced Monitoring Transparent Reconfiguration

• Intersecting lines must discover one another and exchange topology information.
• Auto-provisioning must operate across the mesh network.
• Faults are correlated across multiple systems.
• Greater flexibility requires better stability & control

4

Optical Network Performance Monitoring

• First Generation: Total power monitoring. Amplifier gain adjustment,

signal presence, link status verification.

• Second Generation: WDM channel presence / power and wavelength.

Auto-provisioning and gain flattening.

• Third Generation: Channel optical SNR / Q-factor, active dispersion
• compensation. Fault isolation, dispersion compensation.
• Fourth Generation: Transparent network management. Channel

performance verification after link concatenation.

• Fifth Generation: In-situ link parameter extraction from detailed

channel signatures. Preplanning / preprovisioning assessment. Resource database creation.

T O D A Y

5

Eliminating Regenerators

• Must also consider fault management requirements
• Cost of OADM/ULH technology (DGEF)/OPM < OEO

500 km 500 km 600 km

OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO

1600+ km

OPM OPM

OADM

DGEF

OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO

6

3G: DWDM Fault Management

OPM OPM OPM

OEO OEO OEO OEO OEO

OPM OPM OPM OPM OPM OPM

Report BER degradation Read out OPM history: compare actual performance with stored reference Locate degradation: dispatch maintenance

• Advanced technologies/network complexities

– Component alarms may be insufficient

• Need OPM that correlates with end terminal BER

– OPM registers change when end terminal BER alarm triggers

• OPM granularity to suit carrier opex goals

OADM OEO OEO OEO OEO OEO OADM

7

Electronic Fault Management

• BER monitoring is sufficient

– No errors in: No errors out – Noise does not propagate past regenerators

• Isolate faults to ~600 km

OSNR: BER Distance

500 km 500 km 600 km

OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO

8

Ultra-Long Haul Transmission

1800+ km

• Replace OEOs with OA repeaters: lose fault isolation
• BER at OA repeaters has limited benefit
• Noise propagates through repeaters

Error Free Distance OSNR:

OPM OPM OPM

OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO

Error Free

9

5 10 15 20 25 30 10 15 20 25 30 35 OSNR (dB) Node #

‘Good’ ‘Impaired’ Fault Location

BER: 10-12 10-9 Fault Metrics: 10 dB BER drop 10-9 BER threshold

Fault Isolation

• Need sensitivity to wide variety of impairments.
• BER 10-9 gives ~ 4 orders of magnitude

advanced warning in FEC-based links.

10

• BER Measurement

– Sensitive to end terminal impairments – Problem: BER in network better than end term.

• Noise loaded BER measurement

– Sensitivity close to BER

• Other methods: OSNR, half-clock, pol.

ext., histograms, tones, autocorrelation, …

– Must show advantage over Q/BER approach

• Cost/sensitivity/impairment coverage

– Target systems that cannot use Q-factor

Q Factor OPM Fault Management Technologies

11

Q Factor

• Signal to Noise Ratio Measurement

10G RZ Eye Diagram Vth

Noise Signal Q → + − =

1 1

σ σ µ µ

µ0 σ1 σ0 µ1

( )

                − +         − = 2 2

1 1 4 1

σ µ σ µ

th th th

V erfc V erfc V BER

12

Q Factor Monitoring Techniques

(A) Variable threshold, dual decision – eye mapping (B) Variable threshold, use FEC/integrate data (C) Asynchronous histogram methods

• Sensitivity questions

(D) Sampling techniques

Asynch. part

(C)

Vthr

(B) (D) (A)

Vthr Vref

13

FEC Error Count Eye Mapping

• Vary voltage threshold across center of eye
• Use commercial 10 Gb/s receiver

1.1 1.2 1.3 1.4 1.5 1.6 1.7

• 10
• 9
• 8
• 7
• 6
• 5
• 4
• 3
• 2

Log(BER) Decision Level (Volts)

Low OSNR High OSNR

14

Q-factor vs. time

• Determined measurement noise contributions

under different conditions

• Error due to counting statistics, threshold voltage

accuracy, power fluctuations

2000 4000 6000 8000 10000 13 14 15 16 17 18 19 20 Fixed Decision Level Variable Decision Level

Q-factor (dB) Time (sec)

Vary OSNR

15

Dispersion map issues

• Q factor varies with dispersion map
• 10Gb/s: up to 1000 ps/nm

– OK for trend monitoring

• 40 Gb/s: eye closed until end terminal

– Would need per-channel DCM/tunable DCM – Also obstacle to 40G optical networks

… …

+300 ps/nm

Distance node ∆Q sensitivity is weakly dependent

• n magnitude of

Q factor

• 300 ps/nm

16

OSNR/Dispersion

• Measure Q-Factor up

to –982 ps/nm accum. dispersion

• OSNR sensitivity only

weakly dependent on dispersion

Use DCMs & SSMF to add dispersion

10 15 20 25 30 35 1 2 3 4 5 6 7 8

|Qmeas - Qbkgd| (dB) OSNR (dB)

0 ps/nm

• 512 ps/nm
• 982 ps/nm

14 16 18 20 22 24 26 28 30 32 34 9 10 11 12 13 14 15 16 17 18 19 20 21 0 ps/nm

• 512 ps/nm
• 982 ps/nm

Q-Factor (dB) OSNR (dB)

Dispersion managed solitons: pulses retain shape throughout transmission!

• Always within receiver

Q-factor range

17

Sensitivity varies with monitor location

• OSNR, non-linear impairments accumulate with

distance

• Dispersion follows map

5 10 15 20 25 30 12 14 16 18 20 22 24 26 28 30 32 BER: 10-9 10-14

Q2 (dB) Span #

Pre-compensation: 0 ps/nm

• 300 ps/nm
• 500 ps/nm
• 800 ps/nm

( )

2 2 2 1 ASE ASE P Beat P

σ + +σ D σ

• I

D I Q =

( )2

1 f D D

A P =

DA=Accum. Dispersion f = scaling factor (4 dB @ 800 ps/nm) Dispersion Penalty Calculate “optical” Q on line: Monitor independent: OSNR Drop

18

Dispersion faults

• Strongly dependent on map
• Look for discontinuities along path
• Use +/- bands to identify dispersion problems

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 14 16 18 20 22 24 26 28 30 32 Pre-compensation:

• 800 ps/nm

+624 ps/nm

• 624 ps/nm

Q

2 (dB)

Span #

Slope changes in Q trend +/- 624 ps/nm for 10-9 BER degradation

19

Performance Polling: Tunable Filter + OA O/E O/E

P P Q Q

• 20 dB

Tap Span loss ~ 20 dB

Filter OA

• Guarantee equal or better sensitivity than end terminal
• Replace entire OEO terminal with single OE, channel

selector, and single channel OA

• O/E provides BER, conventional PM, Q-factor, average

power, channel presence, wavelength drift

20

WDM vs. (O)TDM

WDM: Access signals with OE throughout system

OE: Q OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OADM OE: Q

OTDM: OE not available/feasible within network

OPM? O3R OEO OEO OEO OEO OEO OTDM OADM OPM?

21

Quality of Service (QoS): per channel BER

QoS Monitoring in Transparent Networks

OEO PM OEO PM OEO PM 600 km 400 km 500 km

How do we monitor in an all-optical network?

OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO OEO

O3R OPM O3R OPM O3R OPM

22

Regeneration Applications

• Unambiguous indication of signal quality

– Correlation with common impairments

• Do not need to isolate or measure impairments
• No contingencies on relative impairment

contributions

• Absolute measure of signal quality

– Usually only coarse measure

• Error free/not error free
• Guarantee above threshold: 10-14 BER
• Satisfy operating requirements of system

– System specific: input power, modulation format, etc.

23

Optical Regeneration + Monitoring

SOA Filter CW Data Pdata Pcv

1

λ

2

λ

2

λ

For given input power: more or less power will arrive at the output depending on the input signal quality and the filter characteristics

24

Unambiguous Quality Indicator: Pout/Pin

• 150 -100
• 50

50 100 150 0.0 0.2 0.4 0.6 0.8 1.0 Monitor Signal (a.u.) Dispersion (ps/nm)

12 14 16 18 20 22 24 26 28 30 0.6 0.8 1.0 OSNR (dB)

Dispersion Unable to isolate noise or dispersion But.... Monitoring signal decreases with decreasing signal quality Noise

25

Summary

• Transparent optical networks generate a need for new

system monitoring and management methods

• Focus on applications will drive technology development
• Fault management: Q-factor natural replacement for BER
• Regeneration applications: solutions tied to regeneration

technologies & provide BER trend

26

Back-Up Slides

27

Is spectral OSNR useful?

1565 1566 1567 1568 1569 1570

• 30
• 20
• 10

Relative Power (dB) Wavelength (nm)

≠ OSNR

Noise Floor, 17 dB & 32 dB

10 Gb/s RZ on 50 GHz grid

Problems:

• Tight channel spacing: overlapping spectra
• Per-channel OSNR (OADM/OXC networks)
• Filters modify spectra (OADM/OXC)
• Poor coverage: MPI, pump RIN transfer, FWM

28

Is spectral OSNR useful?

Yes, under following constraints:

• OSNR-degradation is only impairment of interest or major

impairment

• Channels are widely spaced in wavelength

– Or spectral regions reserved for monitoring

• Used for amplifier monitoring (not channel monitoring)

– Don’t follow channels through ROADM/OXC
