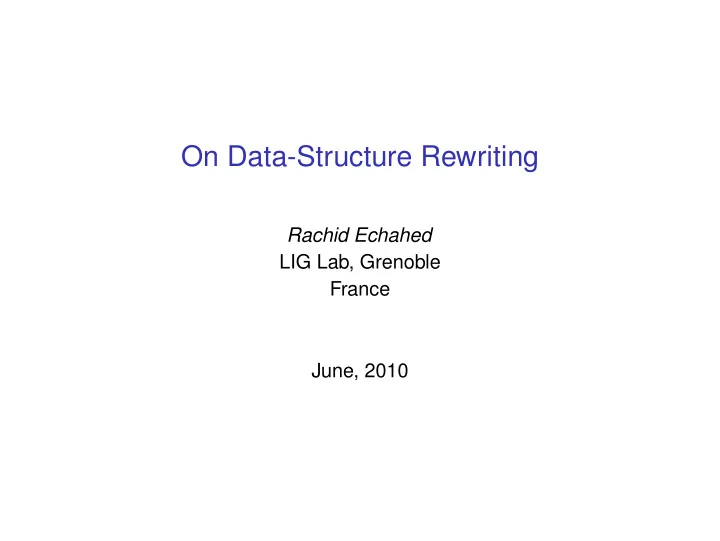

On Data-Structure Rewriting

Rachid Echahed LIG Lab, Grenoble France June, 2010

Rewriting (reminder)

◮ A rewrite relation R is a binary relation

R ⊆ A × A

◮ (u, v) ∈ R is read “u rewrites into v” and written

u → v

Rewriting (reminder)

R ⊆ A × A

◮ A = set of strings over a vocabulary (V ∗) ◮ A = set of states of the form (variables, valuation) ◮ A = set of Turing Machine configurations ◮ A = set of lambda-terms ◮ A = set of trees (or terms) ◮ A = set of clauses ◮ A = set of process terms ◮ A = . . .

Rewriting

R ⊆ A × A

◮ How to define a rewrite relation R? ◮ How to define a run or the execution of a program?

◮ A rewrite derivation : u0 is the initial “call”

u0 → u1 → . . . → un

◮ A narrowing derivation :

w0 is the initial goal (to solve): w0 σ1 w1 . . . σn wn Where wi σ wi+1 iff σ(wi) → wi+1 wi is an element of A with partial information σ instantiates wi

Motivation : Extension of Term Rewriting ; sharing subterms

Function definitions by means of term rewrite rules 0 + x → x succ(x) + y → succ(x + y) double(x) → x + x Very well established domain with several results : Confluence, Termination, Strategies, Proof methods (equational reasoning, induction) etc. double(x)

• +
• x

double

• t
• +
• t

Sharing Subterms (information) and Term Rewriting

Consider the following rules: f(a, b) → c a → b Sharing does not preserve properties of tree (term) rewriting ! f(a, a) → f(a, b) → c f

• a
• f
• b

→ [Plump 99] survey on rewriting with “dags”.

Motivation (continued)

◮ Data-structure rewriting

including cyclic data-structures with pointers such as circular lists, doubly-linked lists, etc.

◮ Data-structures are more complex than terms (Cycles,

Sharing)

◮ Difficult to encode efficiently using terms ◮ Usually described by pointers (⇒ pointer rewriting) ◮ Formally described as term-graphs

term-graphs = terms with cycles and sharing

Term-graphs

[Barendregt et al. 87] [Plump 99, survey on acyclic term-graphs] Let Ω be a set of operation symbols. A term-graph t over Ω is defined by:

◮ a set of nodes Nt, ◮ a subset of labeled nodes NΩ t ⊆ Nt, ◮ a labeling function Lt : NΩ t → Ω, ◮ a successor function St : NΩ t → N∗ t ,

1 : f

1

• 2
• 3
• 2 : b

3 : g

1

• 2
• 4 : •

5 : h

1

Term-graphs

[Barendregt et al. 87] [Plump 99, survey on acyclic term-graphs] Let Ω be a set of operation symbols and F a set of feature symbols. A term-graph t over Ω and F is defined by:

◮ a set of nodes Nt, ◮ a set of edges Et ◮ a subset of labeled nodes NΩ t ⊆ Nt, ◮ a node labeling function Ln t : NΩ t → Ω, ◮ an edge labeling function Le t : Et → F ◮ a source function St : Et → Nt, ◮ a target function Tt : Et → Nt,

(Term-)Graph Rewriting

◮ Which graphs? (Term-Graphs) ◮ Which rules? ◮ Which rewrite relation?

Two main approaches

◮ Algorithmic approaches ◮ Algebraic approaches (DPO,SPO, . . .)

Graph Transformation

◮ Handbook of Graph Grammars and Computing by Graph

Transformation (World Scientific)

◮ Vol 1: Foundations, ed. G. Rozenberg, 1997 ◮ Vol 2: Applications, Languages and Tools

• eds. H. Ehrig, G. Engels, H.-J. Kreowski and G.

Rozenberg, 1999

◮ Vol 3: Concurrency, Parallelism and Distribution

• eds. H. Ehrig, H.-J. Kreowski, U. Montanari and G.

Rozenberg, 1999

◮ A Monograph in Theoretical Computer Science (An EATCS

series)

• H. Ehrig, K. Ehrig, U. Prange, G. Taentzer: Fundamentals
• f Algebraic Graph Transformation. Springer-Verlag, 2006

Outline

Introduction Motivations Termgraph Rewrite Systems Confluence and Rewrite Strategies Narrowing A Modal Logic for Graph Transformation Conclusion

Algorithmic approach

[Barendregt et al. 87] Shape of a rule: L → R where L and R are rooted term-graphs. A rule can be defined as one graph together with two roots (L + R, r1, r2) where r1 and r2 are the roots of L and R respectively Let ρ be the rule (L + R, r1, r2) We say that G rewrites to H using the rule ρ if

◮ L matches a subgraph of G (h : L → G |n) ◮ (build phase) Construct graph G1 = G + h(R) ◮ (redirection phase) G2 = [h(r1) ≫ h(r2)]G1 ◮ (garbage collection phase) H = G2 |root

A cumbersome definition, hard to deal with in practice!

Rewrite Rules with actions

Shape of a rewrite rule : [L | C] → R

◮ L is a term-graph pattern ◮ C is a node constraint, n i=1(αi ≈ βi). ◮ R is a sequence of actions a1; a2; . . . ; an

Actions

We consider three kinds of actions :

◮ Node definition α:f(α1, . . . , αn) ◮ Edge redirection α ≫i β ◮ Global redirection α ≫ β

Application of actions

a[t] denotes the application of action(s) a on the term-graph t

◮ Let t = n:f(p, q :a)

n:f

1

• 2
• p

q :a

◮ Let t1 = p:h(p)[t] = n:f(p:h(p), q : a)

n:f

1

• 2
• p:h

1

• q :a

Application of actions

a[t] denotes the application of action(s) a on the term-graph t

◮ Let t1 = p:h(p)[t] = n:f(p:h(p), q : a)

n:f

1

• 2
• p:h

1

• q :a

◮ Let t2 = n ≫2 p[t1] = n:f(p:h(p), p); q : a

n:f

1

• 2
• p:h

1

• q :a

Application of actions

a[t] denotes the application of action(s) a on the term-graph t

◮ Let t2 = n ≫2 p[t1] = n:f(p:h(p), p); q : a

n:f

1

• 2
• p:h

1

• q :a

◮ Let t3 = p ≫ q[t2] = n:f(q, q); p:h(q)

n:f

1

• 2
• p:h

1

q :a

Rewrite Step

Let t be a term-graph Let ρ be a rewrite rule [L | C] → R t rewrite to s at node α, t →α s iff:

◮ ∃m : L → t a homomorphism (ρ-matcher) ◮ m(rootL) = α ◮ α is reachable from roott ◮ m(C) holds ◮ s = m(R)[t]

Term-Graph Rewrite Systems (tGRS) –Example–

Length of a circular list : r : length(p) → r : length′(p, p) r : length′(p1 : cons(n, p2), p2) → r : s(0) [r : length′(p1 : cons(n, p2), p3) | p2 ≈ p3] → r : s(q); q : length′(p2, p3) Remark: term rewrite systems are tGRS’s.

Term-Graph Rewrite Systems –Example–

In-situ list reversal :

• : reverse(p) → o : rev(p, nil)
• : rev(p1 : cons(n, nil), p2) → p1 ≫2 p2; o ≫ p1
• : rev(p1 : cons(n, p2 : cons(m, p3), p4) → p1 ≫2 p4; o ≫1

p2; o ≫2 p1 Visual Programming would help!

DPO approach of rewrite rules with actions

A categorical approach can be found in [TERMGRAPH 06, ENTCS07, RTA07] L

m

• K

l

• d
• r

R

m′

• G

D

l′

• r ′

H Figure: Double pushout: a rewrite step (G → H)

Redirections of edges (pointers) are handled by K = disconnection(L, E, N) and the morphisms l and r. Remark: Morphisms l and r are not injective! D is not unique!

Confluence

f(x) → x g(x) → x The following term-graph n:f

• q :g
• rewrites to

n:f

• q :g

Confluence

α : f(β : c) → β : a; α ≫ β α : g(β : c) → β : b; α ≫ β p:f

• q :g
• q :c

The label of node q may end as q : a or q : b

Computing with non-confluent

• rthogonal Term-graph Rewrite Systems

How to evaluate the following term-graph ?

◮ addlast(length(n : [1, 2]), n) ◮ Two normal forms

◮ [1, 2, 2] (evaluate addlast after length) ◮ [1, 2, 3] (evaluate length after addlast)

Term-graphs with Priority

[PPDP06][RTA07][RTA08]

◮ Endow Term-graphs with priorities (G, <G) to express

which node should be evaluated first

◮ m1 :addlast(m2 :length(n:[1, 2]), n); m1 < m2

◮ Priorities should not be a total order (stay declarative) ◮ Which nodes should be ordered? ◮ Solution: Order only nodes producing a “side-effect”

Strategies and needed nodes

A strategy φ is a partial function which takes a rooted term-graph t and returns a node (position) n and a rule R, φ(t) = (n, R) such that the term-graph t can be reduced at node n using the rule R, t →n t′

Needed Nodes

Let φ be a rewrite strategy. Let φ(t) = (p, R). The node p is needed iff for all derivations t →β1 t1 →β2 . . . tn−1 →βn tn such that tn is a value, there exists i ∈ [1..n] s.t. βi = p

Inductively sequential Term Rewrite Systems

◮ Constitute a subclass of TRSs for which efficient rewrite

strategies are available [Antoy 92]

◮ Are as expressive as Strongly Sequential TRSs ◮ Are the basis of modern functional and logic programming

languages.

◮ Are defined by means of data-structures called Definitional

trees

Definitional Trees -case of terms-

Let R be the following TRS f(k,nil) → R1 f(0,cons(x,l)) → R2 f(succ(n),cons(x,l)) → R3 A definitional tree of operator f is a hierarchical structure whose leaves are the rules defining f. f(k, l) f(k, nil) → R1 f(k, cons (x, u)) f(0, cons (x,u)) → R2 f(succ(y), cons (x,u)) → R3

Definitional trees

• case of term-graphs-

r : length′(p1 : nil, p2 : •) → rhs1 r : length′(p1 : cons(n : •, p2 : •), p2) → rhs2 [r : length′(p1 : cons(n : •, p2 : •), p3 : •) | p2 . = p3] → rhs3 A definitional tree T of the operation length′ is given bellow: r : length′(p1 : •, p2 : •) r : length′(p1 : nil, p2 : •) → rhs1 r : length′(p1 : cons(n : •, p3 : •), p2 : •) r : length′(p1 : cons(n : •, p2 : •), p2) → rhs2 [r : length′(p1 : cons(n : •, p2 : •), p3 : •) | p2 . = p3] → rhs3

A Rewrite strategy φ

Consider the following definitional tree T of the operation g : r : g(p1 : •, p2 : •) r : g(p1 : nil, p2 : •) → rhs1 r : g(p1 : cons(n : •, p3 : •), p2 : •) r : g(p1 : cons(n : •, p2 : •), p2) → rhs2 [r : g(p1 : cons(n : •, p2 : •), p3 : •) | p2 . = p3] → rhs3 φ(1 : g (2 : g(3 : g(nil, p), q), 4 : g(nil, o))) = φ(2 : g(3 : g(nil, p), q)) = φ(3 : g(nil, p)) = (3, Rule1)

Naive extension of TRS’s

Contrary to term rewriting, Definitional trees are not enough to ensure the neededness of positions computed by the strategy φ, in the context of term-graph rewriting. Proposition: Let SP = Ω, R be tGRS such that Ω is constructor-based and the rules of every defined operation are stored in a definitional tree. Let t be a rooted term-graph. Then,

• 1. if φ(t) = (p, R), the node p is not needed in general.
• 2. if φ(t) is not defined, g can still have a constructor normal

form.

Counter-examples

r : f(p : 0) → r ≫ p r : h(p : 0, q : succ(n : •)) → q ≫ p r : f(p : succ(p′ : •)) → r ≫ p Let t = n : succ

• r : succ
• p : f
• q : succ
• s : h
• u : 0

φ(t) = (p, r : f(p : succ(p′ : •)) → r ≫ p). However, the node p is not needed in t.

Counter-examples

r : g(p : 0) → r ≫ p r : h(p : 0, q : succ(n : •)) → q ≫ p Let t = n : succ

• r : succ
• p : g
• q : succ
• s : h
• u : 0

φ(t) is not defined!. However, the term-graph t rewrites to n : succ(u : 0).

Inductively Sequential Term-Graph Rewrite Systems

Let SP = Ω, R be a tGRS. SP is called inductively sequential iff

◮ The rules of every defined operation can be stored in a

definitional tree and

◮ for all rules [L | C] → r in R, for all global (respectively,

local) redirections of the form p ≫ q (respectively, p ≫i q for some i), occurring in the right-hand side r, p = RootL.

Main Properties of Strategy Φ

In presence of Inductively Sequential Term-Graph Rewrite Systems

◮ The positions computed by Φ are needed ◮ Φ is c-normalizing ◮ Φ is c-hyper-normalizing ◮ Derivations computed by Φ have minimal length

Confluence

Inductively sequential tGRS are not confluent! f(p : •, p) → 0 [f(p : •, q : •) | p = q] → 1 r : g(q : •) → r ≫ q Let t = n : f

• p : g

q : 0

There are two different derivations starting from t : t →n 1 t →p f(q : 0, q) →n 0

Admissible term-graphs

[JICSLP98] Ω is contructor-based, i.e. Ω = D ∪ C and D ∩ C = ∅ D is a set of defined operations C is a set of constructors A term-graph is admissible if none of its cycles includes a defined operation. n:succ(n) is an admissible term-graph n:+(n, n) and n : tail(n) are not admissible

Admissible term-graphs

The set of admissible term-graphs is not closed under rewriting n:f(m) → q :g(n); n ≫ m Let Ω = D ∪ C with C = {0, succ} and D = {f, g} n1 :f(m1 :0) → q1 :g(q1)

Admissible Inductively sequential Term-Graph Rewrite Systems

Let SP = Ω, R be an inductively sequential tGRS. SP is called admissible iff for all rules [π | C] → r in R the following conditions are satisfied

◮ for all global (respectively, local) redirections of the form

p ≫ q (respectively, p ≫i q for some i), occurring in the right-hand side r, we have p = Rootπ and q = Rootπ.

◮ for all actions of the form α : f(β1, . . . , βn), for all i ∈ 1..n,

βi = Rootπ

◮ the set of actions of the form α : f(β1, . . . , βn), appearing in

r, do not construct a cycle including a defined operation.

◮ Constraint C includes disequations of the form p .

= q where p and q are labeled by constructor symbols.

Admissible Inductively sequential Term-Graph Rewrite Systems

[ICGT08][JICSLP98] In presence of Admissible Inductively sequential Term-Graph Rewrite Systems

◮ The set of admissible term-graphs is closed under the

rewrite relation defined by admissible rules.

◮ Φ computes needed positions ◮ Admissible term-graphs admit unique normal forms

Narrowing

wi σ wi+1 iff σ(wi) → wi+1

◮ Rewriting = Matching + Transformation ◮ Narrowing = Unification + Transformation

Narrowing –Motivation–

◮ Automated deduction [Slagle 74] [Fay 79][Hullot 80] ◮ Functional and Logic Programming [Goguen and

Meseguer 84, ...]

◮ Security verification [Meadows 89, ...] ◮ Reachability Analysis [Meseguer and Thati 05, ...] ◮ ...

Narrowing

Instantiate goal variables and apply a reduction step 0 + X → X s(X) + Y → s(X + Y) U + s(0) = s(s(0)) {U→s(V)} s(V + s(0)) = s(s(0)) {V→0} s(s(0)) = s(s(0)) Computed answer: {U → s(0)}

Some Results

Needed Term narrowing [POPL04][JACM2000] (main operational semantics of current functionalogic programming languages) Needed Graph Narrowing [JICSLP98] Needed Collapsing Narrowing [Gratra 2000] Narrowing-based algorithm for data-structure rewriting [ICGT06]

◮ Goal

• : equal(p : length(q), s(s(0))) = true

◮ Solution : a circular list of length two

[q : cons(n1, r : cons(n2, q)) | q ≈ r]

Narrowing: What do we transform?

Rule

• : f(p : a, q, r) −

→ p : b; o ≫3 q Rewrite Steps

• 1, p1, q1 and r1 are constants (names or addresses)
• 1 : f(p1 : a, q1 : a, r1) −

→ o1 : f(p1 : b, q1 : a, q1)

• 1 : f(p1 : a, p1, r1) −

→ o1 : f(p1 : b, p1, p1)

Narrowing: What do we transform?

Rule

• : f(p : a, q, r) −

→ p : b; o ≫3 q Rewrite Steps (o1, p1, q1 and r1 are constants)

• 1 : f(p1 : a, q1 : a, r1) −

→ o1 : f(p1 : b, q1 : a, q1)

• 1 : f(p1 : a, p1, r1) −

→ o1 : f(p1 : b, p1, p1) Narrowing steps (o2, p2, q2 and r2 are variables)

• 2 : f(p2, q2 : a, r2) ?

σ labels node p2 with symbol a.

• 2 : f(p2, q2 : a, r2) σ o2 : f(p2 : b, q2 : a, q2) | p2 ≈ q2
• 2 : f(p2, q2 : a, r2) σ∪{q2→p2} o2 : f(p2 : b, p2, p2)

Narrowing: What do we transform?

Rule

• : f(p : a, q, r) −

→ p : b; o ≫3 q Narrowing steps (o2, p2, q2 and r2 are variables)

• 2 : f(p2, q2 : a, r2)

σ [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2)] [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2) | p2 ≈ q2] [apply(o2 : f(p2 : b, q2 : a, r2), o2 ≫3 q2) | p2 ≈ q2] [apply(o2 : f(p2 : a, q2 : a, q2), ǫ) | p2 ≈ q2] [o2 : f(p2 : a, q2 : a, q2) | p2 ≈ q2]

Narrowing: What do we transform?

Rule

• : f(p : a, q, r) −

→ p : b; o ≫3 q Narrowing steps

• 2, p2, q2 and r2 are variables
• 2 : f(p2, q2 : a, r2)

σ [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2)] {q2→p2} [apply(o2 : f(p2 : a, p2, r2), p2 : b; o2 ≫3 q2)] [apply(o2 : f(p2 : b, p2, r2), o2 ≫3 q2)] [apply(o2 : f(p2 : b, p2, p2), ǫ)]

• 2 : f(p2 : b, p2, p2)

g-terms

Symbolic handling of actions G is a term-graph φ is a conjunction of disequations τ is a sequence of actions [G | φ] [apply(G, τ) | φ] Example: [o2 : f(p2 : a, q2 : a, q2) | p2 ≈ q2] [apply(o2 : f(p2 : b, q2 : a, r2), o2 ≫3 q2) | p2 ≈ q2]

Graph Narrowing Rules

Superposition rule (SUP) [G | ψ]τ SUP,ρ,θ [H | ψ′]σ(τ) If:

◮ G is a term-graph ◮ ρ is rewrite rule [L | φ] → R ◮ σ is a most general unifier of L and G such that:

◮ σ(L) and σ(G) are compatible ◮ The root of L unifies with a labeled node in G

(non-variable unification)

◮ H = apply(σ(G) ∪ σ(L), σ(R)) ◮ θ = (σ, K) with K = σ(L)\σ(G) ◮ ψ′ = σ(ψ) ∧ σ(φ) ∧ p∈affected by(σ(τ)),q∈K Ω p .

= q.

Graph Narrowing Rules

Action rule: simplify (SIM) [apply(G, ǫ) | ψ]τ SIM [G | ψ]τ

Graph Narrowing Rules

Action rule: execute (EXE) [apply(G, α.u) | ψ]τ EXE [apply(α[G], u) | ψ′]τ.α If:

◮ action α is not a node creation and ◮ [G | ψ] is ready for action α.

Graph Narrowing Rules

Action rule: new node (NEW) [apply(G, n+.u) | ψ]τ NEW,σ [apply(n+[G], σ(u)) | ψ′]τ.n+ If:

◮ σ = {n → n′} where n′ is a fresh effective node ◮ ψ′ = ψ ∧ p∈V∩NG(p ≈ n′)

Graph Narrowing Rules

Isolation rule with equality (EQU) [apply(G, α.u) | ψ]τ EQU,σ [apply(σ(G), σ(α).σ(u)) | σ(ψ)]σ(τ) If:

◮ there exists a node n ∈ affected by(α), ◮ m is not an α-isolated node in G and ◮ σ is a substitution (compatible with G) such that

σ(n) = σ(m)

• 2 : f(p2, q2 : a, r2)

σ [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2)] {q2→p2} [apply(o2 : f(p2 : a, p2, r2), p2 : b; o2 ≫3 q2)]

Graph Narrowing Rules

Isolation rule with disequality (DIS) [apply(G, α.u) | ψ]τ DIS [apply(G, α.u) | ψ ∧ n . = m]τ If:

◮ there exists a node n ∈ affected by(α), ◮ m is not an α-isolated node in G

• 2 : f(p2, q2 : a, r2)

σ [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2)] [apply(o2 : f(p2 : a, q2 : a, r2), p2 : b; o2 ≫3 q2) | p2 ≈ q2]

Computed Solutions

[G0 | True] σ1 · · · σn [Gn | φ] Computed Solution is : (σ1 · · · σn, φ) Example:

◮ Goal

• : equal(p : length(q), s(s(0))) = true

◮ Solution

[q : cons(n1, r : cons(n2, q)) | q ≈ r]

Graph Narrowing: Soundness and Completeness

Proposition 1: The proposed narrowing rules are sound. If [G | True] σ [H | φ] then there exists a ground substitution θ satisfying φ such that: Gσθ − →∗ Hθ Proposition 2: The proposed narrowing rules are complete. If Gσ − →∗ H, σ being irreducible. Then, there exist two substitutions θ and γ and a term-graph G′ such that :

◮ [G | True]∗θ[G′ | φ] ◮ γ satifies φ ◮ σ = θγ ◮ G′γ = H

Modal Logic and Graph Transformation – motivations–

◮ Specify graph shapes (data-structures)

◮ Circular list ◮ Balanced tree

Graph properties can be specified within several logics, such as :

◮ Separation Logic, ◮ Monadic second order logic, ◮ Modal logics (e.g., LTL, CTL, µ-calculus, etc).

◮ Verification of graph transformation:

◮ Invariant ◮ Reachability ◮ Need to define new logics able to specify rule application

and graph transformation.

Dynamic Logic

◮ Agents ◮ Knowledge ◮ Actions

Evaluate a formula in a model ⇒ Transform the considered model

A Modal Logic for Graph Rewriting

◮ G |

= φ

◮ G!R |

= φ where G!R is the normal form of G

◮ G!R |

= φ iff G | = [R∗]φ

A Modal Logic for Graph Rewriting : Lgr

Language

◮ Formulas :

φ ::= p |⊥| ¬φ | φ ∨ φ | [α]φ

◮ Actions :

α ::= a | α∗ | α; α | α ∨ α | modifiers. [α]Φ :“After performing” actions α, formula Φ holds.

Modifiers

◮ Add a new node ◮ Add a new label (to current node) ◮ remove a label from the current node ◮ Add the label “a” to the edges going from a Φ-node to a

Ψ-node.

◮ . . . ◮ Graph modifiers :

◮ U ◮ n ◮

n

◮ φ? ◮ (ω :=g φ) ◮ (ω :=l φ) ◮ (a + (φ, ψ)) ◮ (a − (φ, ψ))

Modifiers –Example–

[p :=g⊥][p :=l ⊤](p ∧ [a](¬p ∧ q)) p

a

• a p, q

q ⇒

• a
• a q

q ⇒ p

a

• a q

q

Modal Logic: Lgr

Semantics (informally)

◮ Gr |

= p iff p holds at node r

◮ Gr |

= [a]ϕ iff Gn | = ϕ for all nodes n such that the edge r

a

→ n ∈ G.

◮ Gr |

= [ω :=g ⊥][ω :=l ⊤] ϕ iff Hr | = ϕ, H is obtained from G by tagging the node r by ω (ω does not hold outside node r).

Modal Logic: Lgr

Semantics

◮ Gr |

= [a − (φ, ψ)]ϕ iff Hr | = ϕ, H is obtained from G by erasing the edges n

a

→ m, such that Gn | = φ and Gm | = ψ.

◮ Gr |

= [a + (φ, ψ)]ϕ iff Hr | = ϕ, H is obtained from G by adding the edges n

a

→ m, such that Gn | = φ and Gm | = ψ.

◮ Gr |

= [f?]ϕ iff Gr | = ϕ and f holds at node r.

◮ Gr |

= [ nw]ϕ iff Hnw | = ϕ. H is obtained from G by adding a new node nw.

Examples of Lgr Specified Properties

◮ Class of all a-cycle-free rooted termgraphs.

[ω :=g ⊤][U][ω :=l ⊥][a+]ω

◮ Class of all a-circular rooted termgraphs

[ω :=g ⊥][U][ω :=l ⊤]a+ω.

◮ Class of all (a, b)-binary rooted termgraphs

[ω :=g ⊥][U][ω :=l ⊤][a][π :=g ⊤][(a ∪ b)⋆][π :=l ⊥][U](ω → [b][(a ∪ b)⋆]π).

◮ Let RG(a) = {(n1, n2): the edge n1 a

→ n2 ∈ G}. G | = [ω :=g ⊥][U][ω :=l ⊤][a]¬ω iff RG(a) is irreflexive.

◮ Classes of circular lists, balanced trees, . . .

Hamiltonian Graphs

The following formula expresses the existence of a Hamiltonian cycle. α stands for a1 ∪ . . . ∪ an, where the ai’s are the possible features used in the graph (F = {a1, . . . , an}): ω :=g ⊤; π :=g ⊥; ω :=l ⊥; π :=l ⊤; (α; ω?; ω :=l ⊥)⋆ (π ∧ [U]¬ω).

Decidability

◮ With * and without “nw” : the problem of “model checking”

(G | = Φ) is decidable.

Modal Logic Lgr and Graph Rewriting

Expressing pattern-matching in Lgr Proposition: Let Gr be a term-graph with root r (a distinguished node). There exists a ⋆-free action αG and a

⋆-free formula φG such that for all finite rooted termgraphs G′r ′,

G′r ′ | = αGφG iff there exists a graph homomorphism from G to G′r ′. We define the action αG and the formula φG as follows:

◮ βG = (π0 :=g ⊥); . . . ; (πN−1 :=g ⊥),

(N being the number of nodes in G)

◮ for all non-negative integers i, if i < N then γi G =

(¬π0 ∧ . . . ∧ ¬πi−1)?; (πi :=l ⊤); U,

◮ αG = βG; γ0 G; . . . ; γN−1 G

,

Modal Logic Lgr and Graph Rewriting

We define the formula φG as follows:

◮ for all non-negative integers i, if i < N then ψi G = if Ln(i) is

defined then U(πi ∧ Ln(i)) else ⊤,

◮ for all non-negative integers i, j, if i, j < N then χi,j G = if

there exists an edge e ∈ E such that S(e) = i and T (e) = j then U(πi ∧ Le(e)πj) else ⊤,

◮ φG = ψ0 G ∧ . . . ∧ ψN−1 G

∧ χ0,0

G ∧ . . . ∧ χN−1,N−1 G

.

Modal Logic Lgr and Graph Rewriting

Actions representing the right-hand sides can be expressed by the following elementary formulas :

◮ Action n : f(a1 ⇒ n1, . . . , ak ⇒ nk)

U; πn?; (f :=l ⊤); (a1 + (πn, πn1)); . . . ; (ak + (πn, πnk)).

◮ Action n ≫a m

(a − (πn, ⊤)); (a + (πn, πm)).

◮ Action n ≫ m) (for a-edges)

(λa :=g ⊥); (λa :=g aπn); (a − (⊤, πn)); (a + (λa, πm)).

Modal Logic Lgr and Graph Rewriting

◮ Firing a rule ρ = L → R

βρ = αL; αR

◮ Normal form of graph Gr satisfies ϕ: Let R = ( βρi)

Gr | = [R∗]([R]⊥ ⇒ ϕ)

◮ Rule ρ preserves the property ϕ:

| = (ϕ ⇒ [βρ]ϕ)

Conclussion and perspectives

◮ Admissible termgraphs seem to be a good trade-off to

ensure confluence and efficient strategies

◮ Cloning and algebraic approaches (sesqui-pushout) ◮ Narrowing ◮ Visual Programming and Termgraph Rewriting ◮ Proof Techniques ◮ Applications
